Brand:Yokogawa Electric Item No.:F3YD32-1P Product Origin:Japan Product Dimensions:84.5 x 102 x 28.9 mm Product Weight:0.11 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

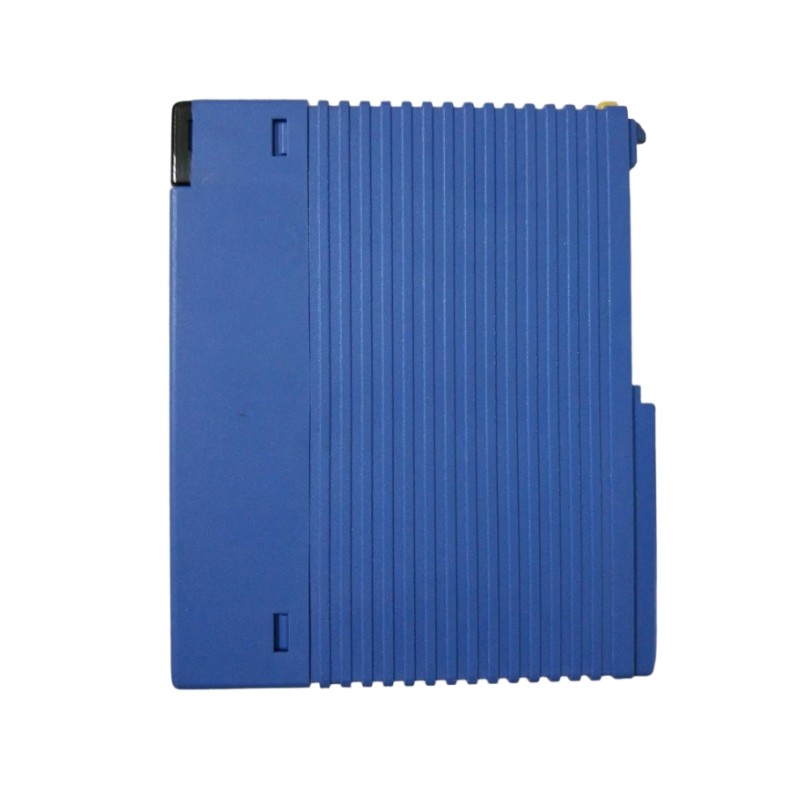

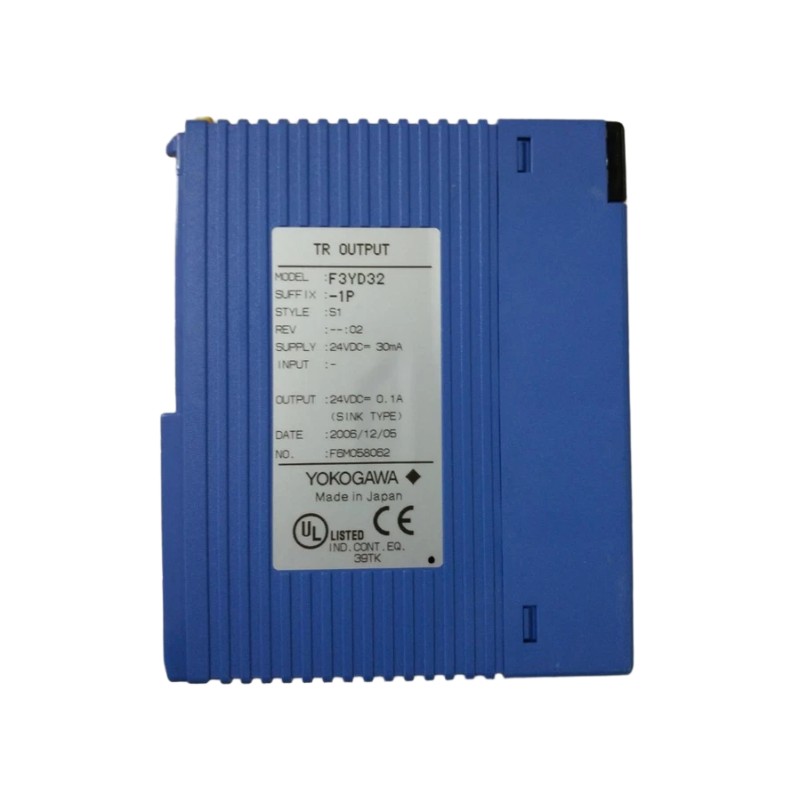

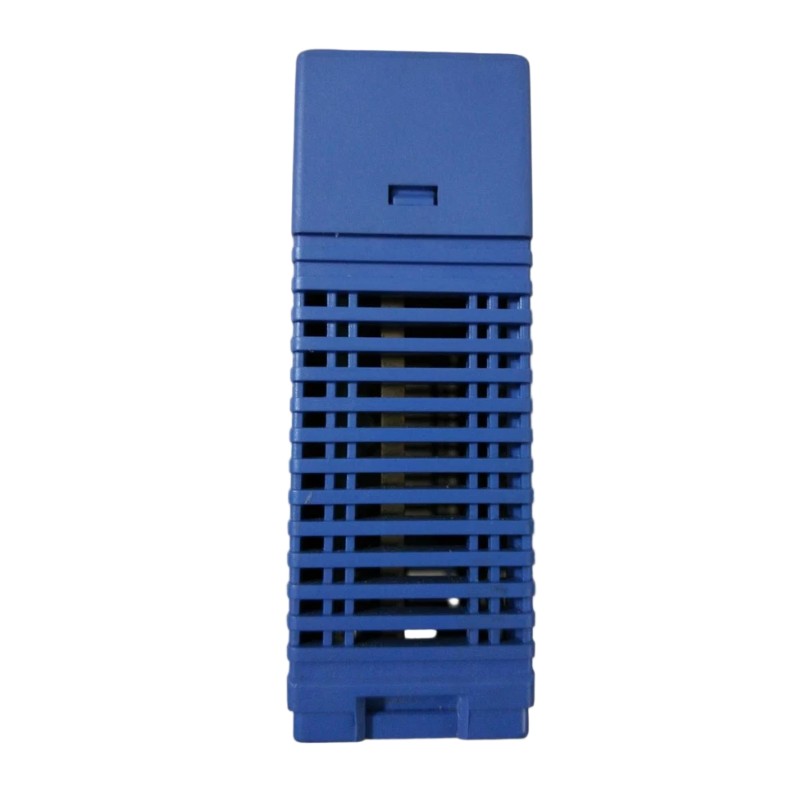

The Yokogawa F3YD32-1P is a 32-point transistor output module designed for FA-M3 programmable logic controller systems. It provides reliable digital output control for a wide range of industrial automation applications, ensuring stable and efficient operation in demanding environments.
With its compact design and high channel density, it is ideal for modern industrial systems that require precise multi-point control without sacrificing space efficiency.
Technical Specifications
Parameter
Specification
Product Model
F3YD32-1P
Product Type
Transistor Output Module
Output Type
Sink-type transistor output
Number of Outputs
32 points
Isolation Method
Photocoupler isolation
Rated Load Voltage
12–24 V DC
Max Output Current
0.1 A per point
Common Configuration
8 points per common
Response Time
1 ms max
Mounting Type
FA-M3 PLC rack module
Operating Environment
Industrial automation systems
Dimensions (W × H × D)
83.2 × 102 × 28.9 mm
Weight
0.11 kg / 0.24 lb
Applications
The Yokogawa F3YD32-1P transistor output module is designed for high-density digital control in FA-M3 PLC systems, enabling fast and reliable switching of industrial field devices. It is widely used in automation environments requiring precise control of multiple output signals simultaneously.
Typical applications include:
High-speed machine automation and sequencing systems
Industrial production line actuator and solenoid control
Conveyor systems and material handling automation
Robot peripheral control in manufacturing environments
General-purpose digital output expansion in PLC-based control systems
Its fast response time and multi-point architecture make it suitable for synchronized multi-channel control in modern automation setups.
Advantages
The F3YD32-1P offers a strong balance of compact design, high channel density, and reliable switching performance, making it a widely used module in industrial control systems.
32-point transistor output for high-density control applications
Sink-type output structure compatible with standard industrial loads
Photocoupler isolation improves noise immunity and system safety
Fast switching response suitable for real-time automation tasks
Compact module design saves valuable PLC rack space
Stable operation under continuous industrial duty cycles
It is especially valued in systems where many output points must be controlled with consistent timing and reliability.
Technical FAQs (10 Technical Questions)
Q1: What type of output does F3YD32-1P use?
It uses transistor sink-type digital outputs.
Q2: How many output channels are available?
It provides 32 independent output points.
Q3: What is the rated load voltage?
It supports 12–24 V DC industrial loads.
Q4: What is the maximum output current per point?
Each channel supports up to 0.1 A.
Q5: Is it electrically isolated?
Yes, it uses photocoupler isolation between internal and external circuits.
Q6: What is the main application of this module?
It is used for controlling relays, solenoids, actuators, and other digital devices.
Q7: Is it suitable for high-speed switching?
Yes, it is designed for fast ON/OFF response in automation systems.
Q8: Can it be used in harsh industrial environments?
Yes, it is built for industrial-grade noise and vibration conditions.
Q9: Does it require external power supply?
It operates within the FA-M3 system architecture with external field supply support.
Q10: What ensures long-term reliability?
Stable transistor switching and optical isolation reduce wear and electrical stress.
