Brand:Yokogawa Electric Item No.:F3YD64-1P Product Origin:Japan Product Dimensions:28.9 x 85.1 x 102 mm Product Weight:0.13 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

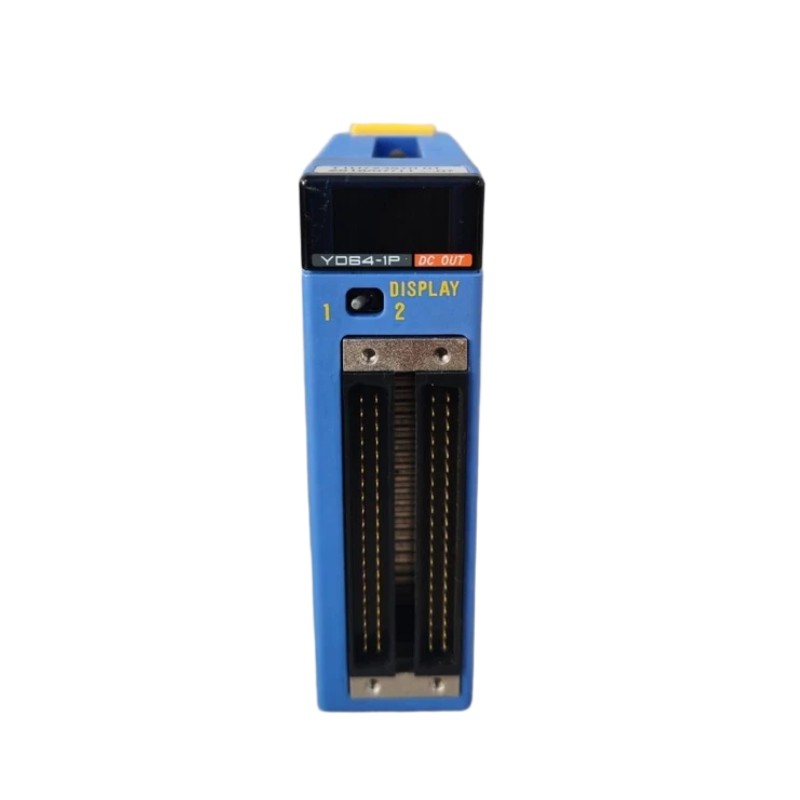

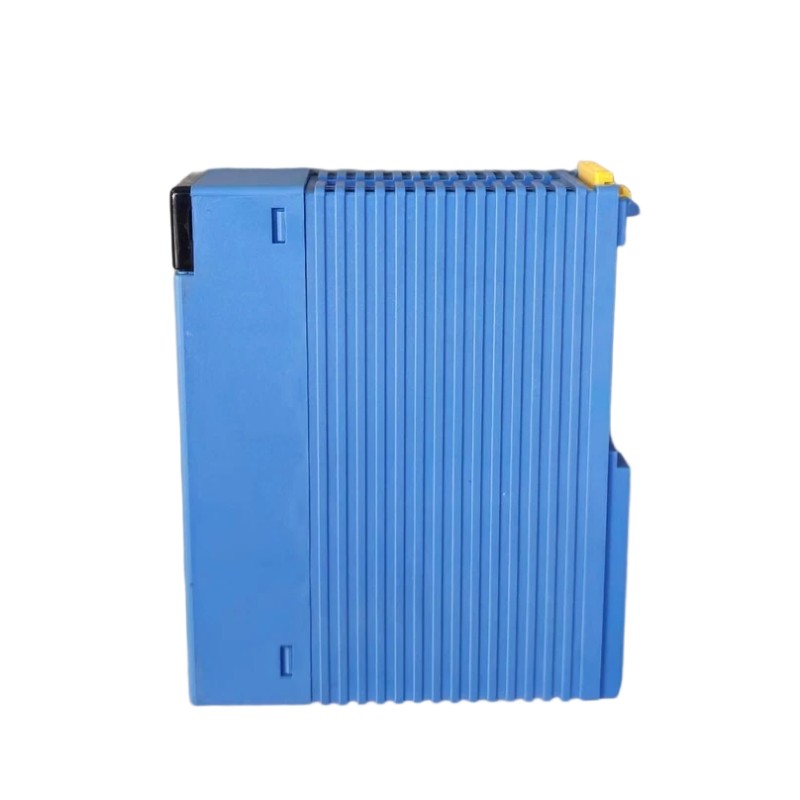

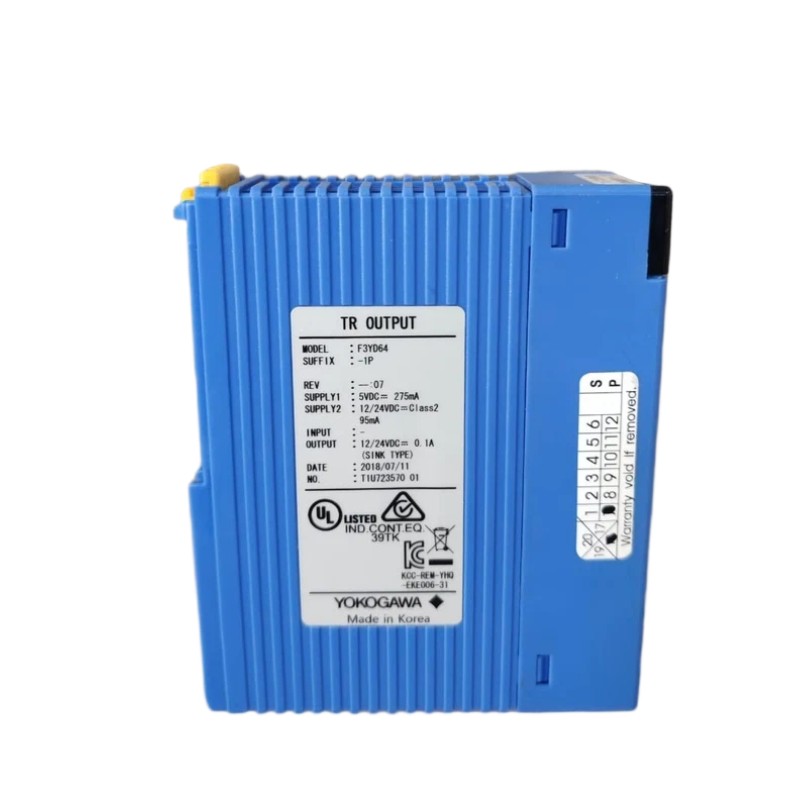

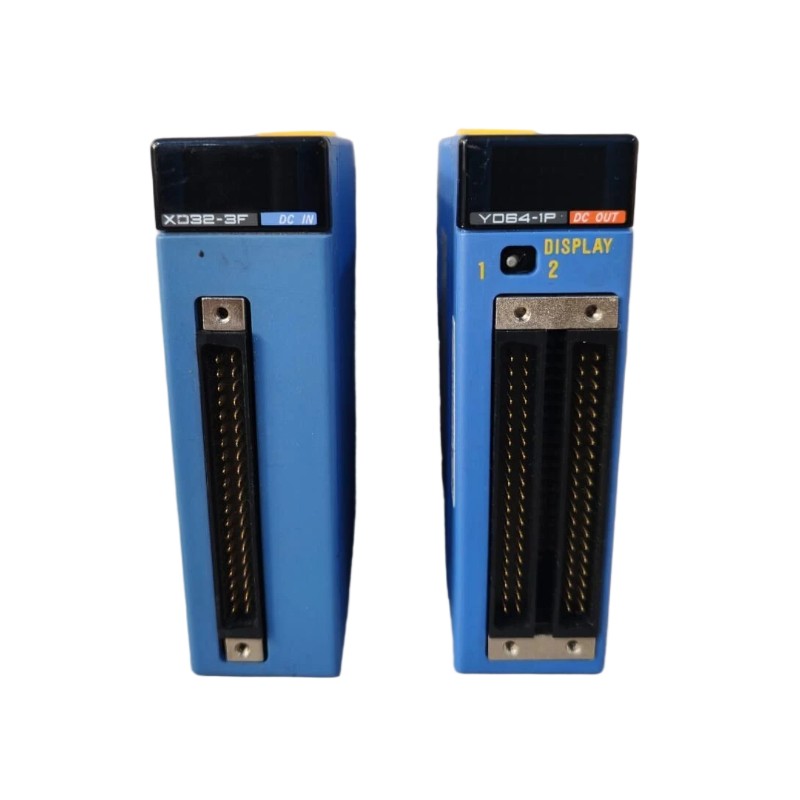

The Yokogawa F3YD64-1P is a 64-point transistor output module designed for FA-M3 programmable logic controller systems. It provides high-density digital output control for complex industrial automation applications, ensuring stable and efficient operation in demanding environments.
With its compact structure and large channel capacity, it is ideal for modern control systems requiring scalable output expansion without increasing cabinet space.
Technical Specifications
Parameter
Specification
Product Model
F3YD64-1P
Product Type
Transistor Output Module
Output Type
Sink-type transistor output
Number of Outputs
64 points
Common Configuration
8 points / common
Isolation Method
Photocoupler isolation
Rated Load Voltage
12–24 V DC
Max Load Current
0.1 A per point / 0.4 A per common
Response Time
≤ 1 ms
External Connection
40-pin connectors
Operating Environment
Industrial automation systems
Dimensions (W × H × D)
28.9 × 85.1 × 102 mm
Weight
0.13 kg / 0.29 lb
Applications
The Yokogawa F3YD64-1P transistor output module is designed for high-density digital control in FA-M3 PLC systems, enabling fast and reliable switching of multiple field devices in industrial automation environments. It is widely used where compact output expansion and stable signal control are required.
Typical applications include:
Large-scale machine automation and sequencing control
High-density production line actuator management
Conveyor and logistics system multi-point control
Robotics and industrial equipment peripheral control
Distributed PLC output expansion in factory automation systems
Its 64-point architecture makes it ideal for complex systems requiring synchronized multi-channel output control.
Advantages
The F3YD64-1P delivers strong performance in compact industrial environments where reliability and channel density are critical.
64-point transistor output enables high-density control integration
Sink-type output suitable for standard industrial DC loads
Photocoupler isolation improves noise immunity and electrical safety
Fast switching response supports real-time automation systems
Compact module design saves valuable PLC rack space
Stable operation in continuous industrial duty environments
It is widely chosen for applications requiring scalable and stable multi-output control.
Technical FAQs (10 Technical Questions)
Q1: What type of output does F3YD64-1P use?
It uses sink-type transistor outputs for DC load control.
Q2: How many output channels are available?
It provides 64 independent output points.
Q3: What is the rated load voltage?
12–24 V DC (operating range 10.2–26.4 V DC).
Q4: What is the maximum load current per point?
0.1 A per point.
Q5: Is the module electrically isolated?
Yes, it uses photocoupler isolation for safe signal separation.
Q6: What system is it designed for?
It is designed for Yokogawa FA-M3 PLC systems.
Q7: What is the response speed?
Typical response time is 1 ms or less for ON/OFF switching.
Q8: Does it support high-speed switching?
Yes, it is optimized for fast industrial automation control.
Q9: What improves its long-term reliability?
Solid-state transistor design with no mechanical wear components.
Q10: Is it suitable for harsh environments?
Yes, it is built for industrial-grade electrical noise and vibration conditions.
