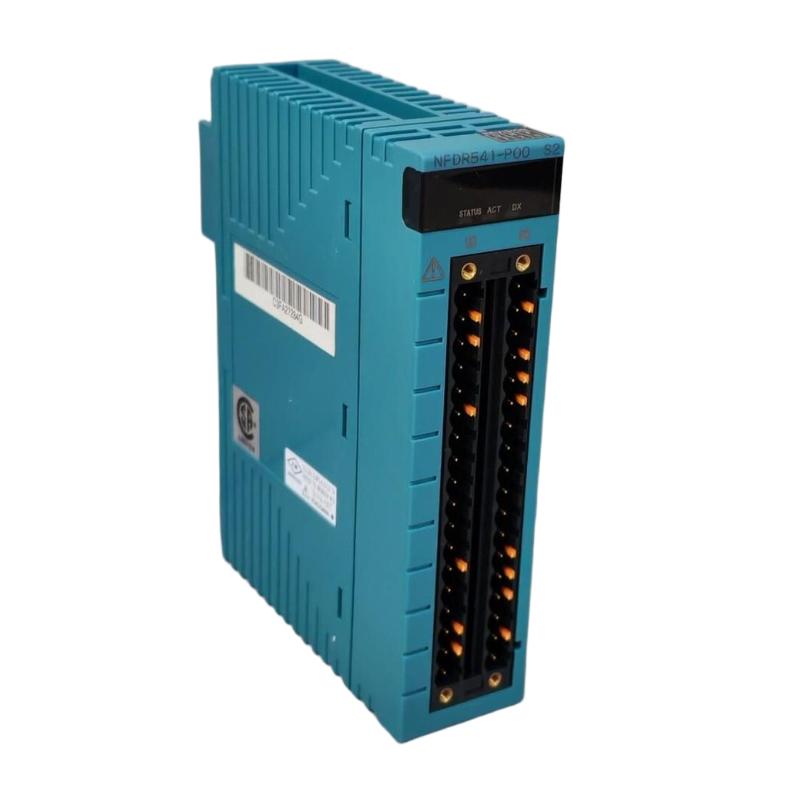

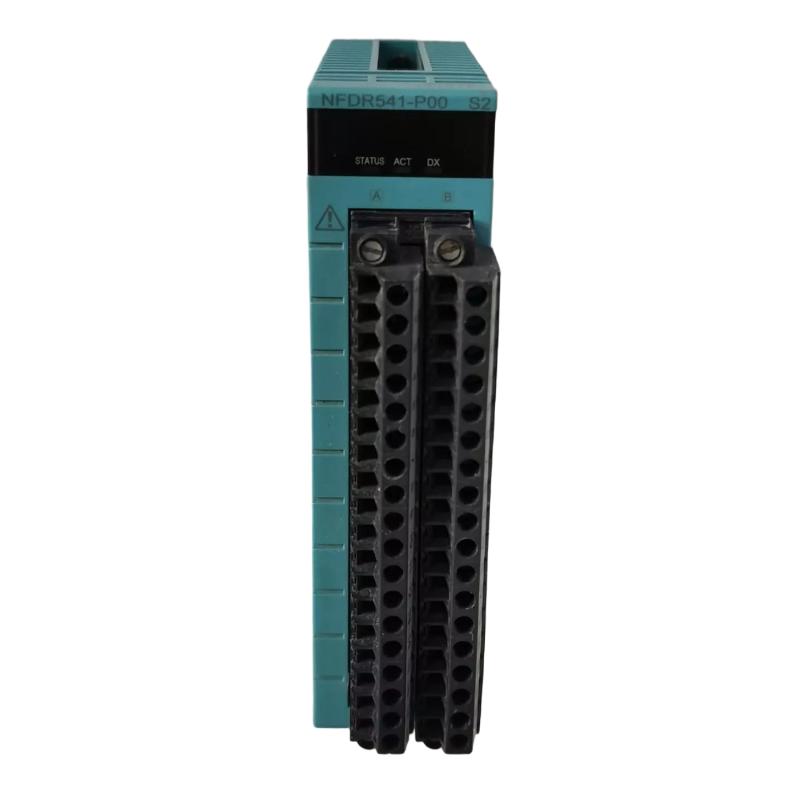

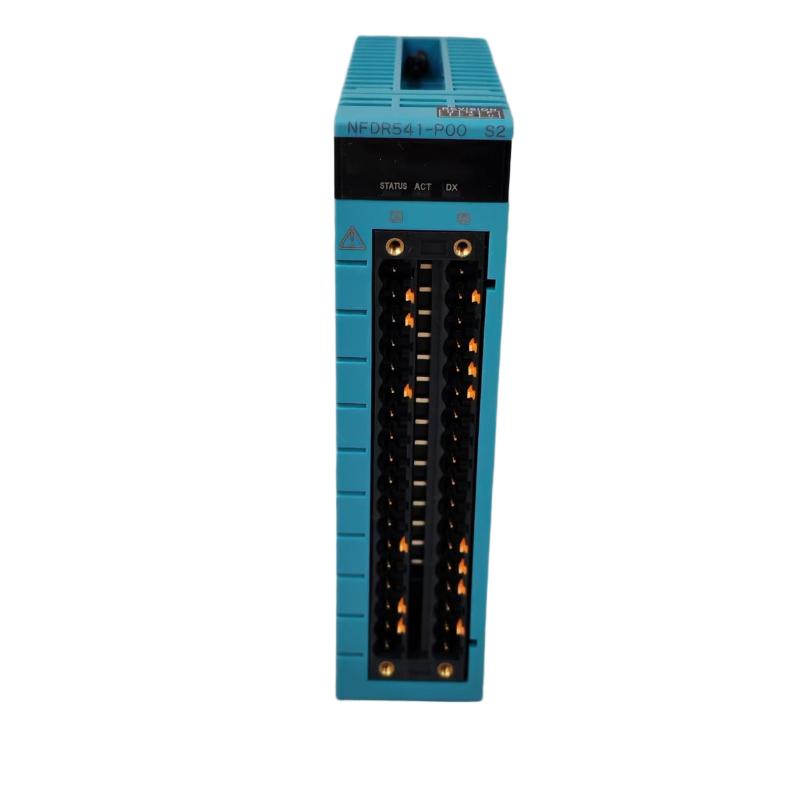

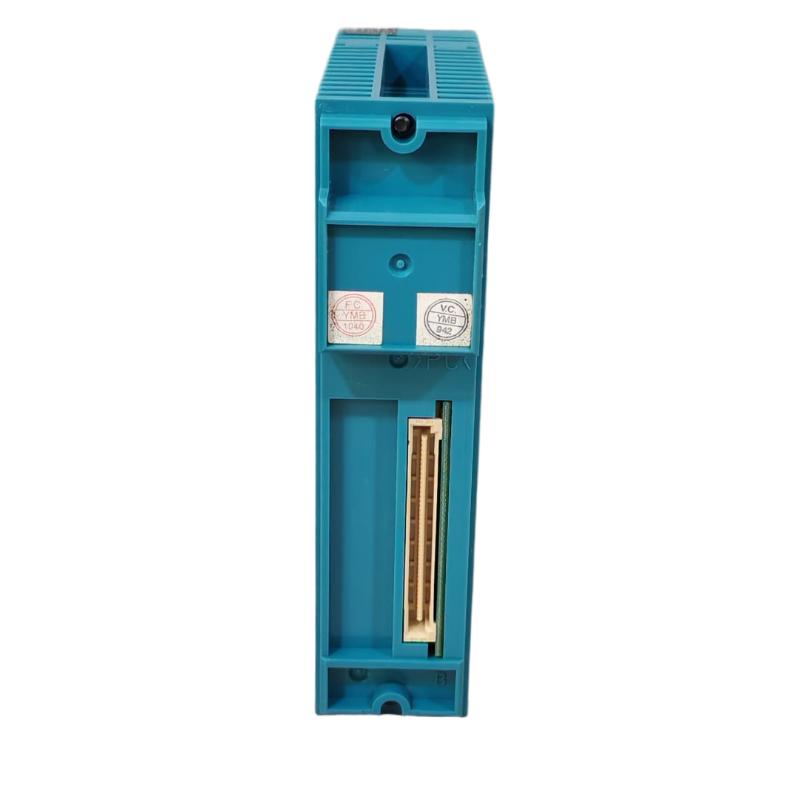

Yokogawa NFDR541-P50 Relay Output Module

Applications

The Yokogawa NFDR541-P50 relay output module is designed for industrial automation systems requiring safe and reliable switching of electrical loads through a distributed control architecture. It is commonly used in STARDOM FCN/FCJ systems where field devices must be controlled via isolated relay contacts.

Typical applications include:

• Solenoid valve and actuator control in process plants
• Motor starter and pump switching in industrial systems
• Alarm and signal device activation in SCADA systems
• Interlocking and safety logic execution in automation panels
• Energy, oil & gas, and petrochemical control systems
• General-purpose high-voltage AC/DC load switching in DCS environments

It is especially suitable for applications requiring galvanic isolation between control logic and field power circuits.

Advantages

The NFDR541-P50 provides robust relay switching performance with strong electrical isolation and industrial-grade durability.

• 16-channel relay output for flexible multi-device control
• Mechanical relay isolation ensures strong galvanic separation
• Supports AC and DC load switching for versatile industrial use
• High withstand voltage improves system safety and reliability
• Hot-swap compatible design in STARDOM architecture
• Stable operation in harsh industrial environments

It is widely used where transistor outputs are insufficient for higher power or AC load control.

Technical FAQs (10 Technical Questions)

Q1: What is the main function of NFDR541-P50?
It provides relay-based digital outputs for controlling industrial field devices.

Q2: How many output channels does it have?
It supports 16 relay output channels.

Q3: What type of load can it switch?
It can switch AC and DC loads such as valves, motors, and alarms.

Q4: What is the output type?
Mechanical relay contact outputs (isolated).

Q5: What is the rated load voltage?
Typically supports up to 250 V AC and 125 V DC (depending on load conditions).

Q6: What is the maximum current per channel?
Up to 2 A per channel for resistive loads.

Q7: Is it electrically isolated?
Yes, each relay provides galvanic isolation between control and field circuits.

Q8: Can it be used in STARDOM systems?
Yes, it is designed for Yokogawa STARDOM FCN/FCJ platforms.

Q9: What ensures long-term durability?
Industrial-grade relay contacts designed for long mechanical and electrical life cycles.

Q10: Is it suitable for harsh environments?
Yes, it is built for continuous operation in industrial automation conditions.
