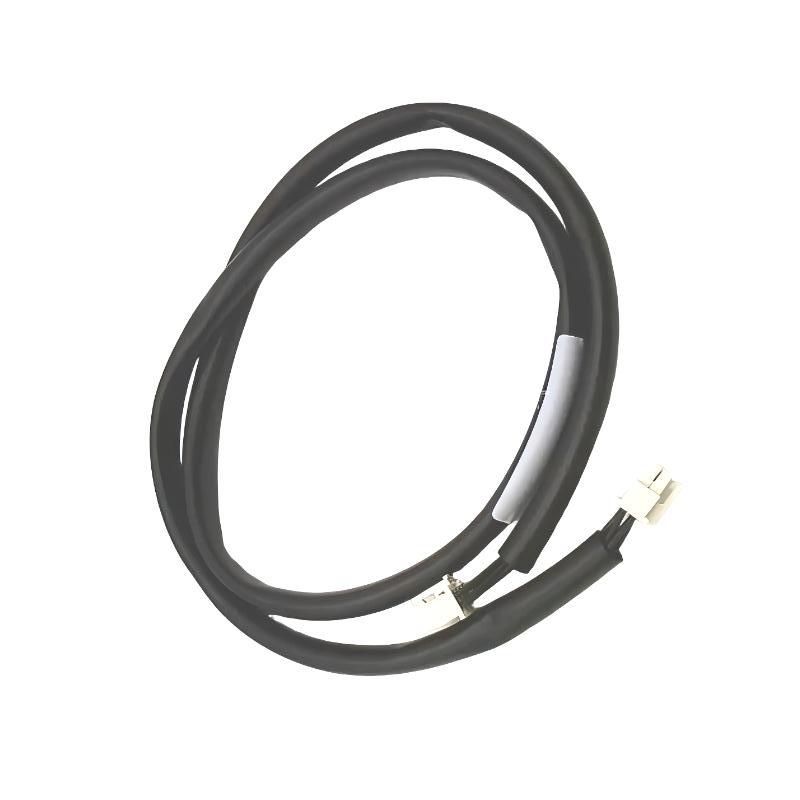

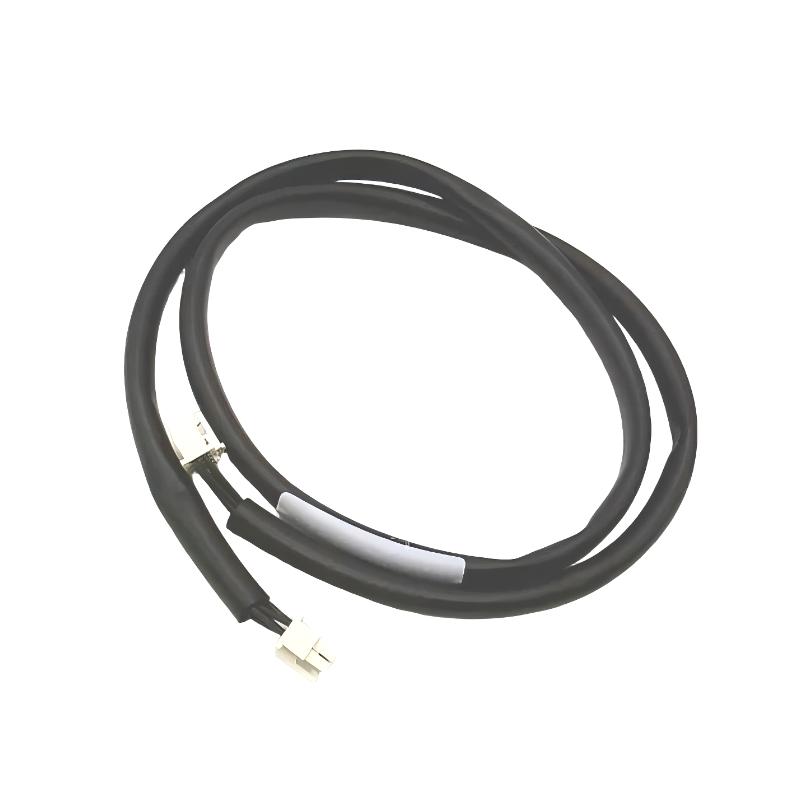

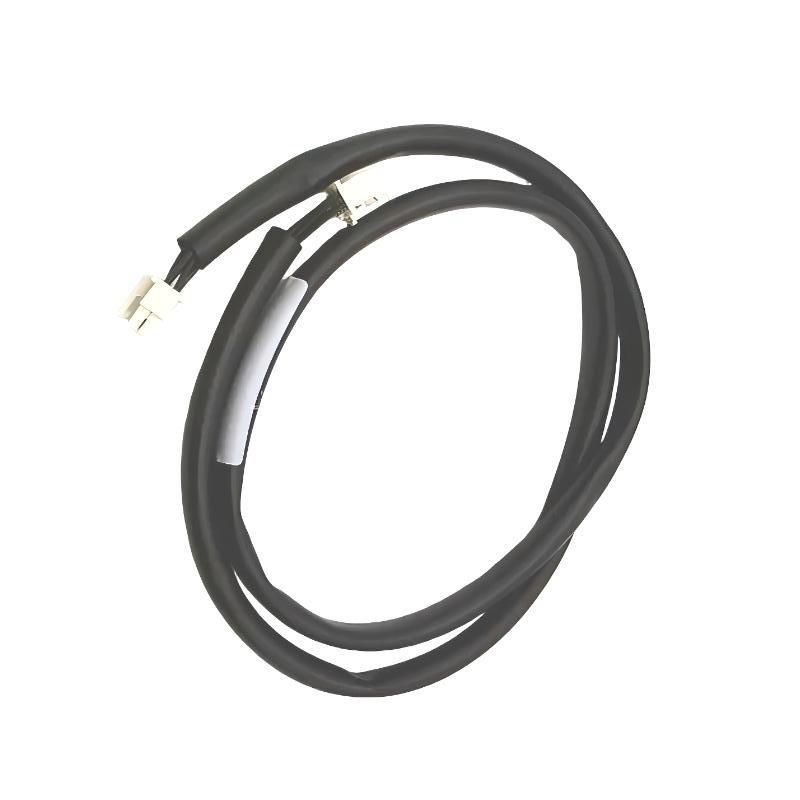

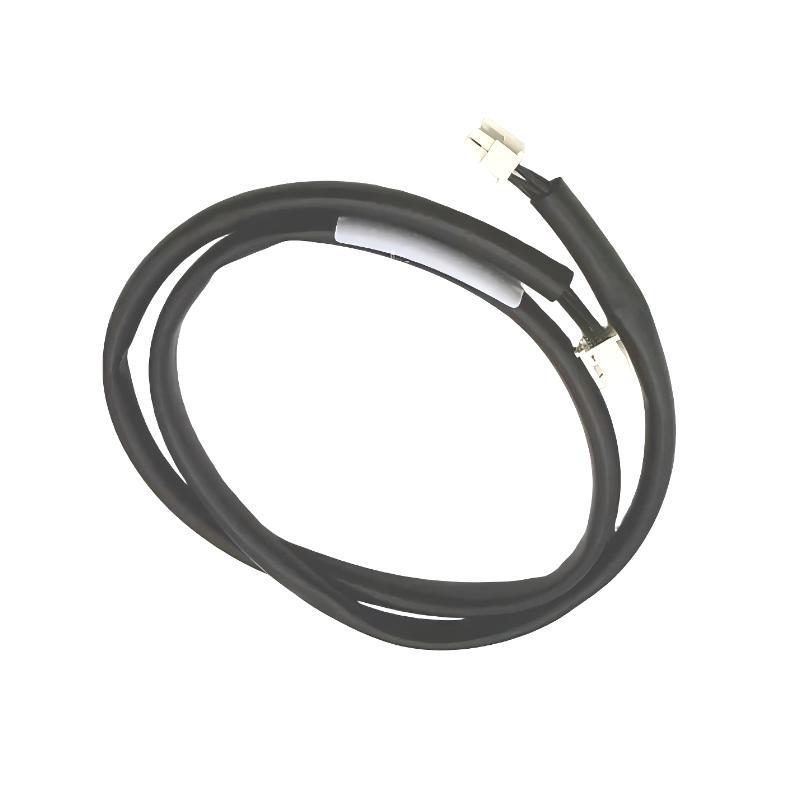

The GE IC695CBL002 is an industrial energy pack connection cable used in the PACSystems RX3i platform. It connects the RX3i CPU (commonly CPE330 series) to the Energy Pack or Capacitor Pack module, enabling reliable power transfer for controlled shutdown and memory backup during power loss.
This cable is a critical part of the RX3i backup architecture, ensuring that the CPU can safely complete RAM-to-flash data transfer and system state preservation when external power is interrupted.
Compared to earlier cable variants, the IC695CBL002 is designed with enhanced shielding, standardized pin configuration, and improved EMI resistance, making it suitable for modern industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson Automation) |
| Model | IC695CBL002 |
| Product Type | Energy Pack / CPU Connection Cable |
| Series | PACSystems RX3i |
| Function | CPU ↔ Energy Pack communication & power link |
| Cable Length | 1.0 m (36 inches) |
| Connector Type | 7-pin keyed industrial connectors |
| Wiring Type | Straight-through end-to-end |
| Shielding | EMI/RFI protected |
| Conductor Material | Tinned copper |
| Insulation | Industrial PVC / Nylon housing |
| Voltage Compatibility | 24 VDC / 125 VDC / 120–240 VAC systems |
| Operating Temperature | 0°C to 60°C |
| Compliance | RoHS compliant |
| Installation | Plug-and-play connection between modules |
The cable also allows the CPU to monitor energy pack status and health signals, ensuring system-level diagnostic visibility.
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size (packaged) | 200 × 115 × 57 mm |
| Cable Length | 1000 mm (1 m) |
| Weight | ~0.45 kg (0.99 lb) |
The compact packaging and lightweight design make it easy to route inside control cabinets while maintaining industrial durability and shielding performance.
Recommended Related Models
- GE IC695ACC400 – Energy Pack module
- GE IC695ACC402 – Advanced energy pack module
- GE IC695ACC412 – Capacitor pack module
- GE IC695CPE330 – RX3i CPU module
- GE IC695CHS012 – RX3i rack/backplane system
Popular GE RX3i Power Backup Ecosystem
- Energy Pack modules (ACC series)
- Capacitor pack modules (ACC412)
- CPU controllers (CPE series)
- Power supply modules (PWR series)
- Connection cables (CBL series)
These components form a complete power retention and controlled shutdown architecture, widely used in mission-critical automation systems.
