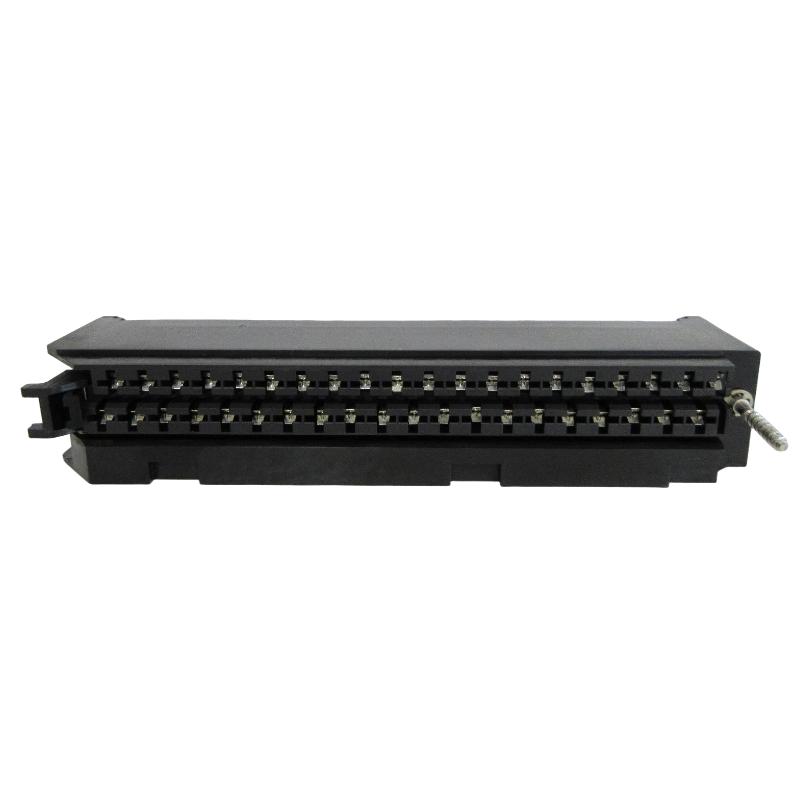

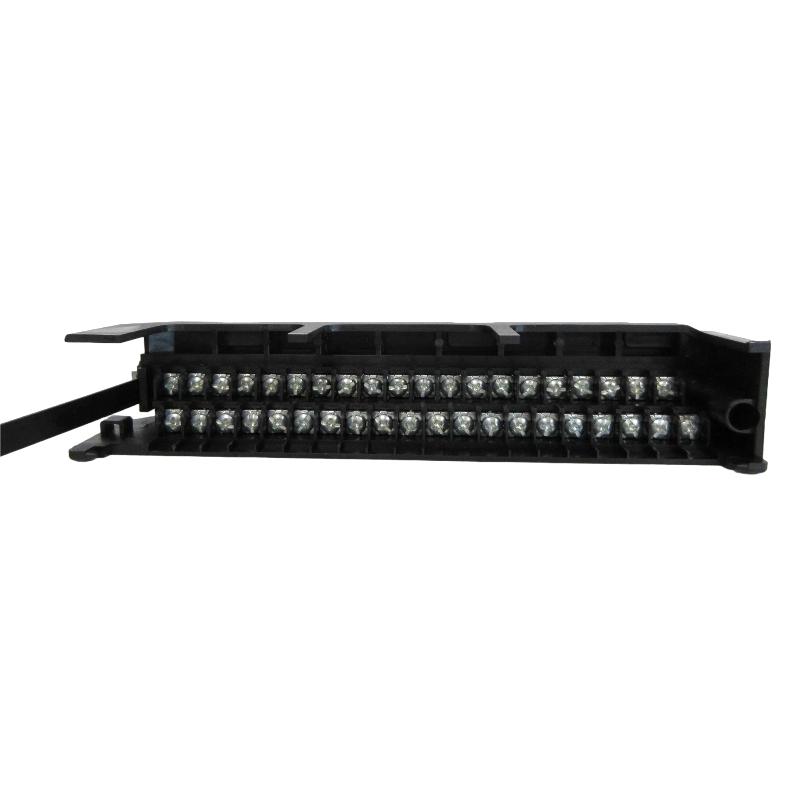

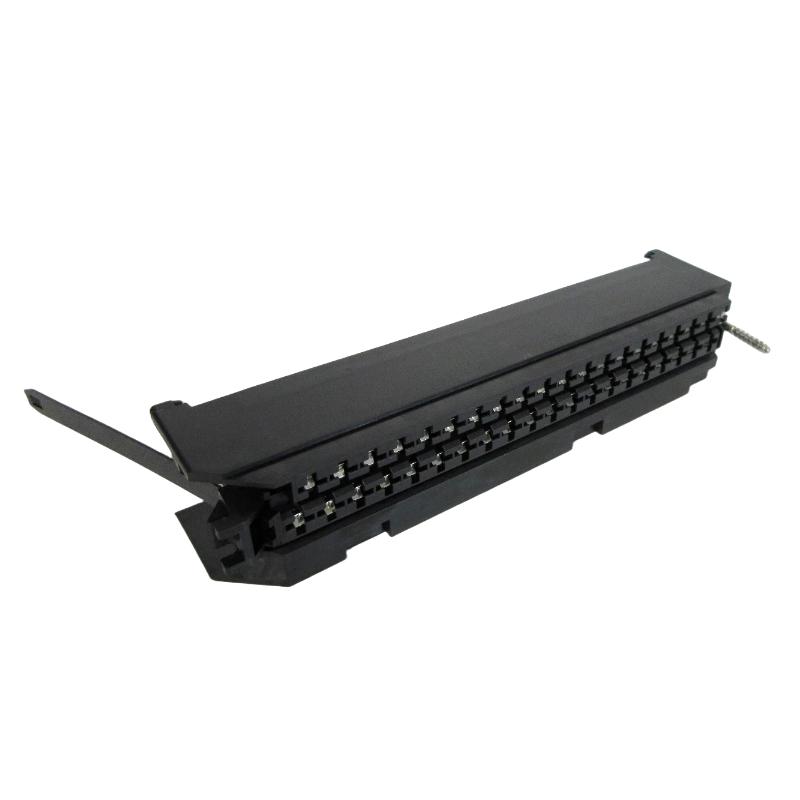

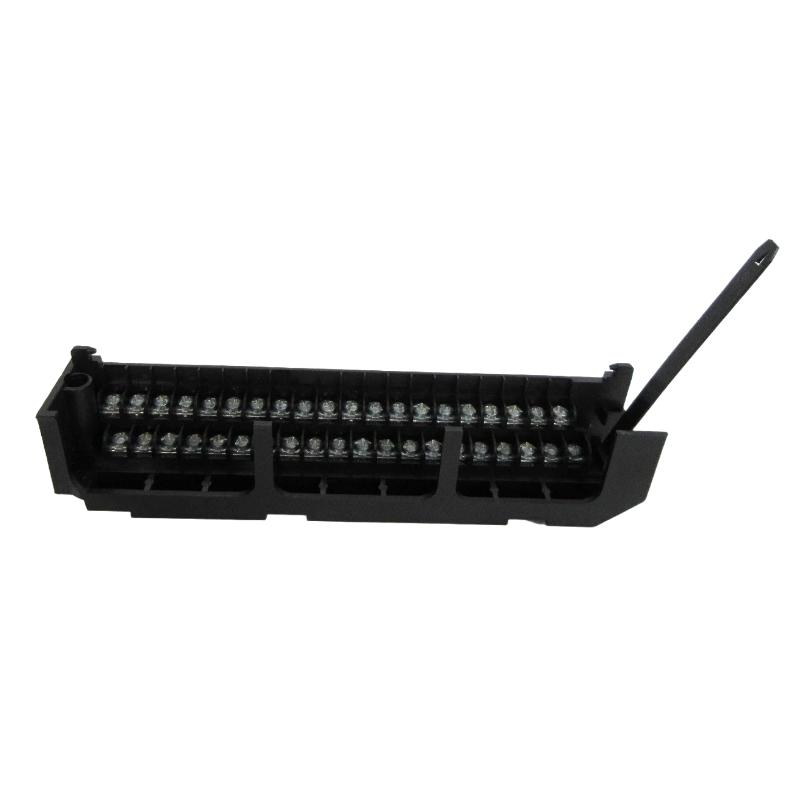

The GE IC697ACC700 is a Series 90/70 terminal block assembly designed for industrial PLC wiring applications. It provides a structured and reliable interface for signal termination within GE Fanuc control systems, ensuring stable electrical connections between field devices and PLC modules.
This component is widely used in legacy automation infrastructures where secure wiring density, signal integrity, and long-term mechanical stability are essential. Its rugged construction supports harsh industrial environments with minimal maintenance requirements.
Technical Specifications
The IC697ACC700 is designed as a high-density terminal interface for Series 90/70 PLC systems.
| Parameter | Specification |
|---|---|
| Model | IC697ACC700 |
| Product Type | Terminal Block / Wiring Assembly |
| System Compatibility | GE Fanuc Series 90/70 |
| Function | Signal termination / field wiring interface |
| Contact Capacity | 40 contacts per block |
| Packaging | Typically 6 units per set |
| Mounting | Panel / rack integration |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | Approx. 120 mm × 80 mm × 50 mm (assembly-dependent variation possible) |
| Weight | Approx. 1.8 – 3.95 kg (depends on configuration and packaging) |
This solid mechanical design ensures secure wiring retention even in high-vibration industrial environments.
Recommended Related Models
For full Series 90/70 system integration or maintenance, the following components are commonly used alongside IC697ACC700:
- GE IC697CPU731 PLC Processor Module
- GE IC697BEM711 Bus Controller Module
- GE IC697ACC701 Lithium Backup Battery
- GE IC697CHS790 Rack System
- GE IC697MDL Series I/O Modules
These components together form a stable and expandable control architecture for industrial automation systems.
