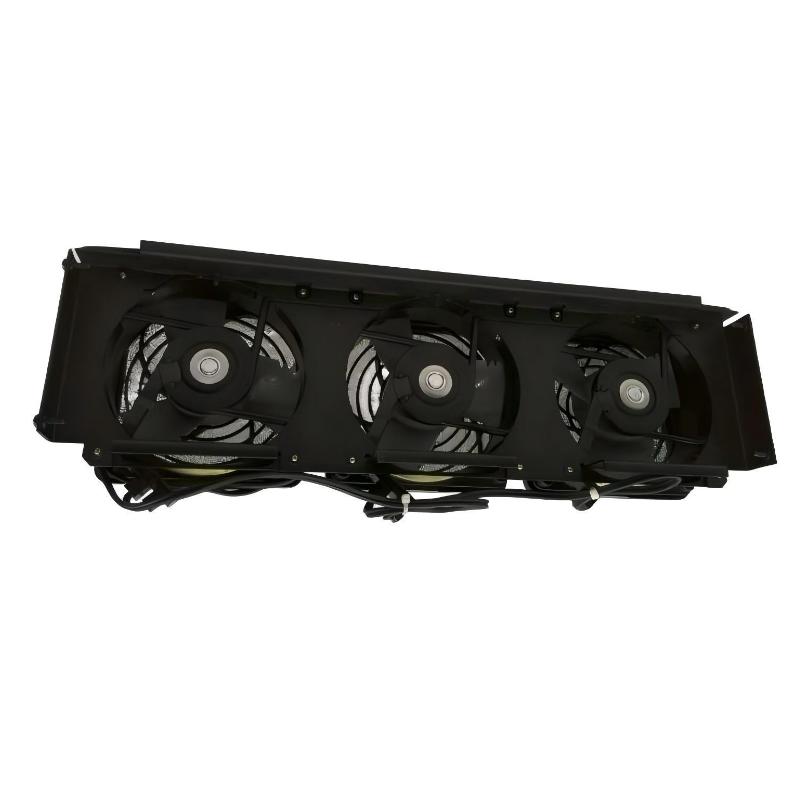

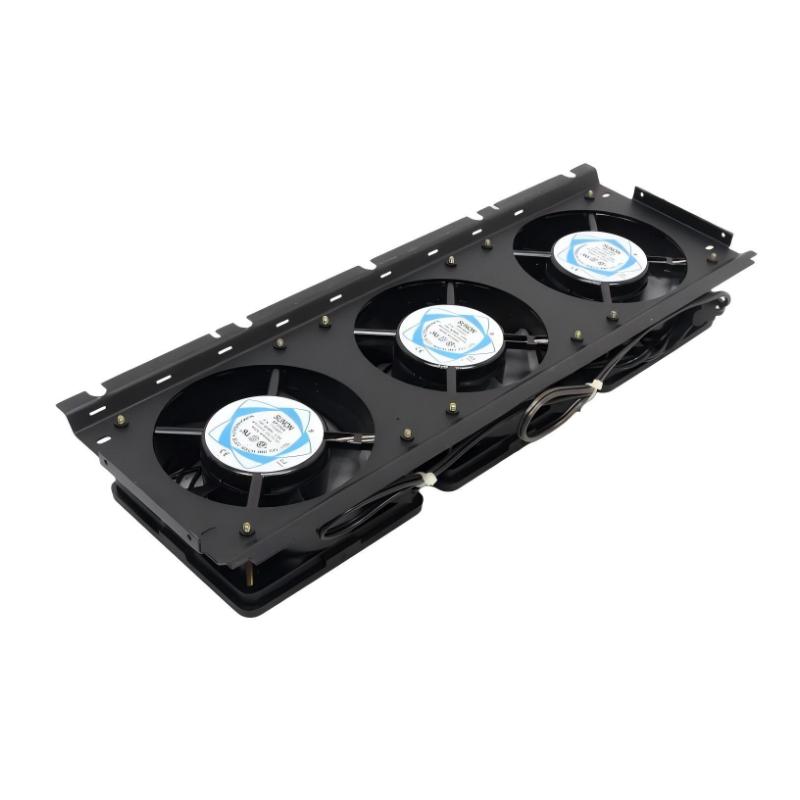

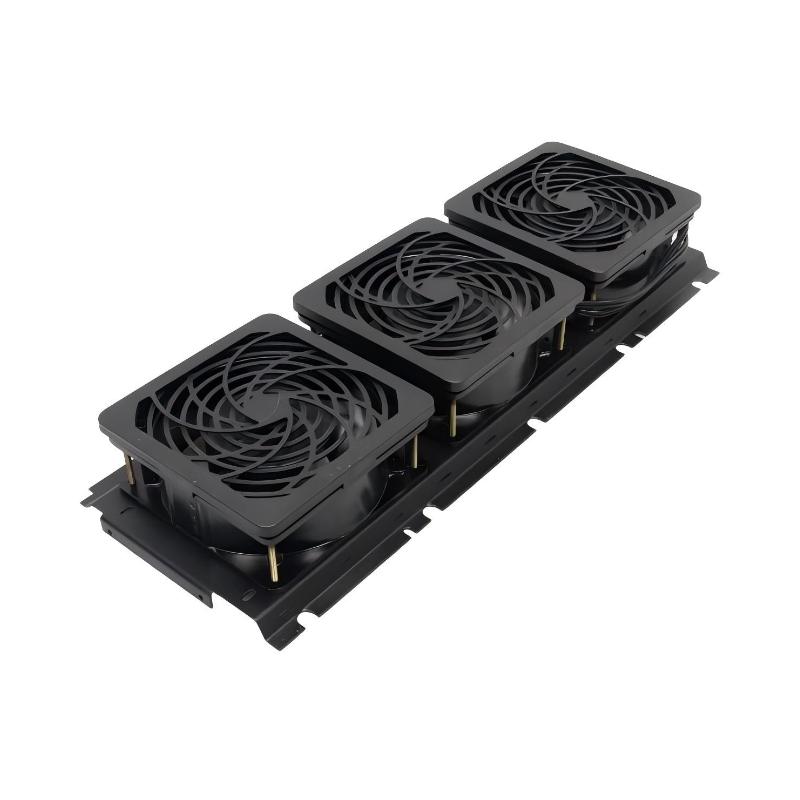

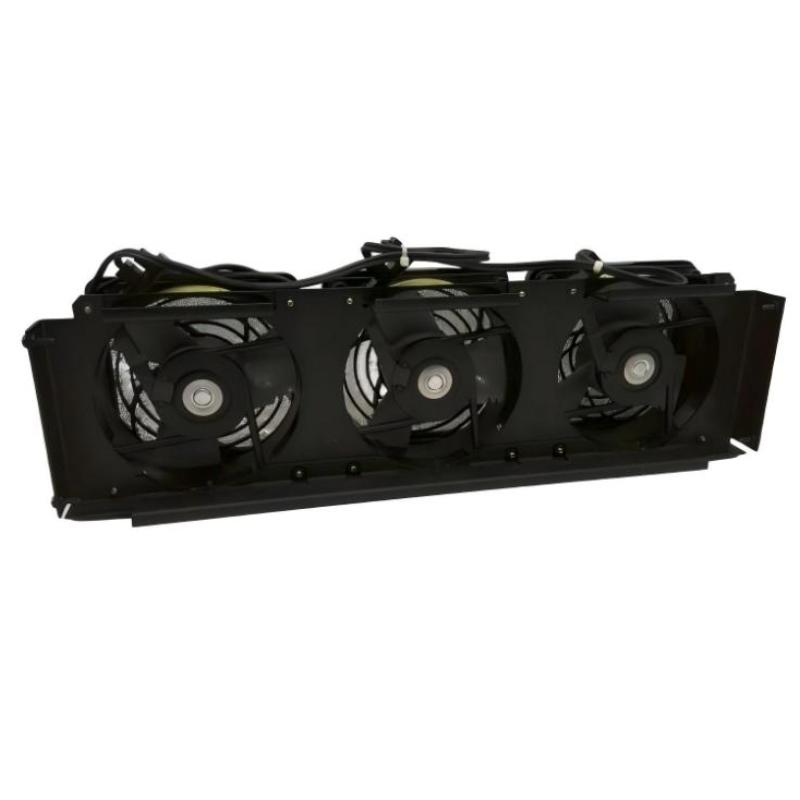

The GE IC697ACC721 is a rack-mounted cooling fan assembly designed for GE Fanuc Series 90-70 PLC systems. Its main function is to provide forced air cooling inside PLC racks, preventing overheating of CPUs, power supplies, and I/O modules during continuous industrial operation.
In high-density control cabinets where thermal load is significant, this module plays a critical role in maintaining system stability, hardware longevity, and operational reliability.
Technical Specifications
The IC697ACC721 is an active cooling solution integrated directly into the PLC rack architecture.
| Parameter | Specification |
|---|---|
| Model | IC697ACC721 |
| Product Type | Rack Fan Assembly |
| System Compatibility | GE Fanuc Series 90-70 |
| Function | Rack cooling / forced air ventilation |
| Number of Fans | 3 fans (parallel wired) |
| Operating Voltage | 120 VAC |
| Power Consumption | 15–17 W per fan |
| Airflow | ~71 CFM per fan |
| Operating Temperature | -28°C to +70°C |
| Installation | Bottom-mounted rack assembly |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | Approx. 135 mm × 152 mm × 58 mm |
| Weight | Approx. 2.6 – 2.7 kg (≈5.9 lbs) |
The low-profile design allows installation at the base of the rack to optimize vertical airflow from bottom to top.
Recommended Related Models
For full Series 90-70 rack system configuration, the following modules are commonly used alongside IC697ACC721:
- GE IC697CHS790 Rack Chassis
- GE IC697CPU772 PLC Processor Module
- GE IC697PWR711 Power Supply Module
- GE IC697BEM713 Bus Interface Module
- GE IC697MDL Series I/O Modules
These components work together to ensure stable control system operation under continuous load conditions.
