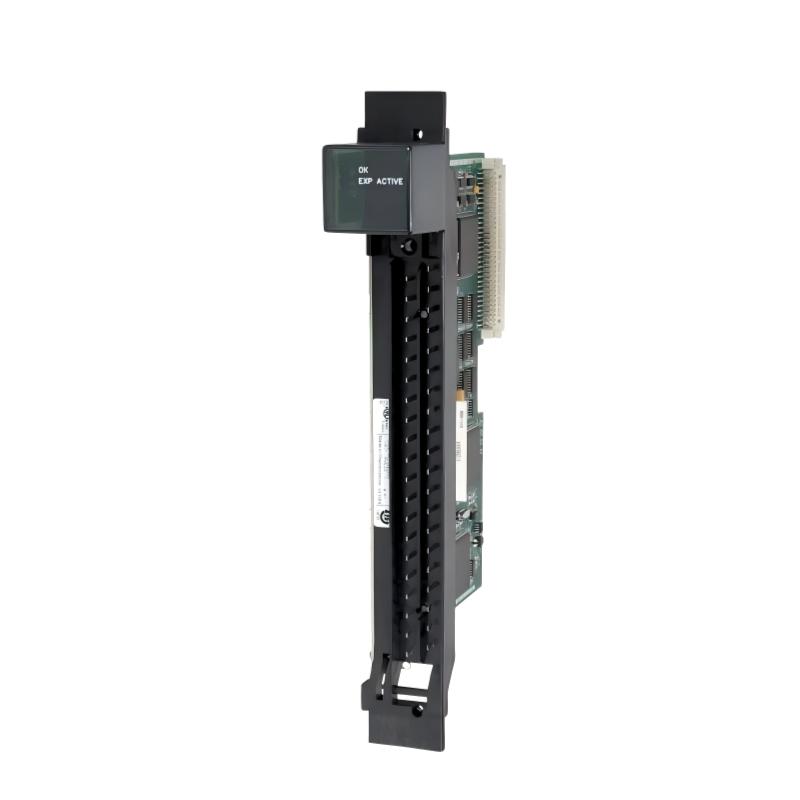

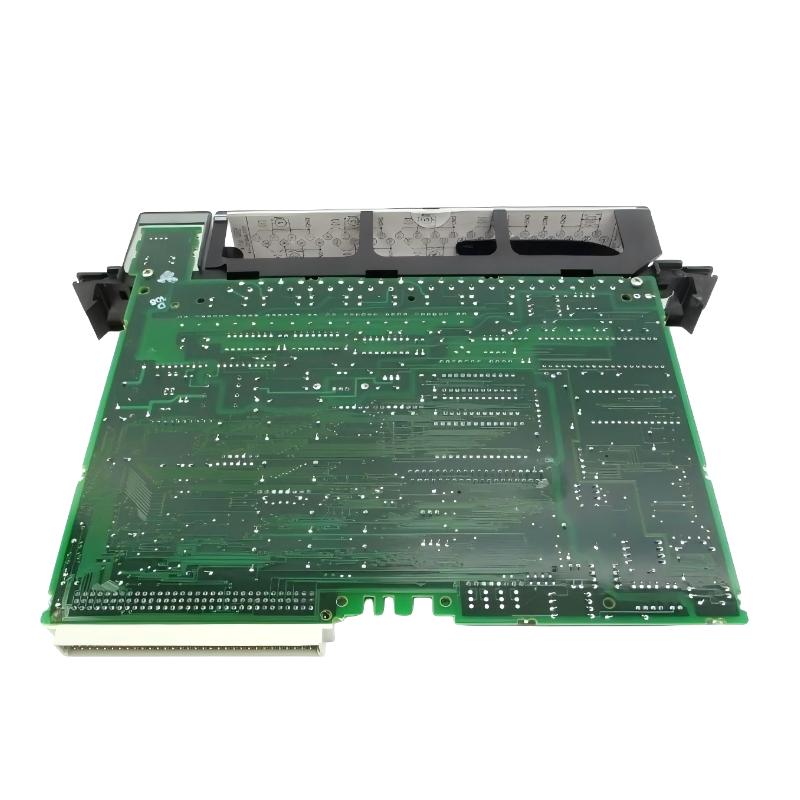

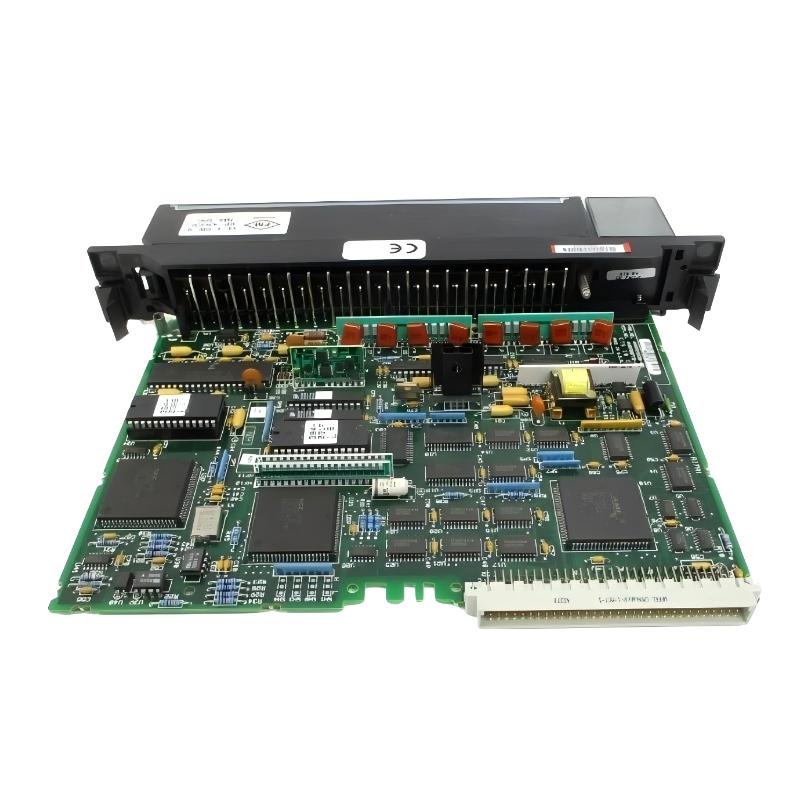

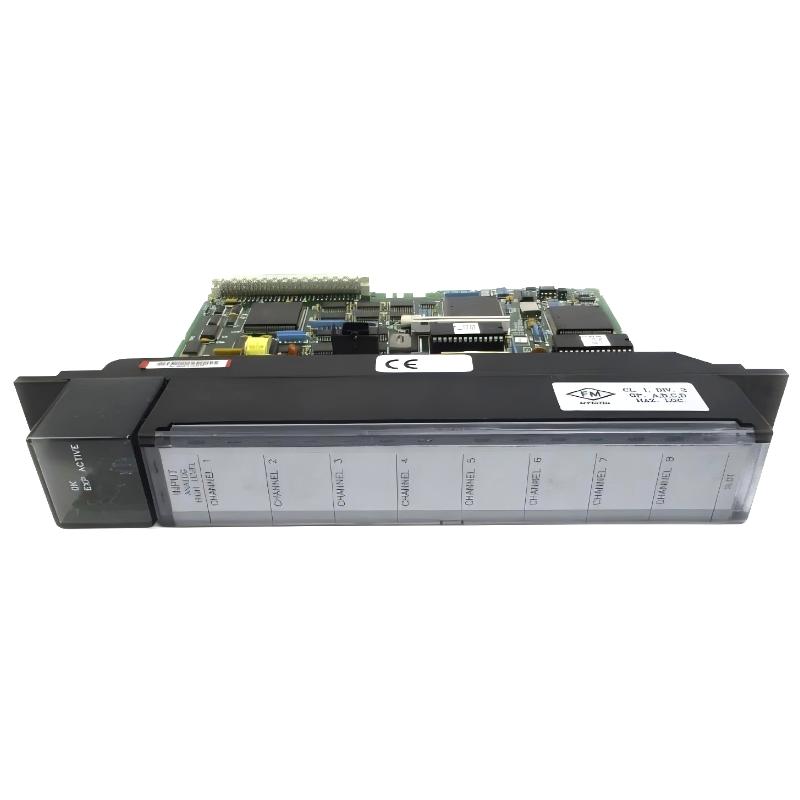

The GE IC697ALG230 is a high-precision analog input (AI) base converter module designed for GE Fanuc Series 90-70 PLC systems. It serves as a critical interface between field instrumentation and the control system, converting real-world analog signals—such as temperature, pressure, and flow—into digital data for processing.
Engineered for demanding industrial environments, this module provides excellent signal accuracy, noise immunity, and flexibility, making it a trusted solution for process control applications that require reliable and stable data acquisition.
Technical Specifications
The IC697ALG230 is built for high-resolution analog signal processing with flexible configuration options.
| Parameter | Specification |
|---|---|
| Model | IC697ALG230 |
| Product Type | Analog Input / Base Converter Module |
| Series | GE Fanuc Series 90-70 |
| Input Channels | 8 differential inputs |
| Input Types | 4–20 mA / ±10 V DC |
| Resolution | 16-bit |
| Input Range | Voltage: -10V to +10V / Current: 4–20 mA |
| Isolation | Channel-to-channel and backplane isolation |
| Update Rate | ~2.4–2.8 ms |
| Expansion Capability | Supports IC697ALG440 / IC697ALG441 expanders |
| Wiring | Differential input configuration |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 292 mm × 44 mm × 222 mm |
| Weight | Approx. 0.5 – 0.82 kg |
Dimensions converted and standardized from manufacturer format
Recommended Related Models
For full analog system configuration, IC697ALG230 is typically used with:
- GE IC697ALG440 Current Expander Module
- GE IC697ALG441 Voltage Expander Module
- GE IC697CPU772 Central Processing Unit
- GE IC697CHS790 Rack Chassis
- GE IC697PWR711 Power Supply Module
These modules together create a scalable and high-performance analog acquisition system.
Popular GE Series 90-70 Modules
- IC697CPU780 – Advanced PLC processor
- IC697MDL740 – Digital input module
- IC697MDL750 – Digital output module
- IC697BEM713 – Bus communication module
- IC697ALG320 – Analog input module
These components are widely used in industrial automation systems with long operational lifecycles.
