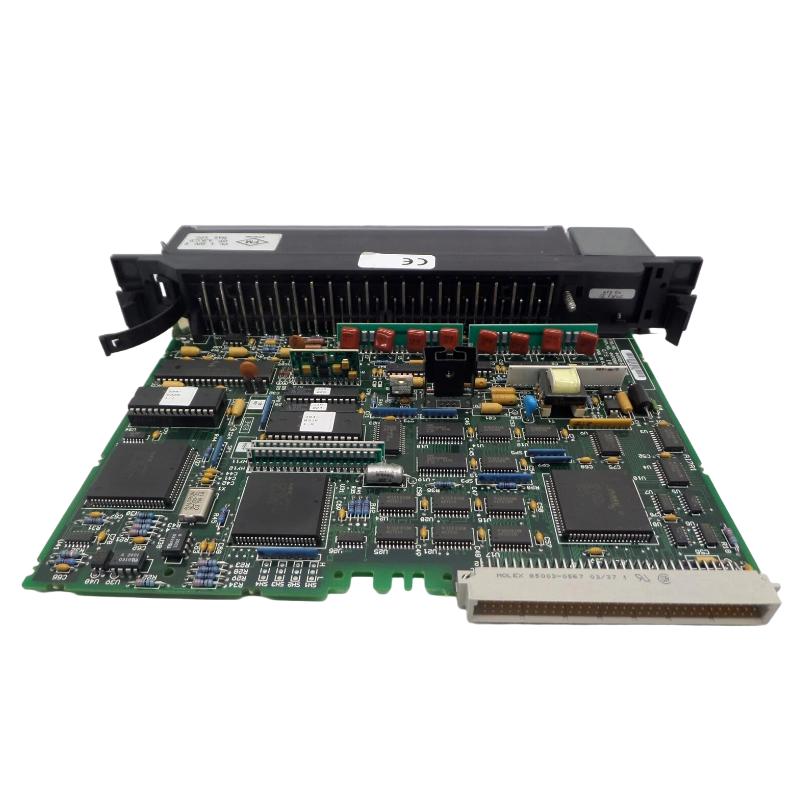

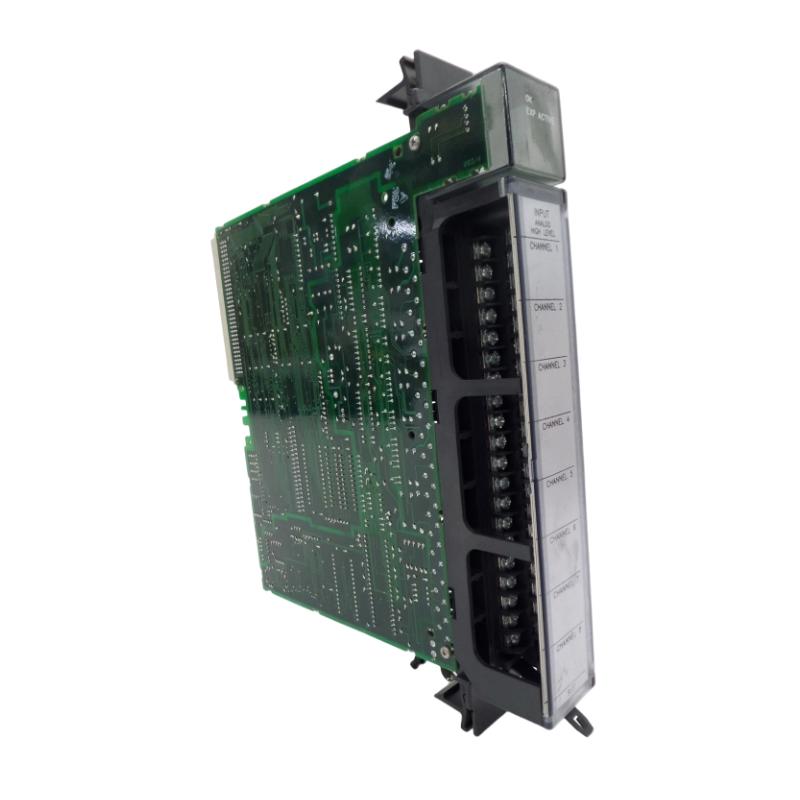

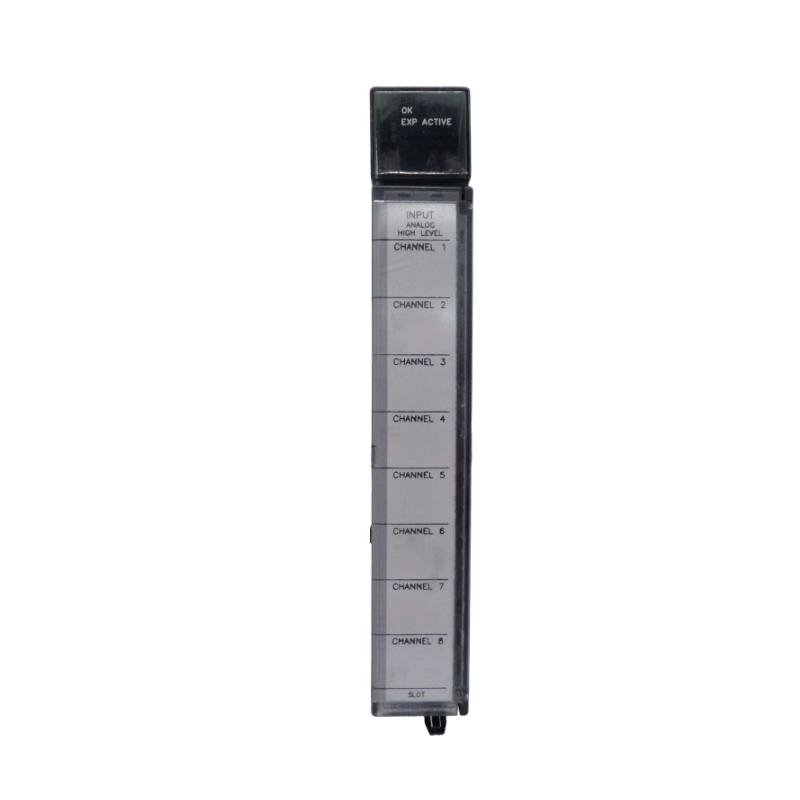

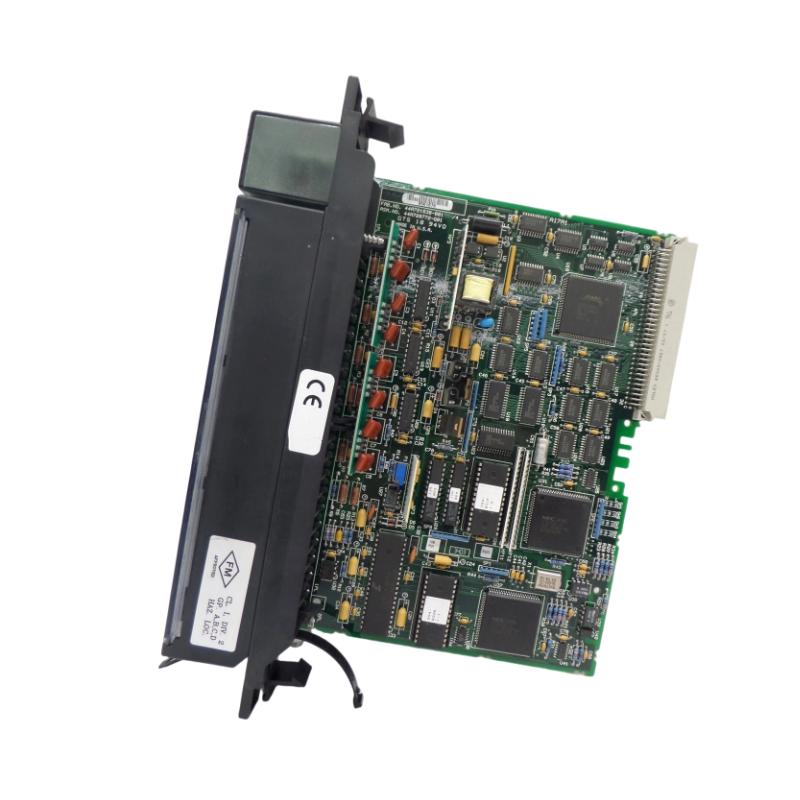

The GE IC697ALG230F is a high-level analog input base converter module (Revision F) developed for GE Fanuc Series 90-70 PLC systems. As an upgraded revision of the IC697ALG230 family, it delivers enhanced stability and long-term reliability for industrial signal acquisition.
Designed for precision-critical environments, this module converts analog field signals—such as temperature, pressure, and flow—into accurate digital values for PLC processing. Its flexible configuration and robust protection design make it a preferred choice for maintaining and upgrading legacy automation systems.
Technical Specifications
The IC697ALG230F offers reliable analog signal processing with industrial-grade performance and flexible input handling.
| Parameter | Specification |
|---|---|
| Model | IC697ALG230F |
| Product Type | Analog Input Base Converter Module |
| Series | GE Fanuc Series 90-70 |
| Input Channels | 8 differential inputs |
| Input Types | 4–20 mA / ±10 V DC |
| Resolution | 14–16 bit (with oversampling enhancement) |
| Input Range | Voltage: -10V to +10V / Current: 4–20 mA |
| Update Rate | ~2.4–2.8 ms |
| Power Supply | +5V DC (backplane) |
| Configuration | Software configurable (no DIP switches) |
| Protection | Overvoltage and transient protection |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | Approx. 292 mm × 46 mm × 229 mm |
| Weight | Approx. 0.5 – 0.66 kg |
(Data standardized from multiple supplier specs: 29.2 cm × 4.6 cm × 22.9 cm)
The slim vertical rack design ensures efficient use of cabinet space while maintaining strong mechanical stability.
Recommended Related Models
For building a complete analog acquisition system, the IC697ALG230F is commonly used with:
- GE IC697ALG440 Current Expander Module
- GE IC697ALG441 Voltage Expander Module
- GE IC697CPU772 Central Processing Unit
- GE IC697CHS790 Rack Chassis
- GE IC697PWR711 Power Supply Module
These modules enable scalable analog input configurations for complex control systems.
