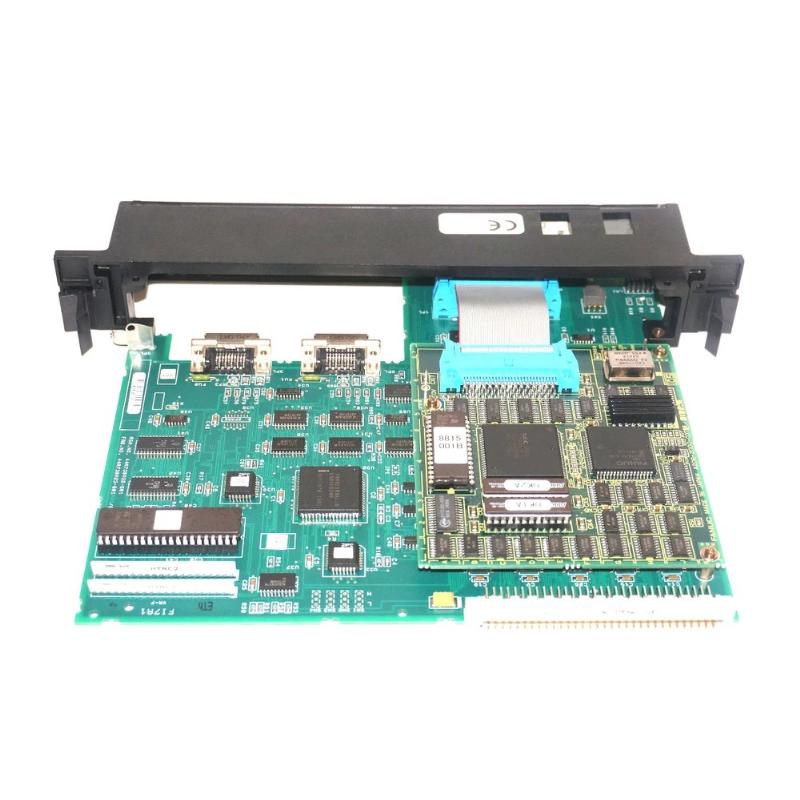

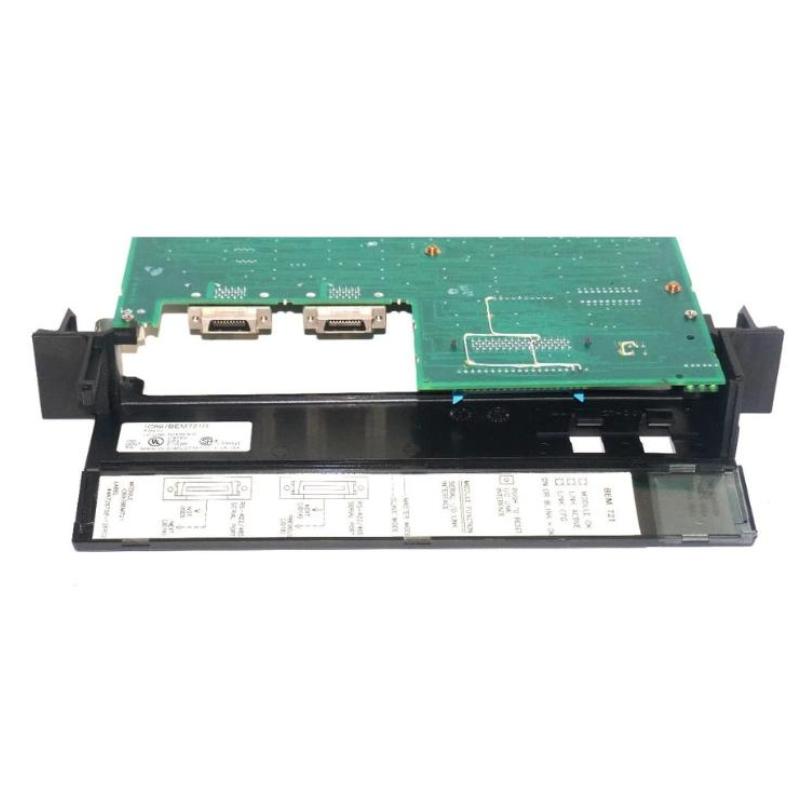

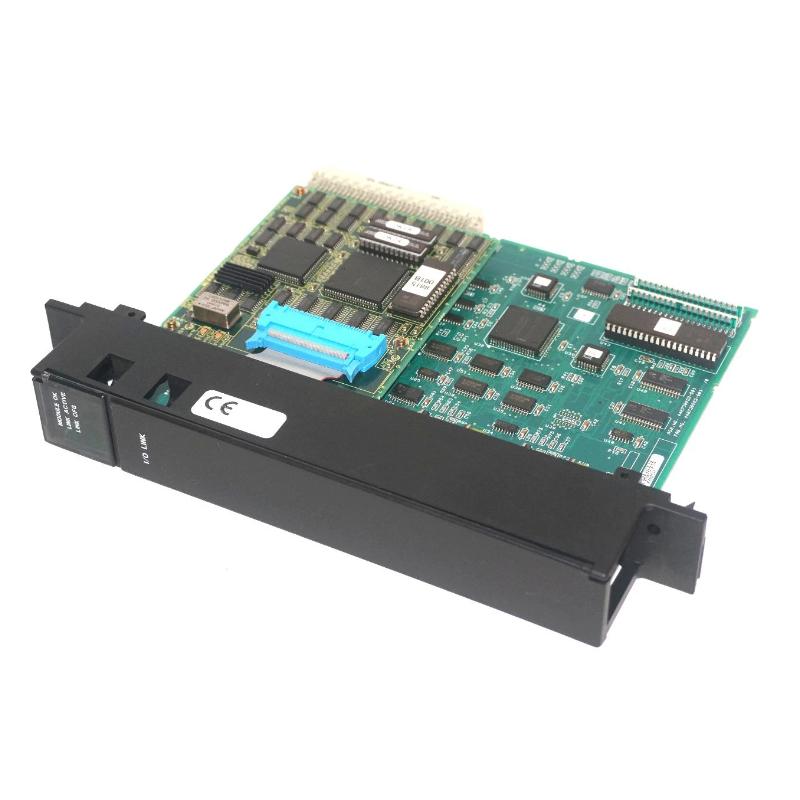

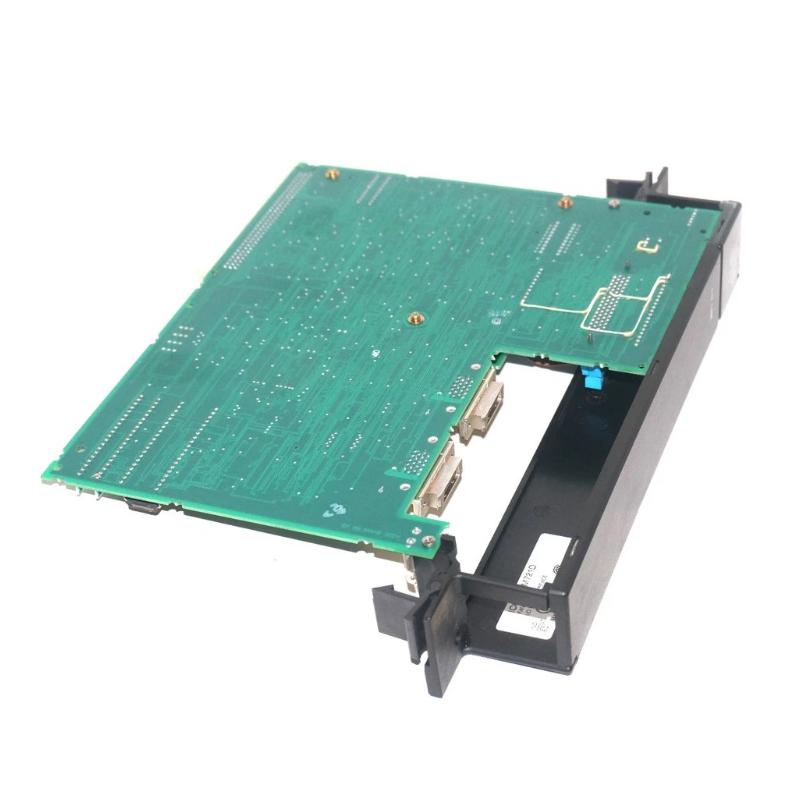

The GE IC697BEM721 is a Series 90-70 I/O Link Interface Module designed for high-speed serial communication between GE Fanuc PLC systems and external I/O or CNC devices. It enables a master PLC to exchange real-time data with multiple slave devices through the proprietary GE Fanuc I/O Link network.
This module is widely used in distributed automation systems where fast deterministic communication, CNC integration, and multi-device coordination are required. It plays a critical role in extending PLC control beyond local racks into broader industrial networks.
Technical Specifications
The IC697BEM721 provides robust high-speed I/O link communication for complex industrial systems.
| Parameter | Specification |
|---|---|
| Model | IC697BEM721 |
| Product Type | I/O Link Interface Module |
| Series | GE Fanuc Series 90-70 |
| Function | High-speed serial I/O communication |
| Protocol | GE Fanuc proprietary I/O Link |
| Device Capacity | Up to 1 master + 16 slave devices |
| Data Capacity | Up to 1024 discrete I/O points (master mode) |
| Communication Type | RS-422/RS-485 serial interface |
| Max Cable Distance | ~10 m (up to 100 m with fiber solution) |
| Backplane Current | ~1.3 A @ 5 V DC |
| Diagnostic | LED status indicators |
| Configuration | Software-based setup |
The module supports both master and slave modes, allowing flexible integration into different control architectures.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | Approx. 135 mm × 35 mm × 130 mm |
| Weight | Approx. 0.3 – 0.6 kg |
Its compact single-slot design allows easy installation into standard GE Series 90-70 PLC racks, except Slot 1 which is reserved for CPU modules.
Recommended Related Models
For a complete distributed communication system, IC697BEM721 is commonly used with:
- GE IC697CPU772 Central Processing Unit
- GE IC697BEM713 Bus Transmitter Module
- GE IC697BEM711 Bus Receiver Module
- GE IC697CHS790 Rack Chassis
- GE IC697PWR711 Power Supply Module
These modules together enable scalable multi-rack and multi-device industrial control architectures.
