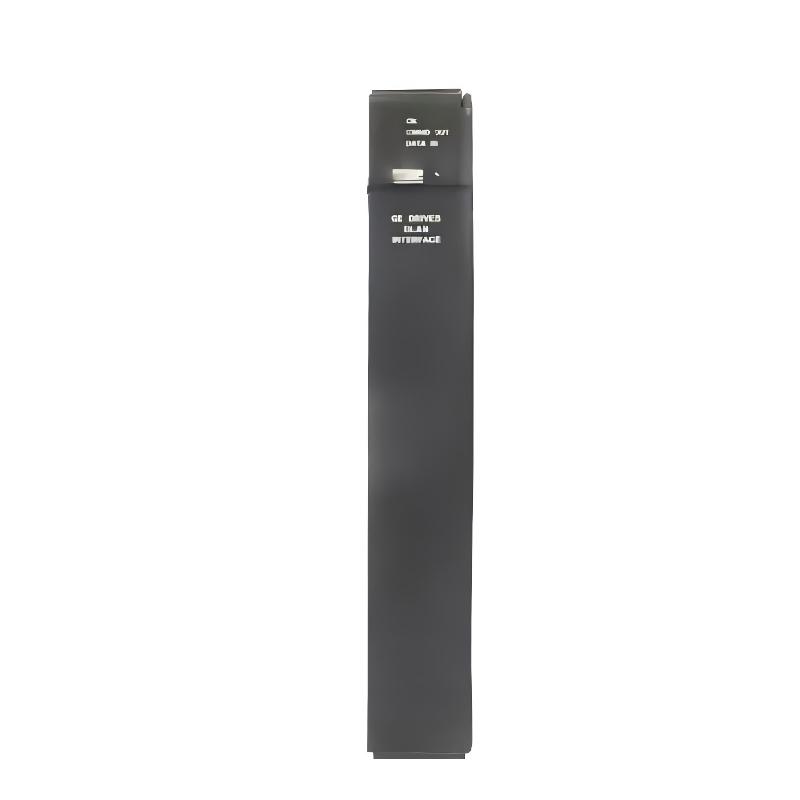

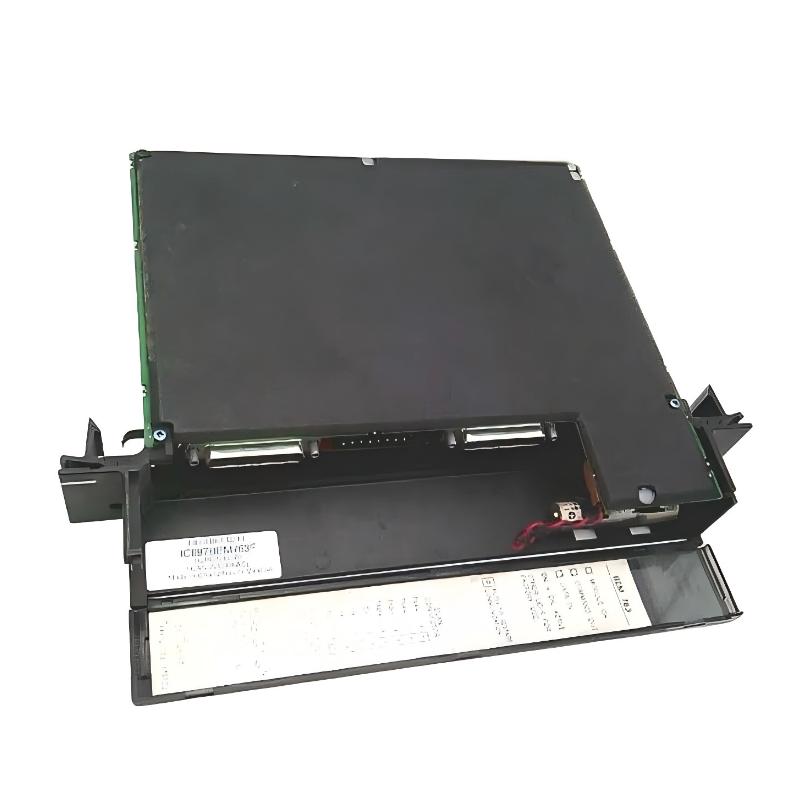

The GE IC697BEM763 is a high-performance Drive Interface Module for GE Fanuc Series 90-70 PLC systems. It is specifically designed to provide seamless communication between PLC controllers and GE drive systems using DLAN / DLAN+ industrial network protocols.
This module plays a critical role in motion control and drive integration, enabling PLC programs to directly control industrial drives such as AC2000, DC300, and DC2000. It is widely deployed in applications where precise motor control, fast data exchange, and reliable network communication are essential.
Technical Specifications
The IC697BEM763 ensures stable and deterministic communication between PLC and drive systems.

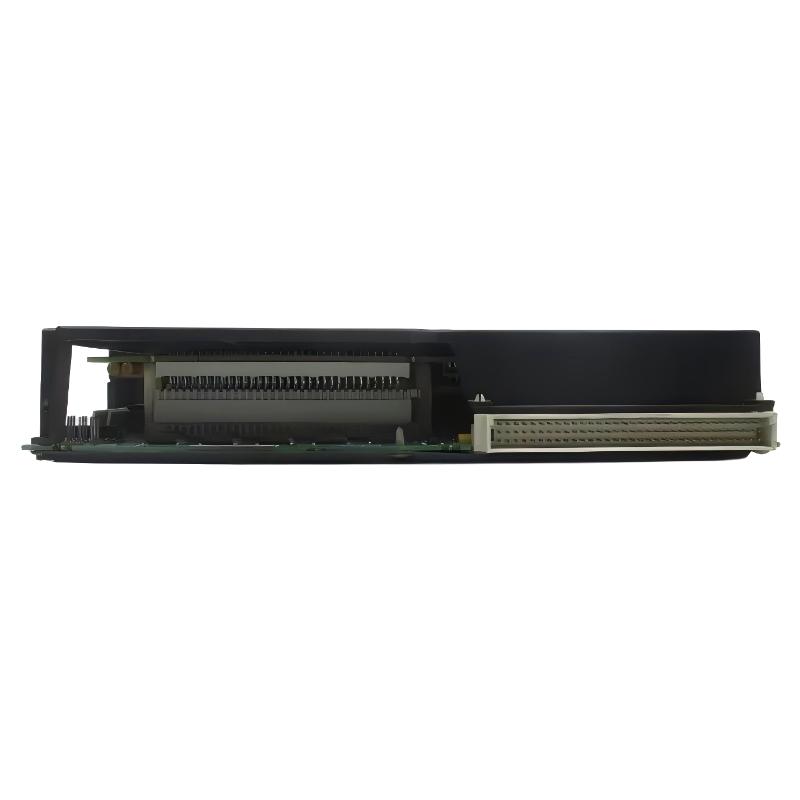

| Parameter | Specification |
|---|---|
| Model | IC697BEM763 |
| Product Type | Drive Interface Module (DLAN / DLAN+ Controller) |
| Series | GE Fanuc Series 90-70 |
| Communication Protocol | DLAN / DLAN+ |
| Function | Drive control & network interface |
| Processor | 80C186 @ 12 MHz |
| Communication Speed | Up to 1 Mbps |
| Rack Support | Up to 6–8 racks (depending on configuration) |
| I/O Capacity | Up to 2000 I/O points |
| Connectors | Dual 37-pin connectors |
| Backplane Current | ~1.3 A @ 5 V DC |
| Indicators | Module OK / Command Out / Data In LEDs |
| Configuration | Software-based |
The module operates either as a DLAN or DLAN+ controller (not both simultaneously), providing flexible deployment in industrial networks.

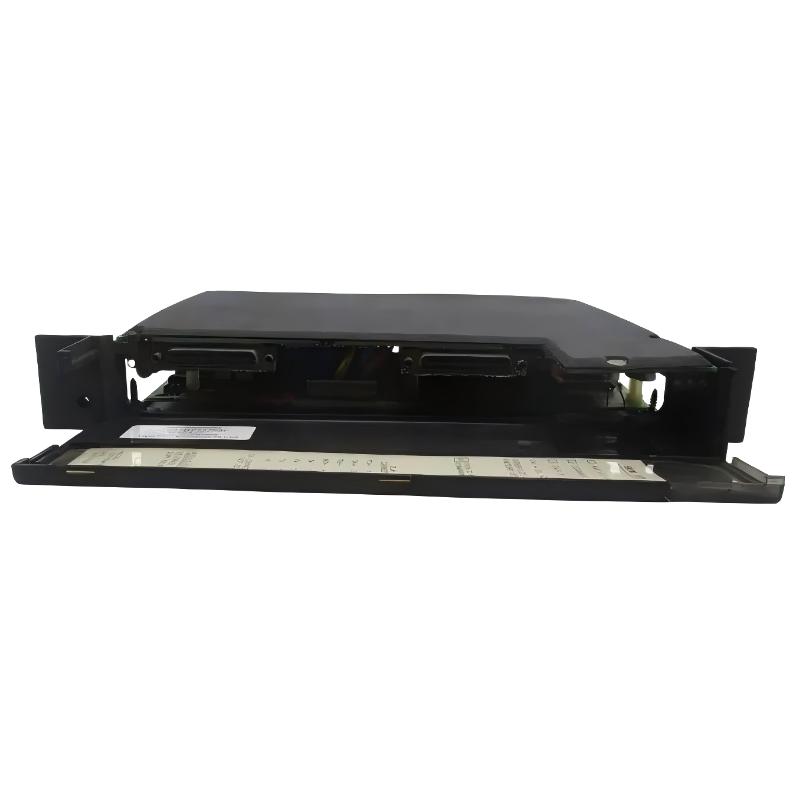

Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | ≈ 292 mm × 44 mm × 229 mm |
| Weight | ≈ 0.79 kg (1.75 lbs) |
The module adopts the standard Series 90-70 rack design, ensuring easy installation and compatibility with existing PLC systems.
Recommended Related Models
To build a complete drive control and communication system, IC697BEM763 is commonly used with:
- GE IC697CPU772 Central Processing Unit
- GE IC697CHS790 Rack Chassis
- GE IC697PWR711 Power Supply Module
- GE IC697BEM761 I/O Interface Module
- GE IC697MDL Series I/O Modules
These modules together enable high-performance PLC-driven motion and process control systems.
Popular GE Series 90-70 Modules
- IC697CPU780 – Advanced PLC processor
- IC697BEM731 – Genius Bus Controller
- IC697BEM733 – Remote I/O Scanner
- IC697ALG440 – Analog input expander
- IC697CMM741 – Ethernet communication module
These modules are widely used in industrial automation systems with long operational lifecycles.
