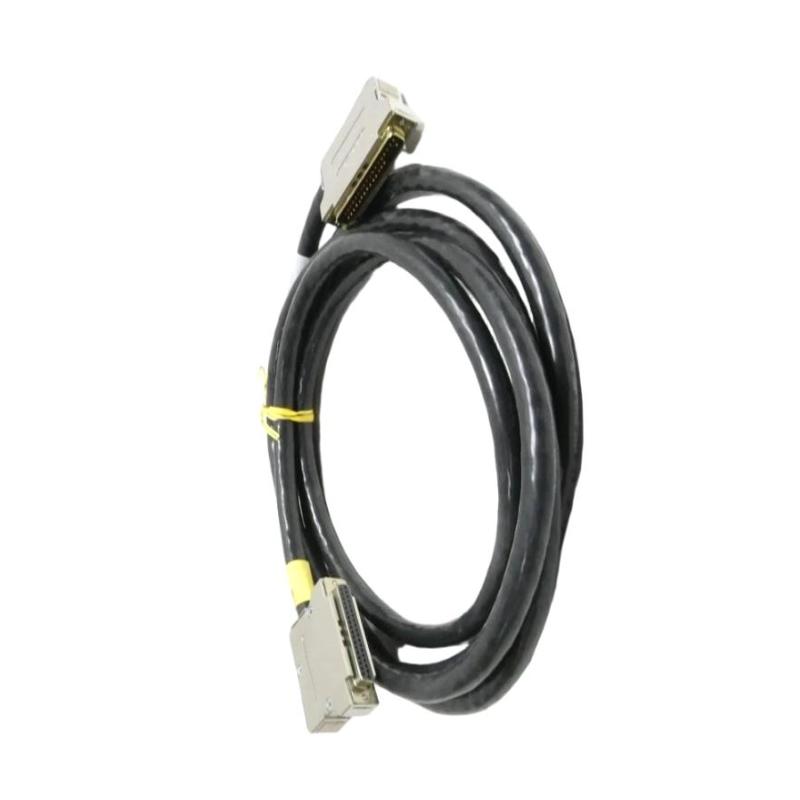

The GE IC697CBL700 is a Power Supply Extension Cable Module designed for GE Fanuc Series 90-70 PLC systems. It allows a single power supply to support two PLC racks simultaneously, making it an efficient solution for expanding system capacity without adding additional power units.
Engineered for reliability and simplicity, this cable kit provides both power distribution and control signal transmission, making it an essential accessory in modular PLC architectures where rack expansion is required.
Technical Specifications
The IC697CBL700 ensures stable power extension and synchronized control between racks.
| Parameter | Specification |
|---|---|
| Model | IC697CBL700 |
| Product Type | Power Supply Extension Cable Module |
| Series | GE Fanuc Series 90-70 |
| Function | Extends power supply to second rack |
| Cable Length | 1 meter (3 ft) |
| Voltage | 5 V DC power transmission |
| Frequency | 50–60 Hz |
| Max Rack Support | 2 racks (single power supply) |
| Current Limitation | Second rack < 5.2 A |
| Connector Type | 9-pin D-type connector |
| Control Signals | ACFAIL & SYSRESET included |
| Protection | Overvoltage & overcurrent protection |
| Operating Temperature | -25°C to +70°C |
The cable carries both 5V power and critical control signals, ensuring synchronized startup and fault handling between racks.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 35 mm × 130 mm × 135 mm |
| Weight | ≈ 0.30 – 0.45 kg |
Compact and lightweight design allows flexible routing within industrial cabinets.
Recommended Related Models
For building an expanded PLC system using IC697CBL700, the following models are commonly used:
- GE IC697PWR711 Power Supply Module
- GE IC697CHS790 Rack Chassis
- GE IC697CPU772 Central Processing Unit
- GE IC697MDL Series Digital I/O Modules
- GE IC697BEM711 Bus Receiver Module
These components enable efficient rack expansion while maintaining stable power distribution.
Popular GE Series 90-70 Modules
- IC697CPU780 – High-performance CPU
- IC697BEM731 – Genius Bus Controller
- IC697BEM733 – Remote I/O Scanner
- IC697ALG440 – Analog input expander
- IC697CMM741 – Ethernet communication module
These modules are widely used across industrial automation systems and legacy upgrades.
