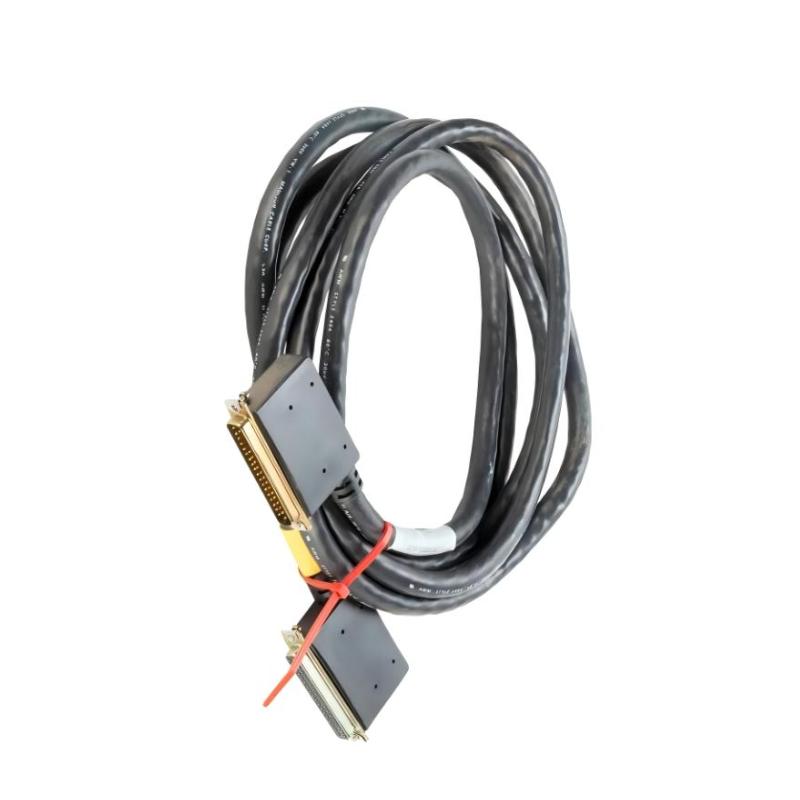

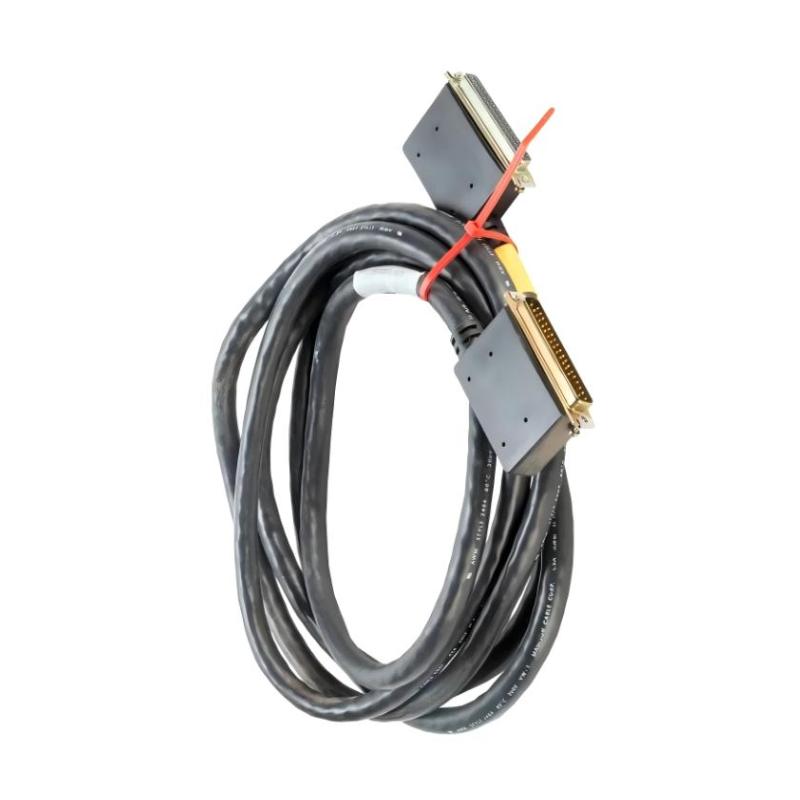

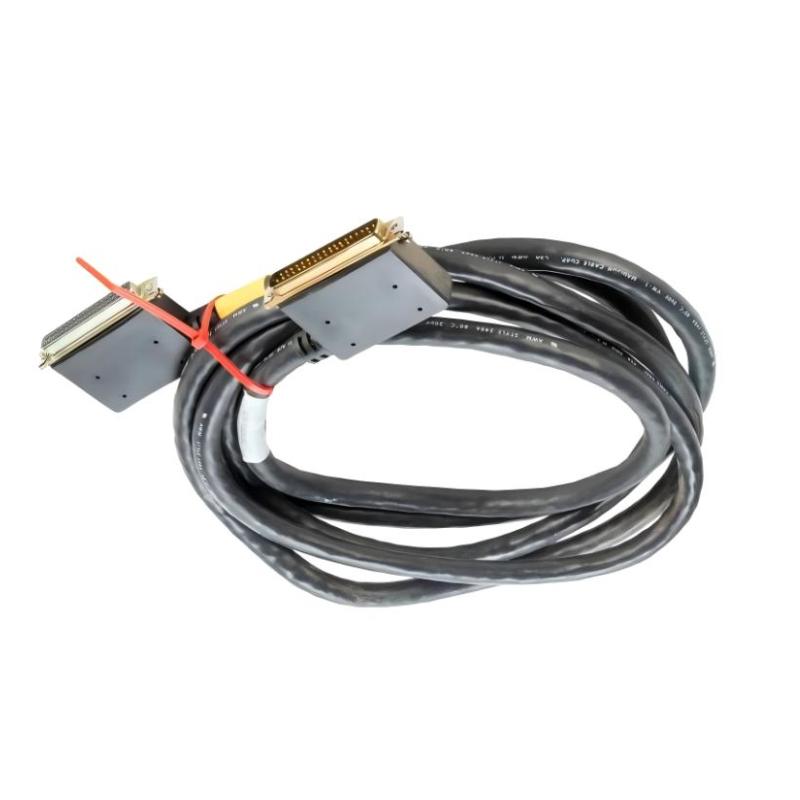

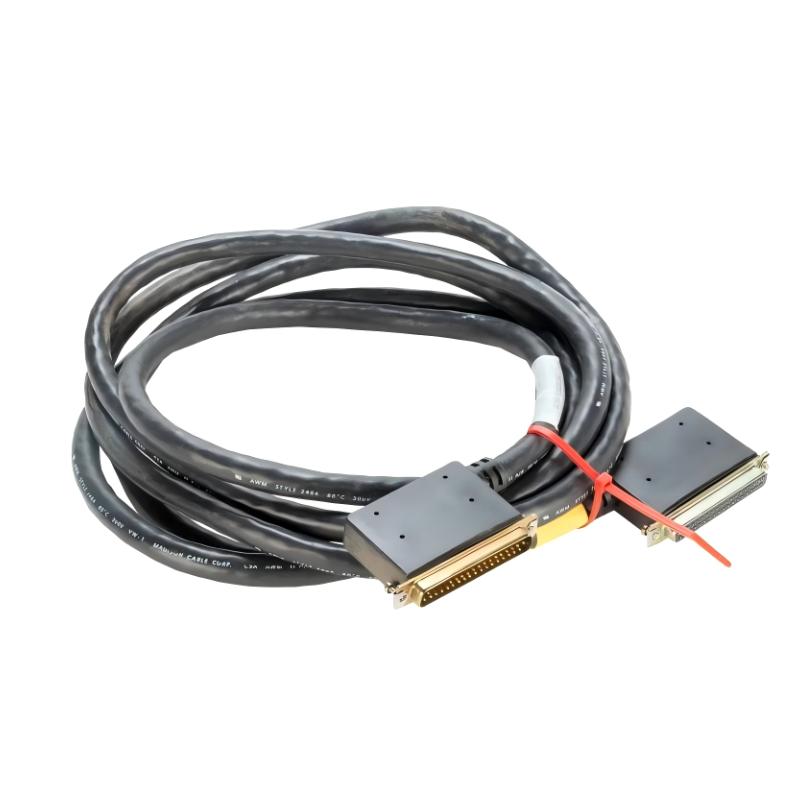

The GE IC697CBL803 is a 3 ft RCM (Redundancy Communication Module) communication cable for GE Fanuc Series 90-70 PLC systems. It is used to connect redundancy-related modules between racks, ensuring stable data exchange in hot standby, backup synchronization, and system expansion architectures.
In redundant PLC configurations, this cable plays a key role in maintaining continuous communication between primary and secondary control paths, helping ensure uninterrupted industrial operation.
Technical Specifications
The IC697CBL803 is designed for reliable redundancy communication in industrial environments.
| Parameter | Specification |
|---|---|
| Model | IC697CBL803 |
| Product Type | RCM Communication Cable |
| Series | GE Fanuc Series 90-70 |
| Function | Redundancy / rack communication link |
| Cable Length | 3 ft (0.9 m) |
| Signal Type | Redundancy communication signals |
| Application | RCM / BRM inter-module connection |
| Connector Type | Industrial GE bus connectors |
| Shielding | EMI-protected industrial shielding |
| Installation | Plug-and-play connection |
| System Role | Hot standby synchronization link |
It is specifically designed for stable signal transmission in redundancy systems where timing and reliability are critical.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 900 mm × 20 mm × 20 mm (approx. cable body envelope) |
| Weight | ≈ 0.45 kg – 0.50 kg |
| Cable Length | 0.9 m (3 ft) |
The compact cable structure ensures easy routing inside industrial control cabinets while maintaining strong shielding performance.
Recommended Related Models
IC697CBL803 is commonly used with the following modules:
- GE IC697RCM711 Redundancy Communication Module
- GE IC697BEM711 Bus Receiver Module
- GE IC697BEM713 Bus Transmitter Module
- GE IC697CPU772 Central Processing Unit
- GE IC697CHS790 Rack Chassis
These components form a complete redundant PLC architecture for mission-critical systems.
