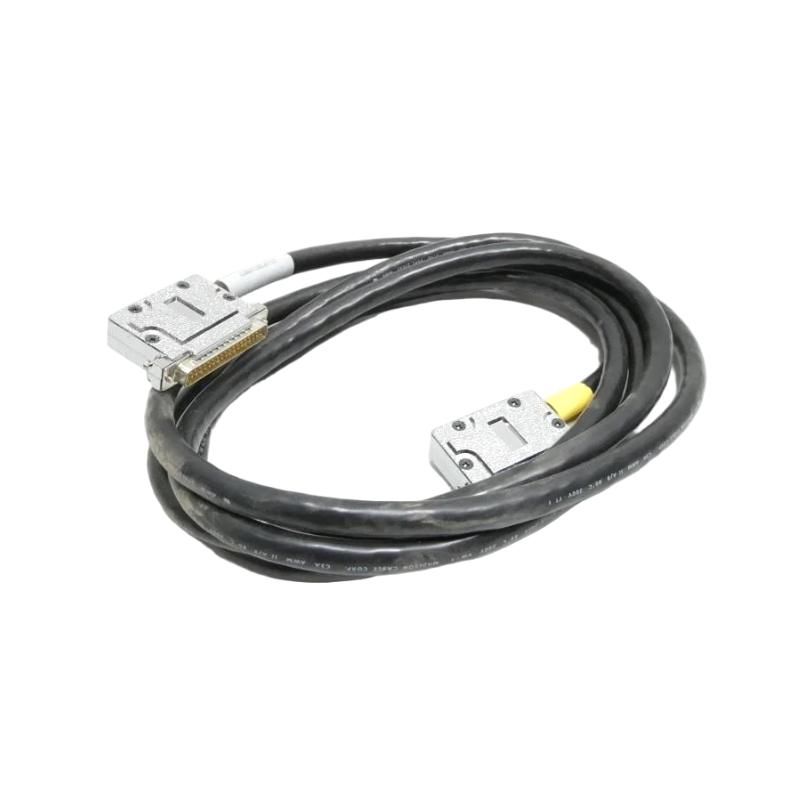

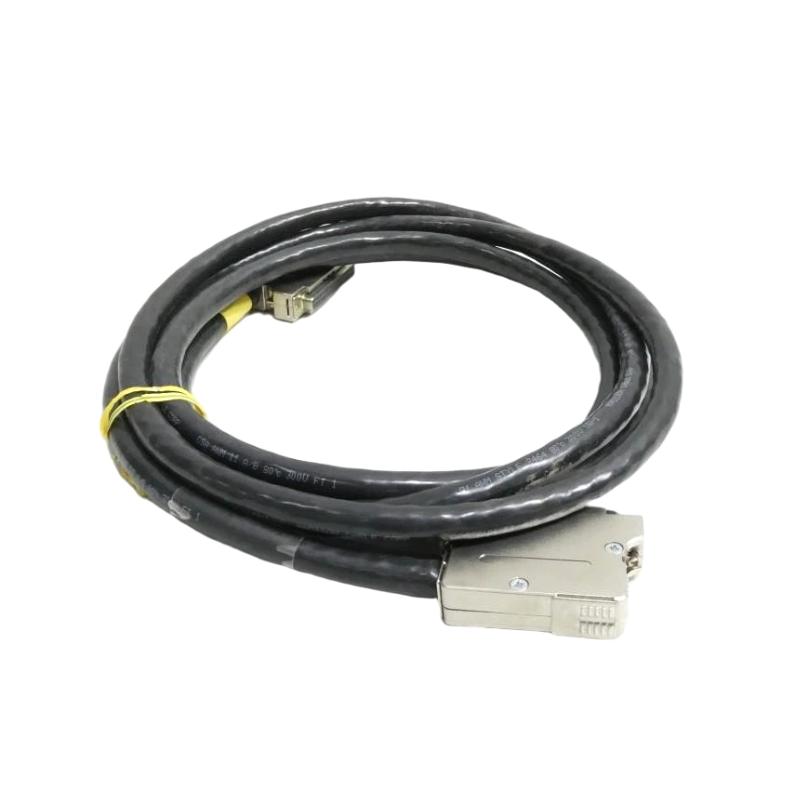

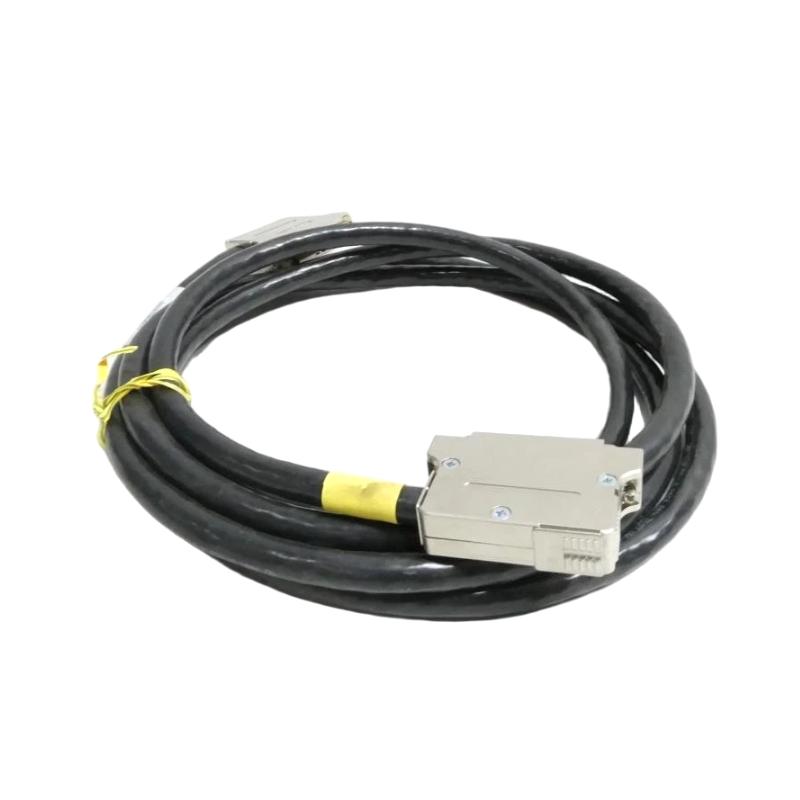

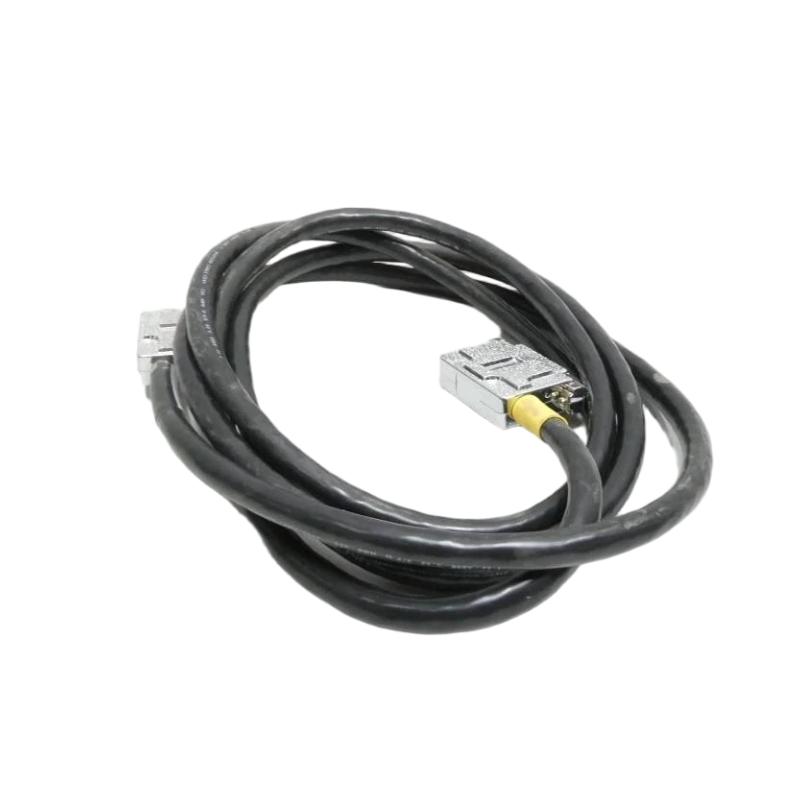

The GE IC697CBL811 is a redundant communication cable designed for GE Fanuc Series 90-70 PLC systems. It is primarily used for RCM (Redundancy Communication Module) or system interconnection, ensuring stable and continuous data exchange between redundant controllers or communication modules.
This cable is commonly applied in high-availability PLC architectures, where uninterrupted communication between primary and backup systems is essential for industrial safety and process continuity.
Technical Specifications
The IC697CBL811 is built for industrial-grade redundancy communication with strong shielding and reliable signal transmission.
| Parameter | Specification |
|---|---|
| Model | IC697CBL811 |
| Product Type | Redundant Communication Cable |
| Series | GE Fanuc Series 90-70 |
| Function | RCM / redundancy inter-module connection |
| Cable Length | 10 ft (≈ 3.0 m) (common configuration) |
| Signal Type | Redundant control / communication signals |
| Data Rate Support | Up to 1 Mbps (system-dependent) |
| Construction | Shielded industrial cable |
| Conductor Material | Copper (Cu) |
| Operating Temperature | -40°C to +70°C |
| Protection Level | Industrial EMI shielding |
It is engineered to maintain stable communication in noisy industrial environments and ensure redundancy system reliability.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 3000 mm × 20 mm × 20 mm (approx. cable envelope) |
| Weight | ≈ 0.8 kg – 0.9 kg |
| Cable Length | 3.0 m (10 ft) |
The flexible shielded structure allows easy routing inside control cabinets while maintaining strong signal integrity.
Recommended Related Models
IC697CBL811 is typically used with:
- GE IC697RCM711 Redundancy Communication Module
- GE IC697BEM711 Bus Receiver Module
- GE IC697BEM713 Bus Transmitter Module
- GE IC697CPU772 Central Processing Unit
- GE IC697CHS790 Rack Chassis
These components form a complete redundant PLC control system architecture.
Popular GE Series 90-70 Modules
- IC697CPU780 – High-performance CPU module
- IC697BEM731 – Genius Bus Controller
- IC697BEM733 – Remote I/O Scanner
- IC697ALG440 – Analog input expander
- IC697CMM741 – Ethernet communication module
These modules are widely used in industrial automation and legacy system maintenance.
