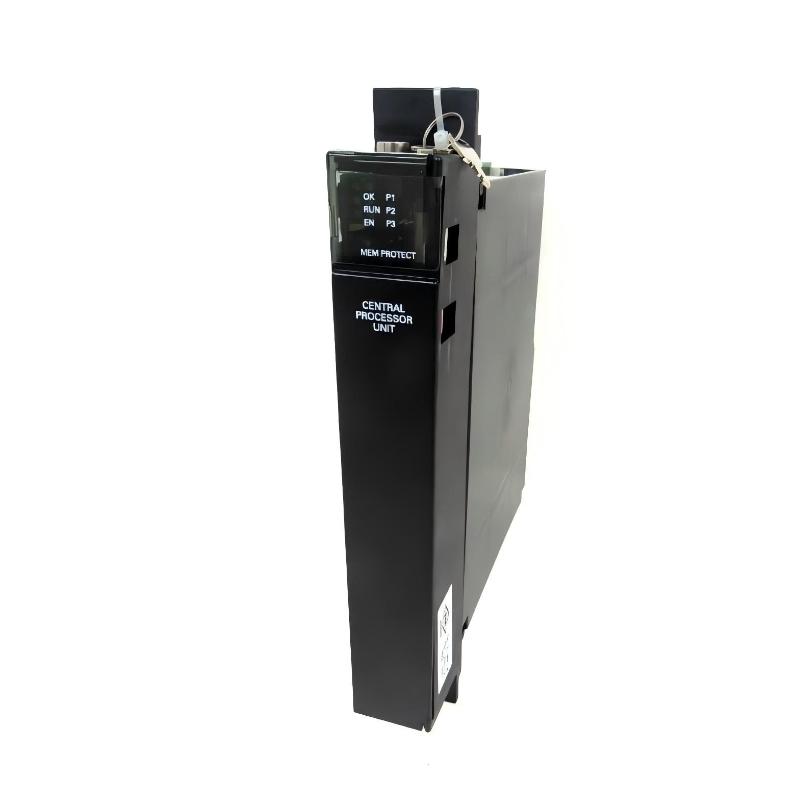

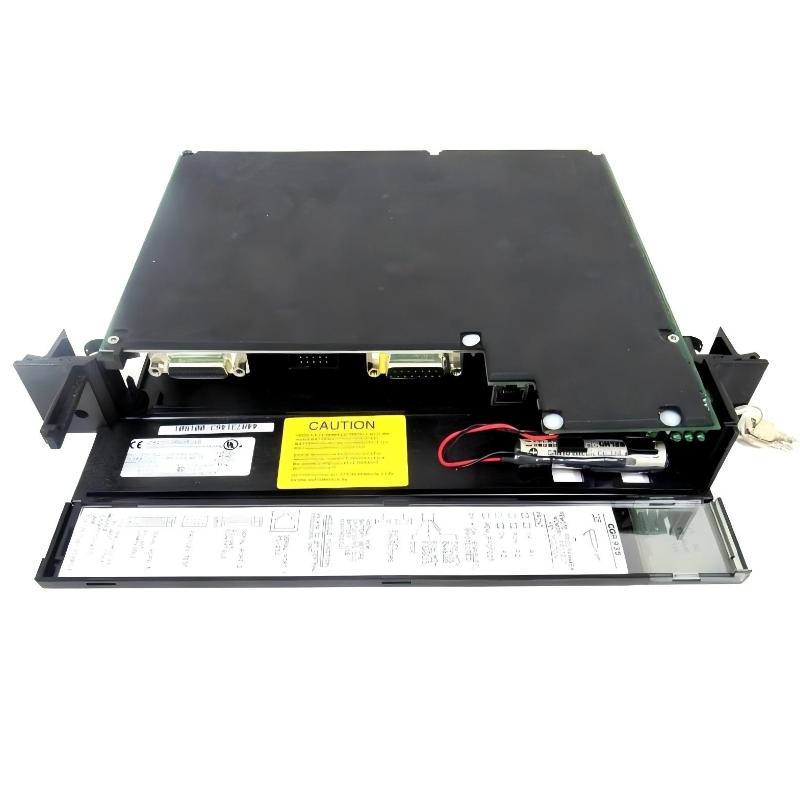

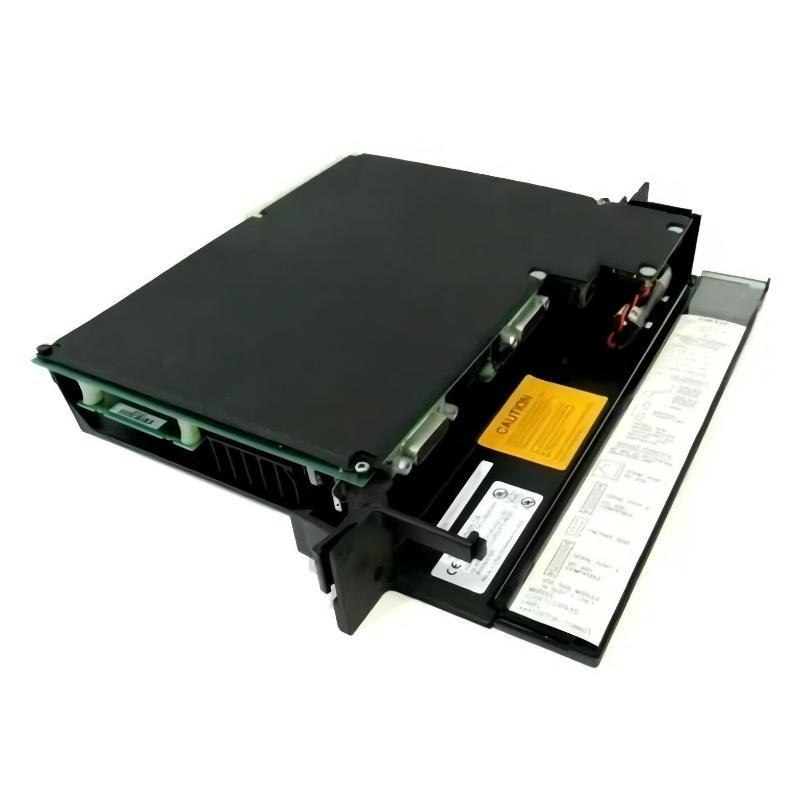

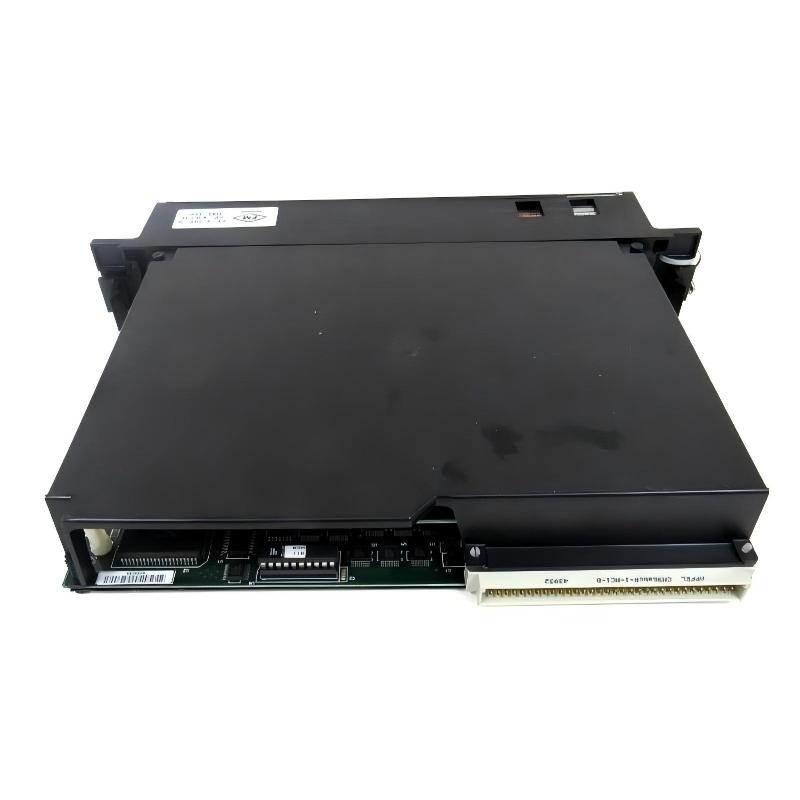

The GE IC697CGR935 is a high-performance single-slot CPU module designed for Hot Standby redundancy systems in GE Fanuc Series 90-70 PLC architectures. It is engineered for applications that require continuous operation, zero-downtime switching, and deterministic control performance.
Unlike standard CPU modules, the CGR935 is specifically built for redundant dual-CPU configurations, enabling automatic synchronization between primary and backup controllers. This makes it a trusted solution in critical industries such as power generation, oil & gas, and large-scale process automation.
Technical Specifications
The IC697CGR935 delivers high-speed processing and redundancy-ready architecture for mission-critical control systems.
| Parameter | Specification |
|---|---|
| Model | IC697CGR935 |
| Product Type | Hot Standby Redundant CPU Module |
| Series | GE Fanuc Series 90-70 |
| Processor | 80486DX4 @ 96 MHz |
| Memory | 1 MB CMOS RAM (battery-backed) |
| Data Capacity | 12K discrete I/O (any mix) |
| Analog Capacity | Up to 8K analog I/O |
| Execution Speed | ~0.4 µs per Boolean function |
| Communication Ports | RS232 + RS485 |
| Bus Interface | VME backplane (IC697CHS series) |
| Programming | MS-DOS / Windows-based software |
| Function | CPU redundancy + system control |
| Power Supply | 5 V DC |
| Current Consumption | ~3.1 A |
The module is designed to execute real-time control logic while maintaining synchronization with a secondary standby CPU.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 292 mm × 44 mm × 229 mm |
| Weight | ≈ 0.79 kg – 1.1 kg |
The module follows standard Series 90-70 single-slot rack architecture, allowing easy integration into existing PLC chassis systems.
Recommended Related Models
For a complete redundant PLC system, IC697CGR935 is typically used with:
- GE IC697RCM711 Redundancy Communication Module
- GE IC697BEM713 Bus Transmitter Module
- GE IC697CHS790 Rack Chassis
- GE IC697PWR711 Power Supply Module
- GE IC697BEM711 Bus Receiver Module
These components together form a fully synchronized hot standby control architecture.
Popular GE Series 90-70 Modules
- IC697CPU780 – Standard high-performance CPU
- IC697BEM731 – Genius Bus Controller
- IC697BEM733 – Remote I/O Scanner
- IC697ALG440 – Analog I/O module
- IC697CMM741 – Ethernet communication module
These modules are widely used in industrial automation systems and long-life legacy installations.
