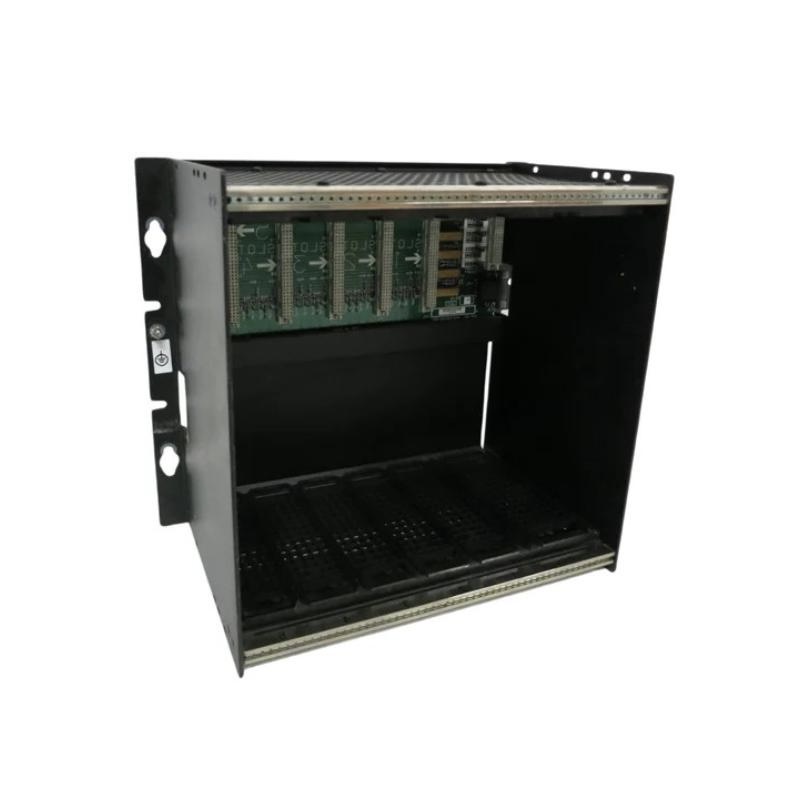

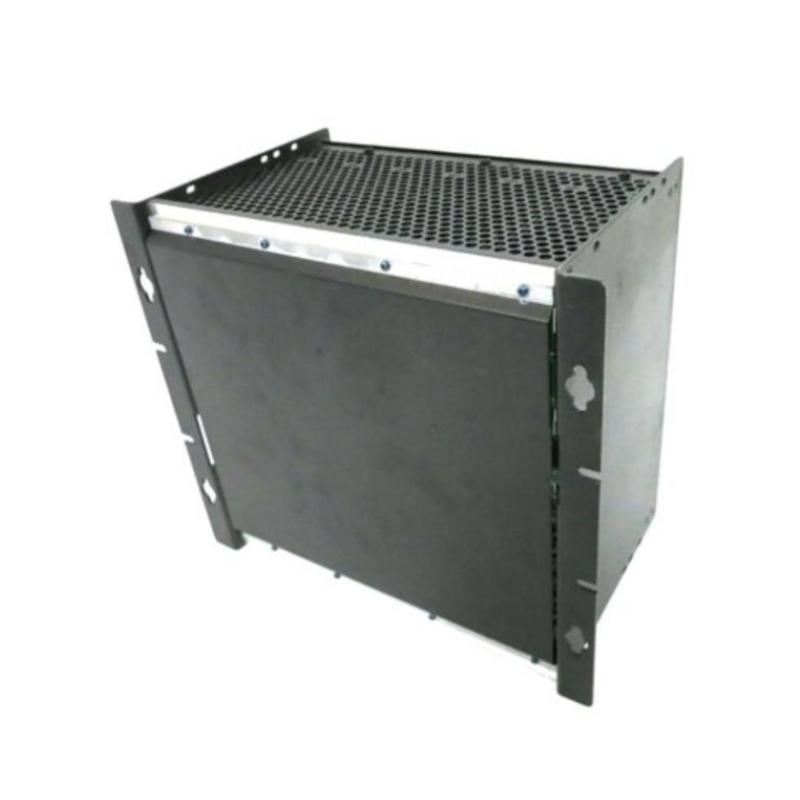

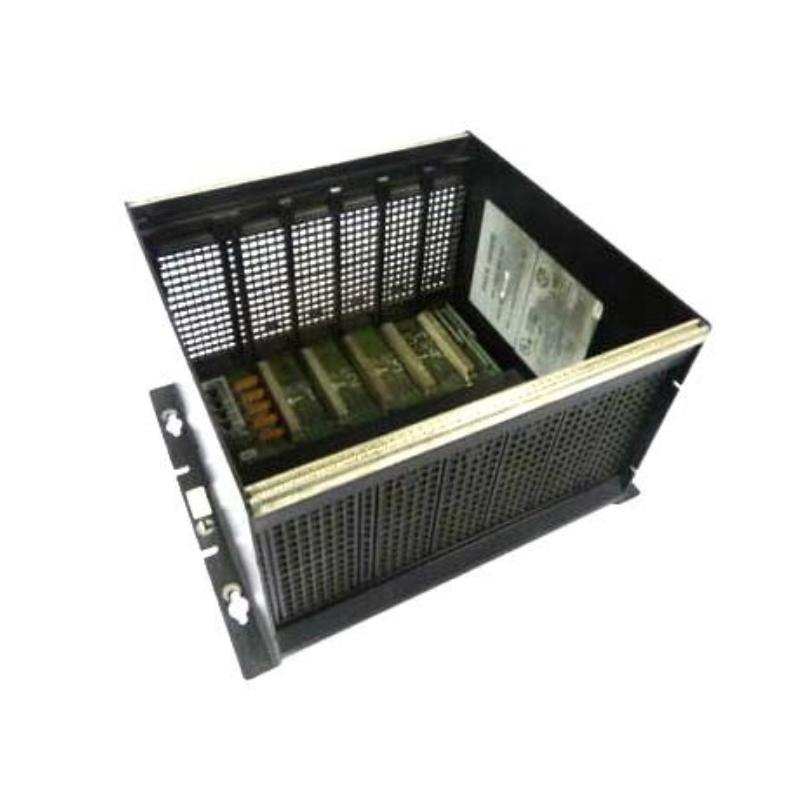

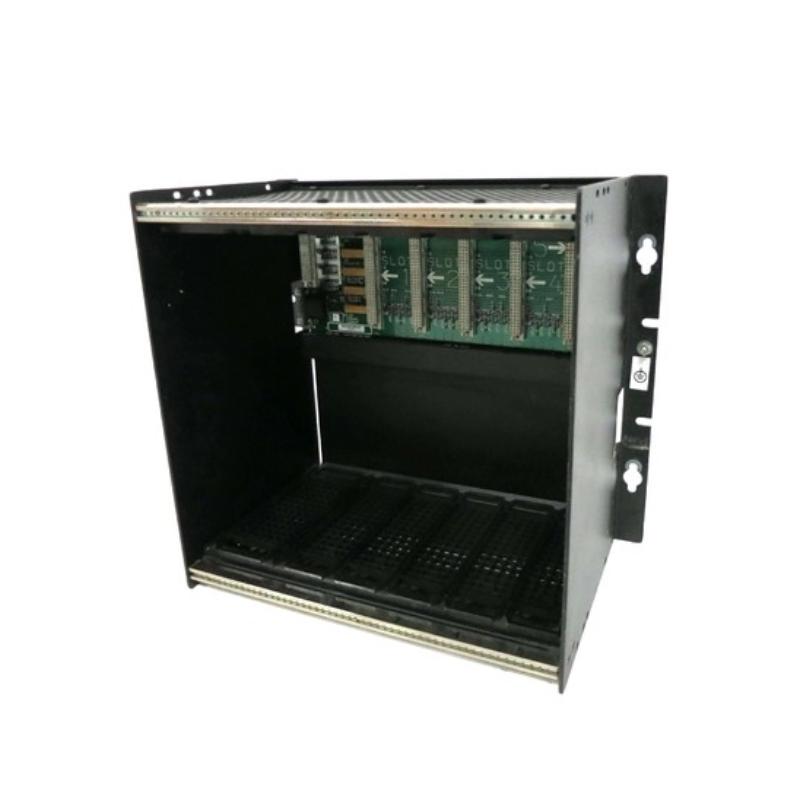

The GE IC697CHS750 is a 5-slot rear mount PLC rack designed for the GE Fanuc Series 90-70 automation platform. It serves as the core hardware chassis that houses CPU, power supply, and I/O modules, forming the backbone of a complete PLC control system.
Built for industrial environments, this rack supports flexible system expansion, stable backplane communication, and high-density module integration. It is widely used in factory automation, process control, and legacy system upgrades, where reliability and modular scalability are essential.
Technical Specifications
The IC697CHS750 provides a stable mounting and backplane communication platform for PLC modules.
| Parameter | Specification |
|---|---|
| Model | IC697CHS750 |
| Product Type | PLC Rack / Chassis |
| Series | GE Fanuc Series 90-70 |
| Slot Capacity | 5 slots + 1 power supply slot |
| Rack Type | Rear mount (panel installation) |
| Backplane Voltage | 5 V DC |
| Max Backplane Current | 20 A |
| Cooling Method | Natural convection |
| Module Compatibility | All IC697 CPU / I/O modules |
| Grounding | Dual grounding studs |
| Wiring Access | Bottom cable entry |
The rack supports flexible configuration for CPU, communication, and I/O modules within a compact industrial enclosure.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 483 mm × 190 mm × 283 mm (19.0 × 7.5 × 11.15 in) |
| Weight | ≈ 3.6 – 4.2 kg |
The rack is designed for control cabinet installation, offering a balance between compact structure and high module capacity.
Recommended Related Models
To build a complete GE Series 90-70 PLC system, IC697CHS750 is typically used with:
- GE IC697CPU772 Central Processing Unit
- GE IC697PWR711 Power Supply Module
- GE IC697BEM711 Bus Receiver Module
- GE IC697BEM713 Bus Transmitter Module
- GE IC697MDL Series I/O Modules
- GE IC697CBL700 Power Extension Cable Kit
These components together form a scalable and stable industrial control architecture.
Popular GE Series 90-70 Modules
- IC697CPU780 – High-performance CPU module
- IC697CGR935 – Hot standby redundant CPU
- IC697BEM731 – Genius Bus Controller
- IC697BEM733 – Remote I/O Scanner
- IC697ALG440 – Analog input module
- IC697CMM741 – Ethernet communication module
These modules are widely deployed in long-life industrial automation systems.
