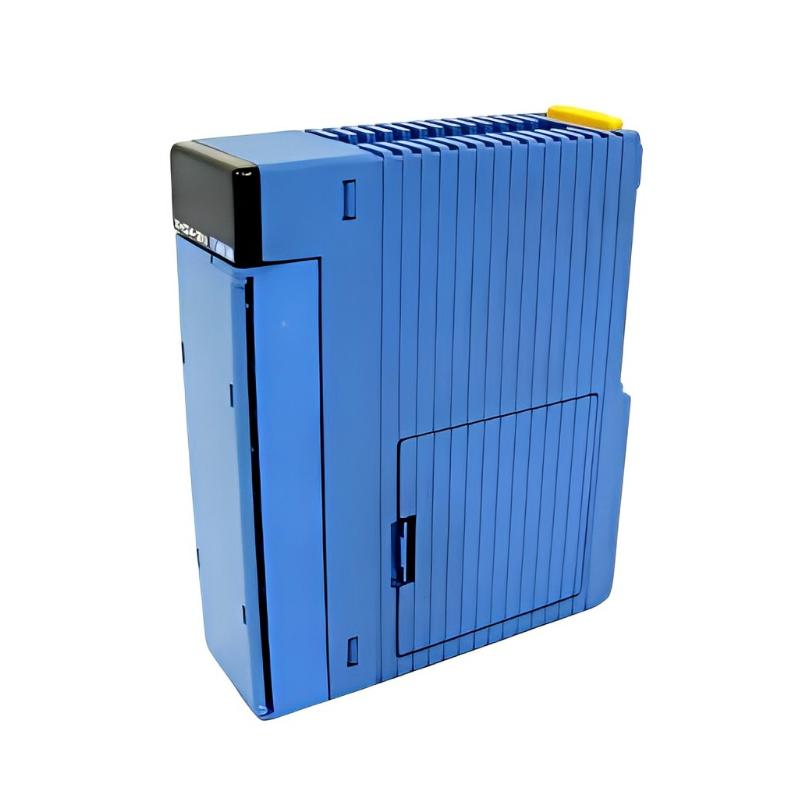

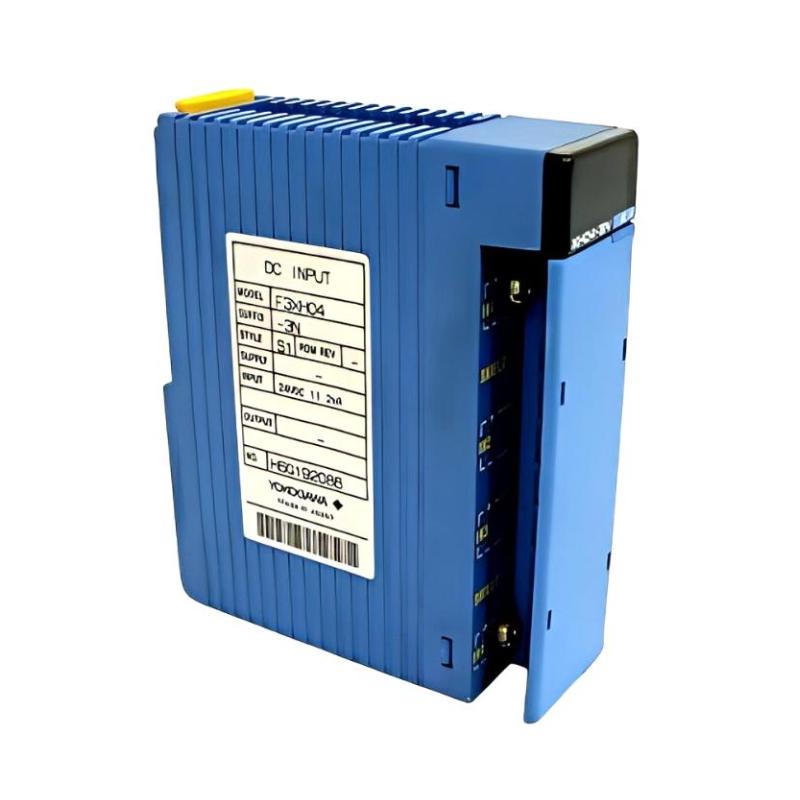

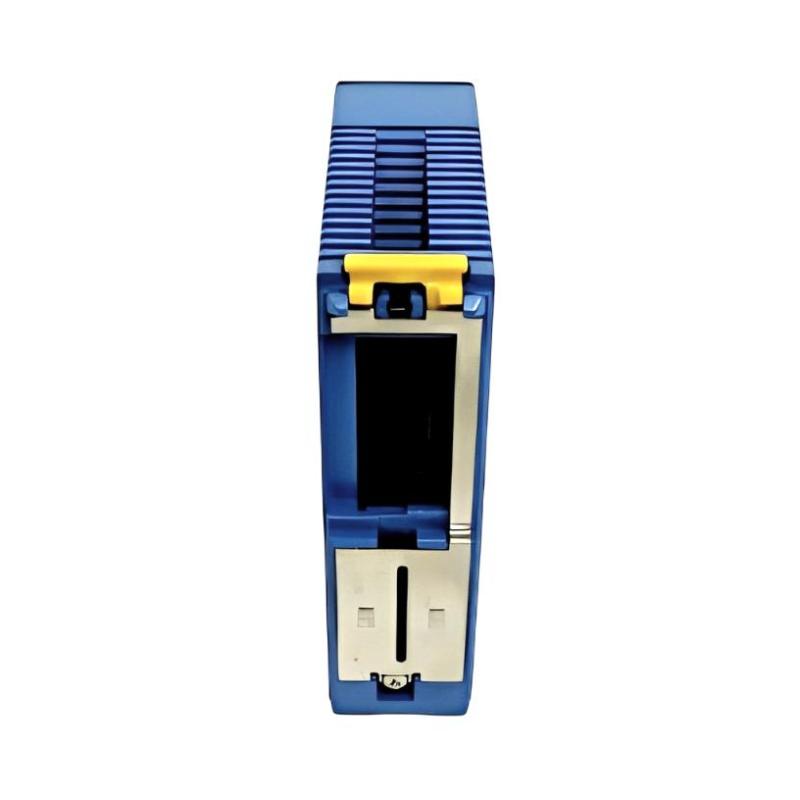

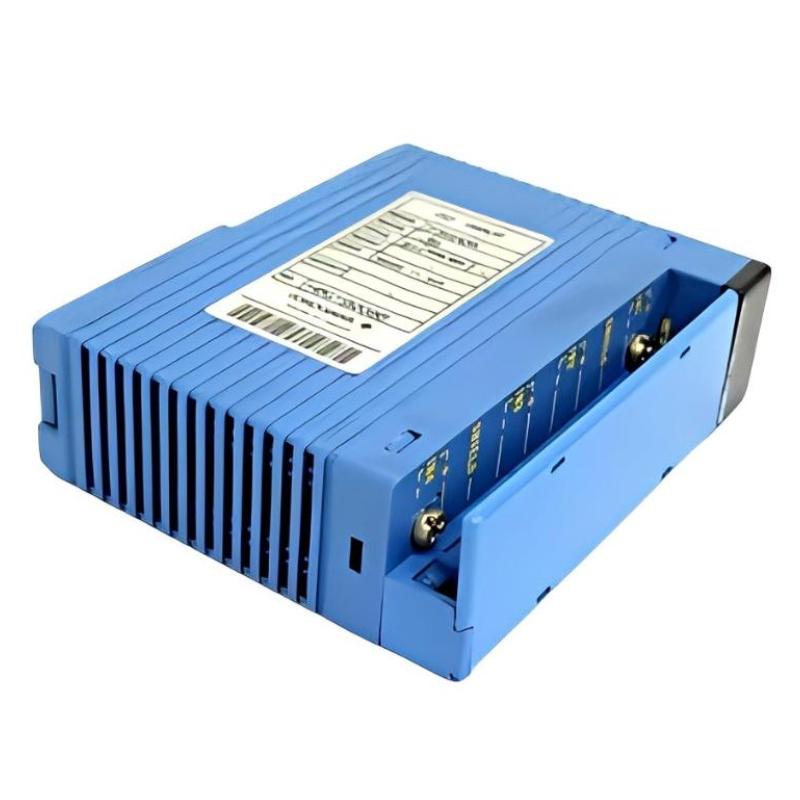

Yokogawa F3XH04-3N High-speed Input Module

Typical Industrial Applications

• High-speed pulse signal acquisition in automation systems

• Encoder and rotation speed detection for machinery control

• Photoelectric sensor signal processing in production lines

• Fast switching signal monitoring in packaging and assembly equipment

• Precision timing input for motion and positioning systems

Key Engineering Advantages

• High-speed response enables detection of ultra-short pulses

• Pulse-capture function ensures accurate signal acquisition

• Interrupt processing supports real-time event handling

• 4-channel independent input structure improves flexibility

• Optical isolation enhances noise resistance and system stability

• Designed for precise industrial control applications

Technical FAQs

1. What is the main function of this module?
It captures high-speed digital input signals from industrial sensors and switches.

2. What type of signals can it detect?
It detects DC voltage pulse signals, including very short-duration pulses.

3. What is its speed capability?
It can handle pulse widths as low as 50 microseconds.

4. How many input channels does it have?
It provides 4 independent high-speed input channels.

5. Does it support interrupts?
Yes, it supports interrupt-driven input processing.

6. Is it suitable for encoder signals?
Yes, it is commonly used for encoder and pulse counting applications.

7. Does it provide electrical isolation?
Yes, it uses optical isolation to improve noise immunity.

8. Can it handle simultaneous inputs?
Yes, each channel operates independently for parallel signal processing.

9. What system is it designed for?
It is designed for Yokogawa FA-M3 PLC systems.

10. What ensures reliable high-speed detection?
Pulse-capture technology and fast internal processing architecture ensure accuracy.
