Brand:GE Fanuc PLC Item No.:GE IC697VAL324 Product Origin: USA Product Dimensions:266 × 88 × 31 mm Product Weight:1.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

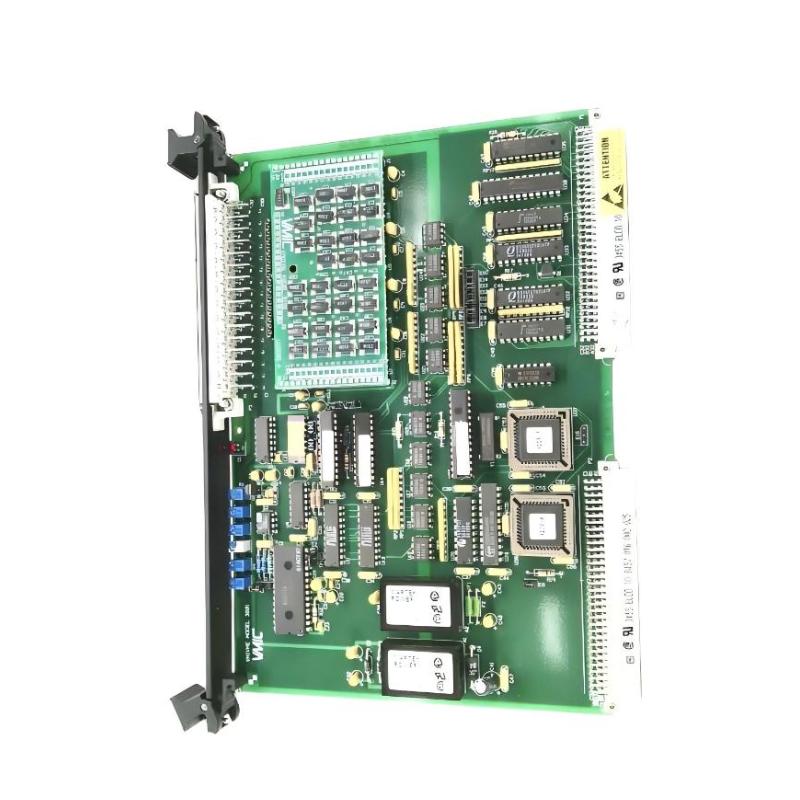

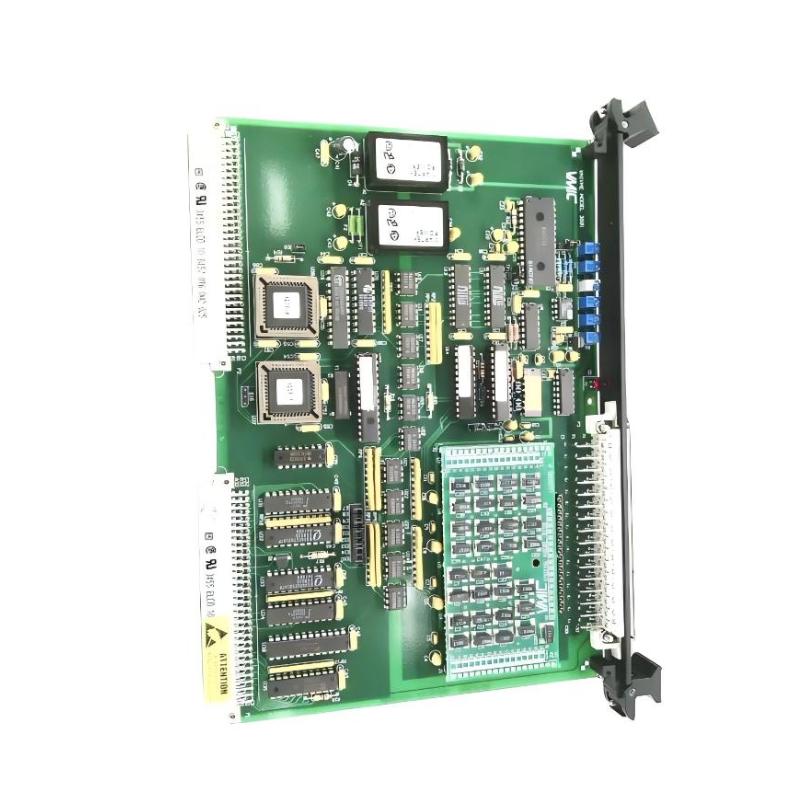

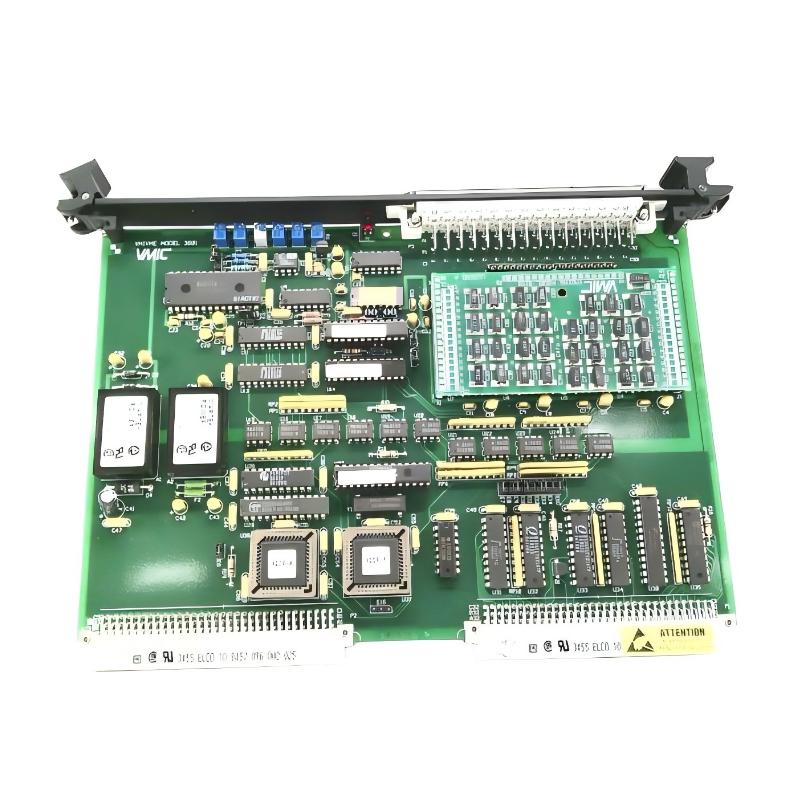

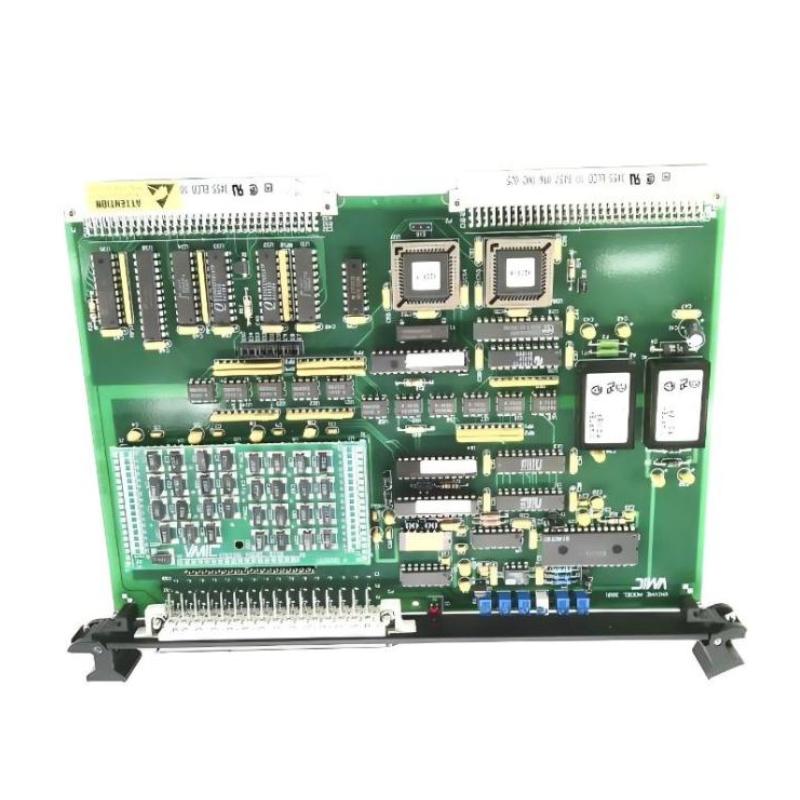

The GE IC697VAL324 is a high-performance isolated analog output module developed for the GE Fanuc Series 90-70 PLC platform. As part of the VAL3xx family, it delivers multi-channel analog signal output with both voltage and current loop capability, enabling precise control of industrial processes.
Designed for demanding automation environments, this module is ideal for applications requiring stable signal transmission, flexible output configuration, and reliable long-term operation.
Technical Specifications
Parameter
Details
Manufacturer
GE Fanuc / Emerson
Series
90-70 Series
Model Number
IC697VAL324
Module Type
Analog Output Module (Voltage / Current)
Output Channels
8 channels
Output Type
Voltage and current selectable
Output Ranges
0–10 V / ±10 V / 0–20 mA / 4–20 mA
Resolution
12-bit
Isolation
Channel-to-channel and backplane isolation
Conversion Type
Digital-to-Analog (DAC)
Backplane Interface
VME-based PLC rack
Configuration
Software configurable per channel
Compatibility
GE 90-70 PLC systems
Operating Temperature
0°C to 60°C
Applications
The IC697VAL324 is widely deployed in precision industrial control systems, especially where both voltage and current outputs are required:
Process automation (flow, pressure, temperature control)
Valve and actuator positioning systems
Variable frequency drive (VFD) control
Power generation and energy systems
Chemical and petrochemical processing
It is particularly valuable in systems that demand multi-signal compatibility and high control accuracy.
Advantages
Dual Output Capability
Supports both voltage and current signals in one module.
High-Density 8-Channel Design
Maximizes control capability within a single PLC slot.
High Precision 12-bit DAC
Ensures stable and accurate analog output.
Full Isolation Protection
Reduces noise interference and enhances reliability.
Flexible Configuration
Channels can be configured individually for different signal types.
Industrial-Grade Durability
Designed for continuous operation in harsh environments.
Technical FAQs
1. What is the IC697VAL324 used for?
It converts PLC digital signals into analog voltage or current outputs.
2. How many channels does it provide?
It offers 8 analog output channels.
3. What signal types are supported?
Both voltage (0–10V, ±10V) and current (4–20mA, 0–20mA).
4. What is its resolution?
12-bit digital-to-analog conversion.
5. Does it support isolation?
Yes, channel-to-channel and backplane isolation.
6. Is it configurable?
Yes, each channel can be configured individually.
7. What are its dimensions and weight?
266 × 88 × 31 mm, approximately 1.2 kg.
8. Is it part of the VAL3xx family?
Yes, it belongs to the IC697VAL3xx analog output series.
9. Is it still used today?
Yes, mainly in legacy GE 90-70 PLC systems.
10. Why is it important in automation systems?
Because it enables flexible, precise analog control for industrial processes.
