Brand:GE Fanuc PLC Item No.:GE IC698CHS017 Product Origin: USA Product Dimensions:483 × 283 × 190 mm Product Weight:7.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

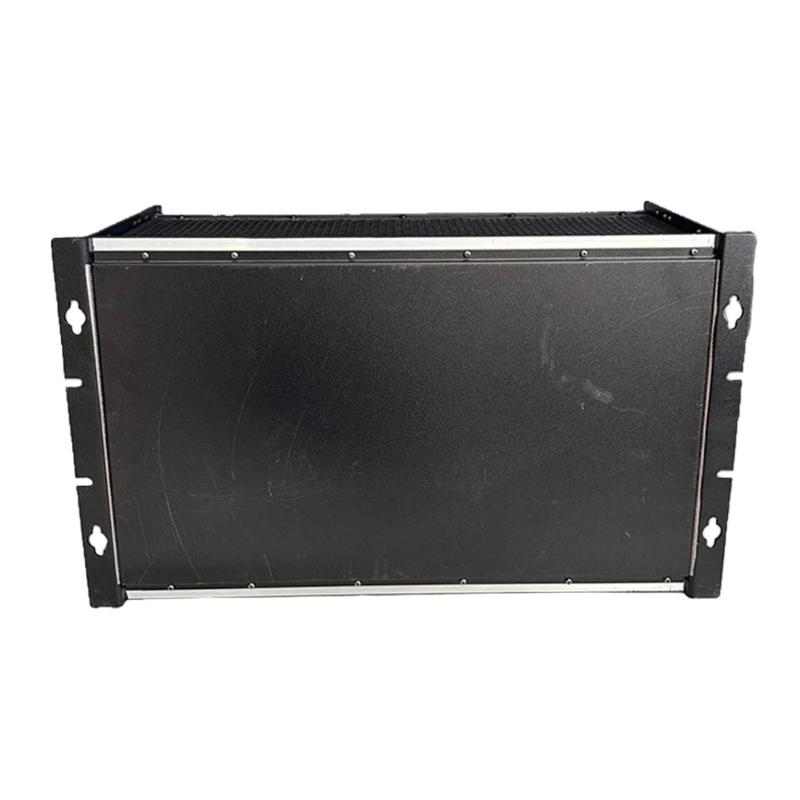

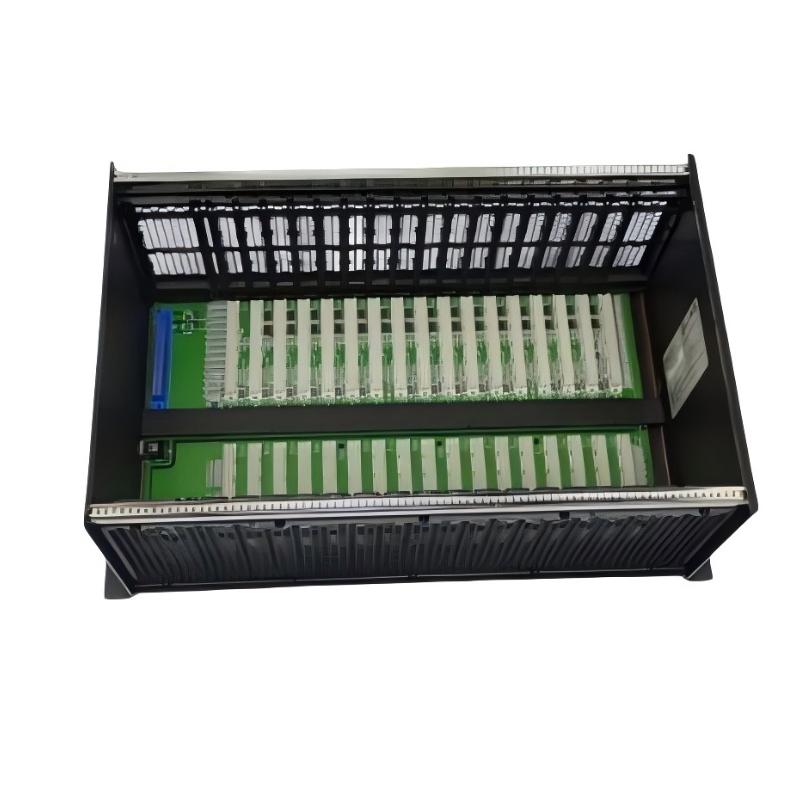

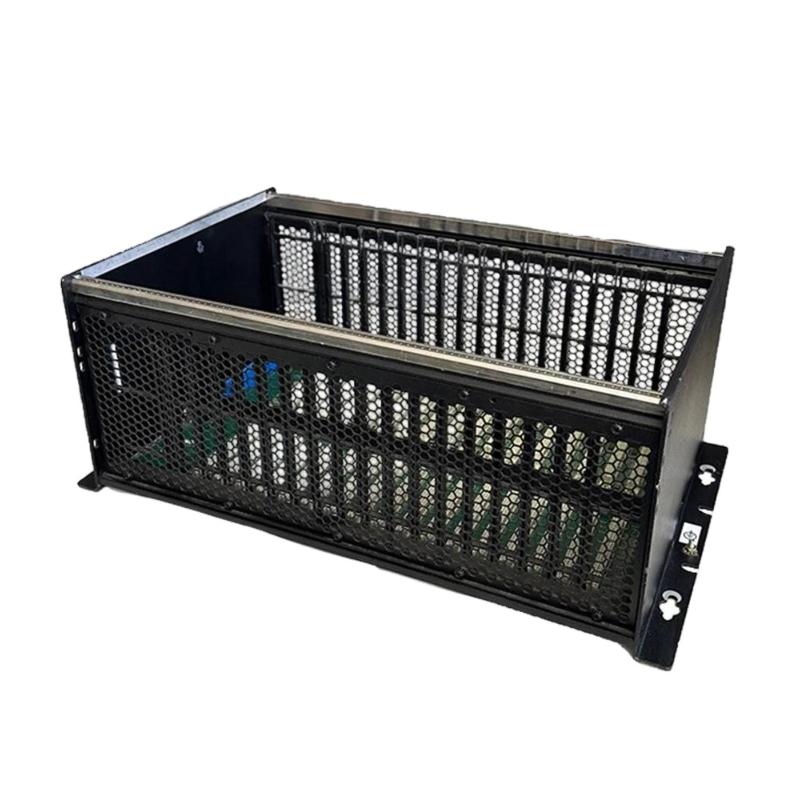

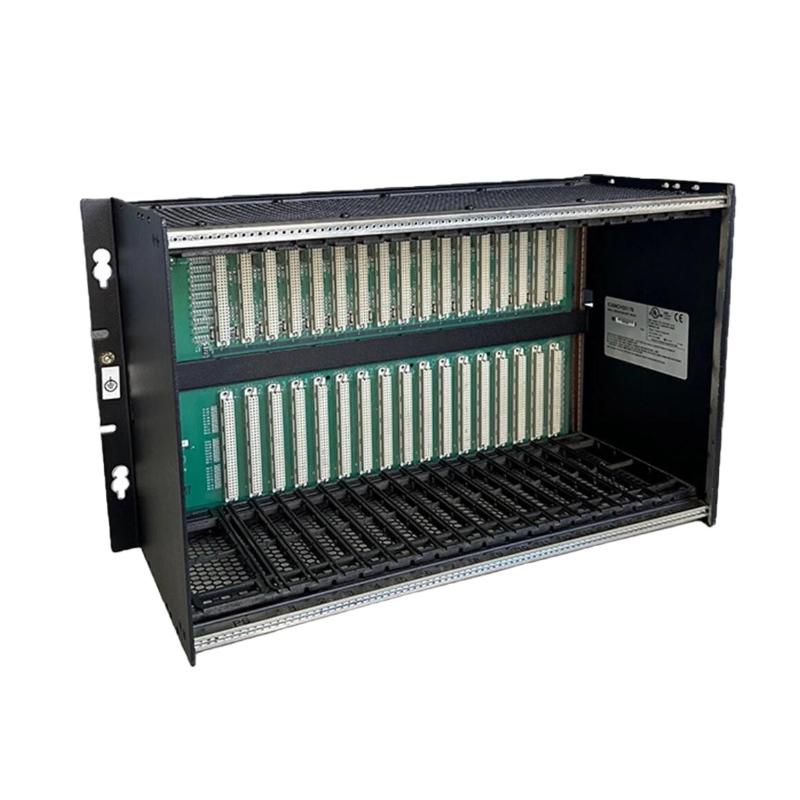

The GE IC698CHS017 is a 17-slot rack chassis module designed for the GE Fanuc PACSystems RX7i platform. Acting as the foundation of the entire PLC system, it provides mechanical support, backplane communication, and power distribution for installed modules.
Engineered for scalability and high-performance control systems, this rack enables users to build large, modular automation architectures with seamless integration of CPU, power supply, and I/O modules. It is a core infrastructure component in modern and legacy GE industrial automation systems.
Technical Specifications
Parameter
Details
Manufacturer
GE Fanuc / Emerson
Series
PACSystems RX7i
Model Number
IC698CHS017
Module Type
Rack Chassis Module
Rack Capacity
17 slots
Slot Allocation
Slot 0: Power Supply / Slot 1: CPU / Remaining: I/O or communication
Backplane Type
VME64 high-speed backplane
Slot Spacing
0.8 in (20.3 mm)
Module Support
RX7i, Series 90-70, and VME modules
Mounting Type
Rear-mounted (wall installation)
Configuration
Software-configurable (no DIP switches required)
Power Support
Up to 350 W power supply
Current Rating
60 A @ 5 VDC, 4 A @ 12 VDC
Cooling Requirement
Optional fan (required for high-load systems)
Operating Temperature
0°C to 60°C
Applications
The IC698CHS017 is widely used in large-scale industrial automation systems requiring modular expansion and high I/O capacity, including:
Power generation and substation control
Oil & gas distributed control systems
Manufacturing automation lines
Water treatment and infrastructure systems
SCADA and DCS architectures
It is particularly suitable for systems requiring flexible expansion and high-density module integration.
Advantages
High-Capacity 17-Slot Design
Supports complex control systems with multiple modules.
VME64 High-Speed Backplane
Provides faster data transfer compared to traditional VME systems.
Flexible Module Compatibility
Works with RX7i, Series 90-70, and standard VME modules.
Software-Based Configuration
Eliminates the need for manual addressing or DIP switches.
Robust Industrial Construction
Designed for long-term operation in demanding environments.
Scalable System Architecture
Enables easy expansion for growing automation requirements.
Technical FAQs
1. What is the IC698CHS017 used for?
It serves as the main rack chassis for installing PLC modules.
2. How many slots does it provide?
It offers 17 slots for system components.
3. Which slot is used for the CPU?
Slot 1 is reserved for the CPU, while slot 0 is for the power supply.
4. What type of backplane does it use?
A high-speed VME64 backplane.
5. Is it compatible with older modules?
Yes, it supports Series 90-70 and VME modules.
6. Does it require manual configuration?
No, it uses software-based slot sensing.
7. What is its size and weight?
483 × 283 × 190 mm, approximately 7.29 kg.
8. Is cooling required?
Optional, but recommended for high-load systems.
9. What industries use it most?
Power, oil & gas, manufacturing, and utilities.
10. Why is it important in automation systems?
Because it forms the structural and communication backbone of the PLC system.
