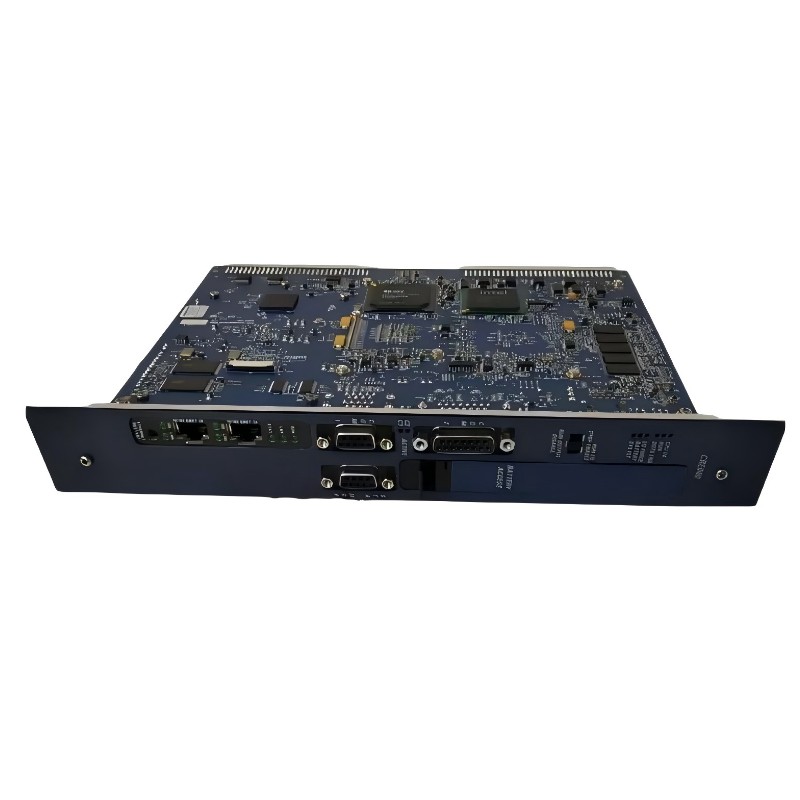

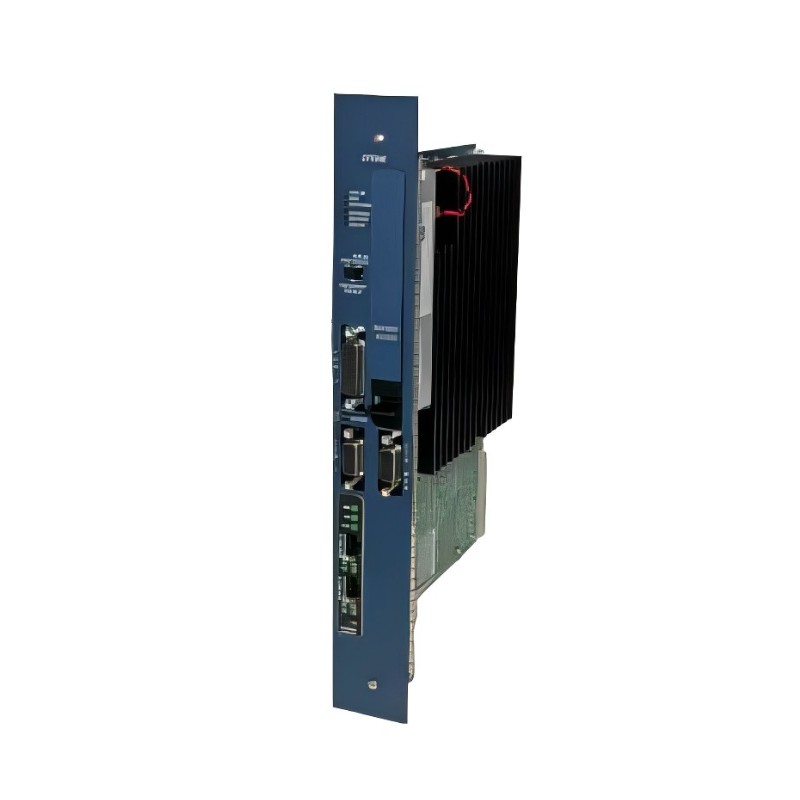

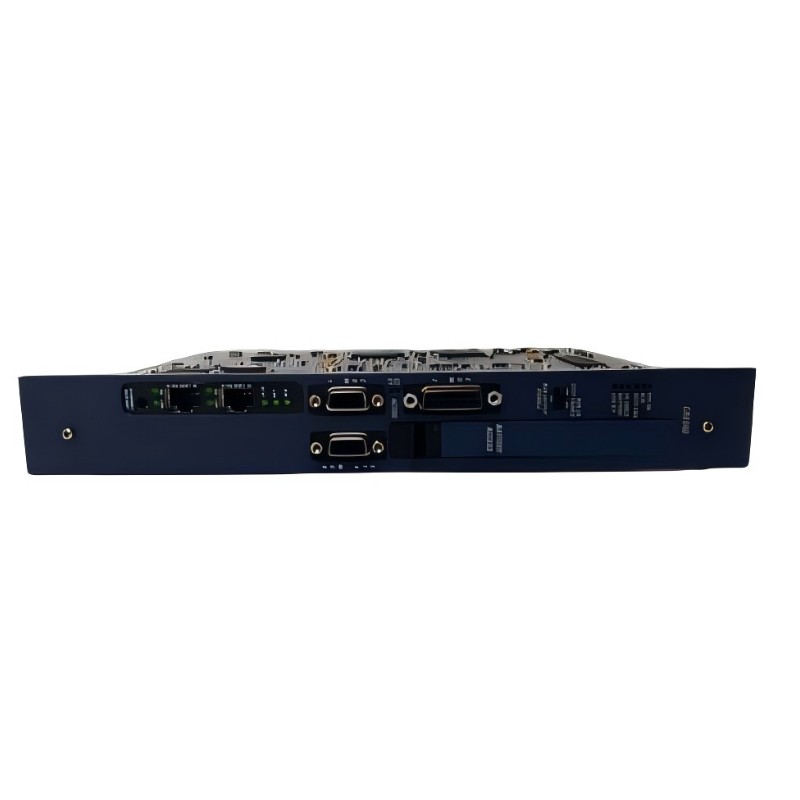

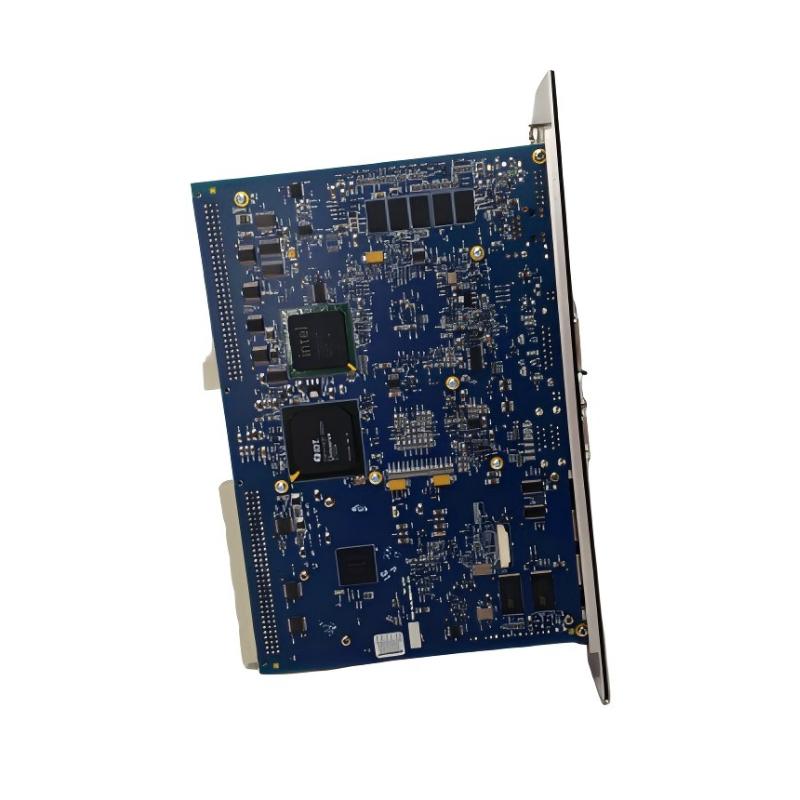

The GE IC698CRE040 is a high-performance redundant CPU module for the GE Fanuc PACSystems RX7i platform. It is designed for mission-critical industrial automation systems that require continuous operation, fast processing, and fault-tolerant architecture.
With its hot standby redundancy capability, this CPU ensures that if the primary controller fails, the backup unit takes over instantly—keeping production lines running without interruption. It is widely used in industries where downtime is extremely costly or unacceptable, such as power generation, oil & gas, and large-scale process automation.
This model is known for combining industrial-grade reliability with PC-level processing performance, making it a core choice for advanced PAC-based systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Series | PACSystems RX7i |
| Model Number | IC698CRE040 |
| Module Type | Redundant CPU Module |
| Processor | Intel Pentium-M 1.8 GHz |
| User Memory | 64 MB RAM (battery-backed) |
| Flash Memory | 64 MB non-volatile |
| Redundancy Mode | Hot Standby Redundancy (HSB) |
| Ethernet Ports | 2 × RJ45 (10/100 Mbps) |
| Serial Ports | 2 × RS-232 / RS-485 |
| Station Manager Port | 1 |
| Protocol Support | SRTP, Modbus TCP/RTU, SNP, EGD |
| Scan Time | ~0.024 ms per 1000 Boolean instructions |
| Program Capacity | Up to 512 blocks |
| Block Size Limit | 128 KB per block |
| Backplane | VME64 RX7i architecture |
| Power Requirement | +5 VDC (≈6.8 A) |
| Operating Temperature | 0°C to 60°C |
The IC698CRE040 features 1.8 GHz processing power, dual Ethernet communication, and high-speed scan execution, making it suitable for complex control environments.
Physical Dimensions & Weight
- Size (L × W × H): 170 × 105 × 32 mm
- Weight: 0.9 – 1.3 kg (typical configuration range)
