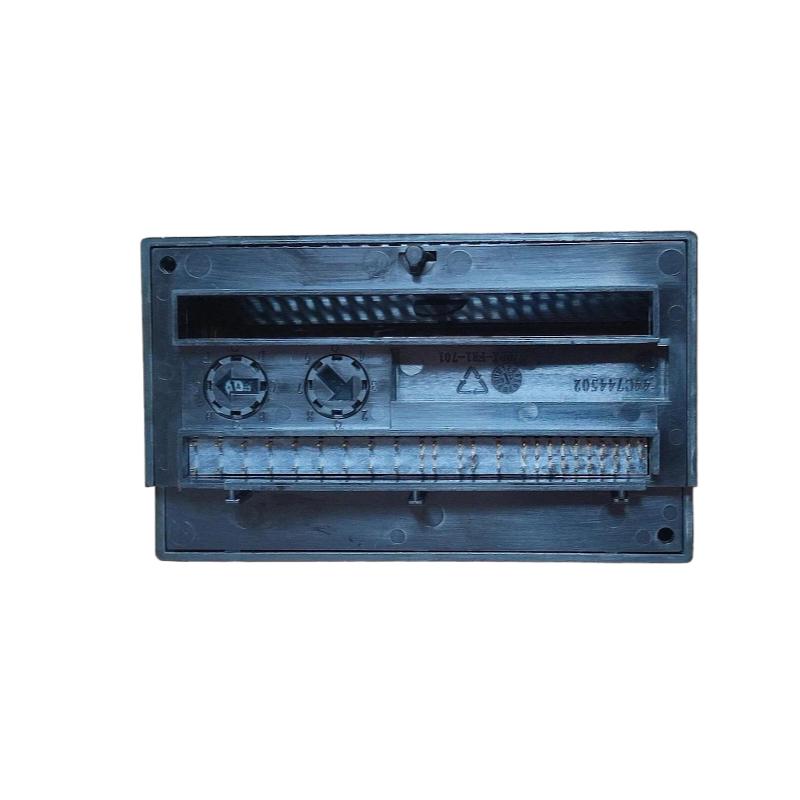

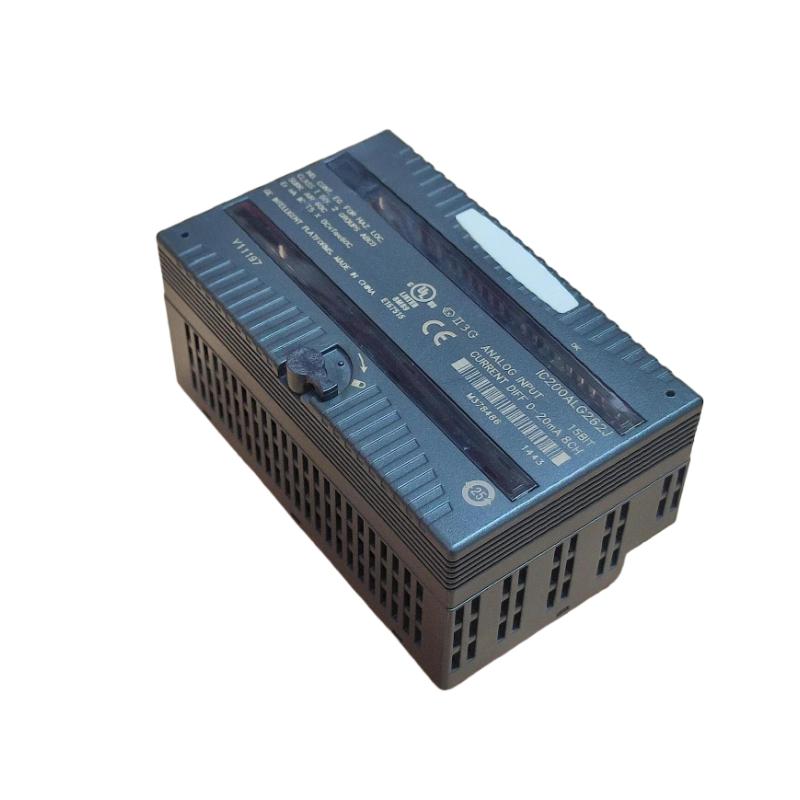

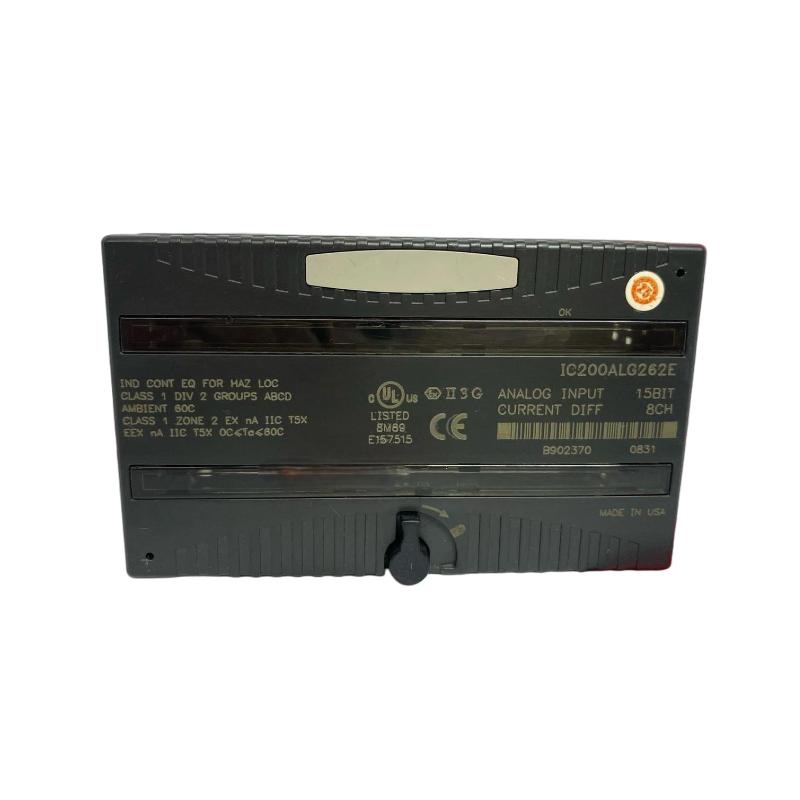

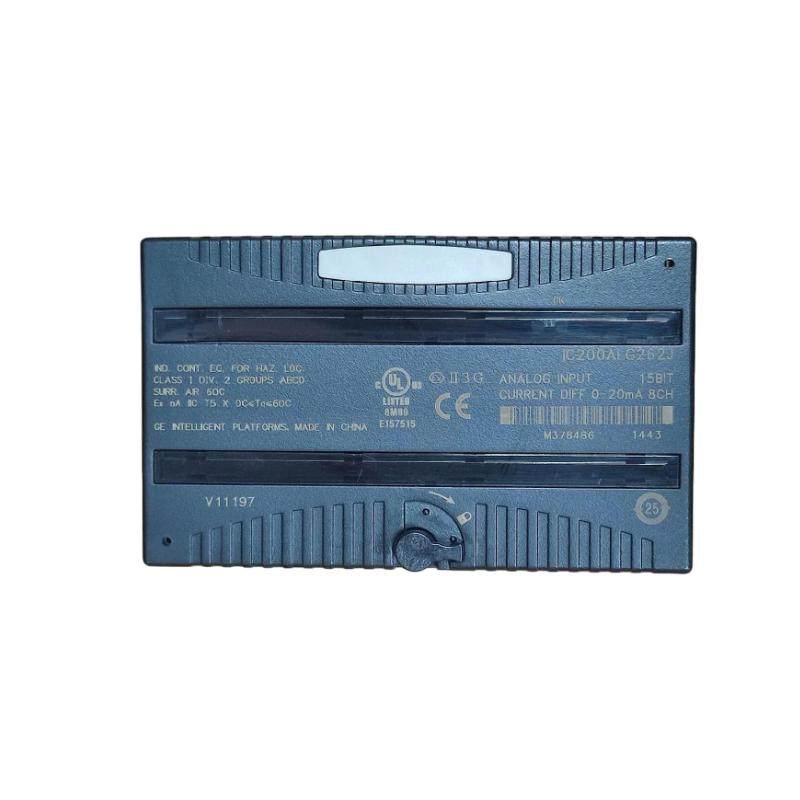

GE IC200ALG262 Analog Input Module

Applications

The IC200ALG262 is widely used in industrial systems requiring precise analog signal monitoring, including:

• Process automation systems
• Water and wastewater treatment plants
• Oil & gas monitoring systems
• HVAC and building automation
• Machine-level sensor integration (VFD, pressure, flow, level control)

It is especially effective where multiple field transmitters must be accurately monitored in real time.

Advantages

• High-Resolution 15-bit Accuracy
  Ensures precise analog signal conversion.
• 8 Independent Input Channels
  Supports multiple sensors in a compact module.
• Flexible Signal Range Support
  Accepts both 0–20 mA and 4–20 mA inputs.
• Strong Industrial Noise Immunity
  Designed for harsh EMI environments.
• Fast Signal Update (7.5 ms)
  Enables real-time process control.
• Backplane Powered Design
  No external power supply required.

Technical FAQs

1. What is the IC200ALG262 used for?
It is used to read analog current signals from industrial sensors into a PLC system.

2. How many inputs does it have?
It provides 8 analog input channels.

3. What signal types does it support?
0–20 mA and 4–20 mA current signals.

4. What is its resolution?
15-bit high-resolution conversion.

5. Does it require external power?
No, it is powered via the PLC backplane.

6. What is its update speed?
Approximately 7.5 ms per channel.

7. What sensors can it connect to?
Transmitters for pressure, flow, temperature, and level.

8. Is it software configurable?
Yes, configuration is done via PLC software and jumpers.

9. What is its weight?
Approximately 0.11–0.25 kg.

10. Why is it important in automation systems?
Because it ensures accurate and stable conversion of real-world analog signals into PLC-readable data.
