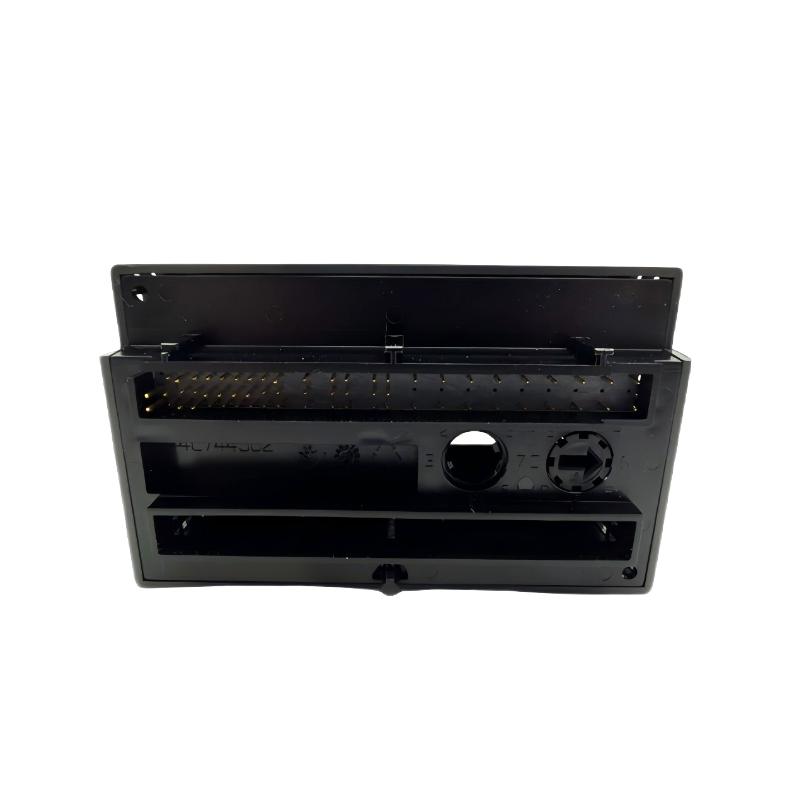

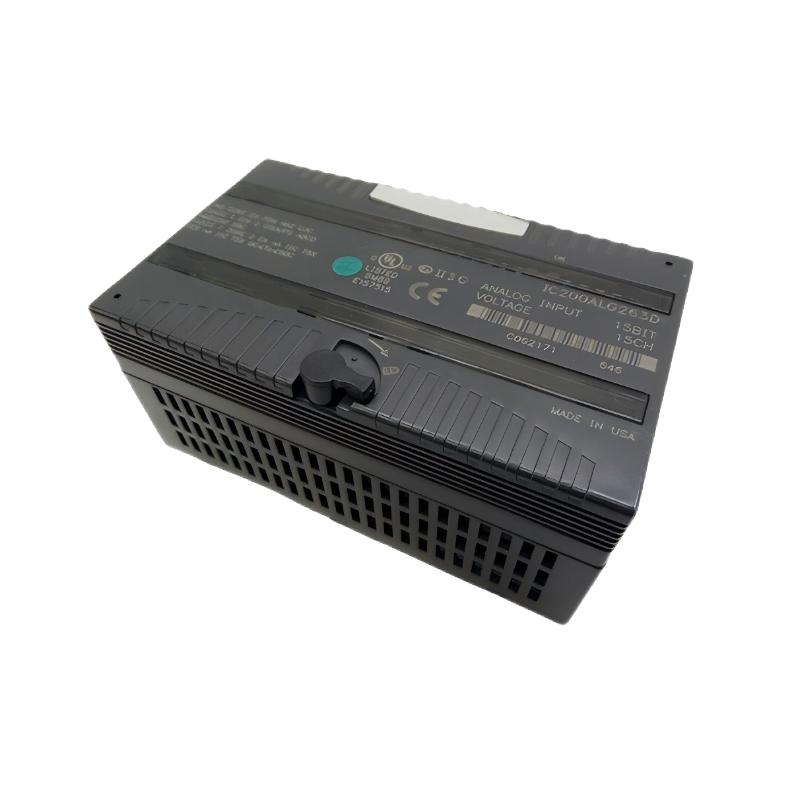

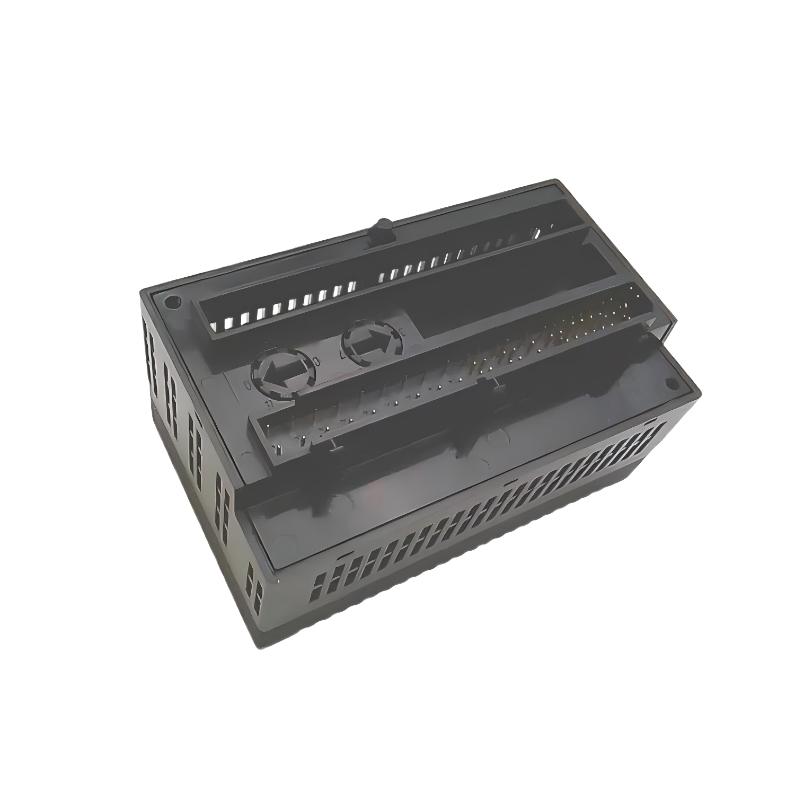

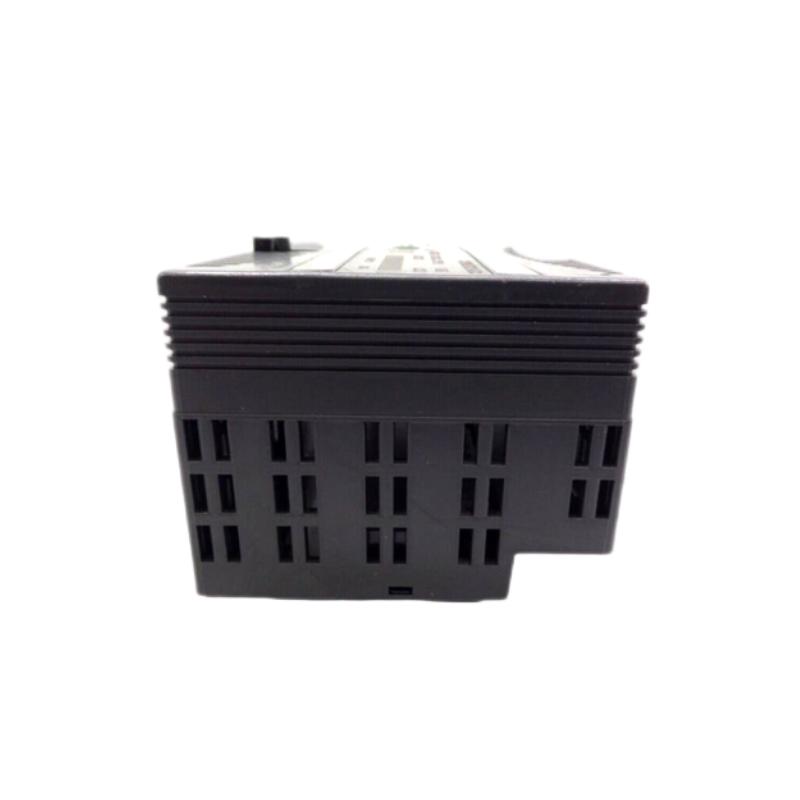

GE IC200ALG263 Analog Input Module

Applications

The IC200ALG263 is widely used in industrial automation systems requiring multi-point voltage monitoring, including:

• Process control systems
• Industrial machine monitoring
• Energy and utility measurement systems
• Water treatment and environmental control
• OEM automation equipment

It is especially effective for applications where multiple analog voltage signals must be accurately captured and processed in real time.

Advantages

• 15 High-Density Input Channels
  Reduces wiring complexity and saves cabinet space.
• High 15-bit Resolution
  Ensures accurate and stable signal measurement.
• Fast 7.5 ms Update Rate
  Supports real-time industrial control applications.
• Wide Voltage Range (-10V to +10V)
  Compatible with standard industrial sensors.
• Built-in Diagnostics (OK LED + fault detection)
  Improves maintenance efficiency and troubleshooting.
• Backplane-Powered Design
  No external power supply required.

Technical FAQs

1. What is the IC200ALG263 used for?
It is used to read analog voltage signals into a GE VersaMax PLC system.

2. How many inputs does it support?
It supports 15 single-ended input channels.

3. What is the input voltage range?
-10 V to +10 V DC.

4. What is its resolution?
15-bit high-resolution analog conversion.

5. Does it require external power?
No, it is powered via the PLC backplane.

6. What is its update speed?
Approximately 7.5 ms.

7. What kind of signals can it read?
Industrial voltage signals such as sensor outputs and transducer signals.

8. Does it support channel isolation?
No channel-to-channel isolation (single group design).

9. What is its weight?
Approximately 0.15 kg.

10. Why is it important in automation systems?
Because it provides accurate, high-density analog voltage measurement for PLC control and monitoring.
