Brand:GE Fanuc PLC Item No.:GE IC200ALG630 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:2.0 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

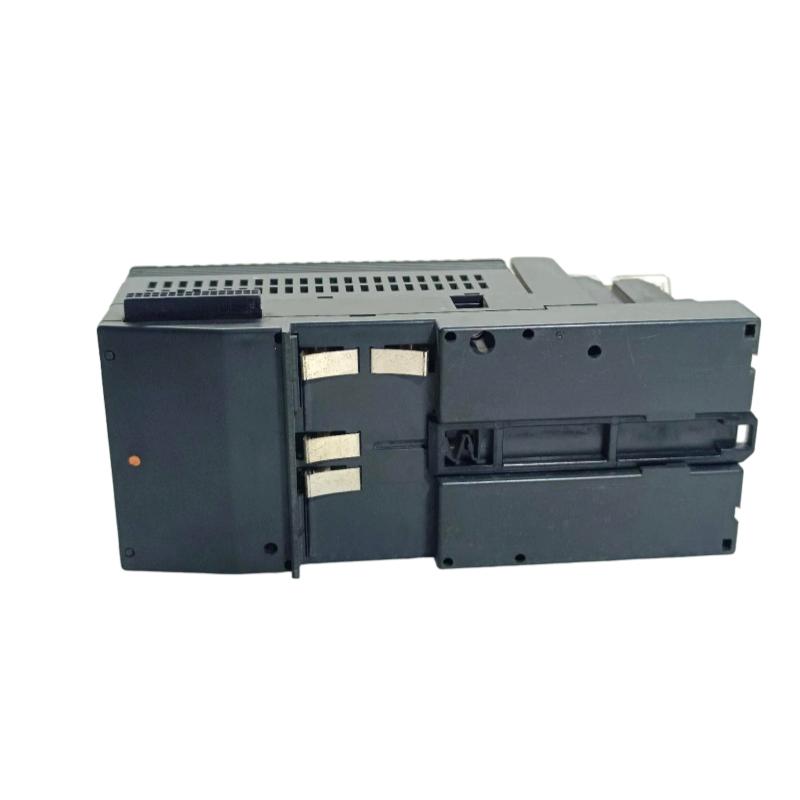

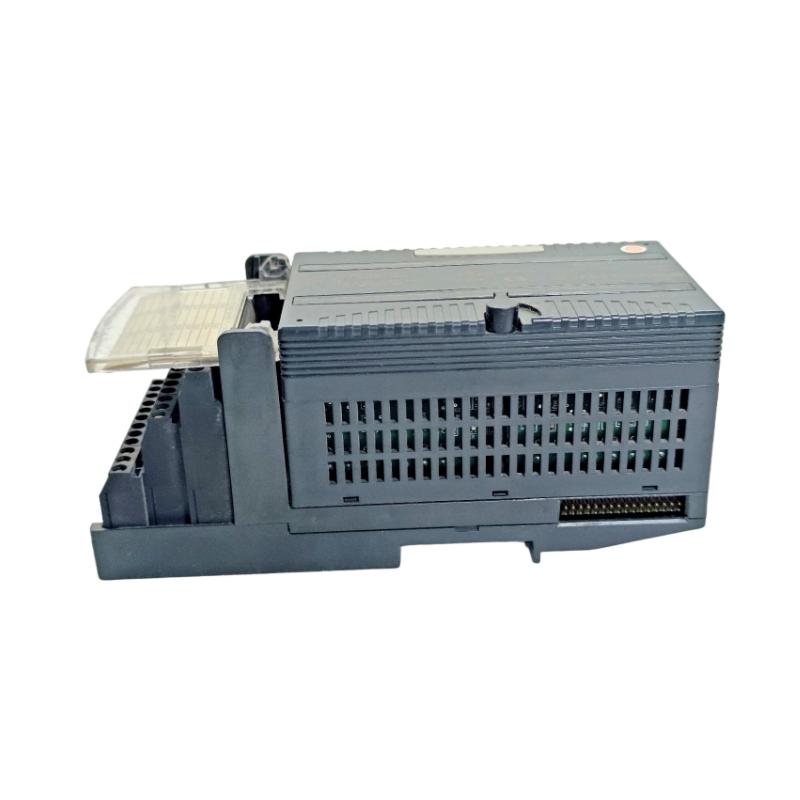

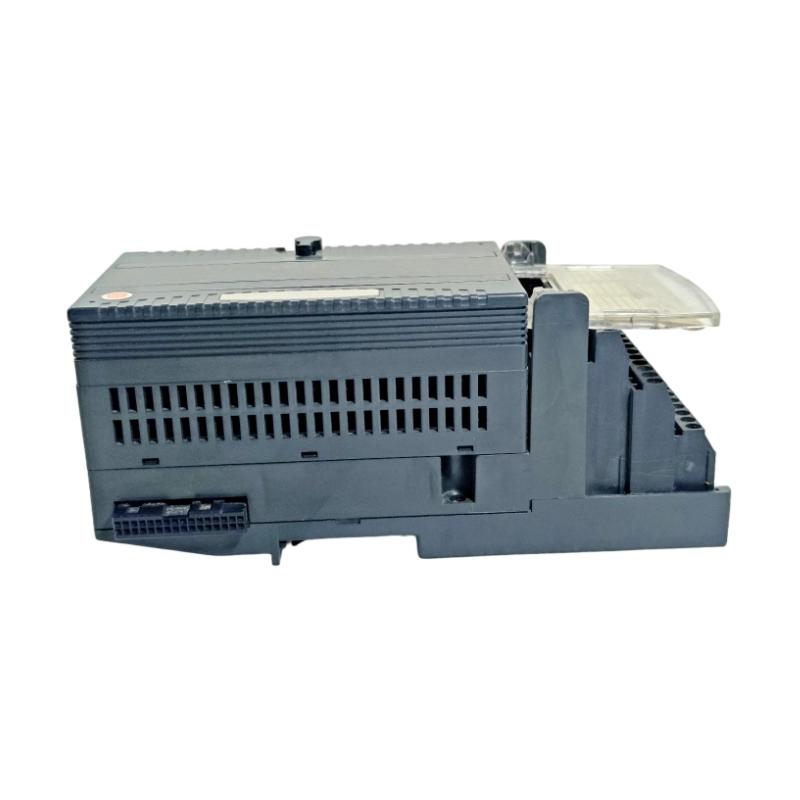

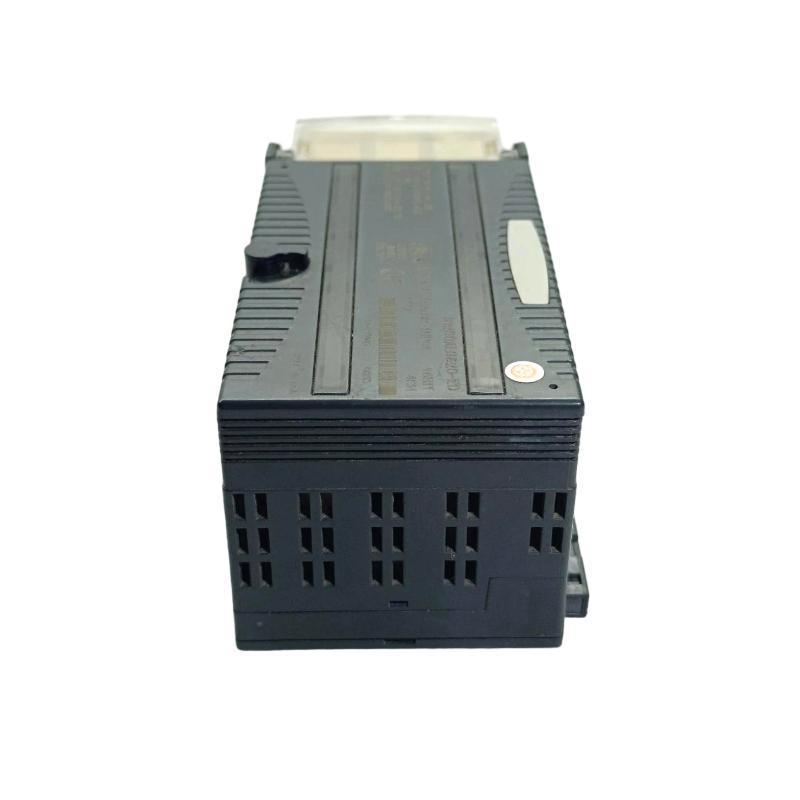

The GE IC200ALG630 is a high-performance VersaMax analog input module designed for industrial temperature and low-level signal acquisition. It is widely used in GE Fanuc PLC systems to read thermocouple and millivolt signals, converting them into high-accuracy digital data for process monitoring and control.
This module is especially valued in temperature-critical industrial environments such as power plants, turbines, furnaces, and chemical processing systems, where stable measurement and strong diagnostics are essential. Its compact design and multi-channel capability make it a powerful solution for dense and reliable temperature data acquisition.
Technical Specifications
Parameter
Details
Manufacturer
GE Fanuc / Emerson
Series
VersaMax I/O System
Model Number
IC200ALG630
Module Type
Analog Input (Thermocouple / mV)
Input Channels
7 independent channels
Supported Signals
Thermocouple (J, K, T, S, R) + millivolt inputs
Millivolt Ranges
±19.5 mV to ±625 mV
Resolution
16-bit (high precision ADC per channel)
Accuracy
±0.2% (voltage), ±0.15% (temperature)
Scan Time
~50–70 ms per channel
Cold Junction Compensation
Supported (multiple modes)
Backplane Power
5 VDC (no external supply required)
Backplane Current
~125 mA
Isolation
250 VAC continuous / 1500 VAC for 1 min
Diagnostics
Open thermocouple, over/under range, sensor fault
Operating Temperature
0°C to 60°C
Applications
The IC200ALG630 is widely used in industrial temperature measurement and precision signal monitoring systems, including:
Gas and steam turbine monitoring
Industrial furnace and heating systems
Chemical processing temperature control
Power generation plant instrumentation
OEM thermal testing equipment
SCADA and distributed control systems
It is particularly effective in environments requiring multi-point temperature acquisition with high accuracy and strong fault detection capability.
Advantages
High-Resolution 16-bit Measurement
Delivers precise temperature and millivolt signal conversion.
Strong Industrial Diagnostics
Detects open wire, sensor faults, and signal anomalies automatically.
No External Power Required
Simplifies installation and reduces wiring complexity.
High Electrical Isolation (1500 VAC)
Protects PLC system from industrial noise and surges.
Stable Multi-Channel Design
Ensures consistent performance across 7 input channels.
Technical FAQs
1. What is the IC200ALG630 used for?
It is used to measure thermocouple and millivolt signals in PLC systems.
2. How many input channels does it have?
It provides 7 analog input channels.
3. What sensor types are supported?
Thermocouples (J, K, T, S, R) and millivolt signals.
4. What is its resolution?
16-bit high-resolution analog conversion.
5. Does it require external power?
No, it is powered via the PLC backplane.
6. What is its scan time?
Approximately 50–70 ms per channel.
7. What is its weight?
Around 0.17 kg (may vary by supplier).
8. Does it support diagnostics?
Yes, including open thermocouple and over/under range detection.
9. What is its isolation rating?
Up to 1500 VAC field-to-frame isolation.
10. Why is it important in automation systems?
Because it ensures accurate, stable, and fault-detected temperature measurement for critical industrial processes.
