GE IC200BEM002 Network Communication Module (PROFIBUS-DP Slave)
GE IC200BEM002 Network Communication Module (PROFIBUS-DP Slave)
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IC200BEM002 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.50 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

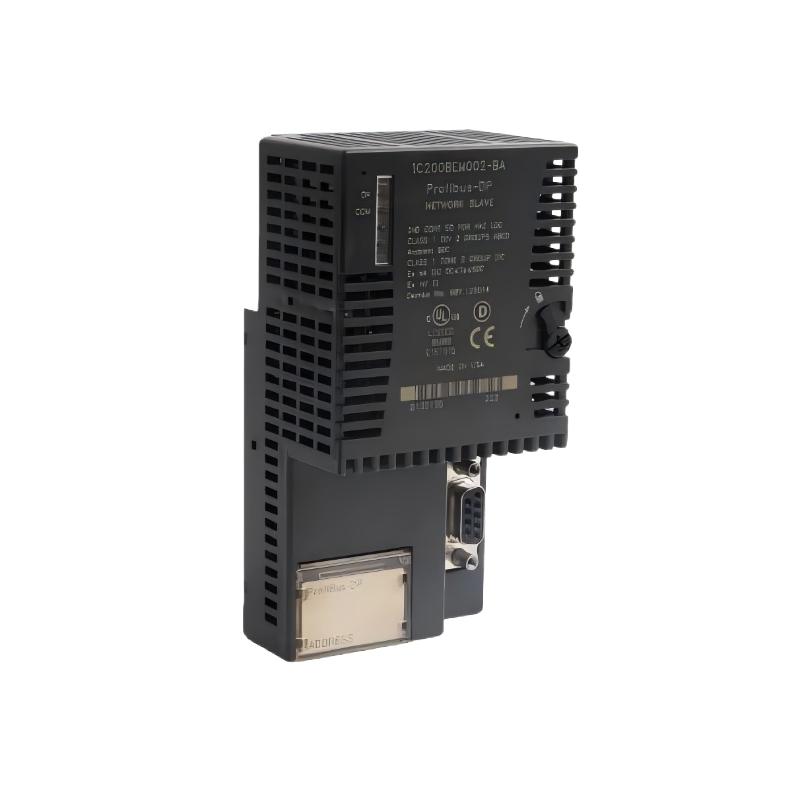

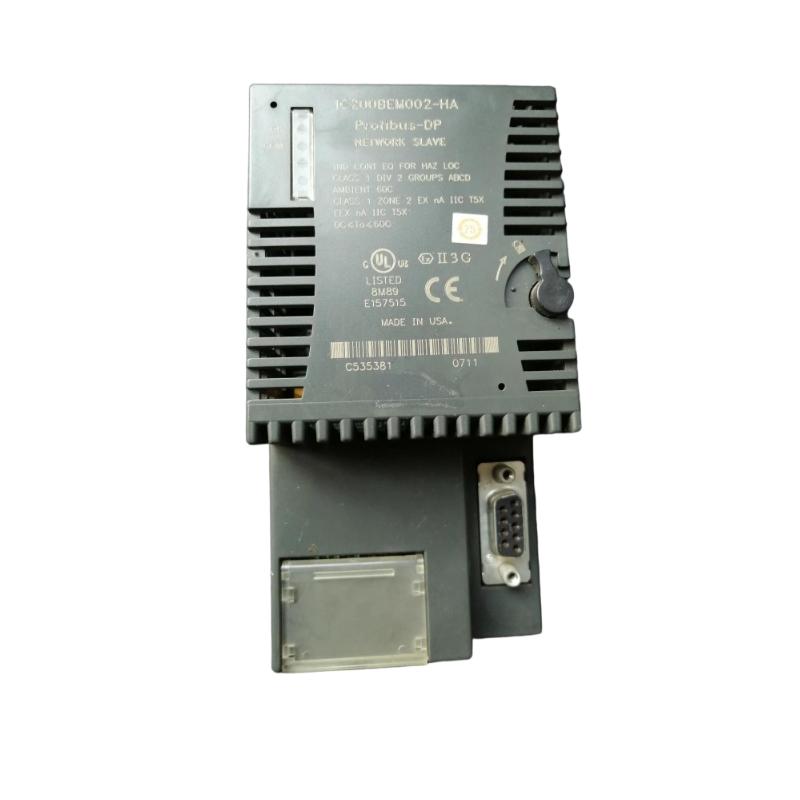

The GE IC200BEM002 is a VersaMax network communication module designed to enable GE Fanuc PLC systems to operate as a PROFIBUS-DP slave device. It plays a key role in industrial distributed control systems (DCS) by allowing high-speed data exchange between a master controller and VersaMax I/O stations.
This module is widely used in factory automation, process control, and multi-node PLC networks, where reliable communication, deterministic data transfer, and flexible network scalability are essential.
It is especially valued for its ability to integrate VersaMax systems into third-party PROFIBUS networks, making it a strong interoperability solution in modern industrial automation.
Technical Specifications
Parameter
Details
Manufacturer
GE Fanuc / Emerson
Series
VersaMax I/O System
Model Number
IC200BEM002
Module Type
Network Communication Module
Protocol
PROFIBUS-DP (Slave)
Network Role
Slave station
Baud Rate
9.6 Kbaud to 12 Mbaud (auto-detect)
Maximum Stations
32 (no repeater), up to 125 (with repeater)
I/O Data Capacity
Up to 384 bytes total
Input/Output Data
Up to 244 bytes each direction
Connector Type
9-pin D-sub
Network Topology
Linear bus (terminated ends)
Power Consumption
~460 mA @ 5 VDC
Firmware
Flash-based, upgradeable
Configuration
Software-configured node address (1–125)
LED Indicators
Power (OK), Communication (COM)
Operating Temperature
0°C to 60°C
Applications
The IC200BEM002 is widely used in industrial networked automation systems requiring PROFIBUS integration, including:
Factory automation networks
Process control systems (DCS/SCADA)
Packaging and material handling systems
Chemical and pharmaceutical plants
Energy and utility monitoring systems
Multi-PLC distributed architectures
It is especially effective where VersaMax PLCs must communicate with Siemens or other PROFIBUS-DP master controllers.
Advantages
PROFIBUS-DP Integration Capability
Enables seamless connection to industrial master networks.
High-Speed Data Exchange (Up to 12 Mbaud)
Supports fast and deterministic communication.
Flexible Network Scalability
Supports up to 125 stations with repeaters.
Large I/O Data Capacity (384 Bytes)
Handles complex control data structures.
Firmware Upgrade Support
Allows future system enhancements.
Reliable LED Diagnostics
Simplifies troubleshooting and system monitoring.
Technical FAQs
1. What is the IC200BEM002 used for?
It is used to connect a VersaMax PLC system to a PROFIBUS-DP network as a slave device.
2. Is it a CPU module?
No, it is a network communication module.
3. What protocol does it support?
PROFIBUS-DP (Slave mode).
4. What is its maximum speed?
Up to 12 Mbaud.
5. How many stations does it support?
Up to 32 without repeaters, up to 125 with repeaters.
6. What is its I/O data capacity?
Up to 384 bytes total (244 bytes input + 244 bytes output).
7. What is its power consumption?
Approximately 460 mA at 5 VDC.
8. What connector does it use?
9-pin D-sub connector.
9. Does it support firmware upgrades?
Yes, via flash memory and serial download.
10. Why is it important in automation systems?
Because it enables reliable high-speed communication between VersaMax PLC systems and PROFIBUS industrial networks.
