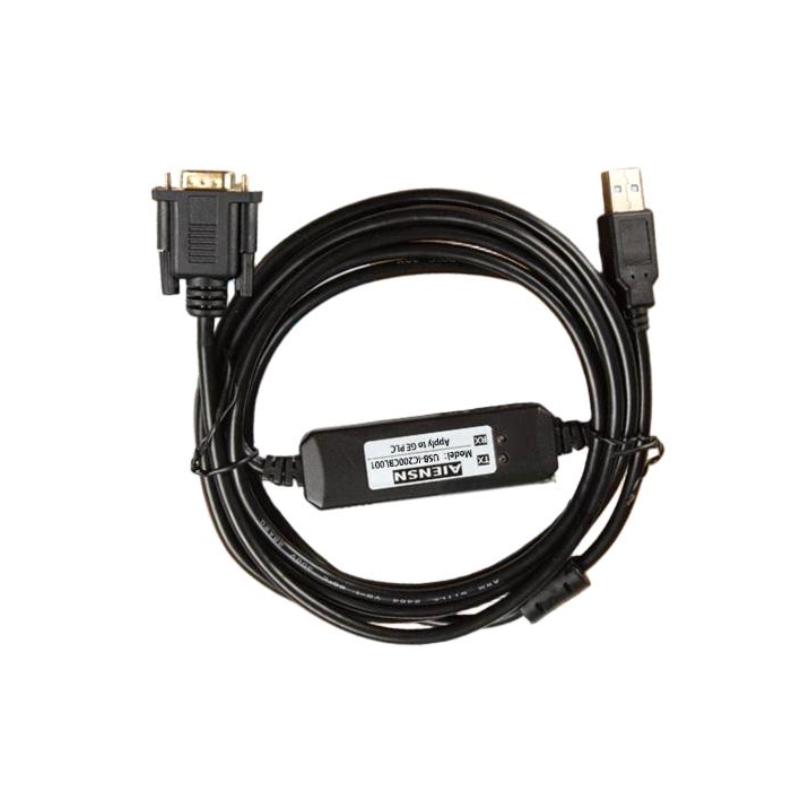

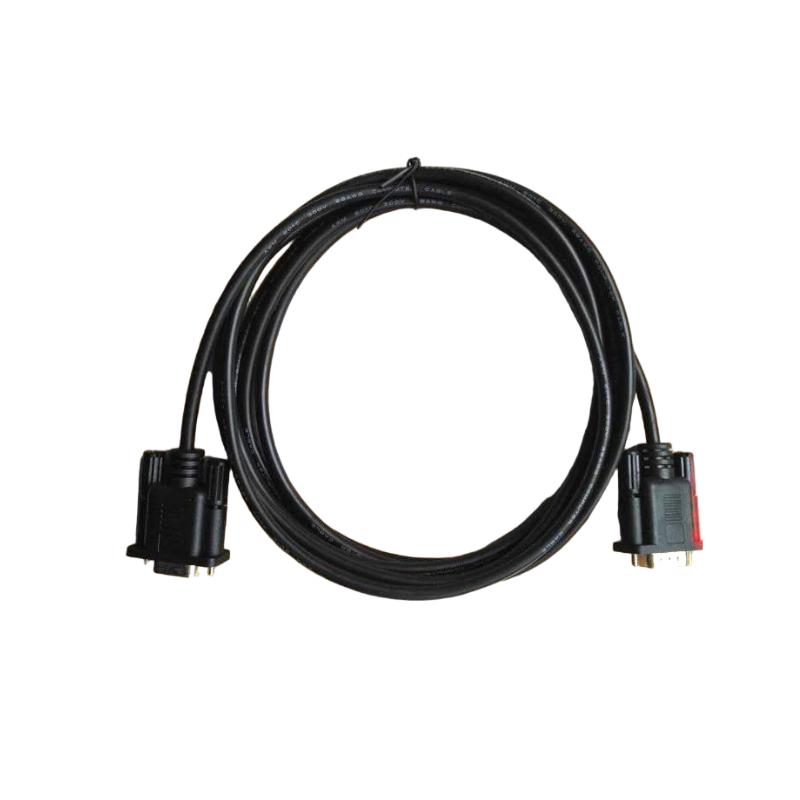

The GE IC200CBL001 is a VersaMax PLC programming and communication cable designed for RS-232 serial connection between a GE Fanuc PLC system and a programming workstation.
It is primarily used for program transfer, online monitoring, diagnostics, and system configuration, making it an essential tool during PLC commissioning and maintenance. In industrial environments, it ensures stable communication between engineering software and the controller, especially during troubleshooting or firmware operations.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Model Number | IC200CBL001 |
| Product Type | PLC Programming / Communication Cable |
| Communication Protocol | RS-232 Serial |

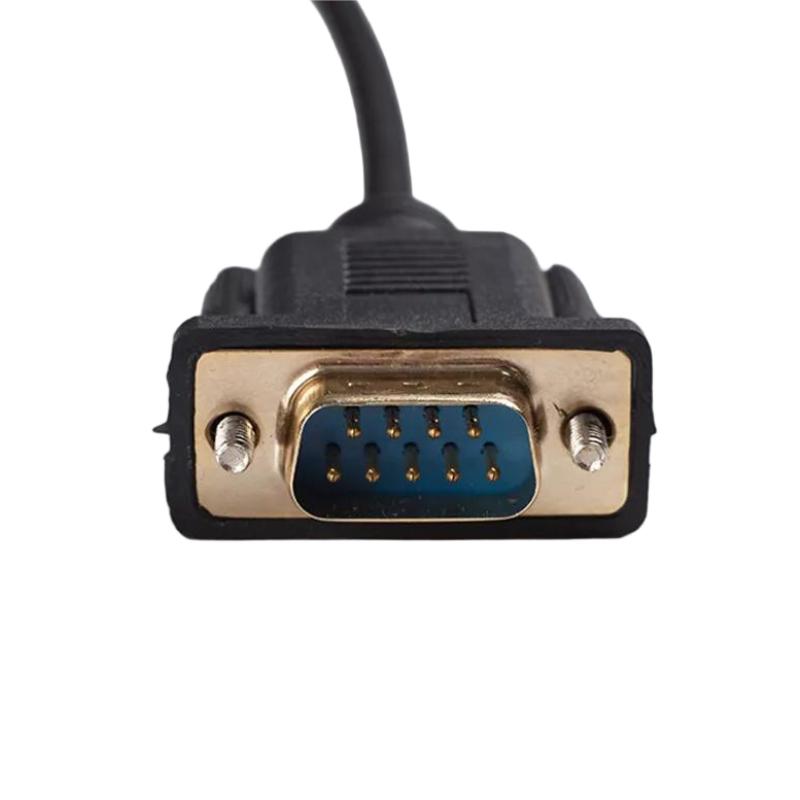

| Connector Type | DB9 (9-pin D-sub) |
| Cable Structure | Shielded industrial communication cable |
| Max Baud Rate | Up to 115,200 bps |
| Function | Programming, diagnostics, firmware transfer |
| Compatibility | GE VersaMax PLC series |
| EMI Protection | Shielded cable design |
| Operating Temperature | -20°C to +70°C |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Cable Length | 3000 mm |
| Cable Diameter | ~6 mm |
| Connector Housing Size | 34 × 17 × 14 mm (each end) |
| Overall Packing Size (L × W × H) | 320 × 220 × 30 mm |
| Weight | ~0.2 kg |
Key Functions
- Connects PLC CPU to PC programming software
- Supports upload and download of PLC programs
- Enables real-time system diagnostics
- Used for firmware updates and configuration
- Provides stable RS-232 serial communication
- Essential tool for PLC commissioning and maintenance
Recommended Related Models
- GE IC200CPU VersaMax CPU modules
- GE IC200BEM002 PROFIBUS communication module
- GE IC200BEM003 PROFIBUS master module
- GE IC200PWR power supply modules
- GE Proficy Machine Edition software
