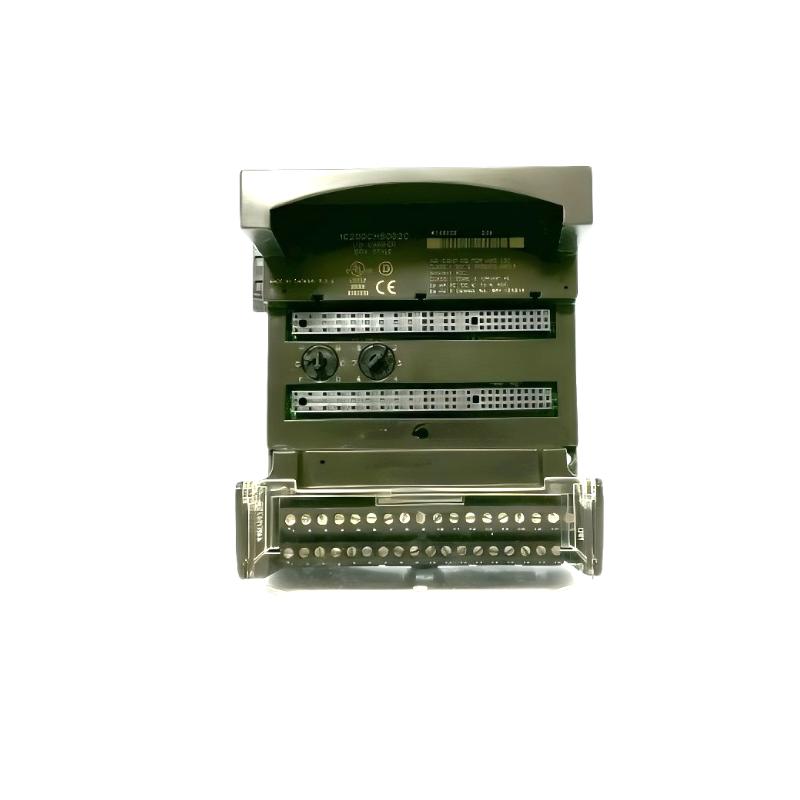

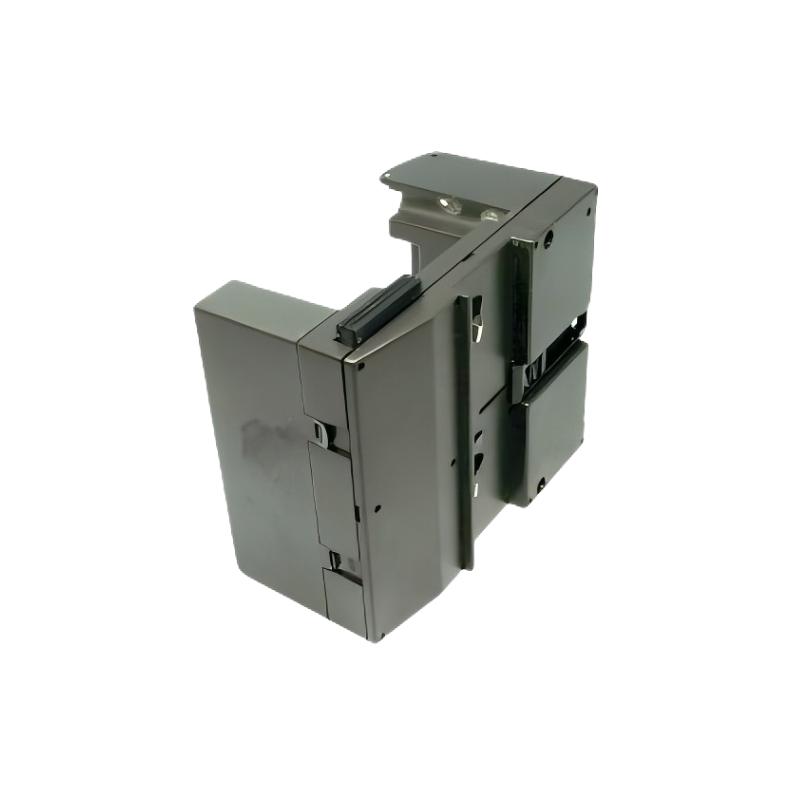

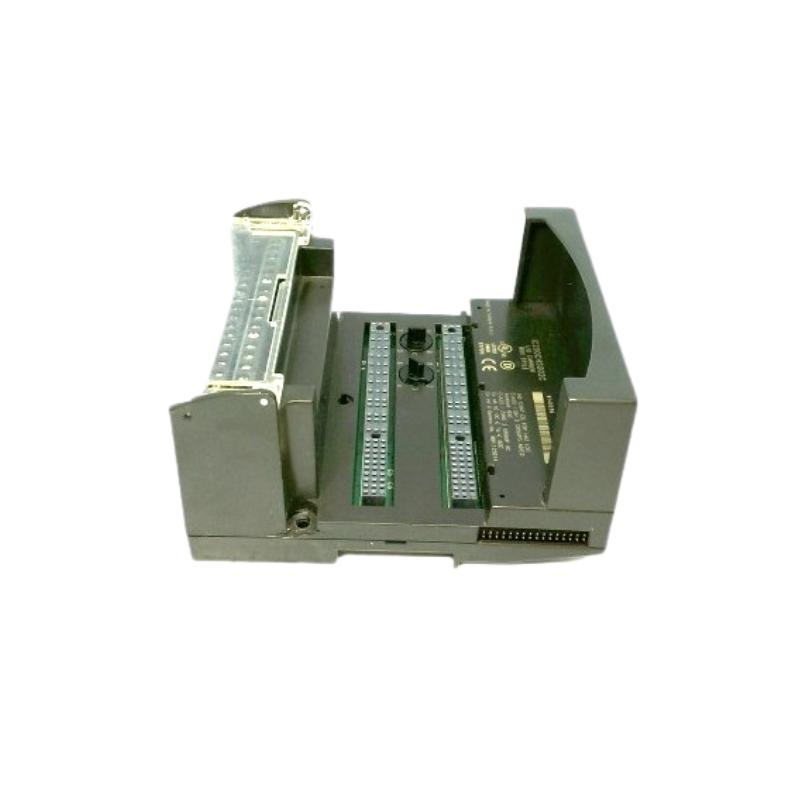

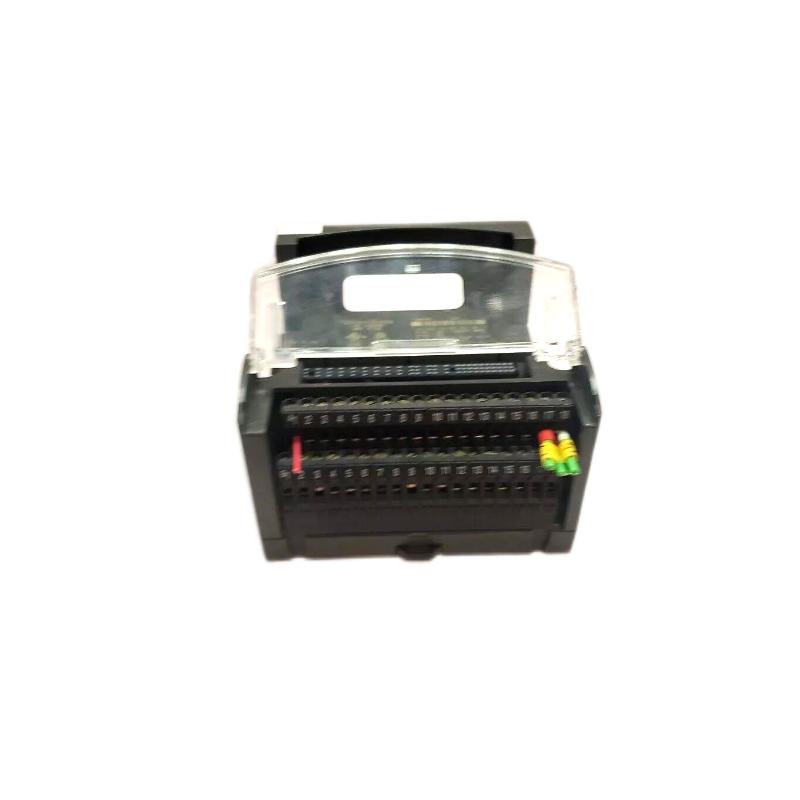

The GE IC200CHS002 is a VersaMax box-style I/O carrier module used in GE Fanuc PLC systems. It provides the mechanical mounting, field wiring terminals, and backplane communication interface for a single VersaMax I/O module.
Compared with IC200CHS001, this model is a more compact dual-slot style carrier design with enhanced terminal arrangement, widely used in modular industrial control systems.
It is essential for building flexible and scalable PLC I/O configurations in automation cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Model Number | IC200CHS002 |
| Product Type | Box-Style I/O Carrier |
| Series | VersaMax |
| Terminal Type | IEC box terminals |
| Number of Terminals | 36 (A1–A18, B1–B18) |
| I/O Capacity | Up to 32 I/O points + 4 power/common |
| Voltage Rating | 0–264 VAC |
| Current Rating | 2 A per point / 8 A per power rail |
| Surge Withstand | Up to 300 VAC |
| Wiring Size | AWG 14–22 (single wire), AWG 18 (dual wire) |
| Mounting Type | DIN rail (7.5 × 35 mm) or panel mount |
| Orientation | Horizontal |
| Function | I/O module mounting + wiring + backplane communication |
