Brand:GE Fanuc PLC Item No.:GE IC200CHS022 Product Origin:USA Product Dimensions:66.8 × 163.5 × 70 mm Product Weight:0.34 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

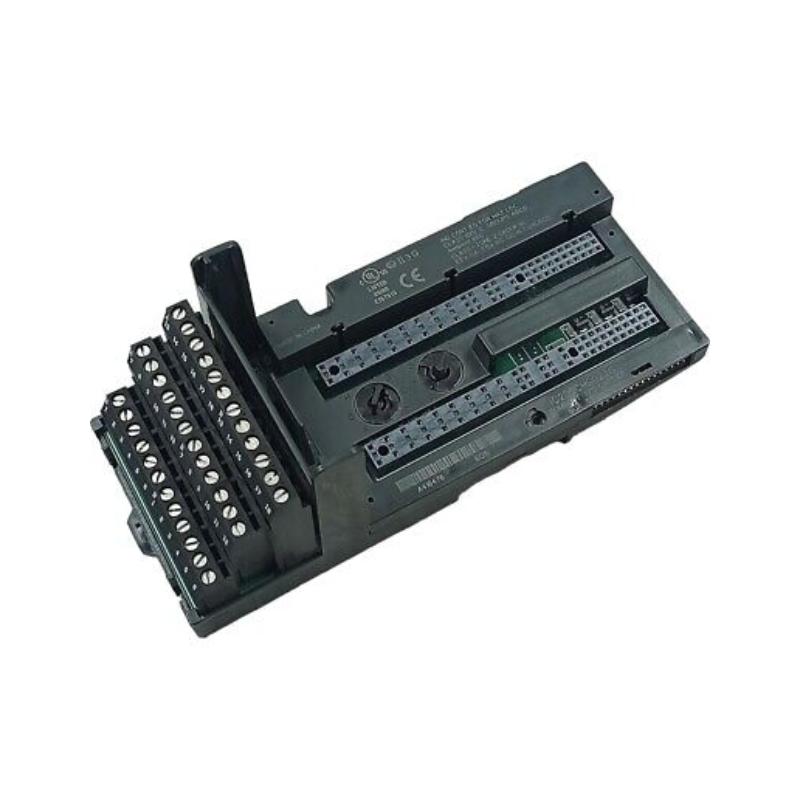

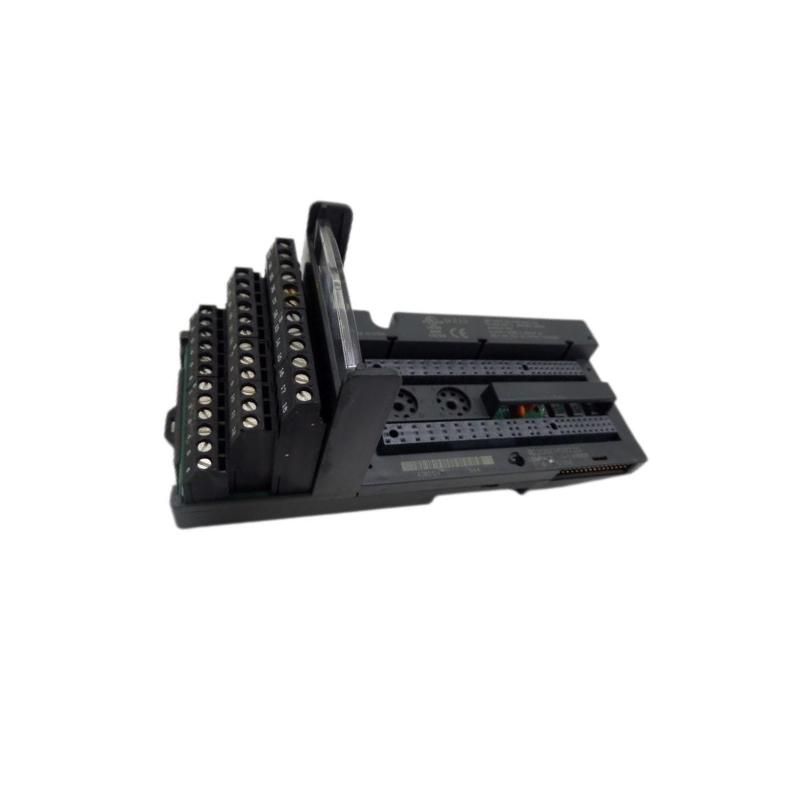

The GE IC200CHS022 Compact I/O Carrier Module is a space-saving, box-style carrier designed for the VersaMax distributed I/O platform. Engineered for streamlined installation and dependable field wiring, it integrates terminal connections and backplane communication into a single compact unit. Its vertical design and dense terminal layout make it especially suitable for control panels where space optimization and clean wiring are essential. For engineers seeking a balance between performance and installation efficiency, this module delivers a highly practical solution.
Technical Specifications
Parameter
Details
Model Number
IC200CHS022
Product Type
Compact I/O Carrier Module
Series
VersaMax
Terminal Type
Box-style (36 terminals)
Orientation
Vertical
Mounting
DIN rail or panel
I/O Support
Up to 32 I/O points + 4 commons
Current per Point
2 A
Power/Ground Current
8 A
Voltage Rating
0–264 VAC
Max Transient Voltage
300 VAC
Wire Size
AWG 14–22 (single), AWG 18 (dual)
Dimensions
66.8 × 163.5 × 70 mm
Weight
Approx. 0.34 kg

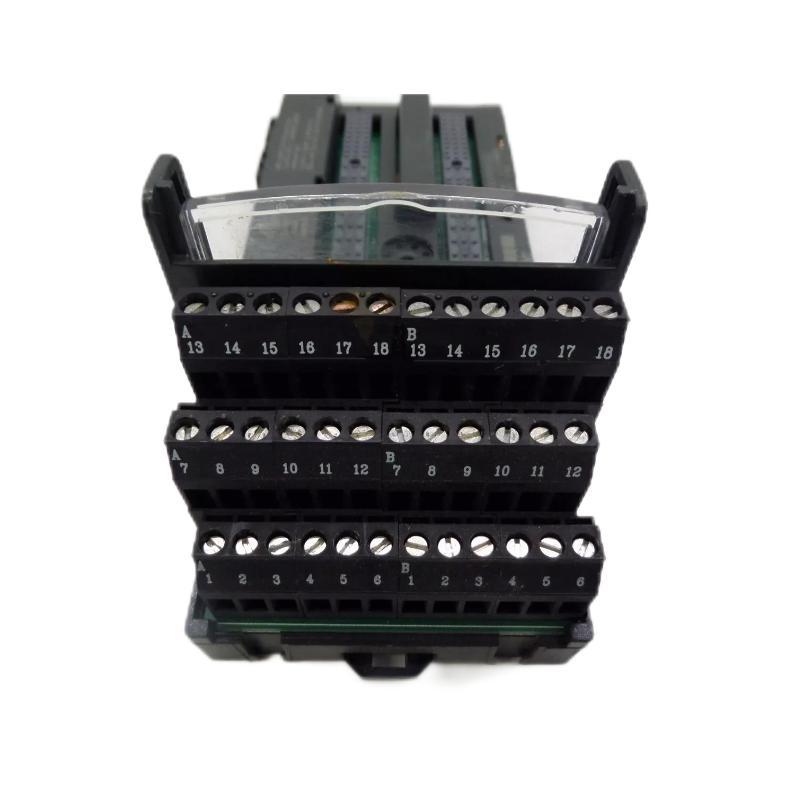

The module features 36 terminals and supports flexible field wiring configurations, ensuring efficient signal distribution and system connectivity.
Recommended Related Models
IC200MDL940 Relay Output Module
IC200MDL750 Digital Output Module
IC200ALG240 Analog Input Module
IC200PWR001 Power Supply Module
IC200ERM002 Expansion Receiver Module
Popular GE VersaMax Models
IC200CPU002 CPU Module
IC200GBI001 Genius Network Interface
IC200ALG230 Analog Input Module
IC200PBI001 Profibus Communication Module
IC200MDL650 Digital Input Module
Application Fields
The IC200CHS022 is widely used in distributed automation systems where compactness and reliability are critical. It is commonly deployed in manufacturing production lines, packaging systems, energy management, and water treatment facilities. Its ability to handle structured wiring and provide stable module connections makes it ideal for both OEM machinery and process control environments. The compact footprint also enables installation in tight enclosures without sacrificing functionality.
Performance Advantages
This carrier module stands out for its high-density wiring capability combined with a compact physical design. The integrated box-style terminals reduce the need for external terminal blocks, lowering installation costs and simplifying panel layout. Its compatibility with all VersaMax I/O modules enhances system flexibility, allowing easy expansion and upgrades. Additionally, the robust construction ensures stable operation in industrial environments, minimizing maintenance and downtime. For projects demanding efficiency and scalability, this module offers a strong return on investment.
Technical FAQs
What is the main function of IC200CHS022?
It provides mounting, backplane connection, and field wiring for a single VersaMax I/O module.
How many terminals are available?
It includes 36 box-style terminals for wiring.
What type of mounting does it support?
It supports both DIN rail and panel mounting.
Can it be used with all VersaMax modules?
Yes, it is compatible with the full range of VersaMax I/O modules.
What is the maximum current per terminal?
Each terminal supports up to 2 A.
Is it suitable for compact control panels?
Yes, its compact design is ideal for space-constrained installations.
What wiring sizes are supported?
It supports AWG 14–22 for single wires and AWG 18 for dual wiring.
Does it support high-voltage environments?
Yes, it supports up to 264 VAC with 300 VAC transient tolerance.
How does it simplify installation?
By integrating terminals and carrier functions into one unit, reducing external components.
What industries typically use this module?
Manufacturing, utilities, automation systems, and process industries.
