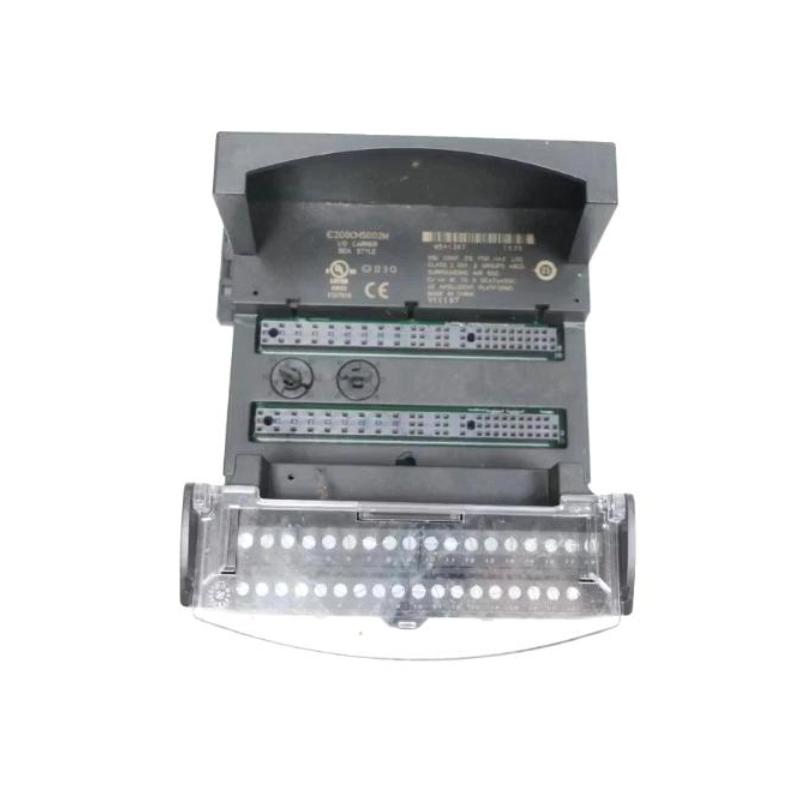

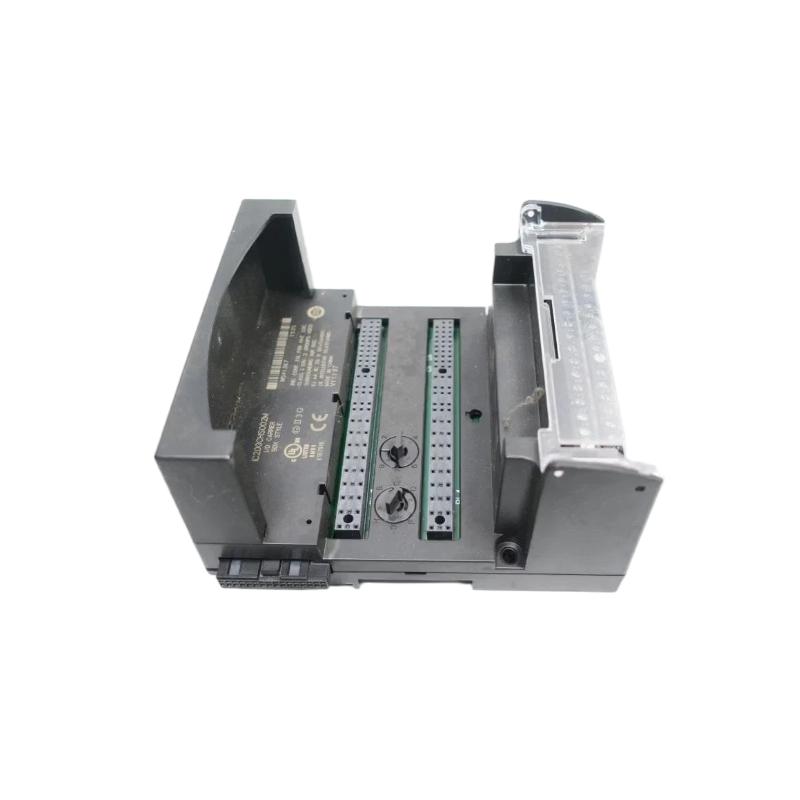

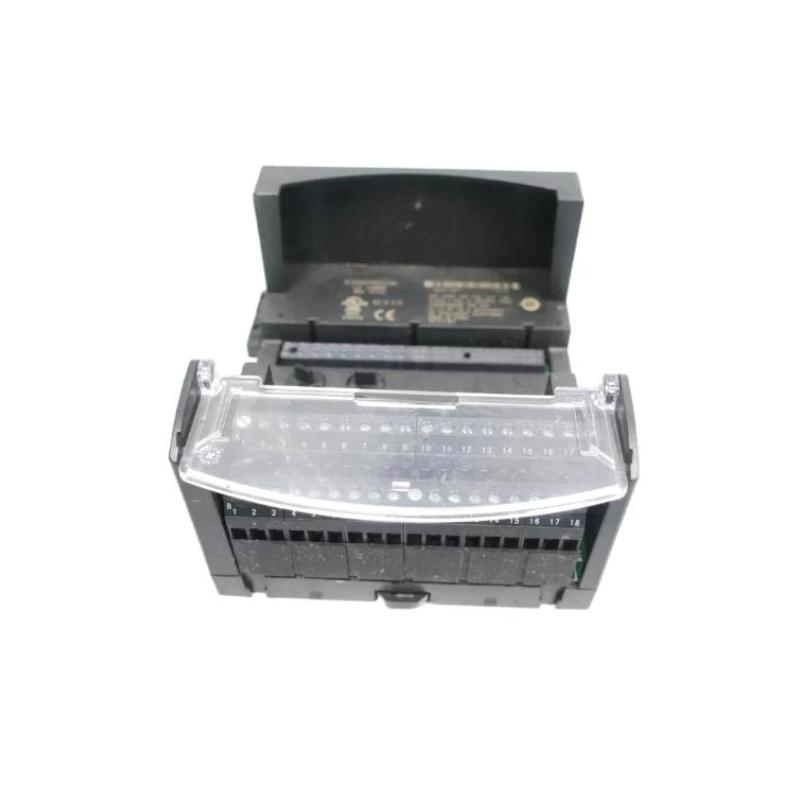

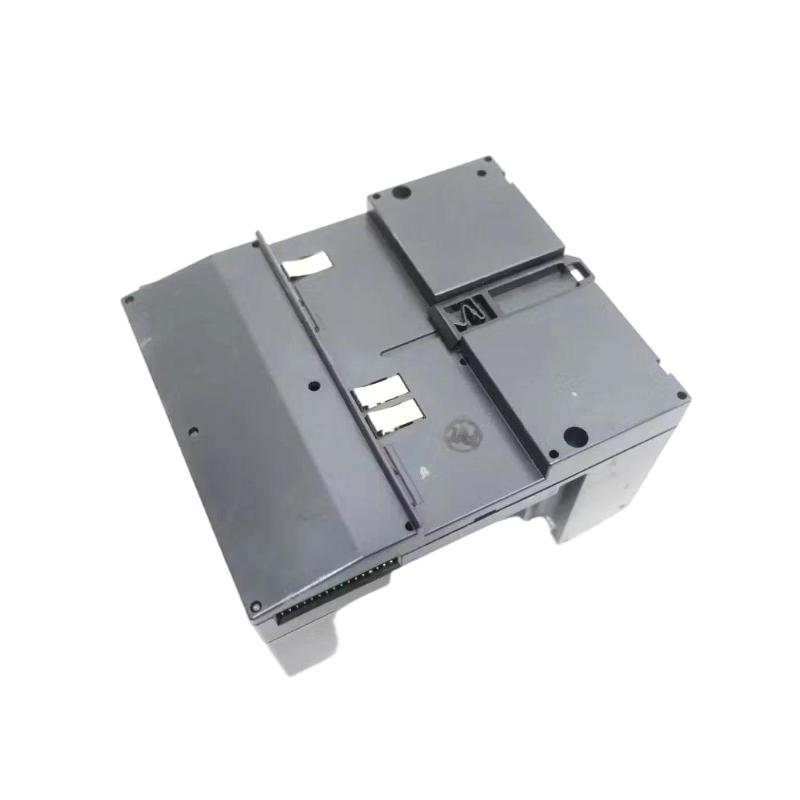

The GE IC200CHS101 is a disconnect-style interposing I/O terminal module designed for the VersaMax platform, offering a highly practical way to isolate field devices without disturbing system wiring. Built for maintenance-heavy industrial environments, it allows technicians to safely disconnect individual input or output channels using integrated knife-switch mechanisms. This makes troubleshooting faster, safer, and significantly more efficient—especially in large distributed control systems where downtime is costly.

Technical Specifications

Parameter	Details
Model Number	IC200CHS101
Product Type	Disconnect-Style Interposing I/O Terminal (Main Base)
Series	VersaMax
Function	Field wiring interface with individual circuit isolation
Terminal Type	36 box-style terminals
Supported Channels	“A” side I/O terminals (A1–A18)
Disconnect Method	Integrated signal + return knife switches
Cable Interface	J1 connector (to I/O carrier)
Expansion Support	J2 connector for IC200CHS102
Wire Range	AWG 12–24 (solid/stranded copper)
Voltage Rating	Up to 264 VAC (300 VAC transient)
Mounting	DIN rail / panel-mounted system integration
Dimensions	115 × 65 × 126 mm
Weight	Approx. 0.30–0.36 kg

The module is designed to interface directly with VersaMax connector-style I/O carriers, providing a clean separation between field wiring and control logic.

Recommended Related Models

IC200CHS102 Expansion Disconnect Base
IC200CHS003 Connector I/O Carrier
IC200CBL105 Interface Cable
IC200CBL110 Connection Cable
IC200MDL750 Digital Output Module

Popular GE VersaMax Ecosystem Modules

IC200CPU001 CPU Controller
IC200PWR001 Power Supply Module
IC200ERM002 Expansion Receiver
IC200ALG240 Analog Input Module
IC200MDL940 Relay Output Module

Application Scenarios

The IC200CHS101 is widely used in industrial environments where maintenance flexibility and circuit isolation are critical. It is commonly deployed in manufacturing plants, energy facilities, water treatment systems, and process automation lines. Its ability to disconnect individual field devices without rewiring makes it especially valuable for troubleshooting, preventive maintenance, and system commissioning in large-scale distributed I/O architectures.

Key Advantages

This module is engineered for maximum serviceability and operational safety. The integrated disconnect switches allow engineers to isolate specific channels instantly, reducing diagnostic time and preventing unnecessary system shutdowns. Its structured 36-terminal layout improves wiring organization, while compatibility with both main and expansion bases ensures scalable system design. Additionally, the robust industrial construction ensures reliable performance in harsh electrical environments, making it a trusted solution for long-term automation stability.

Technical FAQs

What is the main function of IC200CHS101?
It provides field wiring termination with built-in disconnect capability for VersaMax I/O systems.
What makes it a “disconnect-style” module?
Each channel includes knife switches for isolating signal and return circuits.
Which I/O channels does it support?
It supports the “A” side terminals (A1–A18) of VersaMax modules.
Is an expansion base required?
Yes, IC200CHS102 is used when “B” side terminals are present.
What type of wiring is supported?
Solid or stranded copper wires ranging from AWG 12 to AWG 24.
Can I isolate one device without stopping the system?
Yes, individual channels can be safely disconnected during operation.
What is the purpose of the J1 connector?
It links the terminal base to the VersaMax I/O carrier.
Does it require external jumpers?
No, most configurations do not require additional jumpers.
What industries commonly use this module?
Manufacturing, utilities, process automation, and energy systems.
What is the biggest operational benefit?
It enables safe, fast maintenance without rewiring or system interruption.
