Brand:GE Fanuc PLC Item No.:GE IC200CPU002 Product Origin:USA Product Dimensions:66.8 × 128 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

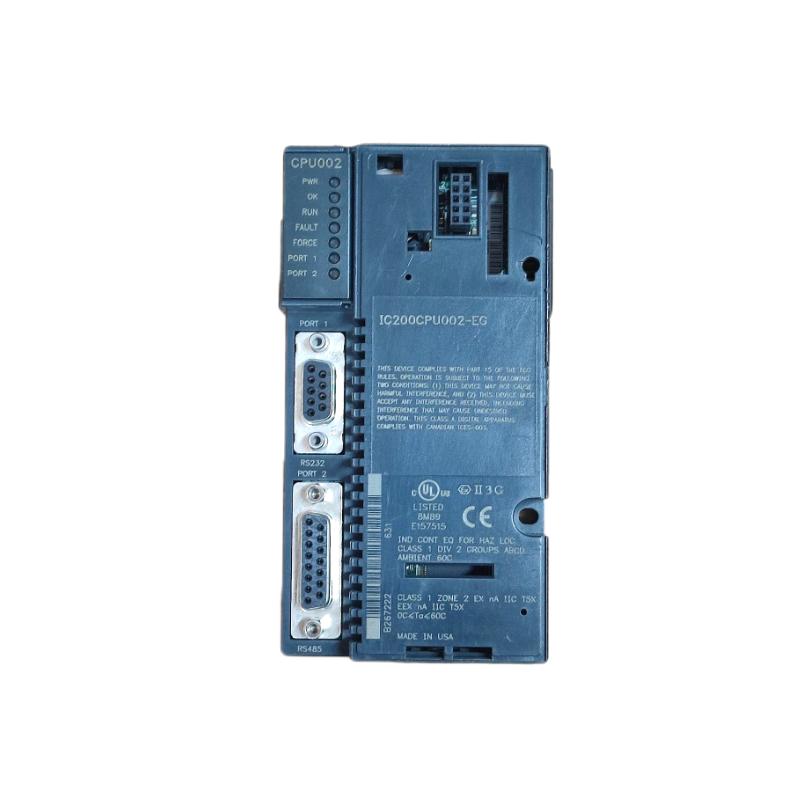

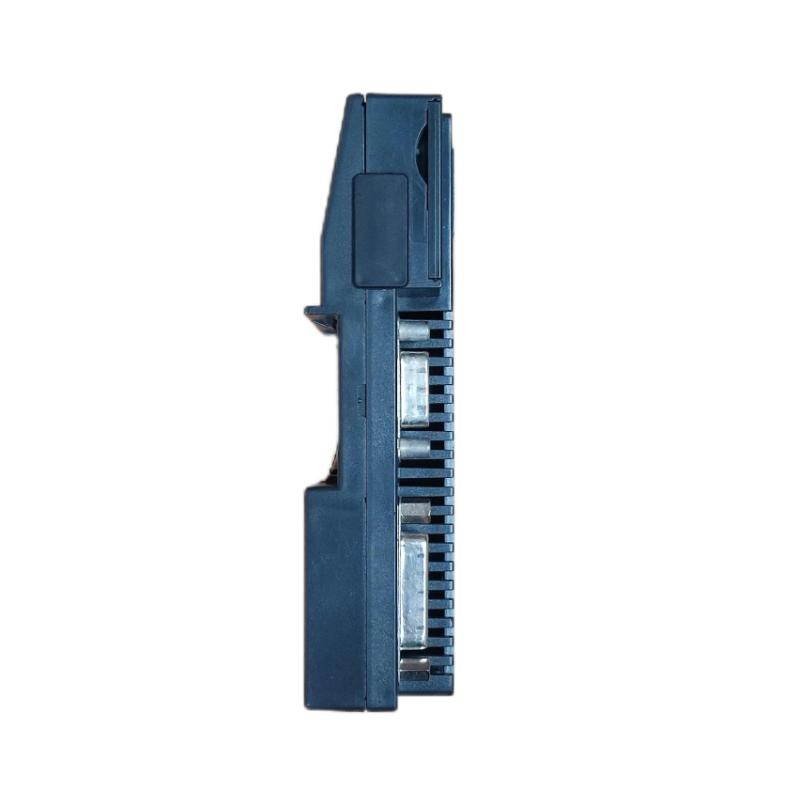

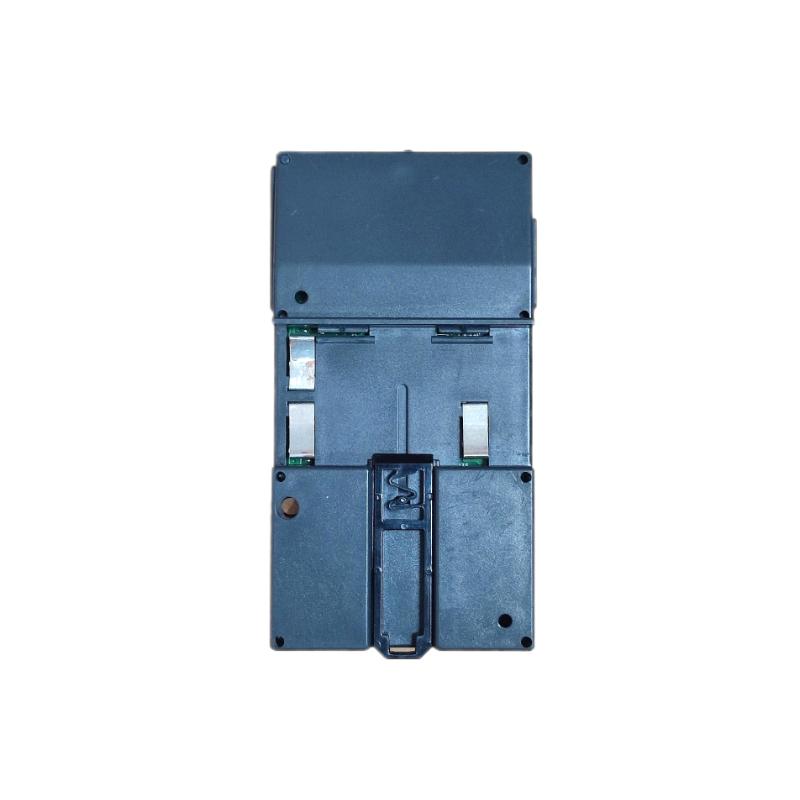

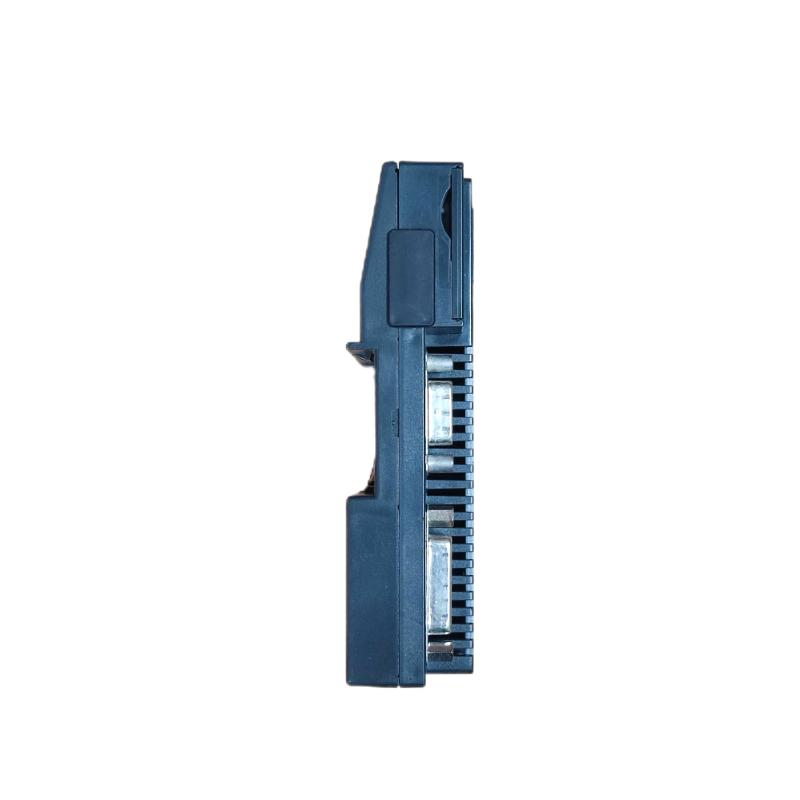

The GE IC200CPU002 is an upgraded VersaMax series CPU module designed to deliver stronger processing performance and improved system responsiveness compared to earlier CPU models. Built for demanding industrial environments, it acts as the central controller of a VersaMax PLC system, coordinating I/O modules, communication networks, and real-time control logic with high efficiency. With expanded memory and faster execution capability, it is widely used in applications requiring greater program complexity and communication flexibility.
Technical Specifications
Parameter
Details
Model Number
IC200CPU002
Product Type
CPU Module (Central Processing Unit)
Series
VersaMax
User Memory
~42 KB configurable memory
I/O Capacity
Up to 2048 inputs / 2048 outputs
Internal Bits
1024
Temporary Bits
256
Execution Speed
~1.8 ms per 1K Boolean instructions
Communication Ports
RS-232, RS-485
Protocols Supported
SNP Slave, Modbus RTU Slave, Serial I/O
Programming
Ladder Diagram, Instruction List
Real-Time Clock
Battery-backed RTC (±0.01% accuracy)
Memory Type
Flash + battery-backed RAM
Power Supply
5 VDC via backplane
Operating Temperature
0°C to 60°C
Dimensions
66.8 × 128 mm
Weight
~0.45 kg
Recommended Related Models
IC200PWR001 Power Supply Module
IC200CHS003 I/O Carrier Module
IC200ERM002 Expansion Receiver Module
IC200ALG240 Analog Input Module
IC200MDL750 Digital Output Module
Popular GE VersaMax CPU & Control Modules
IC200CPU001 Standard CPU Module
IC200GBI001 Genius Bus Interface
IC200PBI001 Profibus Communication Module
IC200CPU005 Ethernet-enabled CPU (variant family)
IC200MDL940 Relay Output Module
Application Scenarios
The IC200CPU002 is widely used in mid-level to advanced automation systems where higher memory and better communication performance are required. Typical applications include production line automation, packaging systems, process control plants, water treatment facilities, and OEM machine control. Its dual serial ports allow seamless integration with SCADA systems, HMIs, and legacy industrial networks, making it especially valuable in upgrade and retrofit projects where Ethernet may not be mandatory but stability and expandability are essential.
Key Advantages
This CPU module delivers a noticeable upgrade in both memory capacity and system flexibility, allowing engineers to run more complex logic without performance bottlenecks. Its dual serial communication ports reduce the need for external gateways, simplifying system architecture. The improved memory structure enhances program reliability and data retention, while battery-backed clock functionality supports time-sensitive automation tasks. Compared to earlier CPU models, it provides a more scalable and future-ready control foundation for VersaMax systems.
Technical FAQs
What is the main difference between IC200CPU001 and IC200CPU002?
IC200CPU002 offers higher memory capacity and improved performance.
Does IC200CPU002 support Ethernet?
No, it uses RS-232 and RS-485 serial communication only.
How much memory does it have?
Approximately 42 KB configurable user memory.
What is its I/O capacity?
It supports up to 2048 inputs and 2048 outputs.
What programming languages are supported?
Ladder Diagram and Instruction List.
Is it suitable for large systems?
It is suitable for medium-to-large VersaMax control systems.
Does it retain data during power loss?
Yes, via battery-backed RAM and flash memory.
Can it connect to SCADA systems?
Yes, through Modbus RTU or SNP protocols.
What industries commonly use it?
Manufacturing, utilities, packaging, and process automation.
Why is it still widely used today?
Because of its stability, strong compatibility, and reliable legacy system support.
