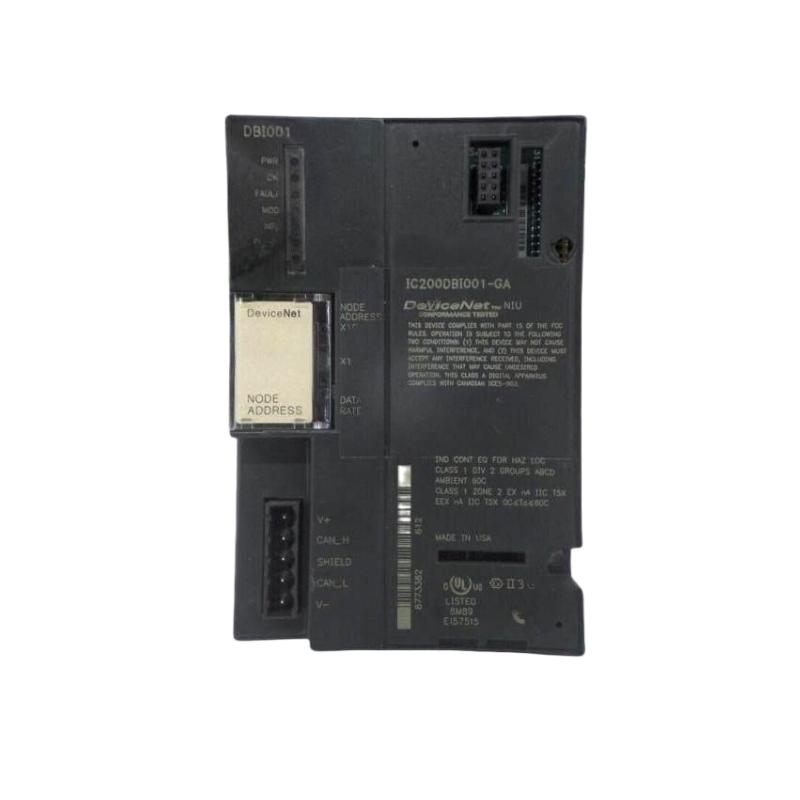

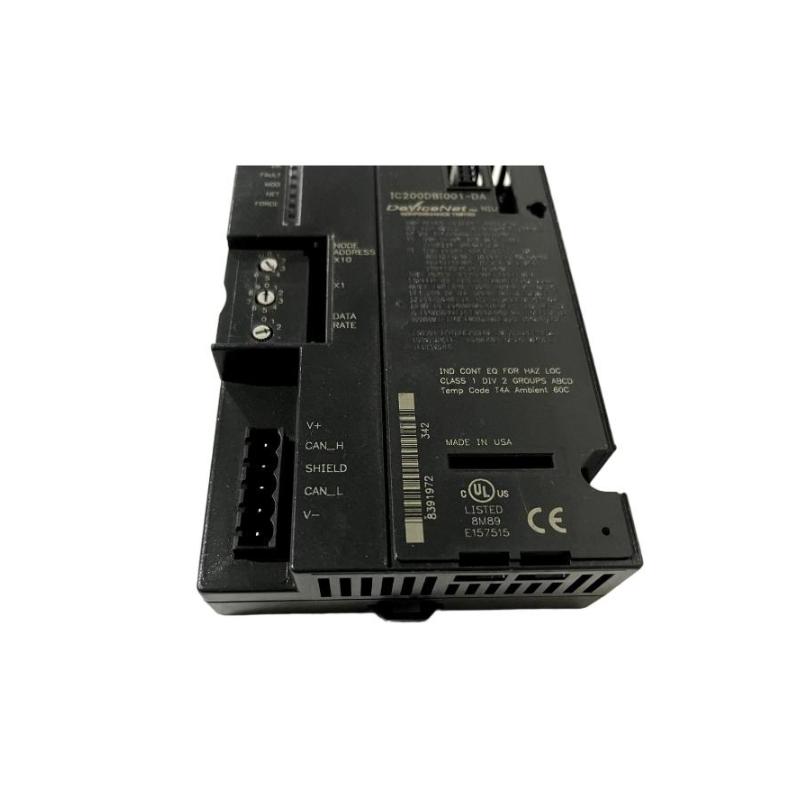

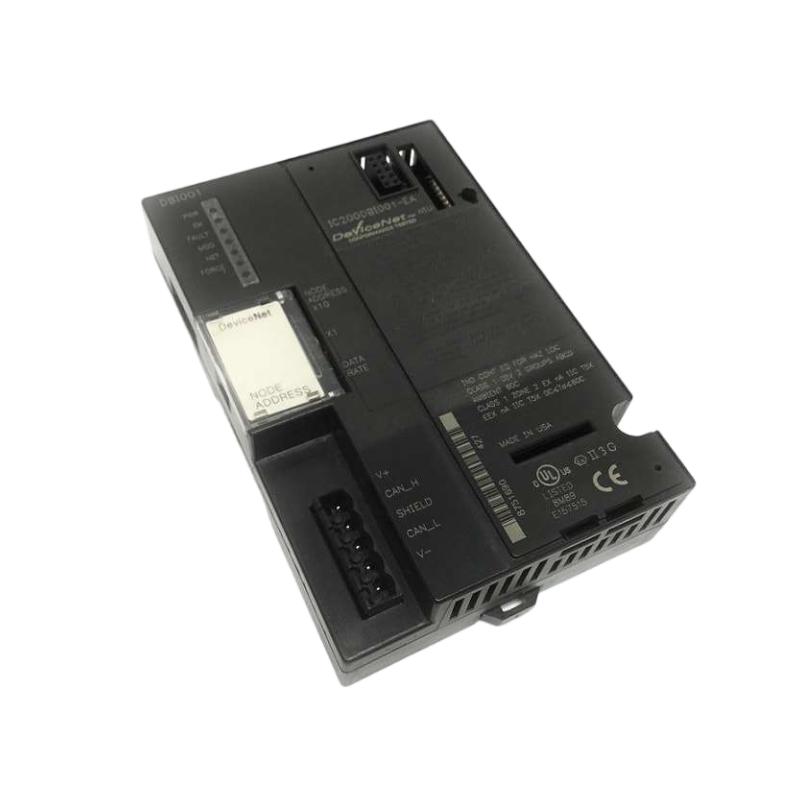

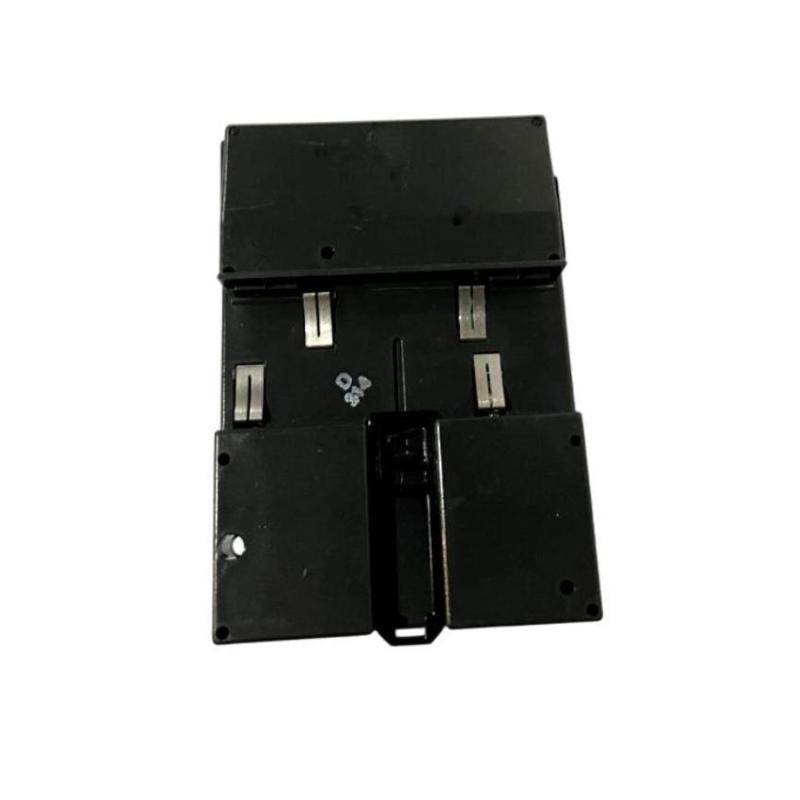

The GE IC200DBI001 is a DeviceNet Network Interface Unit (NIU) designed for the VersaMax PLC platform, enabling seamless communication between a distributed I/O station and a DeviceNet industrial network. Acting as a network slave controller, it manages multiple I/O modules within a single station and ensures fast, deterministic data exchange with a master PLC or automation controller. Built for industrial communication reliability, it is widely used in decentralized control architectures where flexibility and network integration are essential.

Technical Specifications

Parameter	Details
Model Number	IC200DBI001
Product Type	DeviceNet Network Interface Unit (NIU)
Series	VersaMax
Network Protocol	DeviceNet (Slave)
Communication Modes	Polling, Change-of-State, Cyclic
Maximum Nodes	Up to 64 nodes
I/O Modules Supported	Up to 8 modules per station
Data Capacity	128 bytes input / 128 bytes output
Baud Rates	125 Kbps / 250 Kbps / 500 Kbps
Connector Type	5-pin DeviceNet open-style connector
LED Indicators	Power, OK, Fault, Network, Module status
Power Consumption	~160 mA @ 5V DC
Backplane Power	5V and 3.3V via NIU supply
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Dimensions	~133 × 68 × 50 mm
Weight	~0.26–0.31 kg

The module is DIN-rail mounted and integrates directly into a VersaMax I/O station, acting as the communication gateway for distributed control systems.

Recommended Related Models

IC200CPU001 VersaMax CPU Module
IC200CHS003 I/O Carrier Base
IC200ERM002 Expansion Receiver Module
IC200GBI001 Genius Network Interface Unit
IC200PWR001 Power Supply Module

Popular GE VersaMax Communication Modules

IC200PNS001 PROFINET Network Module
IC200PNS002 PROFINET Scanner Variant
IC200EBI001 Ethernet Network Interface
IC200DBI002 DeviceNet Expansion Variant
IC200MDL750 Digital Output Module

Application Scenarios

The IC200DBI001 is widely used in distributed automation and machine-level networking systems where multiple I/O modules must be controlled remotely over DeviceNet. Typical applications include automotive manufacturing lines, packaging machinery, material handling systems, and industrial process automation. Its ability to support up to 64 nodes makes it ideal for scalable architectures where multiple stations need synchronized communication with a central PLC or SCADA system.

Key Advantages

This module provides a robust and flexible networking bridge between VersaMax I/O systems and DeviceNet networks. Its support for multiple communication modes (polling, cyclic, and change-of-state) allows optimized data transfer based on application needs. Built-in diagnostics via LED indicators simplify troubleshooting and reduce downtime. The ability to support multiple I/O modules per station enhances system scalability while maintaining compact hardware architecture. Overall, it reduces wiring complexity and improves system modularity in distributed control designs.

Technical FAQs

What is the main function of IC200DBI001?
It connects VersaMax I/O stations to a DeviceNet industrial network.
Is it a master or slave device?
It operates as a DeviceNet slave module.
How many I/O modules can it support?
Up to 8 I/O modules per station.
How many network nodes are supported?
Up to 64 DeviceNet nodes.
What is the data capacity per cycle?
128 bytes of input and 128 bytes of output data.
What communication speeds are supported?
125 Kbps, 250 Kbps, and 500 Kbps.
What type of connector does it use?
A standard 5-pin DeviceNet open-style connector.
How is system status monitored?
Through onboard LED indicators for power, fault, and network status.
What industries use this module most?
Automotive, manufacturing automation, and process control industries.
What makes it important in VersaMax systems?
It enables distributed I/O architecture with reliable industrial network communication.
