Brand:GE Fanuc PLC Item No.:GE IC200MDD845 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.63 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

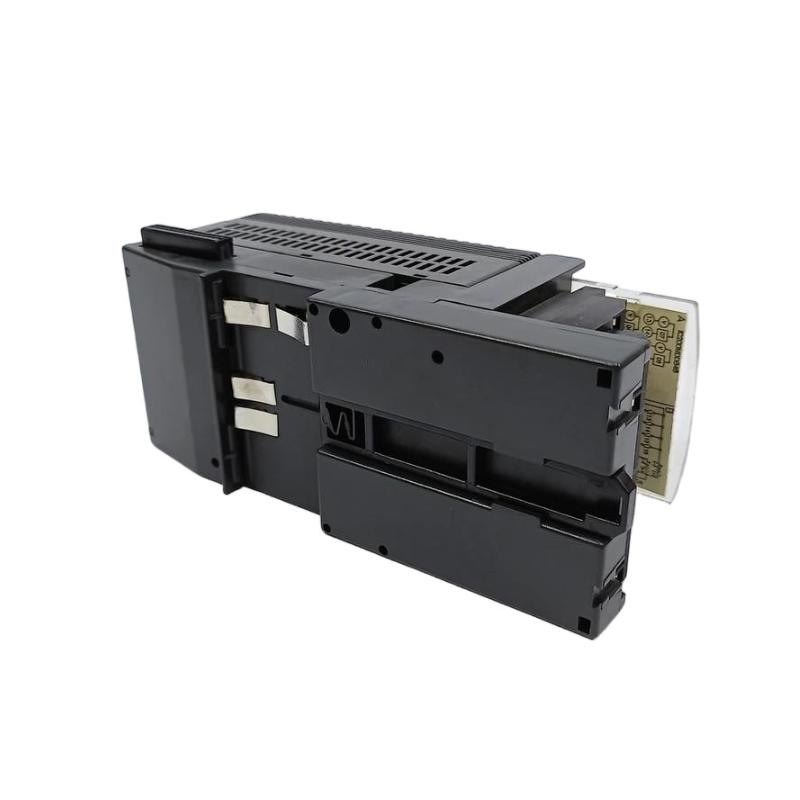

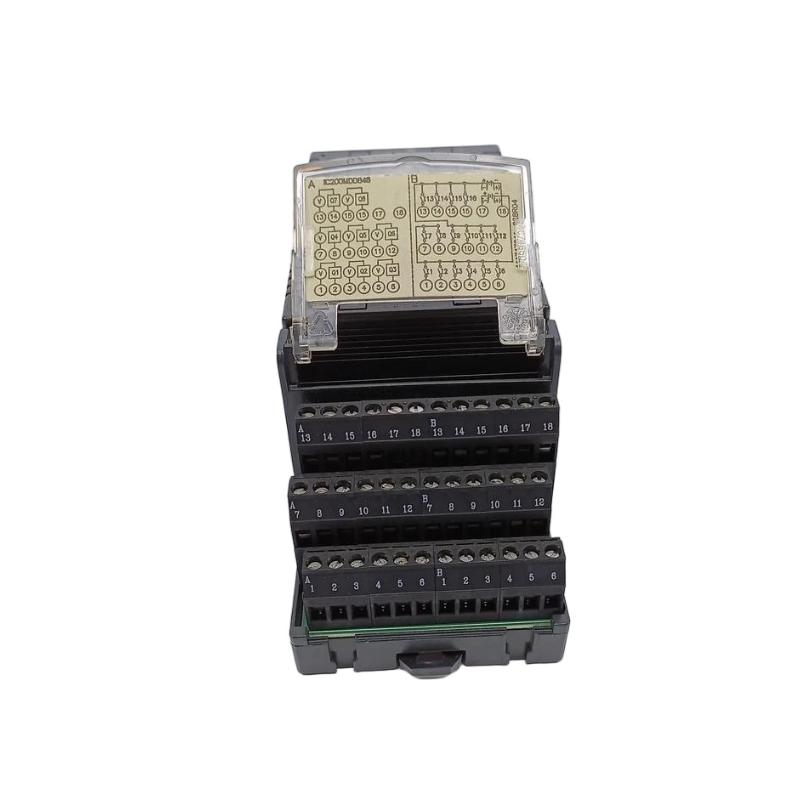

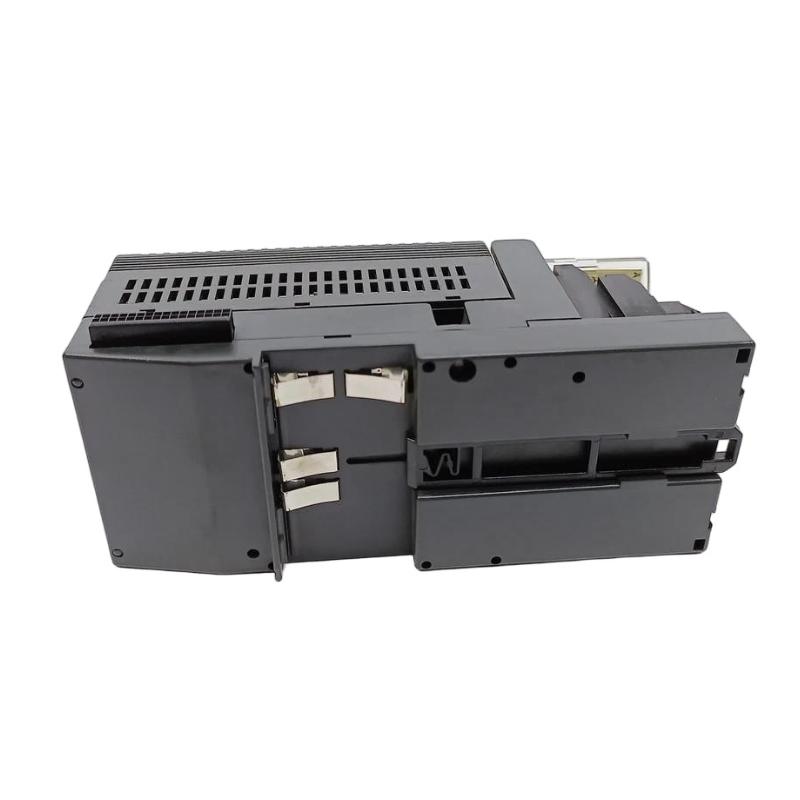

The GE IC200MDD845 is a VersaMax discrete mixed I/O module designed for industrial automation systems that require both high-density input processing and robust relay-based output switching. It integrates 16 digital inputs and 8 individually isolated relay outputs, providing a total of 24 I/O points in a compact form factor. With strong load-handling capability and reliable isolation design, it is widely used in machinery control, process automation, and distributed I/O architectures.
Technical Specifications
Parameter
Details
Model Number
IC200MDD845
Product Type
Discrete Mixed I/O Module
Series
VersaMax
Total I/O Points
24 (16 inputs + 8 outputs)
Input Type
24 VDC positive logic
Output Type
Form A relay contacts (individually isolated)
Input Voltage Range
18–30 VDC
Output Voltage Range
5–265 VAC / 5–125 VDC
Output Load Rating
Up to 2.0 A per point (resistive load)
Input Current
2.0–5.5 mA (ON state)
Off-State Leakage
0–0.5 mA
Backplane Current
Max 270 mA @ 5 VDC
Response Time
~0.5 ms ON / up to 10 ms OFF
Diagnostics
Per-channel LED + module OK LED
Mounting
IC200CHS carrier base required
Operating Temperature
0°C to 60°C
Weight
~0.26–0.63 kg
Physical Dimensions (L × W × H)
110 × 66.8 × 50 mm
Recommended Related Models
IC200CPU002 VersaMax CPU Module
IC200CHS003 I/O Carrier Base
IC200PWR102 Power Supply Module
IC200MDL740 Relay Output Module
IC200MDL650 Digital Input Module
Popular VersaMax Mixed I/O Modules
IC200MDD840 Standard Mixed I/O Module
IC200MDD841 High-Speed Counter Module
IC200MDD842 Protected Mixed I/O Module
IC200MDD843 Relay Mixed I/O Module
IC200ALG240 Analog Input Module
Application Scenarios
The IC200MDD845 is widely used in industrial automation systems requiring both signal acquisition and high-power switching capability. Typical applications include conveyor systems, packaging machines, HVAC control panels, industrial pumps, motor starters, and OEM equipment. Its relay outputs allow direct switching of AC or DC loads such as contactors, lamps, and solenoids, making it suitable for more demanding electrical environments.
Key Advantages
This module delivers a strong combination of high switching capability, electrical isolation, and flexible I/O integration. The relay outputs support both AC and DC loads up to 2.0 A, reducing the need for external switching components. Individually isolated outputs improve system safety and reliability in electrically noisy environments. Clear LED indicators on each channel simplify diagnostics and maintenance. Its compact design helps reduce cabinet space while maintaining high functional density, making it ideal for industrial control systems that require durability and versatility.
Technical FAQs
What is the main function of IC200MDD845?
It provides 16 digital inputs and 8 relay outputs in a single VersaMax module.
What type of outputs does it use?
Individually isolated Form A relay outputs.
What is the output load capacity?
Up to 2.0 A per relay point (resistive load).
Can it switch AC loads?
Yes, it supports up to 265 VAC switching.
What voltage do the inputs use?
24 VDC nominal (18–30 VDC range).
Is it isolated?
Yes, outputs are individually isolated.
What is the response time?
Approximately 0.5 ms ON and up to 10 ms OFF.
Does it require a carrier base?
Yes, IC200CHS series carrier is required.
What industries use it most?
Manufacturing, packaging, HVAC, and process automation.
Why is it widely used?
Because it combines high-load relay switching and dense digital input handling in one compact module.
