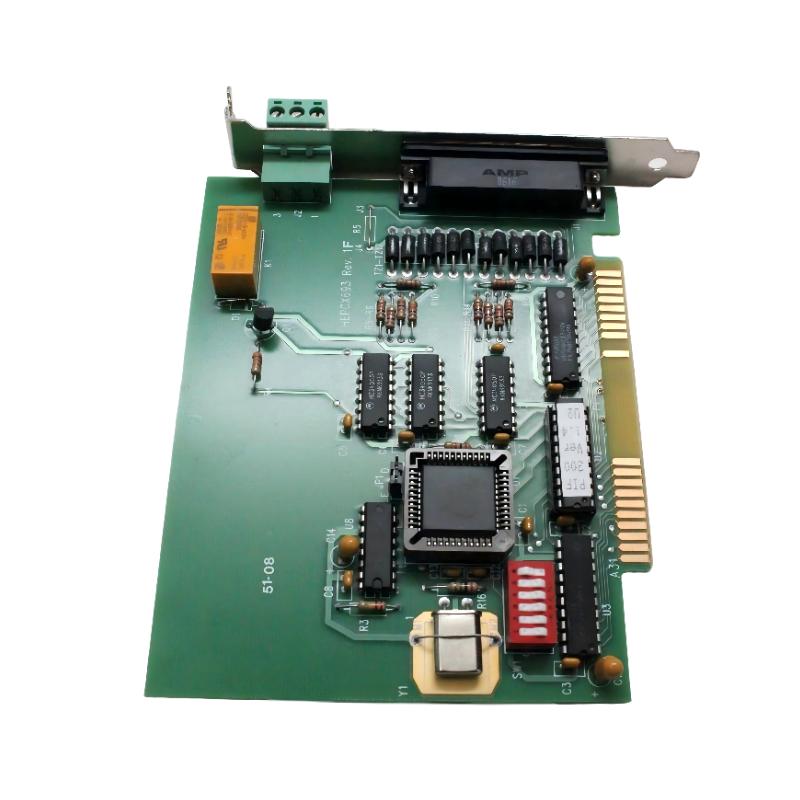

GE IC693PIF301 PC Interface Card

Applications

The GE IC693PIF301 PC Interface Card is a versatile communication interface designed to connect a personal computer (PC) with GE Series 90-30 PLC systems. This module allows for seamless data transfer and communication between the PLC and a PC, enabling users to monitor, control, and troubleshoot industrial automation systems directly from a PC. The IC693PIF301 is ideal for applications where real-time access to PLC data is needed, such as in machine diagnostics, process monitoring, system configuration, and software updates. It is commonly used in manufacturing, process control, and industrial automation environments.

Advantages

• PC Connectivity: The IC693PIF301 enables direct communication between a PC and the GE Series 90-30 PLC, facilitating remote monitoring and control of automation systems.
• Ease of Use: The module provides a simple and effective way to interact with PLCs, allowing operators and engineers to perform diagnostics, update configurations, and manage PLC programs from a PC interface.
• Real-Time Data Transfer: With the ability to send and receive data in real-time, the IC693PIF301 ensures fast and reliable communication between the PLC and PC, making it ideal for time-sensitive applications.
• Compact and Efficient: The module's compact design (117 mm x 33 mm x 110 mm) ensures it can be easily integrated into existing control systems without taking up much space.
• Durable Design: Built to withstand industrial environments, the IC693PIF301 ensures reliable performance and long-term durability, even in harsh conditions.
• Cost-Effective Solution: Offering a high level of functionality at an affordable price, the IC693PIF301 provides excellent value for users who need to interface a PC with their GE PLC system.

Technical FAQs

1. What is the primary function of the IC693PIF301?
   • The IC693PIF301 PC Interface Card allows for seamless communication between a PC and a GE Series 90-30 PLC, enabling monitoring, diagnostics, and control via a personal computer.
2. How does the IC693PIF301 communicate with the PC?
   • The card interfaces directly with the PC via a standard communication protocol, enabling the PC to send and receive data from the GE Series 90-30 PLC in real-time.
3. What software is required to use the IC693PIF301?
   • The IC693PIF301 typically works with GE’s PLC programming and monitoring software, such as Proficy Machine Edition or other compatible software for data logging, diagnostics, and program management.
4. Can the IC693PIF301 be used for remote diagnostics?
   • Yes, the IC693PIF301 allows for remote access to the PLC, making it ideal for troubleshooting and diagnostics without needing direct access to the PLC control panel.
5. What is the operating temperature range of the IC693PIF301?
   • The IC693PIF301 operates in a temperature range of -20°C to +70°C, making it suitable for use in most industrial environments.
6. Is the IC693PIF301 compatible with all GE Series 90-30 PLC models?
   • Yes, the IC693PIF301 is designed to work with all GE Series 90-30 PLCs, enabling communication between a wide range of PLC configurations and a PC.
7. What types of data can be transferred using the IC693PIF301?
   • The module can transfer a variety of data types, including real-time process data, configuration settings, diagnostics information, and PLC program updates.
8. How is the IC693PIF301 installed in a GE Series 90-30 system?
   • The IC693PIF301 is installed directly into a slot within the GE Series 90-30 PLC rack, where it interfaces with the PLC processor and allows the PC to communicate with the system.
9. Does the IC693PIF301 support multiple PCs?
   • While typically designed for one PC at a time, the IC693PIF301 can be used in systems with multiple PCs for monitoring and control, provided each PC is properly configured.
10. Can the IC693PIF301 be used for system configuration and programming?

• Yes, the card allows users to upload, download, and modify PLC programs and system configurations from a PC, making it essential for maintenance and system management.
