Brand:GE Fanuc PLC Item No.:GE IC200MDL330 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.31 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

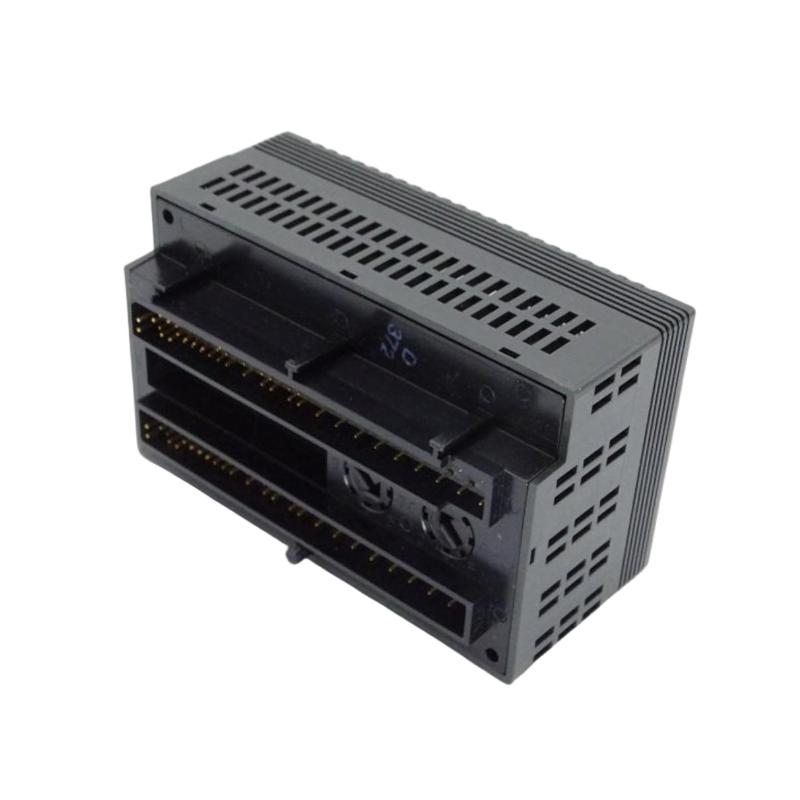

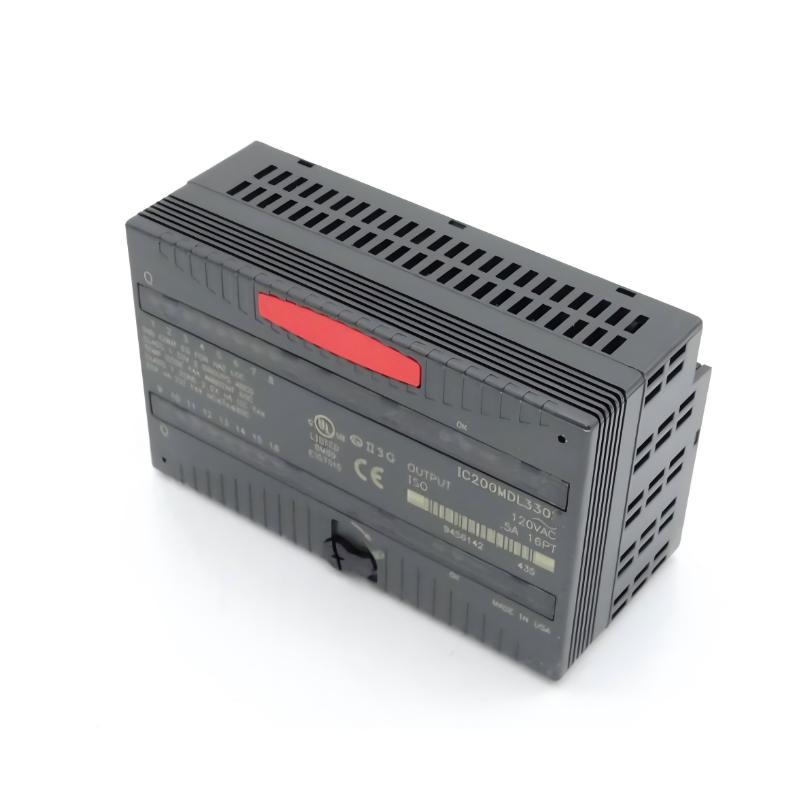

The GE IC200MDL330 is a VersaMax discrete output module designed to control external industrial devices using 16 isolated 120 VAC output points. It is widely used in automation systems where reliable switching of contactors, solenoids, indicator lamps, and relays is required. With individually isolated channels and built-in surge protection, it delivers stable performance in demanding industrial environments.
Technical Specifications
Parameter
Details
Model Number
IC200MDL330
Product Type
AC Discrete Output Module
Series
VersaMax
Output Channels
16 points
Output Type
120 VAC relay-style isolated outputs
Output Voltage Range
85–132 VAC
Nominal Voltage
120 VAC
Output Current
0.5 A per point
Minimum Load
10 mA per point
Inrush Current
Up to 5 A (20 ms / 1 cycle)
Leakage Current
< 2 mA @ 132 VAC
Voltage Drop
≤ 2.0 V
Isolation
250 VAC continuous / 1500 VAC for 1 min
Response Time
≤ ½ cycle ON/OFF
Backplane Current
~140 mA @ 5 VDC
Protection
Snubber + MOV per output
LED Indicators
16 channel LEDs + OK LED
Mounting
VersaMax I/O carrier base required
Operating Temperature
0°C to 60°C
Weight
~0.31 kg
Physical Dimensions (L × W × H)
110 × 66.8 × 50 mm
Recommended Related Models
IC200CPU002 VersaMax CPU Module
IC200CHS003 I/O Carrier Base
IC200PWR102 Power Supply Module
IC200MDL640 DC Input Module
IC200MDL740 Relay Output Module
Popular VersaMax Output Modules
IC200MDL331 High-Density Output Variant
IC200MDL740 Relay Output Module
IC200MDD840 Mixed I/O Module
IC200MDD845 Relay Mixed I/O Module
IC200ALG240 Analog Input Module
Application Scenarios
The IC200MDL330 is widely used in industrial systems requiring direct control of AC-powered devices. Typical applications include manufacturing machinery, conveyor systems, packaging lines, HVAC systems, and process automation panels. It is especially effective for driving contactors, motor starters, solenoid valves, alarms, and indicator lamps operating at 120 VAC.
Key Advantages
This module provides strong electrical isolation, reliable AC switching, and robust industrial protection. Each output channel is individually isolated, improving system safety and reducing fault propagation risks. Built-in snubber and MOV protection help suppress electrical transients from inductive loads, extending module lifespan. LED indicators per channel simplify diagnostics and maintenance, allowing operators to quickly identify output status in real time. Its rugged design ensures stable operation even in electrically noisy environments with frequent switching loads.
Technical FAQs
What is the main function of IC200MDL330?
It controls 16 independent 120 VAC output signals.
What type of outputs does it use?
Isolated relay-style AC outputs.
What is the output voltage range?
85–132 VAC nominal 120 VAC system.
What is the output current per channel?
Up to 0.5 A per point.
Can it handle inductive loads?
Yes, but external suppression is recommended.
Is each channel isolated?
Yes, outputs are individually isolated.
What is its response time?
Approximately half-cycle ON/OFF switching.
Does it require external power?
Yes, 120 VAC field power plus backplane logic power.
What industries use it most?
Manufacturing, HVAC, packaging, and process control systems.
Why is it widely used?
Because it provides reliable AC load switching with strong isolation and industrial durability.
