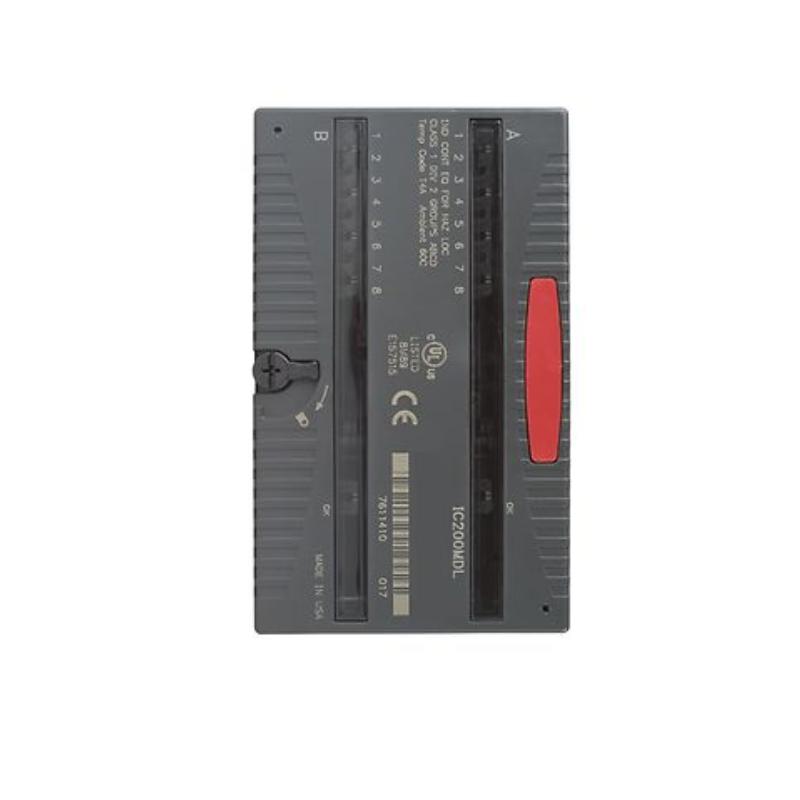

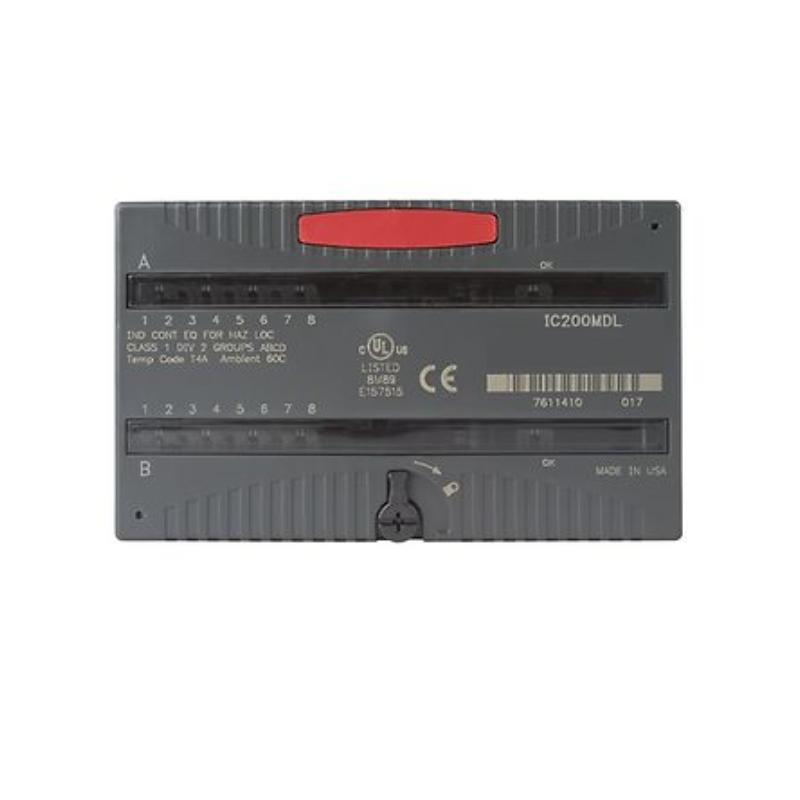

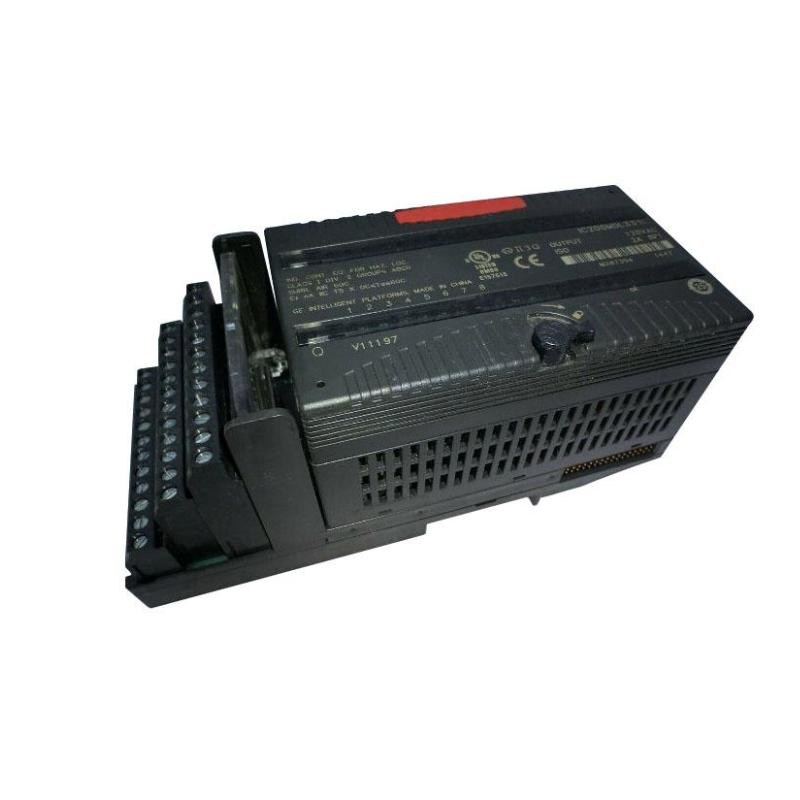

The GE IC200MDL331 is a high-reliability VersaMax discrete output module engineered for industrial automation systems requiring stable 120VAC switching performance. Designed under the GE Fanuc (now Emerson Automation) platform, this module delivers precise control of field devices such as solenoids, relays, contactors, and indicator lamps.
Built for distributed I/O architectures, it significantly reduces wiring complexity while improving system scalability and maintenance efficiency. Its robust electrical isolation and fast response make it a dependable choice for demanding production environments.
Technical Specifications
The IC200MDL331 is optimized for high-density AC output control with strong electrical protection and stable performance under industrial load conditions.
| Parameter | Specification |
|---|---|
| Module Type | Discrete Output Module |
| Series | VersaMax I/O |
| Output Channels | 8 isolated points |
| Output Voltage | 85–132 VAC (120 VAC nominal) |
| Output Current | 2.0 A per point |
| Frequency Range | 47–63 Hz |
| Inrush Current | Up to 20 A |
| Backplane Current | 85 mA (max) |
| Isolation | 250 VAC continuous / 1500 VAC for 1 min |
| Response Time | Approx. ½ cycle |
| Protection | MOV + snubber per channel |
| Indicators | Individual channel LEDs + OK LED |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Height | ~110 mm |
| Width | ~66.8 mm |
| Depth | ~50 mm |
| Weight | ~0.45 kg |
Recommended Related Models
For system expansion or replacement planning, the following VersaMax modules are commonly paired:
- IC200MDL240 – 24VDC output module
- IC200MDL643 – relay output module
- IC200CPU005 – VersaMax CPU unit
- IC200PWR001 – power supply module
- IC200ETM001 – Ethernet communication module
Popular Allen-Bradley & GE Industrial Alternatives
In similar automation architectures, engineers often consider:
- Allen-Bradley 1756-OB16E (ControlLogix Output Module)
- Allen-Bradley 1769-OW16 (CompactLogix Relay Output)
- GE IC200MDL640 (High-density DC output variant)
- GE IC200CPU series controllers
