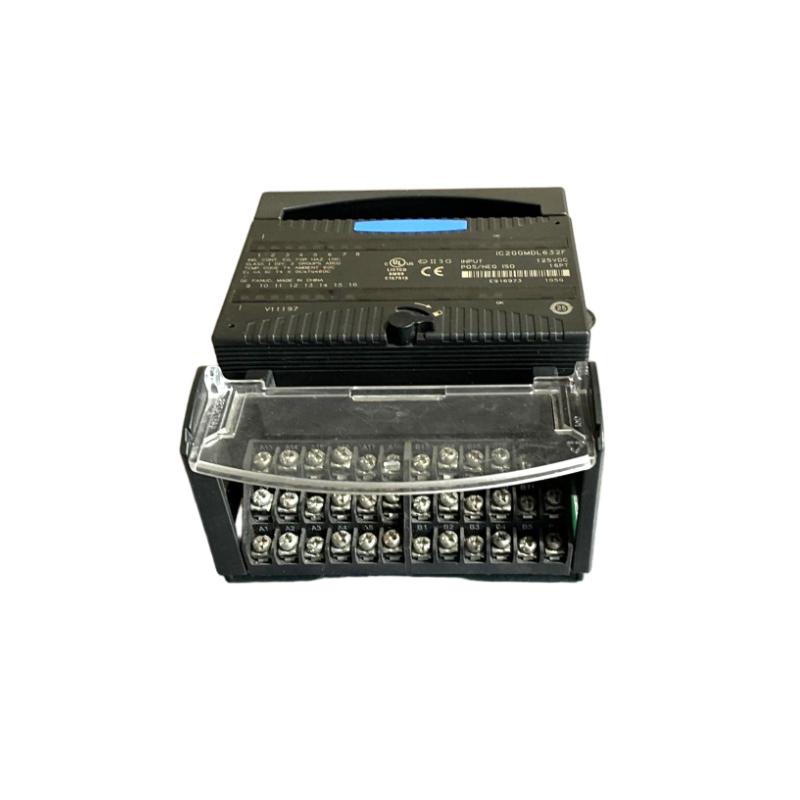

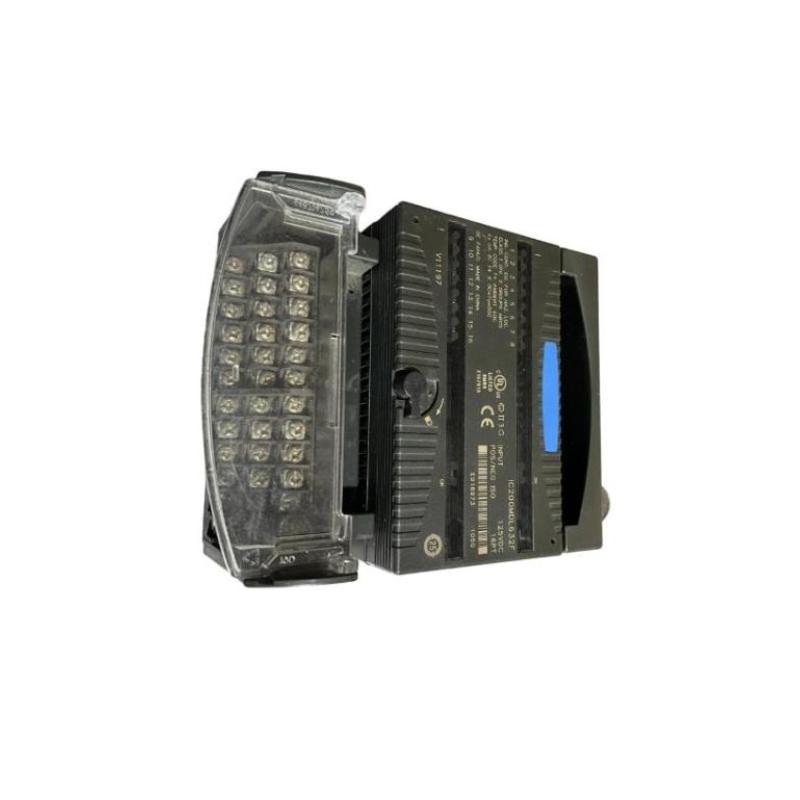

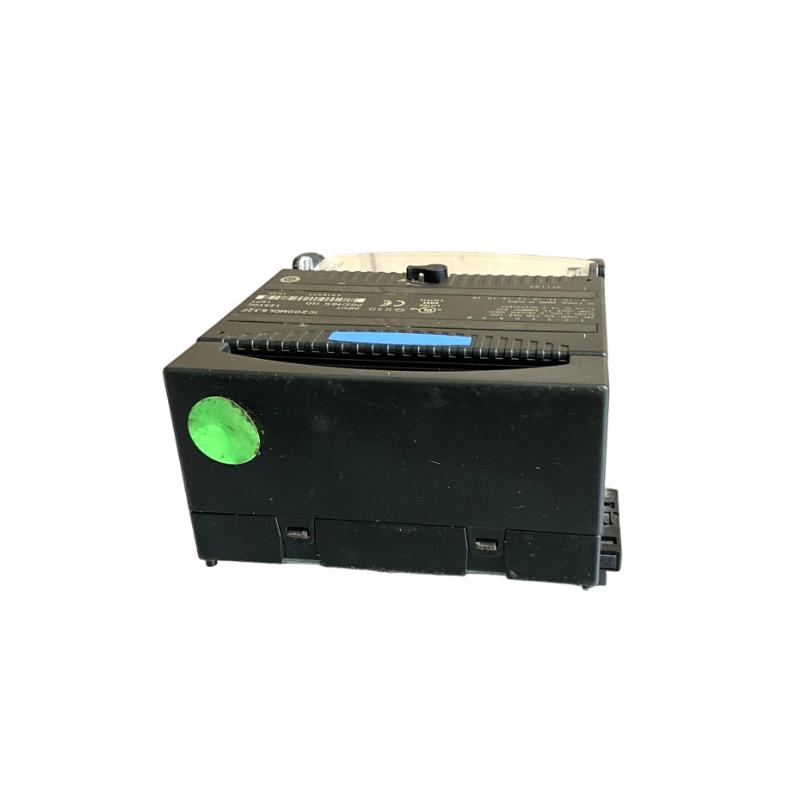

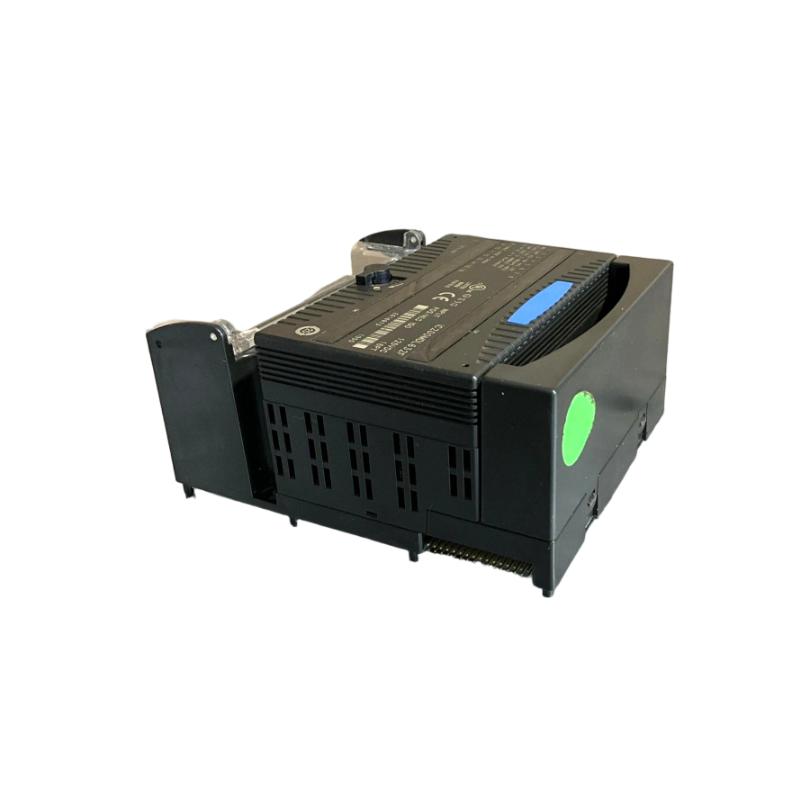

The GE IC200MDL632 is a robust VersaMax discrete input module designed for high-voltage industrial signal acquisition. It is widely used in distributed automation architectures where reliable 125VDC input monitoring is required for field devices such as switches, sensors, and control contacts.
Built for harsh industrial environments, this module provides stable signal processing, strong electrical isolation, and clear diagnostics, making it a dependable component in PLC-based control systems.
Technical Specifications
Engineered for precision and durability, the IC200MDL632 supports high-voltage DC input applications with flexible logic compatibility.
| Parameter | Specification |
|---|---|
| Module Type | Discrete Input Module |
| Series | GE VersaMax |
| Input Points | 16 isolated channels |
| Input Voltage | 125 VDC nominal (0–150 VDC range) |
| Input Type | Positive / Negative logic |
| Input Current | ~1.7–2.2 mA per point |
| Response Time | ≤ 0.5 ms |
| Backplane Current | ~80 mA max |
| Isolation | 250 VAC continuous / 1500 VAC for 1 min |
| Filtering Options | 0 ms / 1 ms / 7 ms selectable |
| Diagnostics | Individual LED status per channel |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~152 × 114 × 76 mm |
| Weight | ~0.2 kg |
Recommended Related Models
To complete or expand a VersaMax I/O system, these modules are commonly paired:
- IC200MDL640 – 24VDC discrete input module
- IC200MDL741 – AC input module variant
- IC200MDL331 – AC output module
- IC200CPU005 – VersaMax CPU module
- IC200PWR001 – system power supply
Popular GE / Industrial Automation Alternatives
In similar PLC architectures, engineers often consider:
- GE IC200MDL643 (relay output module)
- GE IC200MDL750 (high-density input module)
- Allen-Bradley 1756-IB16 (ControlLogix input module)
- Allen-Bradley 1769-IQ16 (CompactLogix input module)
