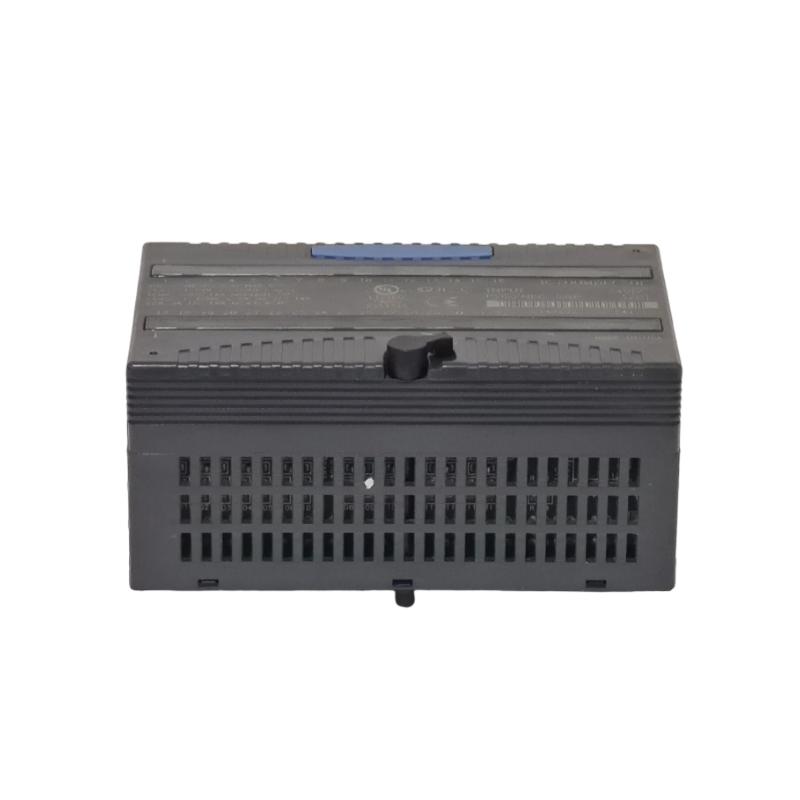

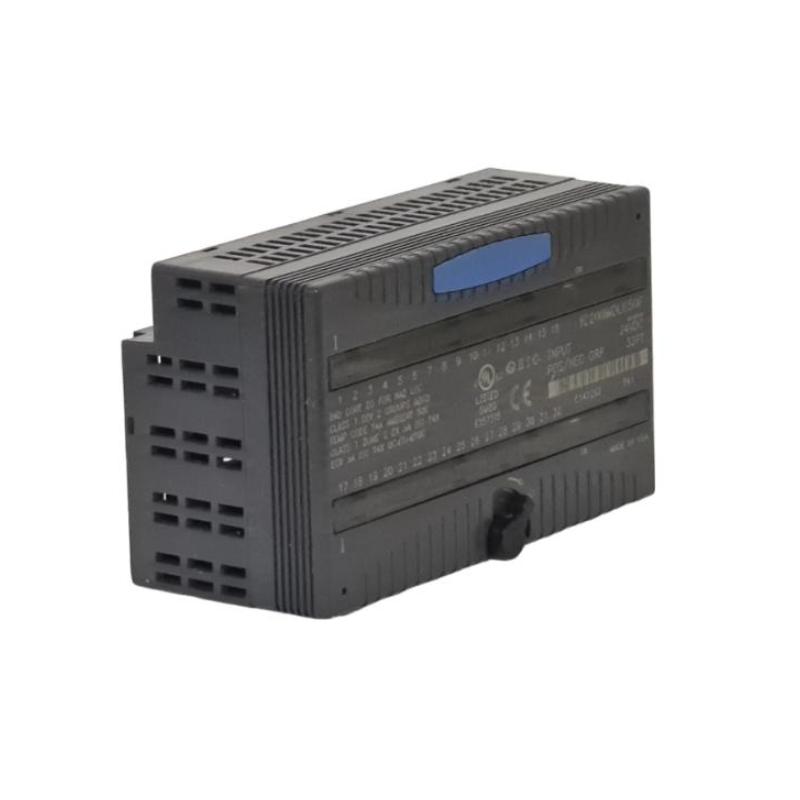

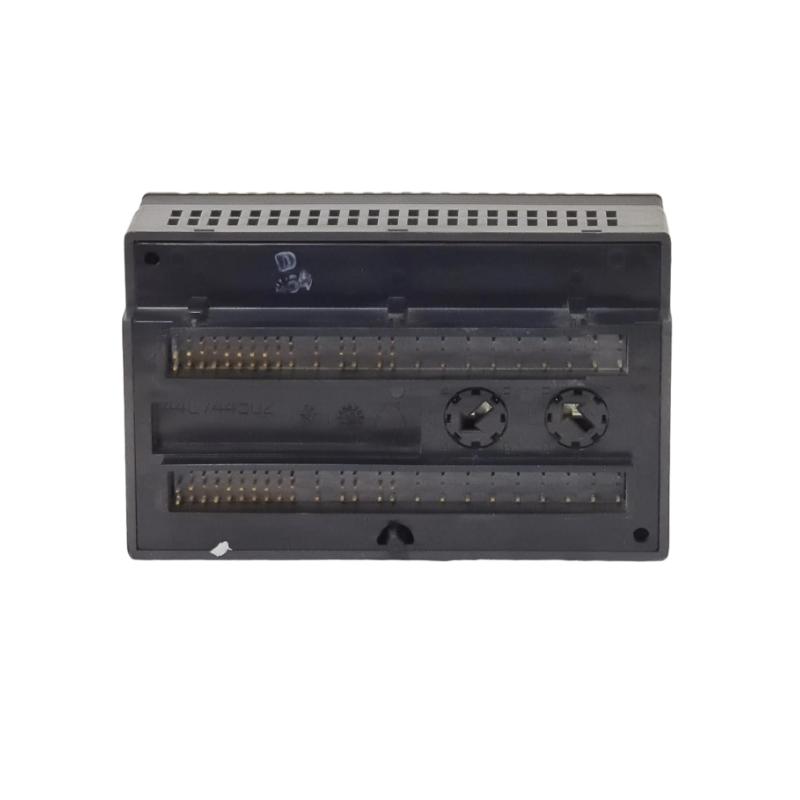

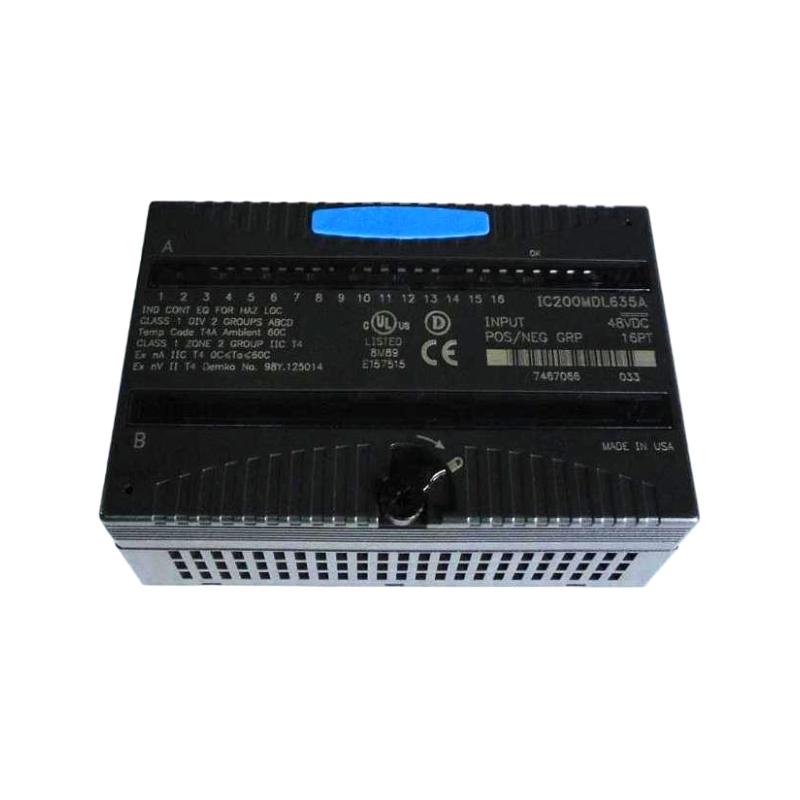

The GE IC200MDL635 is a versatile VersaMax discrete input module designed for industrial automation systems requiring reliable 48VDC signal acquisition. It supports both positive and negative logic wiring, making it highly flexible for a wide range of field devices such as sensors, switches, and control contacts.
Engineered for distributed I/O architectures, this module reduces cabinet wiring complexity while ensuring stable and fast signal detection in demanding industrial environments. Its compact design and strong electrical isolation make it a trusted choice for modern PLC-based control systems.
Technical Specifications
The IC200MDL635 delivers dependable performance with dual-group input architecture and fast response capability.
| Parameter | Specification |
|---|---|
| Module Type | Discrete Input Module |
| Series | GE VersaMax |
| Input Points | 16 (2 groups of 8) |
| Input Voltage | 0–60 VDC (48 VDC nominal) |
| Logic Type | Positive / Negative selectable |
| Input Current | ~1.7 mA @ 48VDC |
| Input Impedance | ~28 KΩ typical |
| Response Time | 0.5 ms (typical) |
| Backplane Current | ~70 mA max @ 5V |
| Isolation | Up to 1500 VAC (group-to-group) |
| LED Indicators | Per-point status + OK LED |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~110 × 66.8 × 50 mm |
| Weight | ~0.14 kg |
Recommended Related Models
For system expansion or hybrid configurations, the following VersaMax modules are commonly used:
- IC200MDL632 – 125VDC high-voltage input module
- IC200MDL636 – 32-point high-density input module
- IC200MDL331 – AC output module
- IC200CPU005 – VersaMax CPU module
- IC200PWR001 – power supply module
Popular GE / Industrial Automation Alternatives
In similar PLC ecosystems, engineers often evaluate:
- GE IC200MDL640 (24VDC input module)
- GE IC200MDL643 (relay output module)
- Allen-Bradley 1756-IB16 (ControlLogix input module)
- Allen-Bradley 1769-IQ16 (CompactLogix input module)
