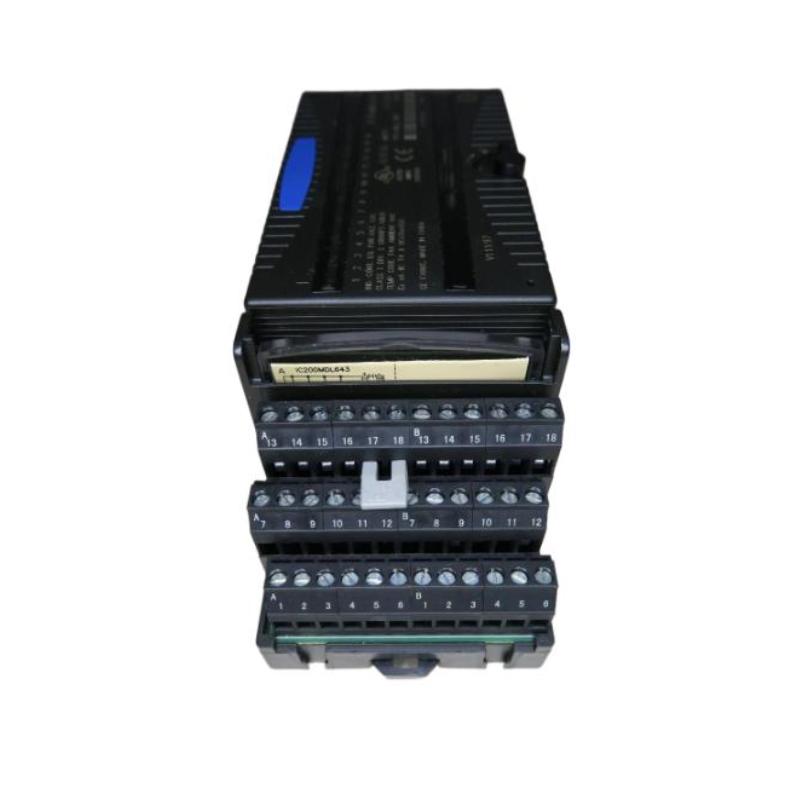

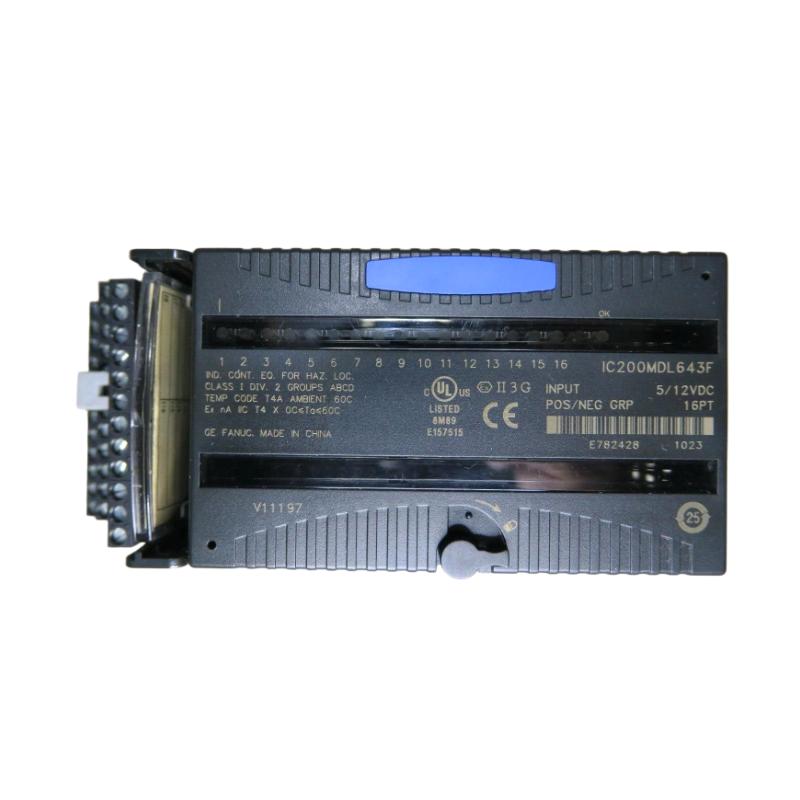

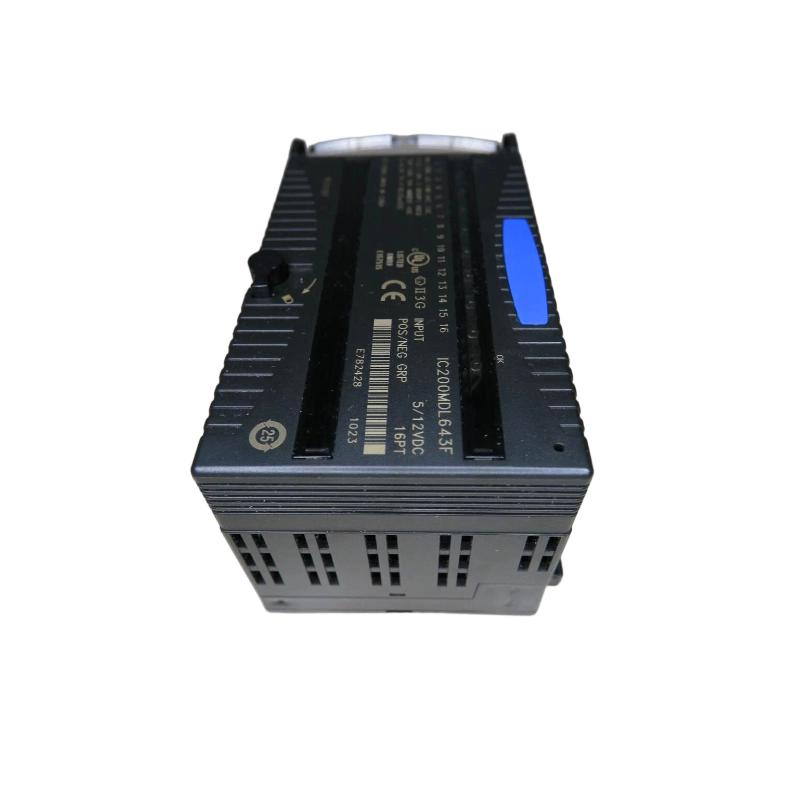

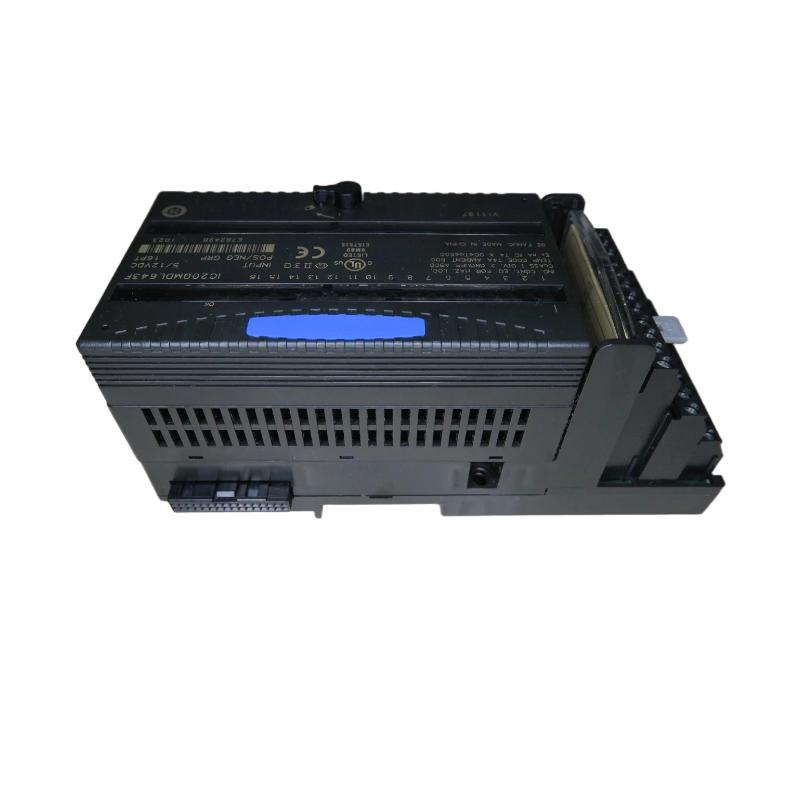

The GE IC200MDL643 is a highly flexible VersaMax discrete input module designed for low-voltage DC signal acquisition in industrial automation systems. Supporting both 5VDC and 12VDC field signals, it is widely used in control architectures requiring fast, reliable, and noise-resistant input processing.

With dual-group architecture and selectable logic configuration, this module is engineered for high adaptability across OEM machinery, process control systems, and distributed I/O installations. Its compact footprint and strong isolation performance make it a dependable choice for modern PLC systems.

Technical Specifications

The IC200MDL643 is built for precision signal handling and stable operation in electrically noisy environments.

Parameter	Specification
Module Type	Discrete Input Module
Series	GE VersaMax
Input Points	16 (2 groups of 8)
Input Voltage	0–15 VDC (5/12 VDC nominal)
Input Current	1.8 mA @ 5VDC / 4.9 mA @ 12VDC
Logic Type	Positive / Negative configurable
Input Impedance	~2.4 kΩ (typical)
Response Time	≤ 0.25 ms (fast mode)
Filter Options	0 ms / 1 ms / 7 ms selectable
Backplane Current	~70 mA @ 5V
Isolation	250 VAC continuous / 1500 VAC for 1 min
Indicators	16 channel LEDs + OK LED

Physical Dimensions & Weight

Item	Value
Dimensions (H × W × D)	~110 × 66.8 × 50 mm
Weight	~0.5 kg

Recommended Related Models

For building or expanding a VersaMax I/O system, these modules are commonly paired:

IC200MDL640 – 24VDC standard input module
IC200MDL632 – 125VDC high-voltage input module
IC200MDL643 – 5/12VDC input (higher density variant)
IC200MDL331 – AC output module
IC200CPU005 – VersaMax CPU module
IC200PWR001 – power supply module

Popular GE / Industrial Alternatives

In similar industrial automation environments, engineers also consider:

GE IC200MDL644 (32-point input module)
GE IC200MDL741 (AC input module)
Allen-Bradley 1756-IB16 (ControlLogix DC input)
Allen-Bradley 1769-IQ16 (CompactLogix input module)

Applications

The IC200MDL643 is widely deployed in compact and distributed control systems requiring low-voltage signal monitoring:

OEM machinery control panels
Packaging and labeling equipment
Factory automation systems
Conveyor and material handling lines
Energy monitoring systems
HVAC control and building automation
Industrial sensor and switch interfacing

Advantages

This module is valued for its balance of speed, flexibility, and reliability:

Supports both 5V and 12V DC signals for versatile integration
Fast 0.25 ms response time for real-time control systems
Dual logic support (positive/negative) increases wiring flexibility
Strong electrical isolation (up to 1500 VAC) improves system safety
Configurable filtering reduces noise sensitivity in harsh environments
High-density 16-point design optimizes panel space usage
Clear LED diagnostics simplify maintenance and troubleshooting

Technical FAQs

1. What type of module is IC200MDL643?
It is a 16-point 5/12VDC discrete input module.

2. What voltage range does it support?
0–15 VDC with nominal operation at 5V or 12V.

3. How many input groups does it have?
Two isolated groups of 8 inputs each.

4. Does it support both logic types?
Yes, it supports positive and negative logic configurations.

5. What is its response speed?
Approximately 0.25 milliseconds in fast mode.

6. Can filtering be configured?
Yes, selectable filter times of 0 ms, 1 ms, and 7 ms.

7. What is the backplane power requirement?
Approximately 70 mA at 5VDC.

8. Is it isolated?
Yes, up to 1500 VAC isolation between input and logic.

9. What is its typical weight?
Around 0.5 kg.

10. Where is it commonly used?
Industrial automation, OEM systems, and process control applications.
