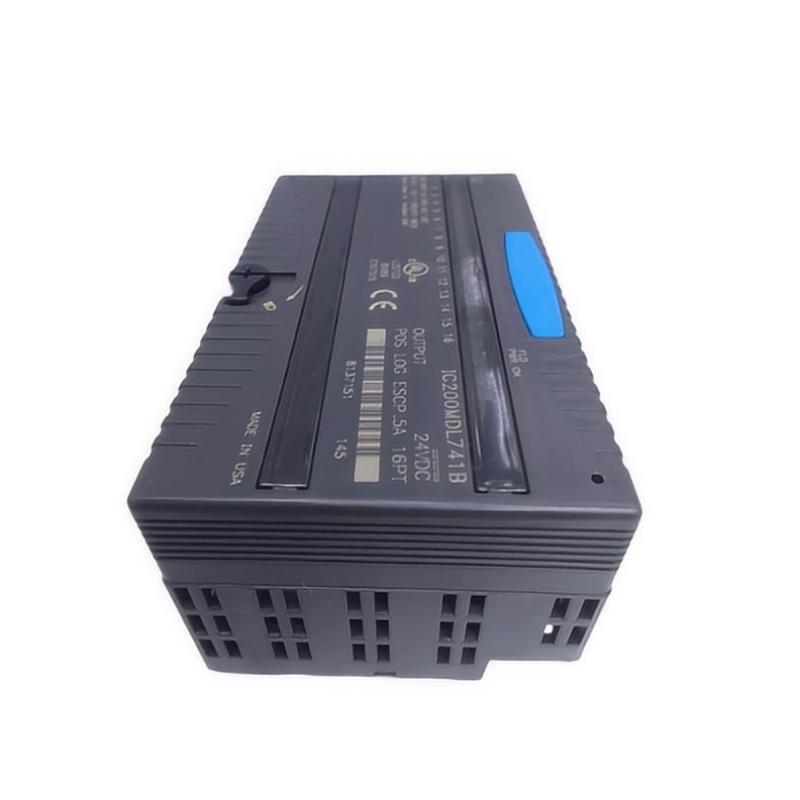

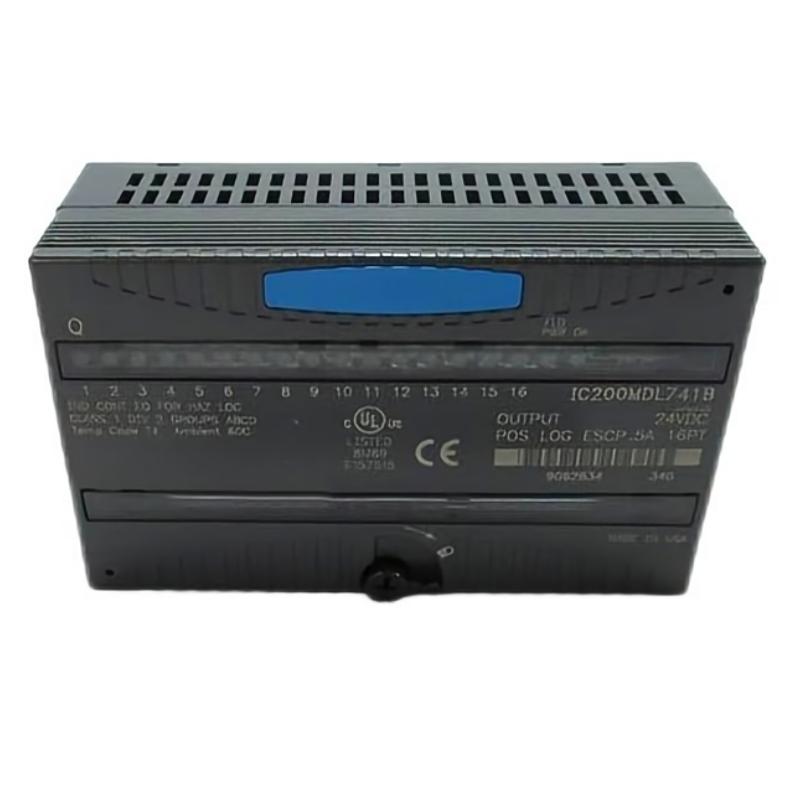

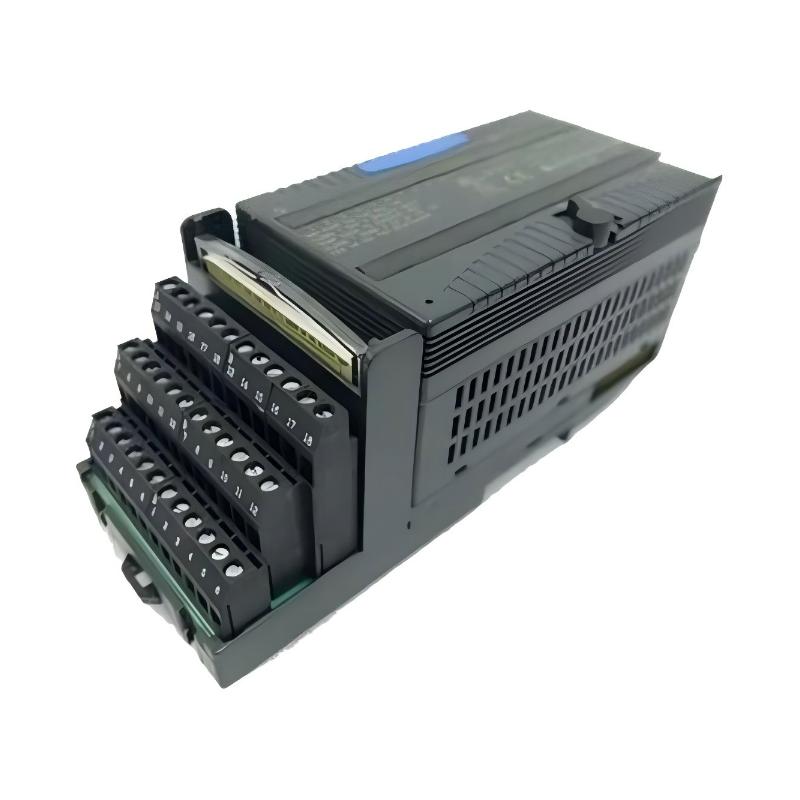

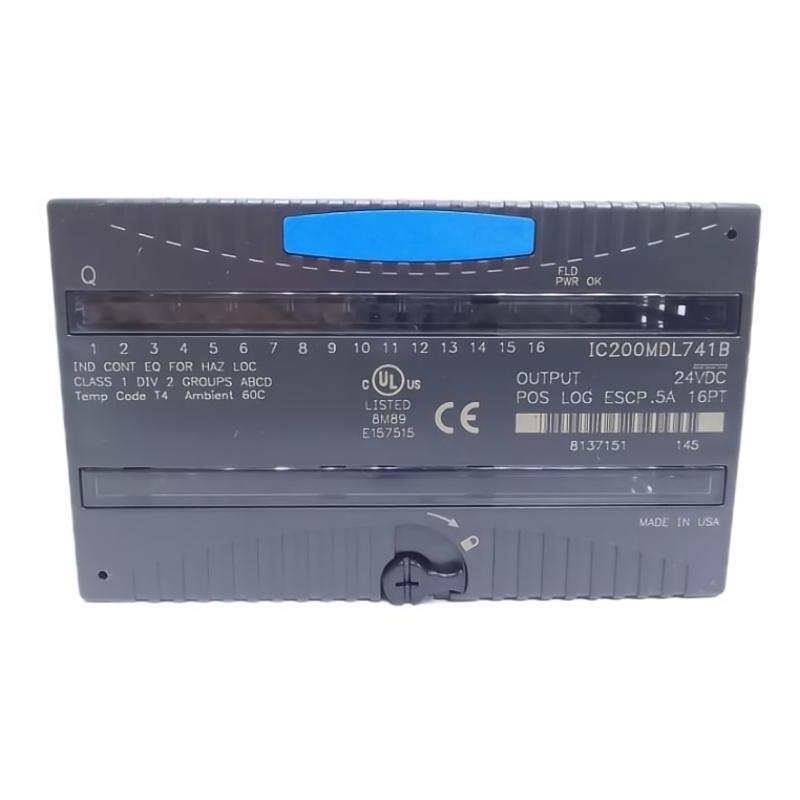

The GE IC200MDL741 is a high-performance VersaMax discrete output module engineered for precise and reliable 24VDC control in industrial automation systems. Designed with positive logic (sourcing outputs), this module efficiently drives field devices such as relays, solenoids, and indicator loads.
With its compact footprint, fast response, and built-in protection mechanisms, the IC200MDL741 is widely adopted in distributed I/O architectures where stability, scalability, and maintenance efficiency are critical. It is especially valued in applications requiring consistent switching performance under demanding industrial conditions.
Technical Specifications
Built for dependable DC output control, the IC200MDL741 combines performance, protection, and integration flexibility.
| Parameter | Specification |
|---|---|
| Module Type | Discrete Output Module |
| Series | GE VersaMax |
| Output Points | 16 (single group) |
| Output Type | Sourcing (Positive Logic) |
| Output Voltage | 18–30 VDC (24 VDC nominal) |
| Output Current | 0.5 A per point |
| Inrush Current | Up to 2.0 A |
| Response Time | ≤ 0.5 ms |
| Backplane Current | 75 mA @ 5V |
| Isolation | No channel isolation |
| Protection | Short circuit, overcurrent, free-wheeling diodes |
| Indicators | Per-point LED + OK + Field Power LED |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~115 × 115 × 35 mm |
| Weight | ~0.2 kg |
Recommended Related Models
For building a complete VersaMax control system, these modules are commonly integrated:
- IC200MDL640 – 24VDC input module
- IC200MDL643 – 5/12VDC input module
- IC200MDL632 – 125VDC input module
- IC200CPU005 – VersaMax CPU
- IC200PWR001 – system power supply
Commonly Used Industrial Alternatives
In similar PLC platforms, the following models are frequently evaluated:
- Allen-Bradley 1756-OB16E (ControlLogix output module)
- Allen-Bradley 1769-OB16 (CompactLogix output module)
- GE IC200MDL730 series (output variants)
- GE IC200MDL331 (AC output module)
