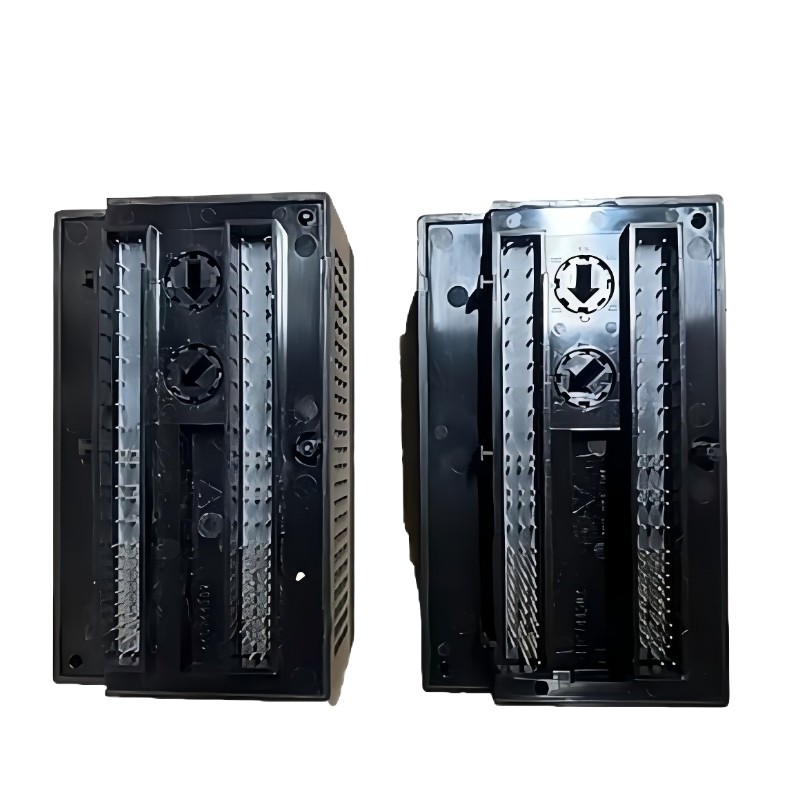

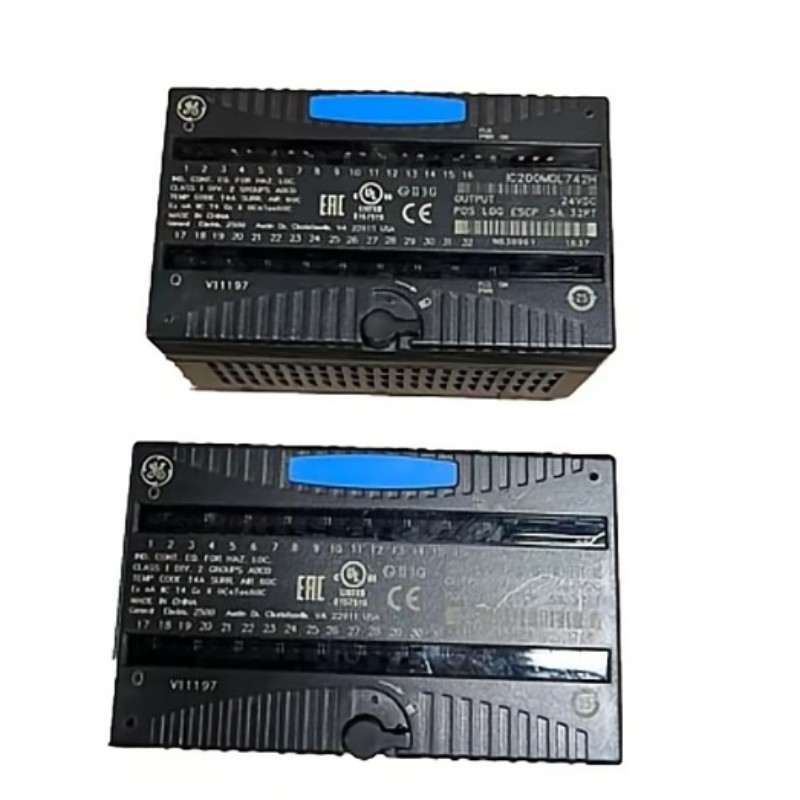

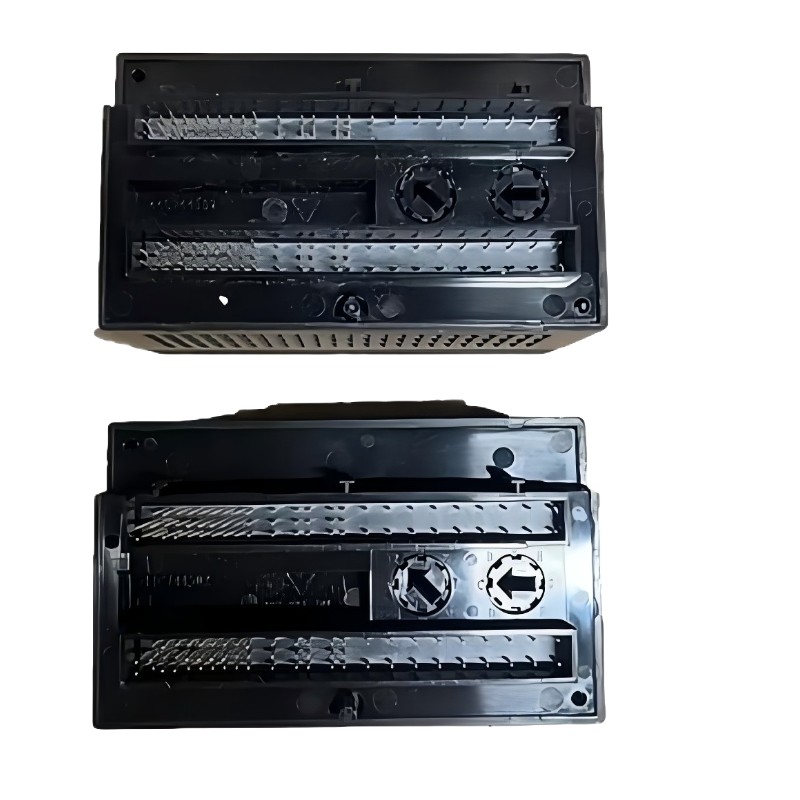

IC200MDL742H-3 IC200MDL742H-4 IC200MDL742H-2

The GE IC200MDL742 is a high-density VersaMax discrete output module designed to deliver reliable 24VDC control across demanding industrial automation systems. With 32 sourcing outputs, it enables efficient control of relays, solenoids, and actuators while maintaining stable performance in distributed I/O architectures.

Engineered for scalability and uptime, this module combines fast switching, integrated protection, and compact design—making it a strong choice for OEM systems, process automation, and high-channel-count control panels.

Technical Specifications

The IC200MDL742 is optimized for high-output density applications, offering consistent performance and robust electrical protection.

Parameter	Specification
Module Type	Discrete Output Module
Series	GE VersaMax
Output Points	32 (2 groups of 16)
Output Type	Sourcing (Positive Logic)
Output Voltage	18–30 VDC (24 VDC nominal)
Output Current	0.5 A per point
Inrush Current	2.0 A (100 ms max)
Response Time	0.5 ms ON / 0.5 ms OFF
Backplane Current	150 mA @ 5V
Isolation	No channel isolation
Protection	Short circuit, overcurrent, flyback diodes
Indicators	Per-point LED + OK + Field Power LED

Physical Dimensions & Weight

Item	Value
Dimensions (H × W × D)	~66.8 × 110 × 50 mm
Weight	~0.6 kg

Recommended Related Models

To build a complete VersaMax system, the following modules are commonly integrated:

IC200MDL640 – 24VDC input module
IC200MDL643 – low-voltage DC input module
IC200MDL741 – 16-point DC output module
IC200CPU005 – VersaMax CPU controller
IC200PWR001 – power supply module

Popular GE & Industry Alternatives

For similar control architectures, engineers often evaluate:

GE IC200MDL750 (high-density input module)
GE IC200MDL331 (AC output module)
Allen-Bradley 1756-OB32 (ControlLogix output module)
Allen-Bradley 1769-OB32 (CompactLogix output module)

Applications

The IC200MDL742 is widely deployed in systems requiring high output density and reliable DC switching:

Automated production and assembly lines
Packaging and high-speed machinery
Conveyor and material handling systems
Industrial control cabinets with high I/O demand
Process control systems in energy and utilities
OEM equipment requiring compact multi-channel output
Smart factory and distributed I/O networks

Advantages

The IC200MDL742 is designed for performance-driven automation environments:

32 high-density outputs reduce module count and panel space
Stable 0.5A per channel capacity supports industrial loads
Fast 0.5 ms switching ensures responsive control
Integrated electronic protection (ESCP + diode protection) extends module lifespan
Dual-group architecture improves wiring flexibility
LED diagnostics simplify maintenance and reduce downtime
Ideal for scalable and distributed VersaMax architectures

Technical FAQs

1. What type of module is IC200MDL742?
It is a 32-point 24VDC discrete output module.

2. What is the nominal output voltage?
24VDC, with an operating range of 18–30VDC.

3. How many outputs does it provide?
32 outputs divided into two groups of 16.

4. What is the maximum current per output?
0.5A per channel.

5. Does the module support channel isolation?
No, it does not provide channel-to-channel isolation.

6. What protection features are included?
Short circuit, overcurrent protection, and flyback diodes.

7. What is the response speed?
0.5 ms for both ON and OFF transitions.

8. Does it require an external power supply?
Yes, a 24VDC external field supply is required.

9. What diagnostics are available?
LED indicators per channel plus OK and field power LEDs.

10. What is the typical application environment?
Industrial automation systems with high I/O density and fast switching requirements.

Look forward to your comments!Comment

Latest comments

Tags:	IC200MDL742

GE Fanuc PLC

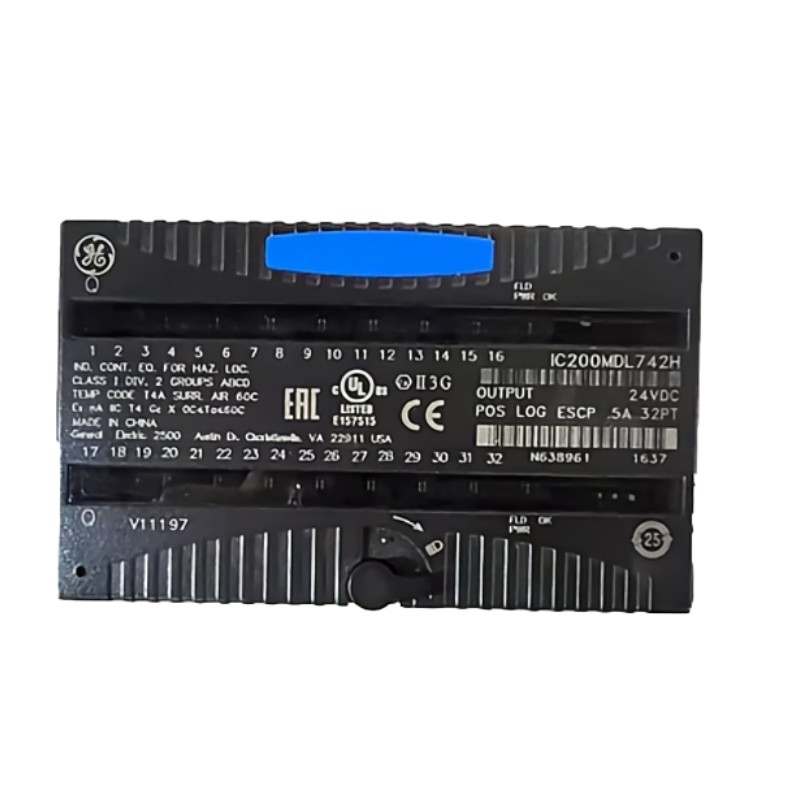

GE IC200MDL742 – VersaMax 24VDC Discrete Output Module
