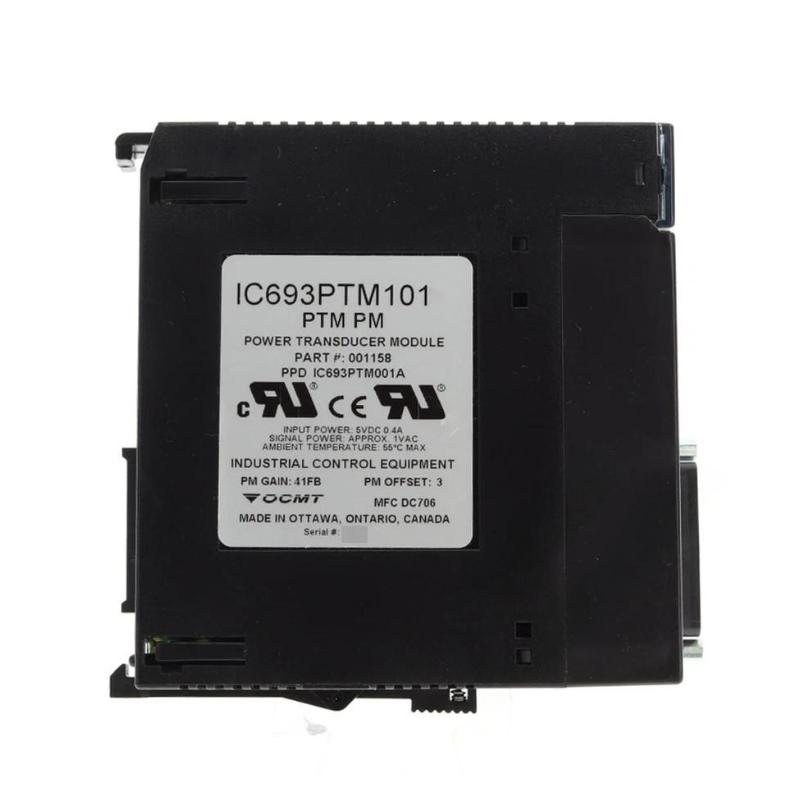

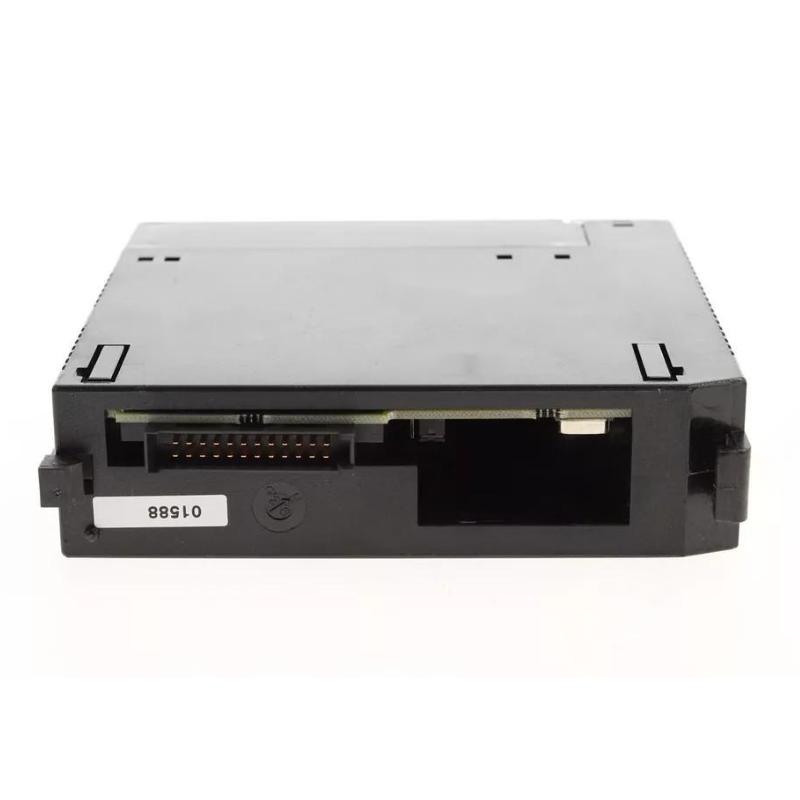

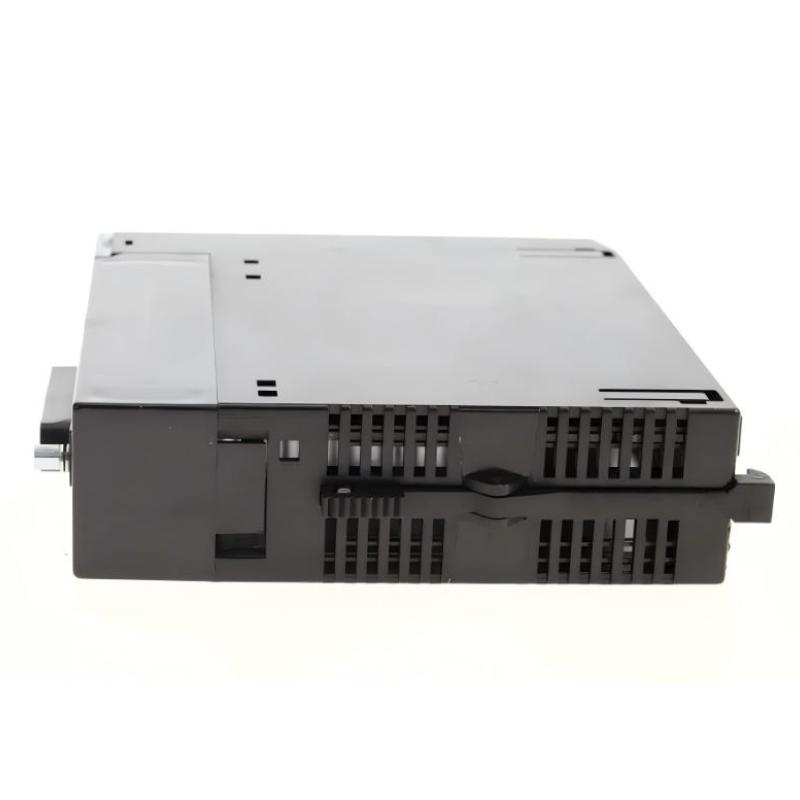

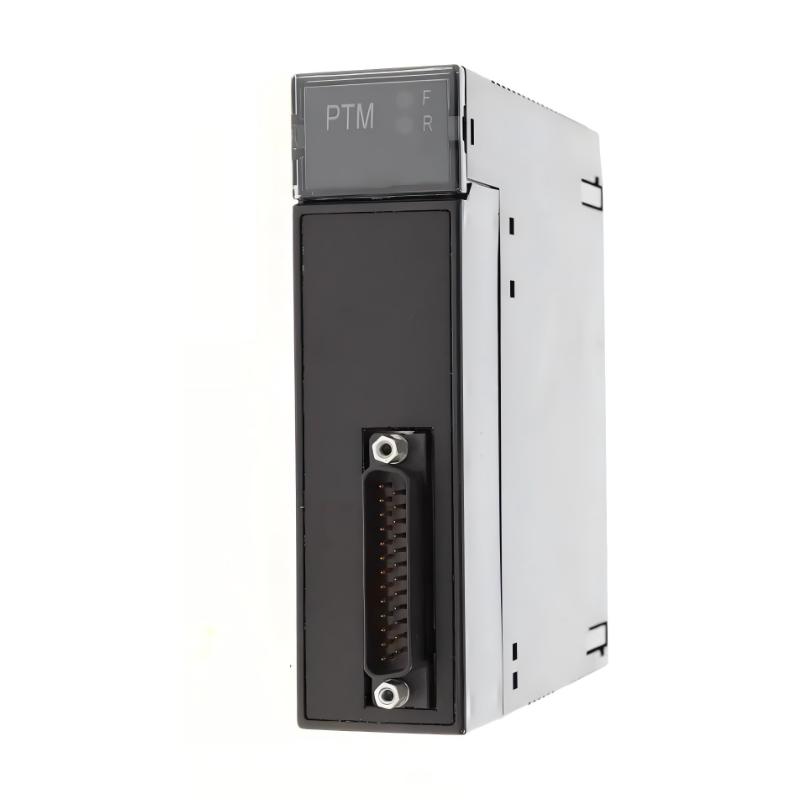

GE IC693PTM101 Power Sensor Module

Applications

The GE IC693PTM101 Power Sensor Module is an essential component for monitoring and managing electrical power consumption within industrial automation systems. Designed for use with GE’s Series 90-30 PLCs, this power sensor module enables precise measurement and monitoring of power usage, energy efficiency, and electrical parameters in real time. It is ideal for applications such as process control, energy management, and equipment monitoring, where accurate power data is critical for system optimization and energy-saving initiatives. The IC693PTM101 is commonly used in industries like manufacturing, utilities, and building automation, providing valuable insights into power consumption and performance.

Advantages

• Real-Time Power Monitoring: The IC693PTM101 provides real-time monitoring of power consumption, helping you make data-driven decisions to improve energy efficiency and system performance.
• Comprehensive Data Collection: This module measures key electrical parameters such as voltage, current, and power, offering a complete view of energy usage in your system.
• Compact and Space-Efficient: With dimensions of 130 mm x 35 mm x 105 mm, the IC693PTM101 is designed to fit easily into control panels and other tight spaces without compromising on functionality.
• Enhanced Energy Efficiency: By continuously monitoring power usage, the module helps identify inefficiencies and optimize energy consumption, contributing to lower operational costs and a more sustainable operation.
• Seamless Integration: Fully compatible with GE Series 90-30 PLC systems, the IC693PTM101 integrates easily with other modules for efficient system management and control.
• Durable and Reliable: Built to withstand industrial environments, the IC693PTM101 provides long-term reliability and durability, ensuring consistent performance in demanding applications.

Technical FAQs

1. What does the IC693PTM101 Power Sensor Module measure?
   • The IC693PTM101 measures key electrical parameters such as voltage, current, power, and energy consumption, providing real-time data on power usage.
2. How does the IC693PTM101 help improve energy efficiency?
   • By continuously monitoring power consumption, the module identifies inefficiencies in the system and provides valuable data for optimizing energy usage and reducing costs.
3. Can the IC693PTM101 be used with all GE Series 90-30 PLCs?
   • Yes, the IC693PTM101 is fully compatible with GE Series 90-30 PLC systems, allowing seamless integration into existing setups for easy monitoring and control.
4. What type of power supply does the IC693PTM101 require?
   • The IC693PTM101 operates on a standard 5V DC power supply, which is consistent with other GE Series 90-30 modules.
5. Is the IC693PTM101 module suitable for real-time monitoring?
   • Yes, the IC693PTM101 provides real-time power monitoring, allowing operators to make timely adjustments based on current power consumption data.
6. What industries can benefit from using the IC693PTM101?
   • Industries such as manufacturing, utilities, building automation, and process control can benefit from the real-time power monitoring and energy efficiency optimization provided by the IC693PTM101.
7. Can the IC693PTM101 module be used for both low and high power applications?
   • Yes, the IC693PTM101 is designed to handle a wide range of electrical power measurements, making it suitable for both low and high power applications.
8. How is the IC693PTM101 integrated into a GE PLC system?
   • The IC693PTM101 is installed directly into the GE Series 90-30 PLC rack, where it interfaces with the PLC processor to collect and transmit power data.
9. Is the IC693PTM101 module easy to install and configure?
   • Yes, the IC693PTM101 is designed for easy installation and setup, integrating seamlessly with existing GE Series 90-30 PLC systems for quick deployment.
10. What type of data is displayed by the IC693PTM101?

• The IC693PTM101 displays real-time power usage data, including voltage, current, active power, and energy consumption, which can be accessed via the PLC system.
