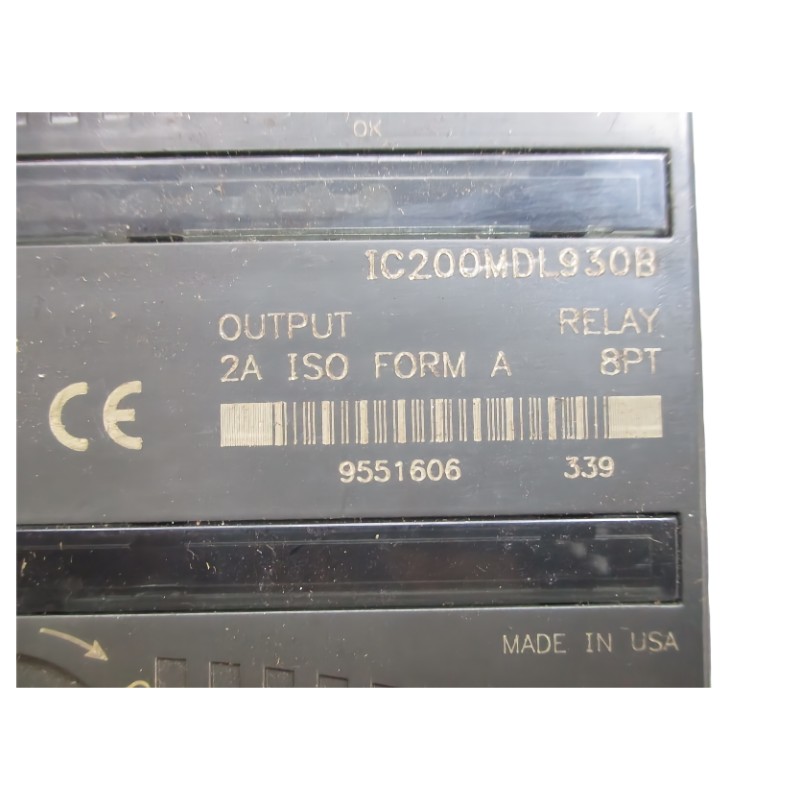

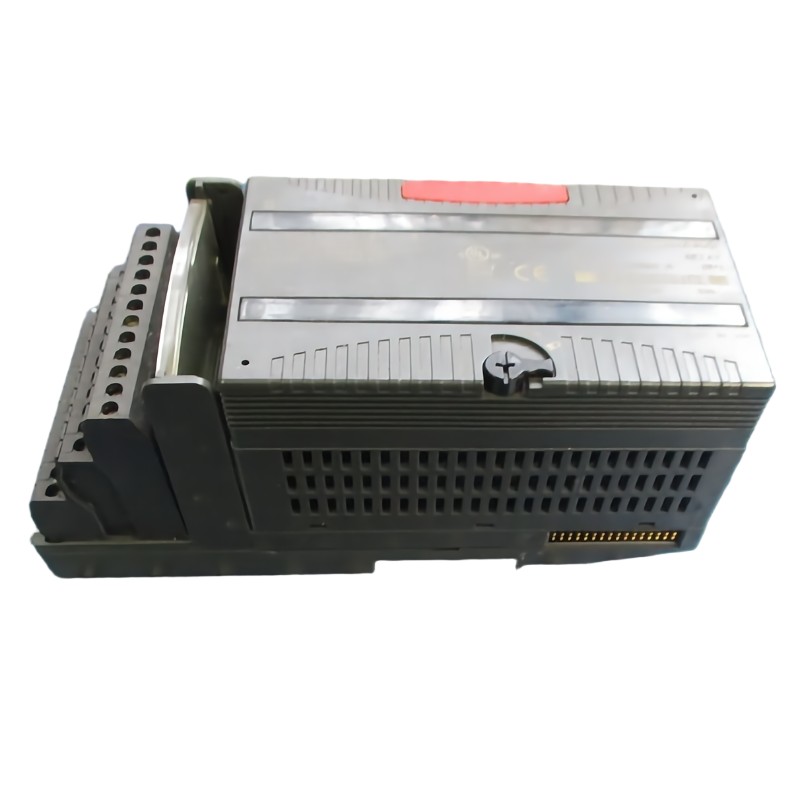

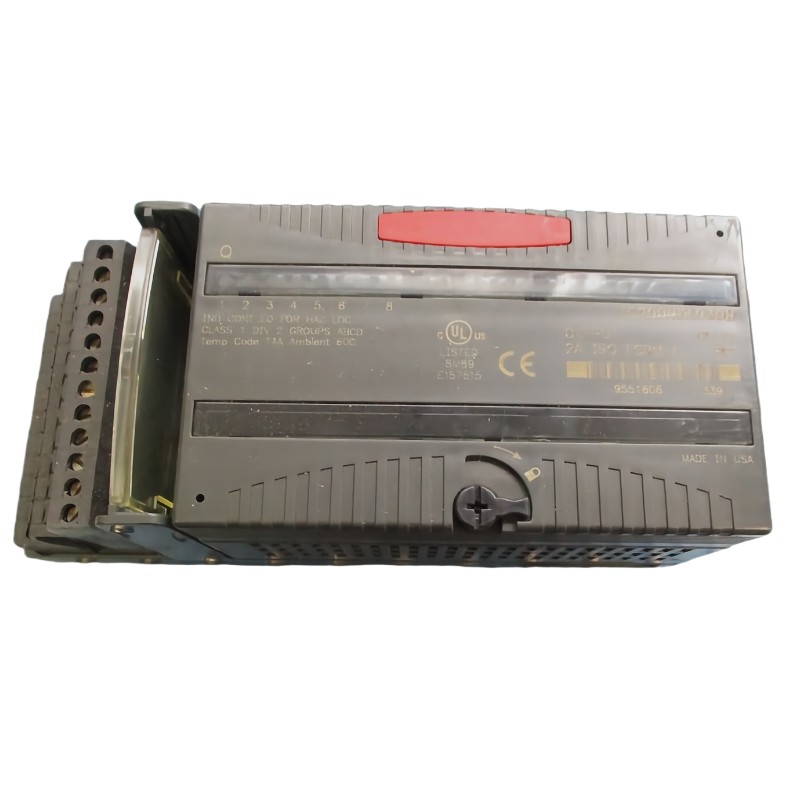

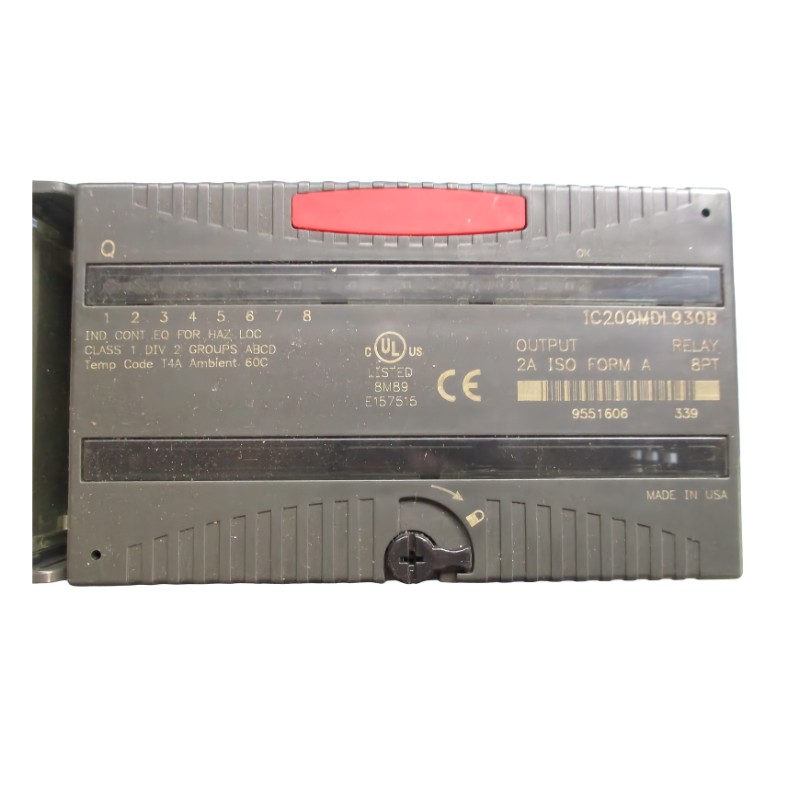

The GE IC200MDL930 is a highly adaptable VersaMax relay output module designed for industrial control systems requiring flexible switching across both AC and DC loads. Featuring individually isolated Form A relay contacts, this module enables safe and reliable control of diverse field devices including motors, solenoids, alarms, and lighting systems.
Unlike standard transistor outputs, the IC200MDL930 provides true dry contact switching, allowing it to operate across multiple voltage ranges without being tied to a specific supply. This makes it an excellent choice for mixed-voltage environments and retrofit automation projects where versatility and electrical isolation are critical.
Technical Specifications
Engineered for multi-voltage compatibility and rugged industrial use, the IC200MDL930 delivers consistent relay-based switching performance.
| Parameter | Specification |
|---|---|
| Module Type | Relay Output Module |
| Series | GE VersaMax |
| Output Points | 8 individually isolated |
| Output Type | Form A (Normally Open) relay |
| Output Voltage | 5–125 VDC / 5–265 VAC |
| Nominal Voltage | 5/24/125 VDC; 120/240 VAC |
| Output Current | 2.0 A per point (resistive) |
| Min Load Current | 10 mA |
| Response Time | 10 ms ON / OFF |
| Switching Frequency | 20 cycles/min (inductive loads) |
| Backplane Current | ~245 mA |
| Isolation | 250 VAC continuous / 1500 VAC (channel-to-channel) |
| Contact Material | Silver alloy |
| Diagnostics | Per-channel LED + OK LED |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~263 × 58 × 28 mm |
| Weight | ~0.24–0.26 kg |
Recommended Related Models
For system expansion or hybrid configurations, the following VersaMax modules are commonly used alongside:
- IC200MDL740 – DC output module (transistor type)
- IC200MDL742 – 32-point DC output module
- IC200MDL640 – 24VDC input module
- IC200CPU005 – VersaMax CPU
- IC200PWR001 – system power supply
Widely Used Industrial Alternatives
When designing comparable control architectures, engineers often evaluate:
- GE IC200MDL331 (AC output module)
- GE IC200MDL744 (multi-voltage DC output module)
- Allen-Bradley 1756-OW16I (relay output module)
- Allen-Bradley 1769-OW16 (CompactLogix relay output)
