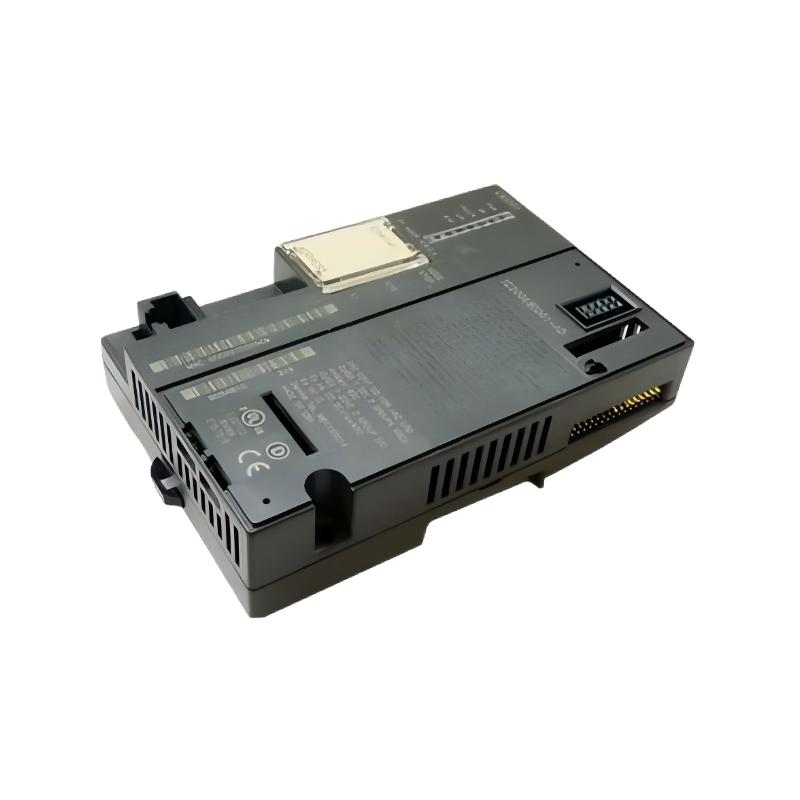

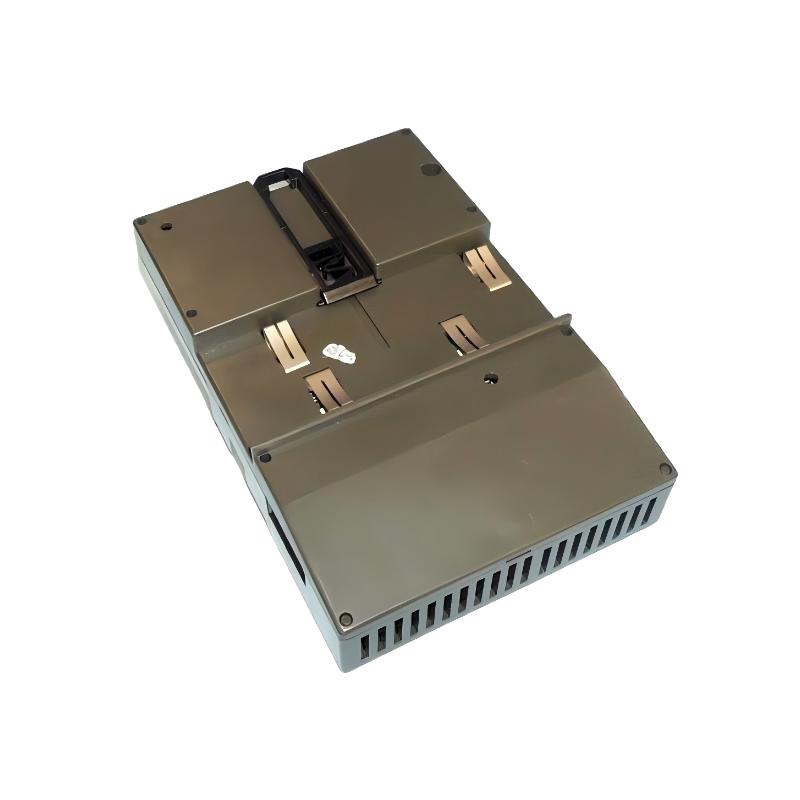

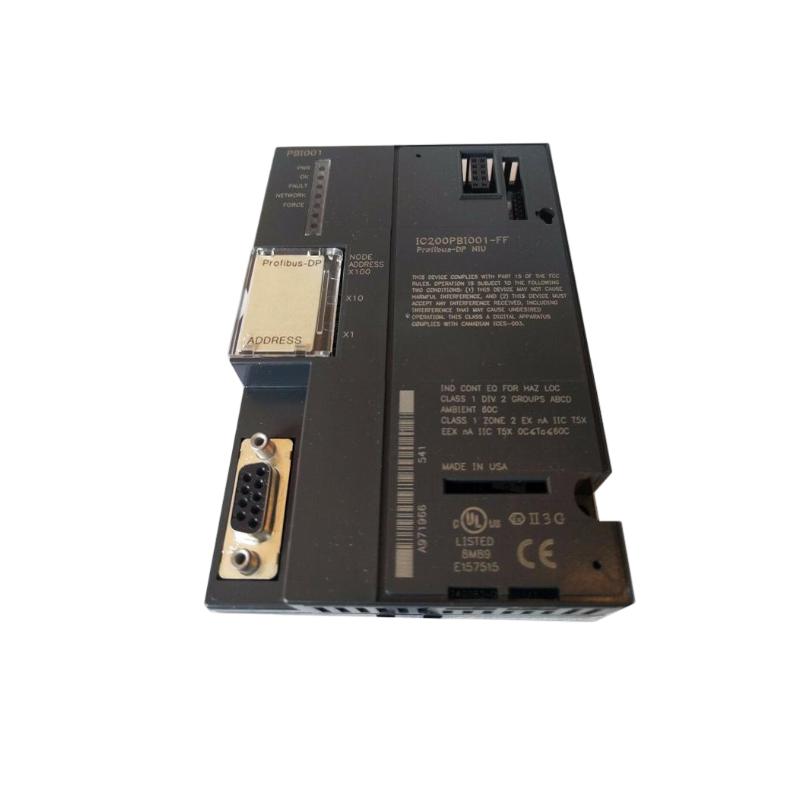

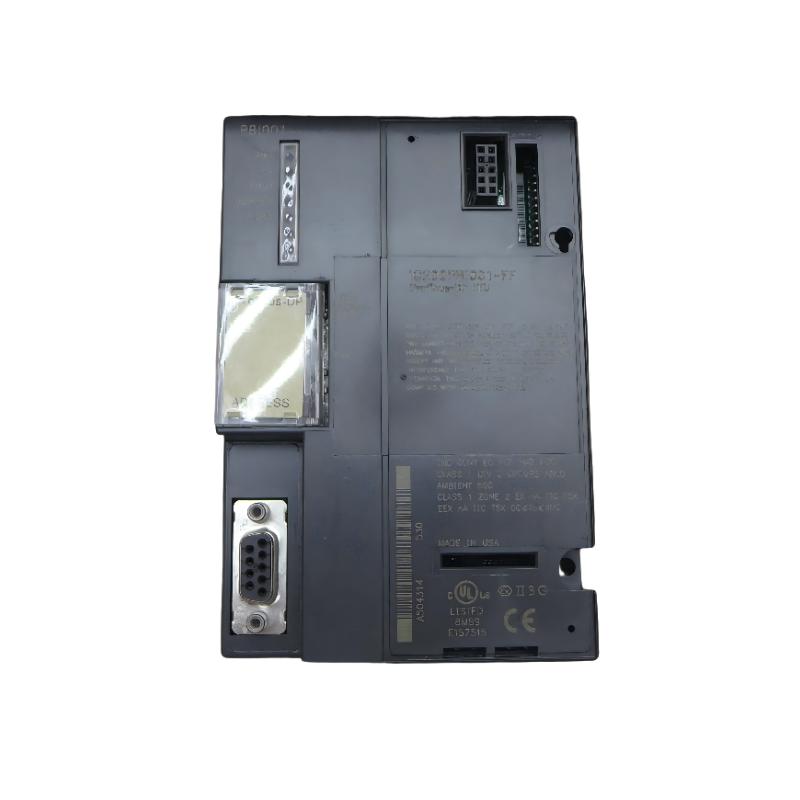

The GE IC200PBI001 is a powerful VersaMax Profibus-DP communication module designed to seamlessly connect distributed I/O systems to high-speed industrial fieldbus networks. Acting as a Network Interface Unit (NIU), it enables real-time data exchange between PLC systems and up to 125 Profibus slave devices.
Engineered for modern automation environments, this module offloads communication tasks from the main controller, improving system efficiency while ensuring deterministic and reliable data transmission across complex industrial networks.
Technical Specifications
The IC200PBI001 is optimized for high-speed communication and stable distributed I/O control.
| Parameter | Specification |
|---|---|
| Module Type | Communication Module (Profibus-DP NIU) |
| Series | GE VersaMax |
| Communication Protocol | Profibus-DP |
| Data Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| Max Devices Supported | 125 slave devices |
| I/O Data Capacity | Up to 375 bytes (max 244 input / 244 output) |
| Address Range | 1–125 configurable |
| Backplane Current | ~100–250 mA @ 5VDC |
| Power Supply | Via VersaMax backplane |
| Indicators | OK, Bus Fault, System Fault, Network Activity LEDs |
| Mounting | DIN rail / panel mount |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~110 × 66.8 × 50 mm |
| Weight | ~0.26 kg |
(Typical industrial reference weight consolidated from multiple listings)
Recommended Related Models
For building a complete and scalable VersaMax communication system:
- IC200CPU005 – VersaMax CPU module
- IC200PWR001 – system power supply
- IC200MDL640 – 24VDC input module
- IC200MDL742 – 32-point output module
- IC200GBI001 – Genius bus interface module
Comparable Industrial Communication Modules
For similar networking architectures, engineers often consider:
- Allen-Bradley 1756-DNB (DeviceNet communication module)
- Allen-Bradley 1756-EN2T (EtherNet/IP module)
- GE IC200PNS002 (PROFINET interface module)
- GE IC200GBI001 (Genius network interface)
