Introduction

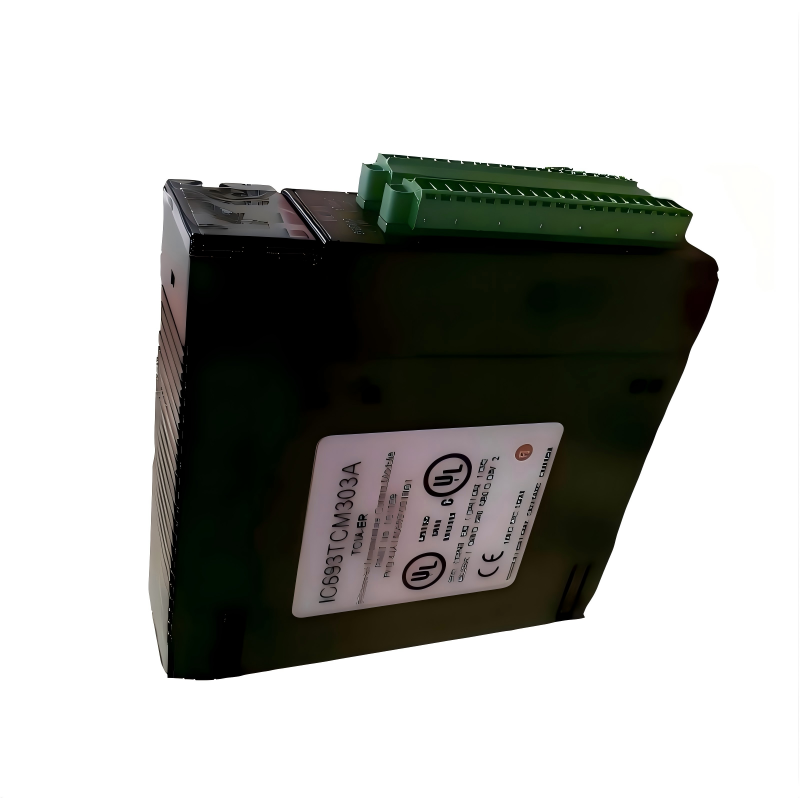

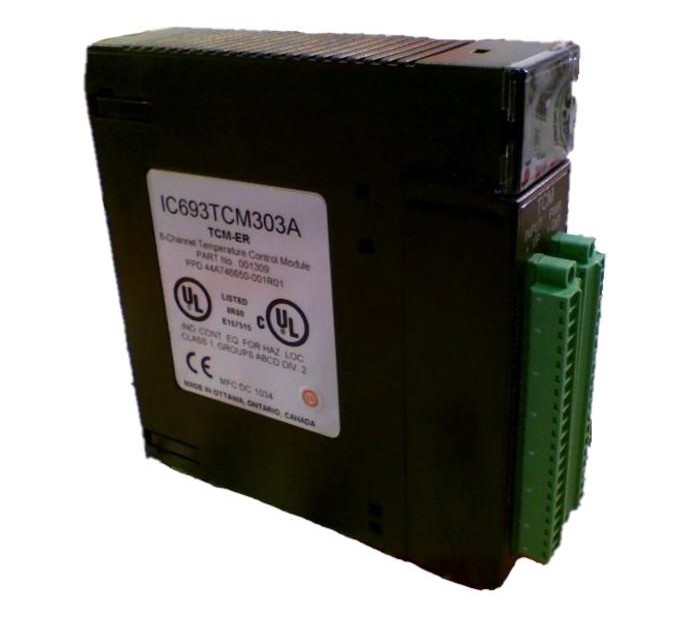

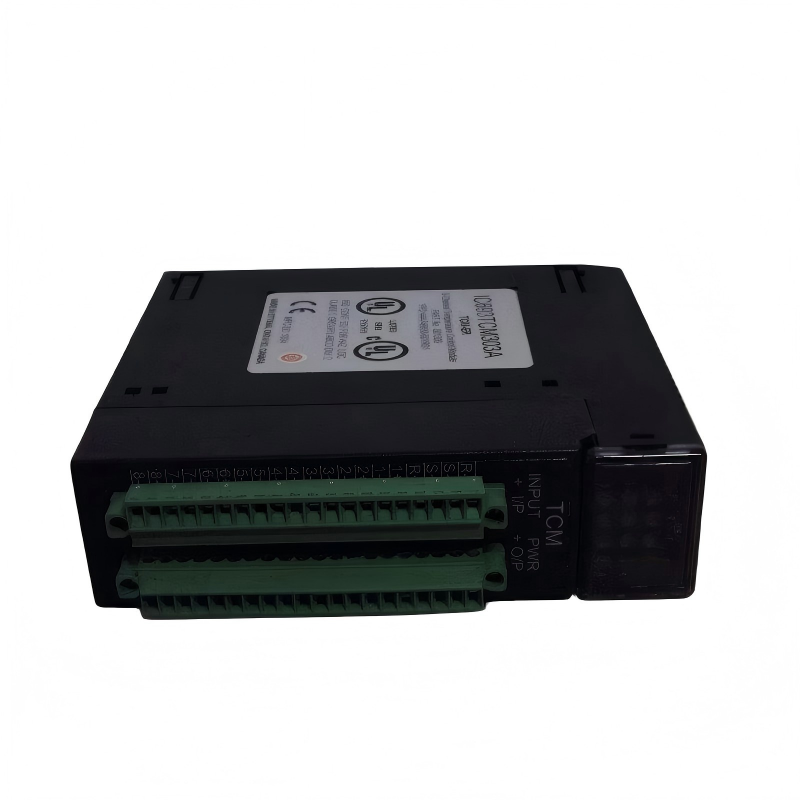

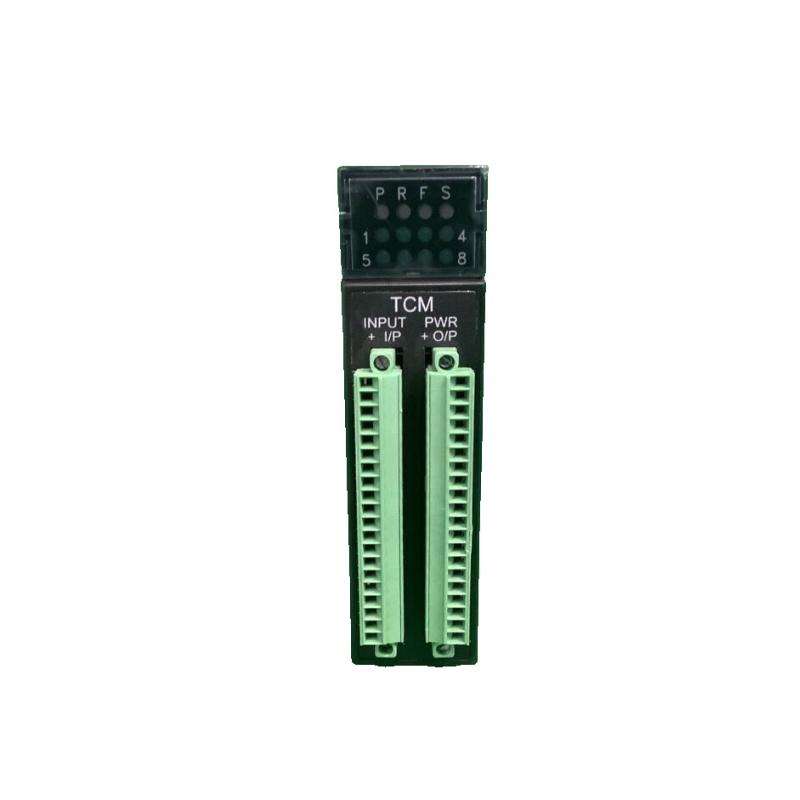

The GE IC693TCM303 Temperature Control Module is an essential component for temperature regulation in industrial automation systems. This module provides precise and reliable control of temperature-sensitive processes, ensuring that systems operate within optimal parameters. Whether used in heating, cooling, or environmental control applications, the IC693TCM303 integrates seamlessly with GE Series 90-30 PLCs, offering real-time monitoring and control of temperature variables. With its compact design and cost-effective performance, this module is an ideal choice for industries that require high accuracy in temperature management.

Technical Specifications

Feature	Details
Dimensions (L x W x H)	152 mm x 120 mm x 100 mm
Shipping Weight	0.34 kg (0.75 lb)
Temperature Control	Precise temperature regulation
Sensor Compatibility	RTD (Resistance Temperature Detector), Thermocouple
Operating Temperature	-20°C to +70°C
Power Supply	5V DC (standard for GE Series 90-30 PLC)
Compatibility	Compatible with GE Series 90-30 PLCs

Applications

The GE IC693TCM303 Temperature Control Module is designed for use in GE’s Series 90-30 PLC systems, providing precise and reliable temperature control for a wide range of industrial applications. This module is ideal for managing temperature-sensitive processes in industries such as food and beverage, pharmaceuticals, HVAC, and process control. The IC693TCM303 enables accurate monitoring and adjustment of temperature variables, ensuring that systems maintain optimal operating conditions for sensitive equipment or processes. Its high versatility makes it suitable for controlling temperature in ovens, chillers, mixers, and other temperature-dependent systems.

Advantages

Precise Temperature Control: The IC693TCM303 offers high accuracy in temperature monitoring and regulation, ensuring that temperature-sensitive processes are maintained within required parameters.
Seamless Integration: Fully compatible with GE Series 90-30 PLCs, the module integrates easily into your existing control system for efficient temperature management.
Compact Design: With its compact dimensions (152 mm x 120 mm x 100 mm), the IC693TCM303 fits easily into control panels, offering a space-efficient solution for temperature control applications.
Real-Time Monitoring: The module supports real-time temperature data acquisition, providing continuous feedback on the system’s temperature conditions to optimize performance.
Versatile Applications: The IC693TCM303 is ideal for a wide variety of applications, including temperature regulation in industrial machinery, heating systems, and environmental control in laboratories or manufacturing processes.
Cost-Effective: Offering reliable temperature control at an affordable price, the IC693TCM303 provides an excellent value for industrial automation systems where temperature management is crucial.

Technical FAQs

What types of temperature sensors can be used with the IC693TCM303?
- The IC693TCM303 is compatible with a variety of temperature sensors, including RTDs (Resistance Temperature Detectors) and thermocouples, enabling flexible temperature measurement options.
How does the IC693TCM303 control temperature?
- The module works by continuously monitoring the temperature from connected sensors and adjusting control outputs (such as heating or cooling elements) to maintain the desired temperature setpoint.
What is the operating temperature range of the IC693TCM303?
- The IC693TCM303 operates within a temperature range of -20°C to +70°C, making it suitable for most industrial environments.
Can the IC693TCM303 be used in both heating and cooling applications?
- Yes, the IC693TCM303 can be configured for both heating and cooling applications, providing versatile control for a wide range of temperature-dependent systems.
What types of processes are best suited for the IC693TCM303?
- The module is ideal for controlling temperature in processes that require precise temperature regulation, such as heating systems, refrigeration, ovens, mixers, and laboratories.
Is the IC693TCM303 easy to integrate with a GE Series 90-30 PLC system?
- Yes, the module is designed for seamless integration with GE Series 90-30 PLCs, requiring minimal configuration and allowing for quick deployment in existing automation systems.
Can the IC693TCM303 provide real-time temperature data?
- Yes, the IC693TCM303 offers real-time temperature monitoring, ensuring that operators can make adjustments as necessary to maintain optimal system performance.
What is the power supply requirement for the IC693TCM303?
- The IC693TCM303 operates with a standard 5V DC power supply, which is compatible with other GE Series 90-30 modules.
How is temperature data displayed in the IC693TCM303?
- The module can be monitored and controlled via the PLC’s user interface or connected programming software, where real-time temperature data is displayed and control settings can be adjusted.
What is the shipping weight of the IC693TCM303?
