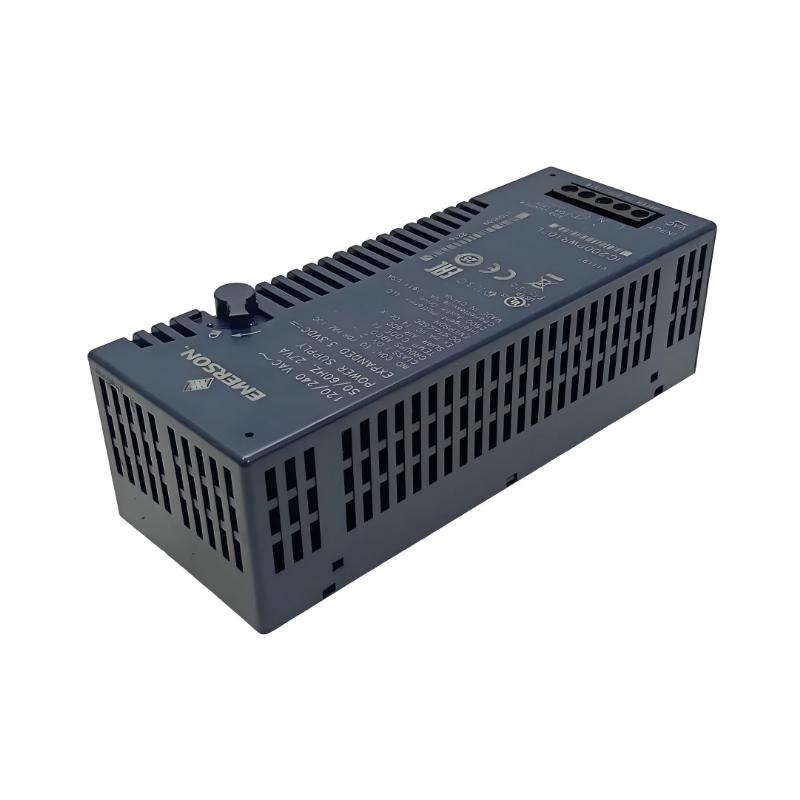

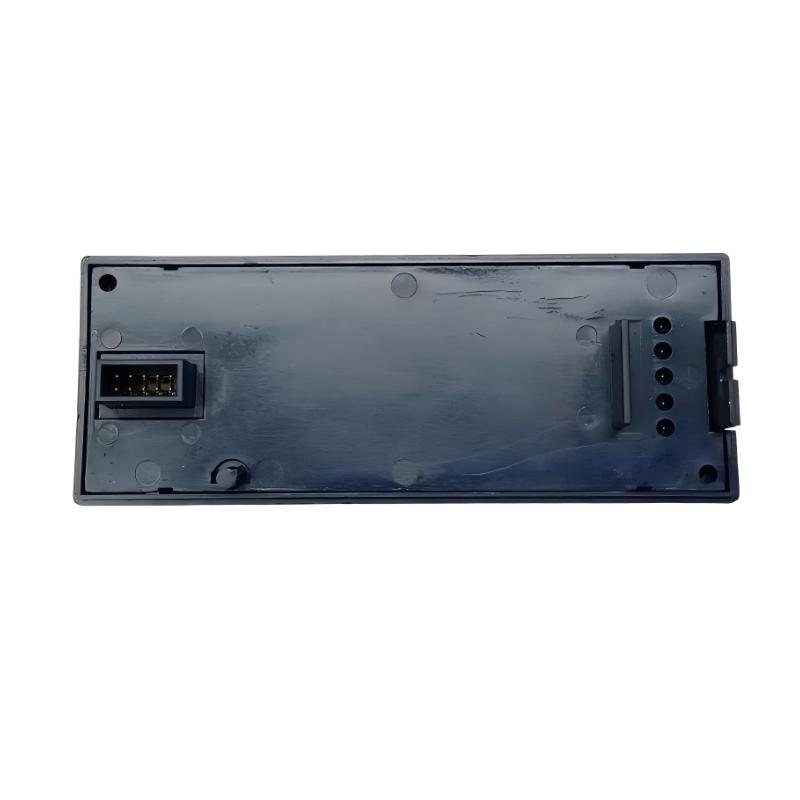

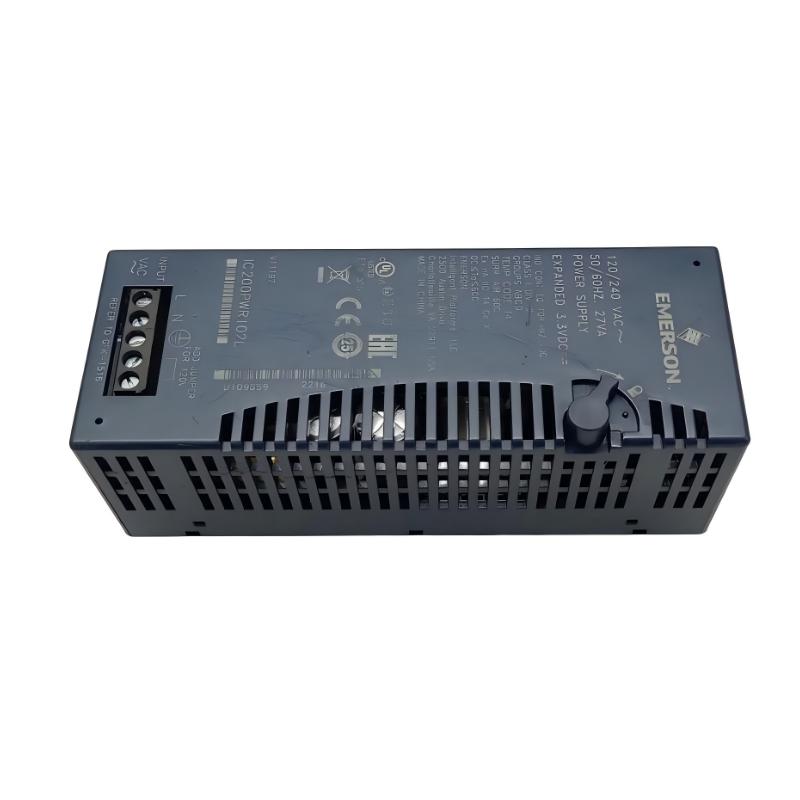

The GE IC200PWP102 is an expanded VersaMax power supply module designed to provide stable and distributed backplane power for PLC systems, including CPUs, NIUs (Network Interface Units), and I/O modules. It plays a critical role in ensuring consistent voltage delivery in modular automation architectures where system scalability and power stability are essential.
Engineered for industrial-grade reliability, this module supports both standard and expanded configurations, making it ideal for larger VersaMax installations requiring additional power capacity and improved load distribution.
Technical Specifications
The IC200PWP102 is built to deliver regulated DC power to the VersaMax backplane with strong protection and stable performance.
| Parameter | Specification |
|---|---|
| Module Type | Expanded Power Supply Module |
| Series | GE VersaMax |
| Input Voltage | 85–132 VAC / 176–264 VAC |
| Nominal Voltage | 120 VAC / 240 VAC |
| Input Frequency | 47–63 Hz |
| Output Voltage | 5 VDC and 3.3 VDC |
| Total Output Current | 1.5 A max |
| 5V Output Current | Up to 1.5 A |
| 3.3V Output Current | Up to 1.0 A |
| Input Power | ~27 VA |
| Protection | Short circuit & overload protection |

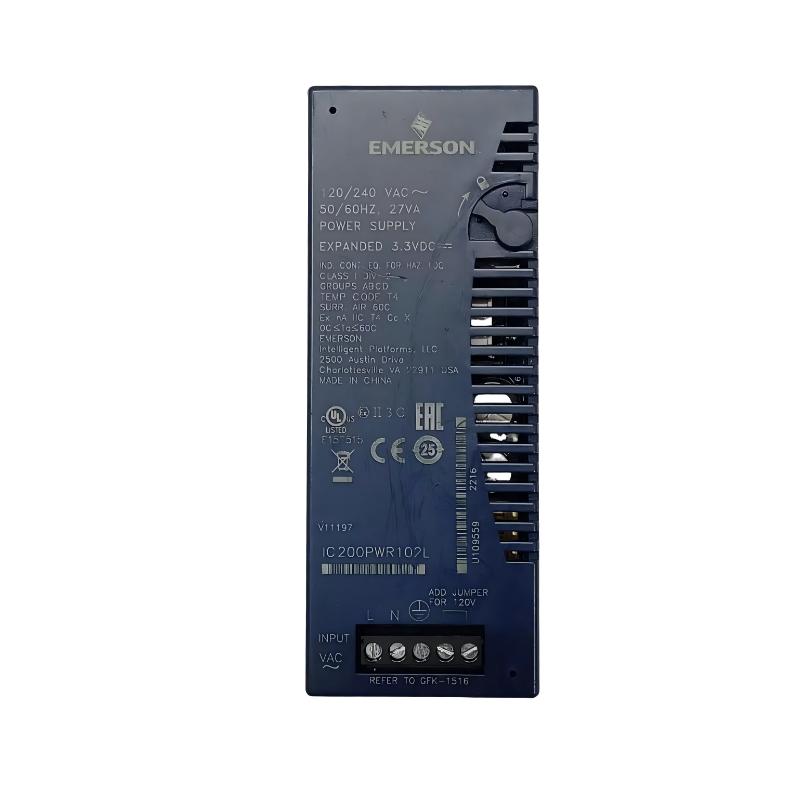

| Configuration | Jumper selectable 120/240 VAC |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~133 × 49 × 39 mm |
| Weight | ~0.2–0.4 kg |
Recommended Related Models
To build a complete VersaMax power and control system, the following modules are commonly used:
- IC200PWR102 – standard VersaMax power supply module
- IC200CPU005 – PLC CPU module
- IC200MDL640 – 24VDC input module
- IC200MDL741 – DC output module
- IC200PBI001 – Profibus communication module
Popular Industrial Alternatives
In similar PLC architectures, engineers often compare:
- GE IC200PWR102 standard power supply
- Siemens SITOP PSU series
- Allen-Bradley 1756-PA75 ControlLogix power supply
- Schneider Electric Modicon power supply modules
