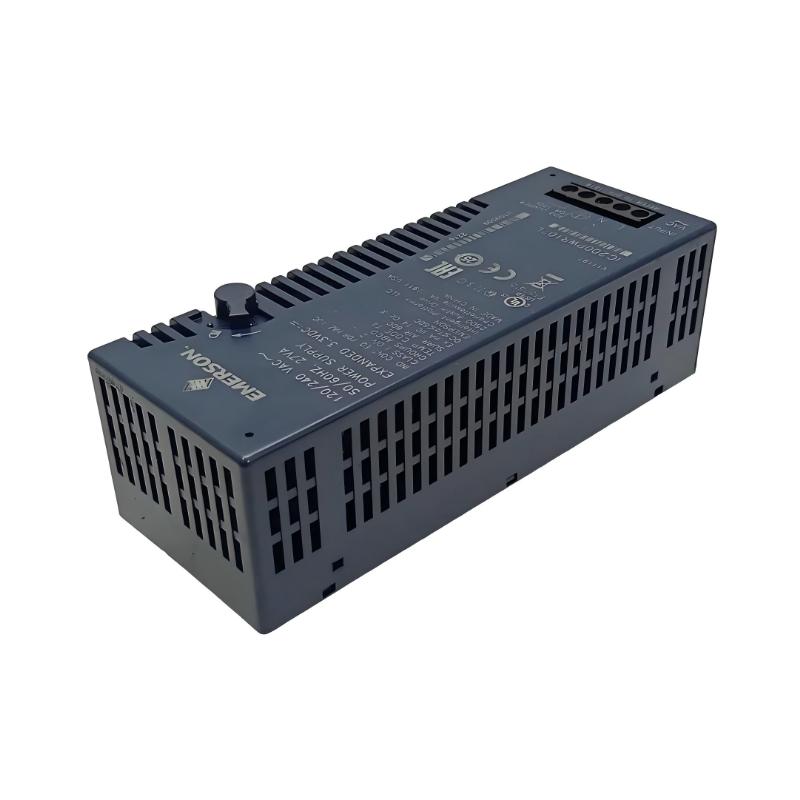

The GE IC200PWR012 is a compact and high-reliability VersaMax isolated DC power supply module designed to deliver stable backplane power for CPUs, NIUs, and distributed I/O systems. It provides both 5VDC and 3.3VDC regulated outputs, making it a critical foundation component in modular PLC architectures.
Engineered for industrial automation environments, this module ensures clean power delivery, strong electrical isolation, and dependable system startup performance—especially in compact or expansion-based VersaMax installations where power stability directly impacts system uptime.
Technical Specifications
The IC200PWR012 is optimized for efficiency, protection, and stable operation in distributed control systems.
| Parameter | Specification |
|---|---|
| Module Type | Isolated DC Power Supply |
| Series | GE VersaMax |
| Input Voltage | 18–30 VDC |
| Input Power | ~11 W |
| Output Voltages | 5 VDC & 3.3 VDC |
| Total Output Current | 1.5 A max |
| 5V Output Current | Up to 1.5 A (shared load dependent) |
| 3.3V Output Current | Up to 1.0 A |
| Inrush Current | ~20 A @ 24 VDC |
| Hold-up Time | ~10 ms |
| Isolation | 1500 VDC primary-to-secondary |
| Protection | Short circuit, overload, reverse polarity |
| Efficiency | ~85–88% typical |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~49.5 × 133.4 × 39.1 mm |
| Weight | ~0.2–1.36 kg (varies by revision) |
Recommended Related Models
For complete VersaMax system design and expansion, the IC200PWR012 is commonly paired with:
- IC200CPU005 – VersaMax CPU module
- IC200PWR102 – standard AC/DC power supply variant
- IC200MDL640 – 24VDC input module
- IC200MDL741 – DC output module
- IC200PBI001 – Profibus communication module
Popular Industrial Alternatives
In similar PLC architectures, engineers often evaluate:
- GE IC200PWR102 (expanded AC input power supply)
- Siemens SITOP PSU series
- Allen-Bradley 1756-PA75 ControlLogix power supply
- Schneider Electric Modicon power modules
