Brand:Yokogawa Electric Item No.:A2SAP105 Product Origin:Japan Product Dimensions:130 x 12.8 x 40 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

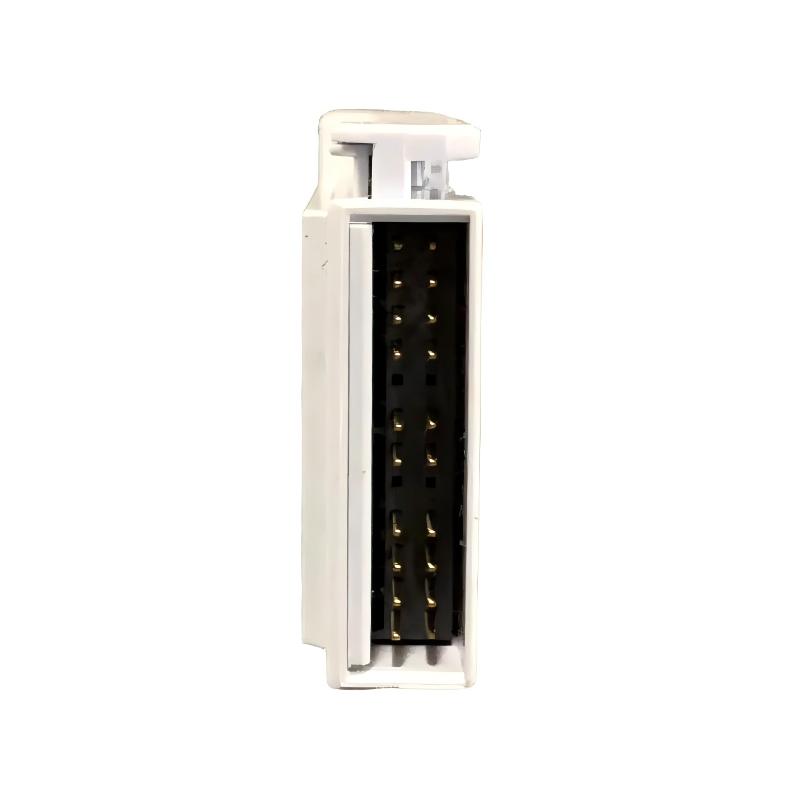

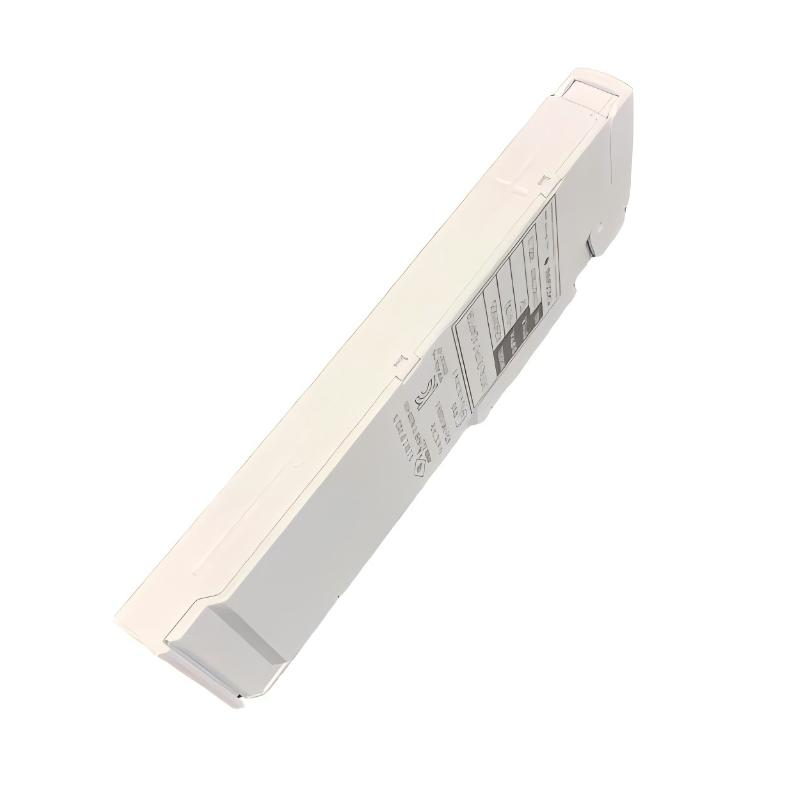

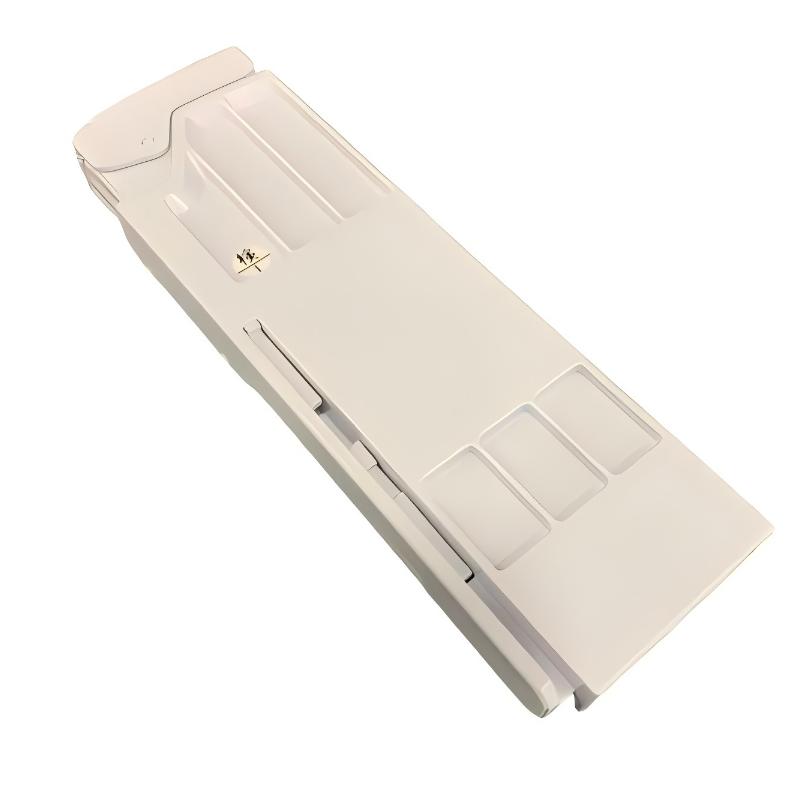

The Yokogawa A2SAP105 Pulse Input Signal Adapter provides reliable conversion and input of pulse signals for Yokogawa automation systems. Its compact, lightweight design allows for seamless integration into distributed I/O networks, enabling accurate monitoring of flow meters, encoders, and other pulsed devices. Ideal for system expansions or new installations, the module ensures dependable signal acquisition with LED diagnostics and industrial-grade durability.
Technical Specifications
Parameter
Specification
Model
A2SAP105
Type
Pulse Input Signal Adapter
Dimensions
130 × 12.8 × 40 mm
Weight
0.1 kg
Signal Input
TTL, Contact Closure, Pulse Signals
Application
Distributed Industrial Automation
Function
Converts and Inputs Pulse Signals
Recommended Related Models
Model
Product Name
Yokogawa A2SAM105
Current/Voltage Input Adapter
Yokogawa A2SDV105
Digital Output Adapter
Yokogawa A2SMX802
Straight-through I/O Signal Adapter
Yokogawa A2SAP205
High-Speed Pulse Input Adapter
Popular Related Models
Model
Product Name
Yokogawa A2SAP105
Pulse Input Signal Adapter (Alternate)
Yokogawa A2SAM505
Current/Voltage Output Adapter
Yokogawa A2SDV205
Digital Output Signal Adapter
Yokogawa A2SAP305
Advanced Pulse Input Adapter
Applications
• Provides pulse signal input conversion for Yokogawa control systems.
• Industrial automation applications that require pulse counting or monitoring.
• Integration into manufacturing, packaging, and process control systems.
• Retrofits or expansions needing reliable pulse signal acquisition.
• Applications monitoring flow meters, encoders, or other pulsed signals.
Key Advantages
• Converts pulse input signals for seamless integration into Yokogawa systems.
• Compact design fits easily within distributed I/O setups.
• Supports accurate and reliable pulse detection for process automation.
• Simplifies wiring and reduces signal noise in pulse acquisition.
• Rugged design ensures consistent operation in harsh industrial environments.
• Lightweight and space-efficient for dense panel installations.
Technical FAQs
1. What is the primary function of this adapter?
It converts and inputs pulse signals into Yokogawa automation systems for processing.
2. Which systems is it compatible with?
Compatible with Yokogawa DCS and distributed I/O networks requiring pulse input.
3. Can it operate in harsh industrial environments?
Yes, it withstands vibration, electrical noise, and temperature fluctuations.
4. Does it provide diagnostics?
Yes, it offers LED indicators to confirm signal presence and module status.
5. Is it hot-swappable?
Yes, it can generally be added or removed while the system is powered.
6. What types of signals can it handle?
Supports TTL, contact closures, and other standard pulse signal types.
7. Can multiple adapters be used together?
Yes, multiple adapters can expand pulse input capacity in distributed systems.
8. Is programming required?
Yes, configuration is performed via Yokogawa DCS or I/O programming tools.
9. What industries commonly use this module?
Used in oil & gas, power generation, chemical, and manufacturing industries.
10. Does it support high-frequency pulse inputs?
Yes, it is designed for accurate detection of high-speed pulse signals.
