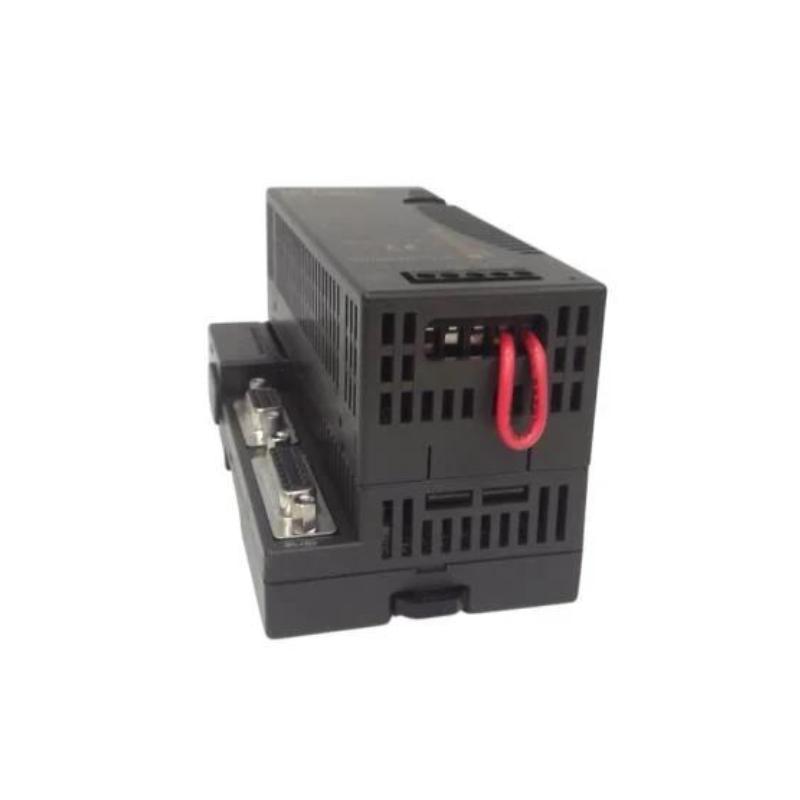

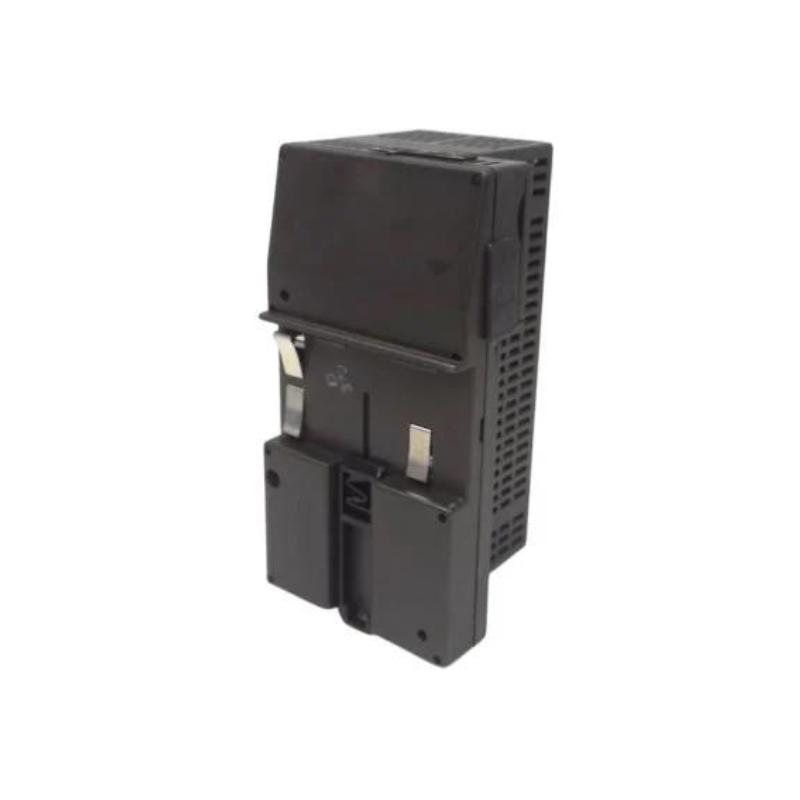

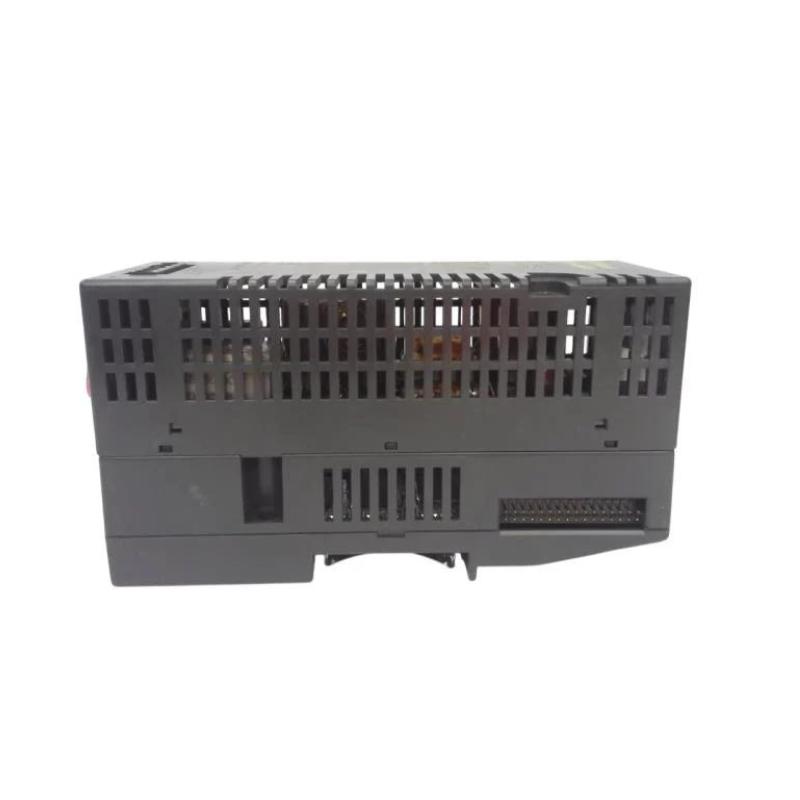

The GE IC200PWR101 is a reliable VersaMax AC power supply module designed to deliver stable backplane power for PLC CPUs, network interface units (NIUs), and I/O modules. Supporting dual AC input (120/240VAC) and providing regulated 5VDC and 3.3VDC outputs, it forms the backbone of many VersaMax control systems.
Widely used in both new installations and legacy upgrades, this module is valued for its flexible deployment as either a primary or supplemental power source, ensuring consistent system performance even in complex distributed architectures.
Technical Specifications
The IC200PWR101 is engineered for dependable industrial power conversion with robust protection and stable output performance.
| Parameter | Specification |
|---|---|
| Module Type | Power Supply Module |
| Series | GE VersaMax |
| Input Voltage | 120/240 VAC (85–132 VAC / 176–264 VAC selectable) |
| Input Frequency | 47–63 Hz |
| Input Power | ~27 VA |
| Output Voltages | 5 VDC & 3.3 VDC |
| Total Output Current | 1.5 A max |
| 5V Output Current | Up to 1.5 A (shared load) |
| 3.3V Output Current | Up to 0.25 A |
| Hold-up Time | ~20 ms |
| Protection | Short circuit & overload |
| Operation Mode | Main or booster (with carrier) |
The module converts AC input to regulated DC outputs used to power CPUs, NIUs, and I/O modules on the backplane .
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~133.4 × 49 × 39 mm |
| Weight | ~0.14–0.3 kg |
Recommended Related Models
For building a complete VersaMax system, the following modules are frequently integrated:
- IC200CPU005 – VersaMax CPU module
- IC200PBI001 – Profibus communication module
- IC200MDL640 – 24VDC input module
- IC200MDL742 – 32-point output module
- IC200PWR012 – DC input power supply variant
Popular VersaMax Power Supply Alternatives
Engineers often compare the IC200PWR101 with:
- IC200PWR102 – expanded power supply with higher capacity
- IC200PWR012 – DC input power supply module
- IC200PWP102 – extended power distribution module
- Allen-Bradley 1756-PA75 – ControlLogix power supply
- Siemens SITOP PSU series
