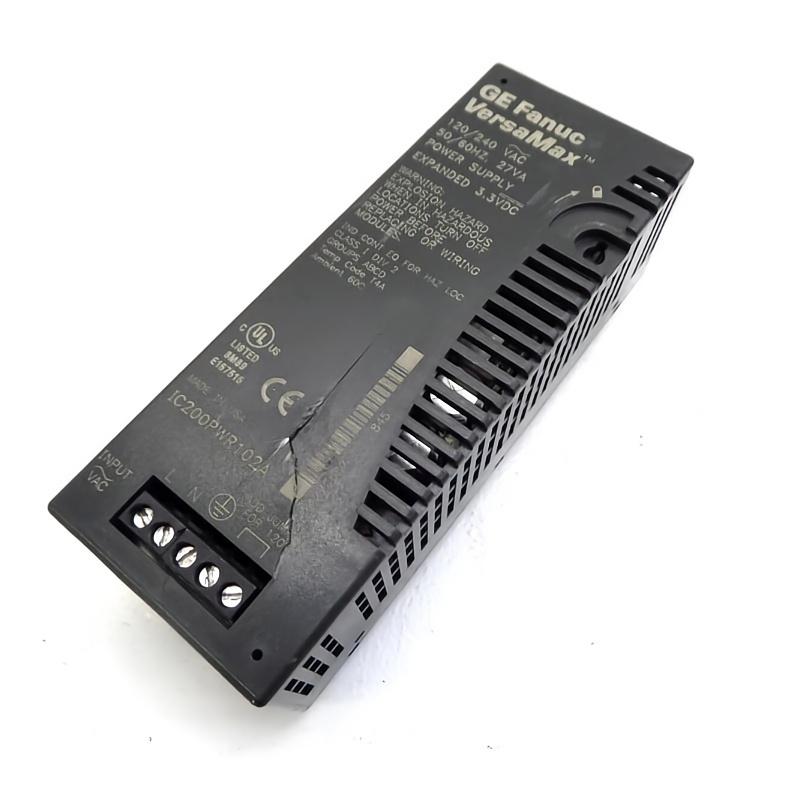

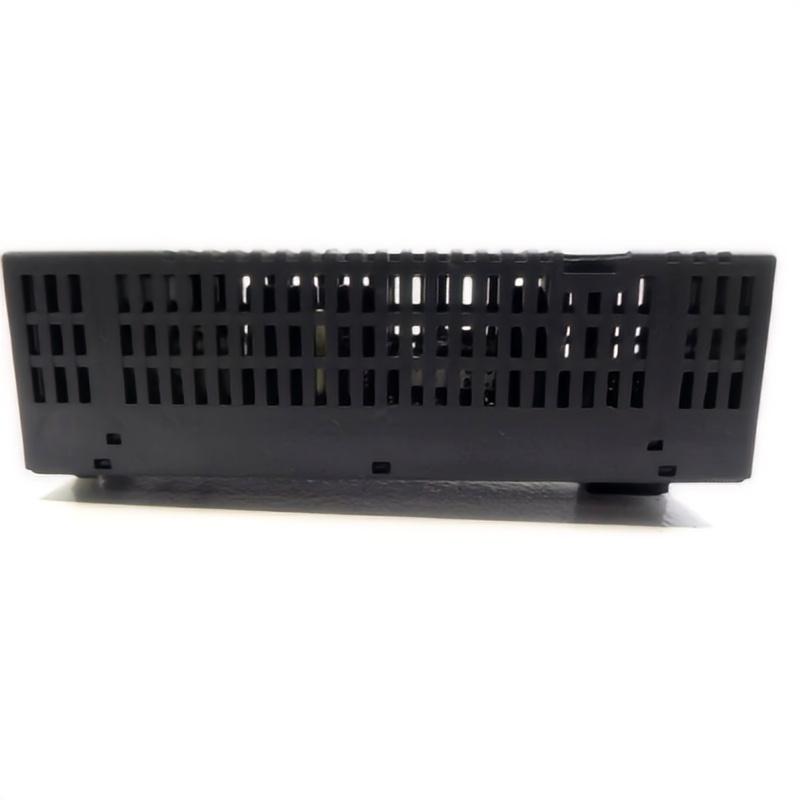

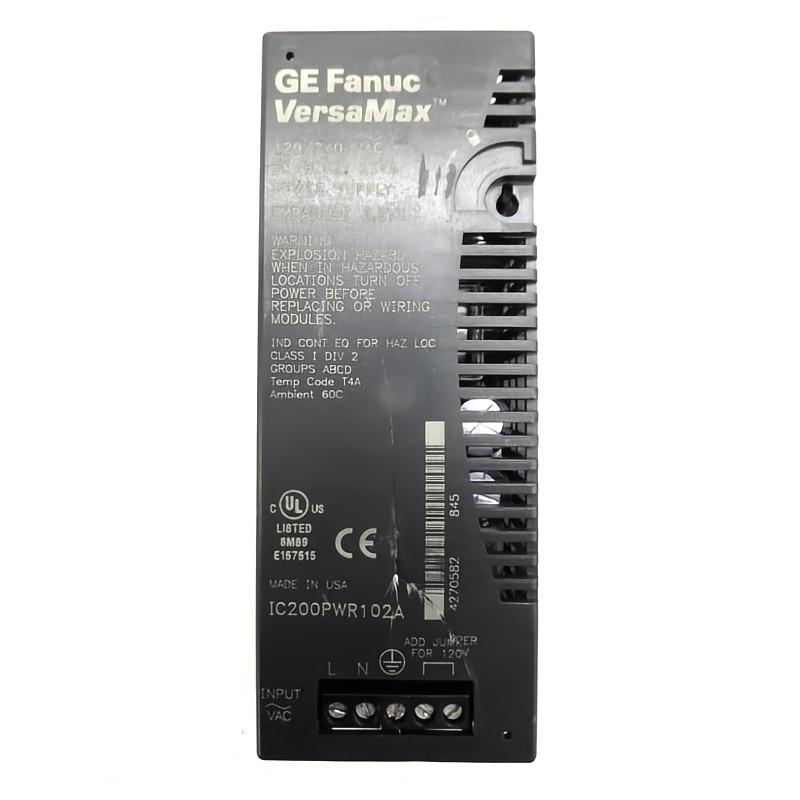

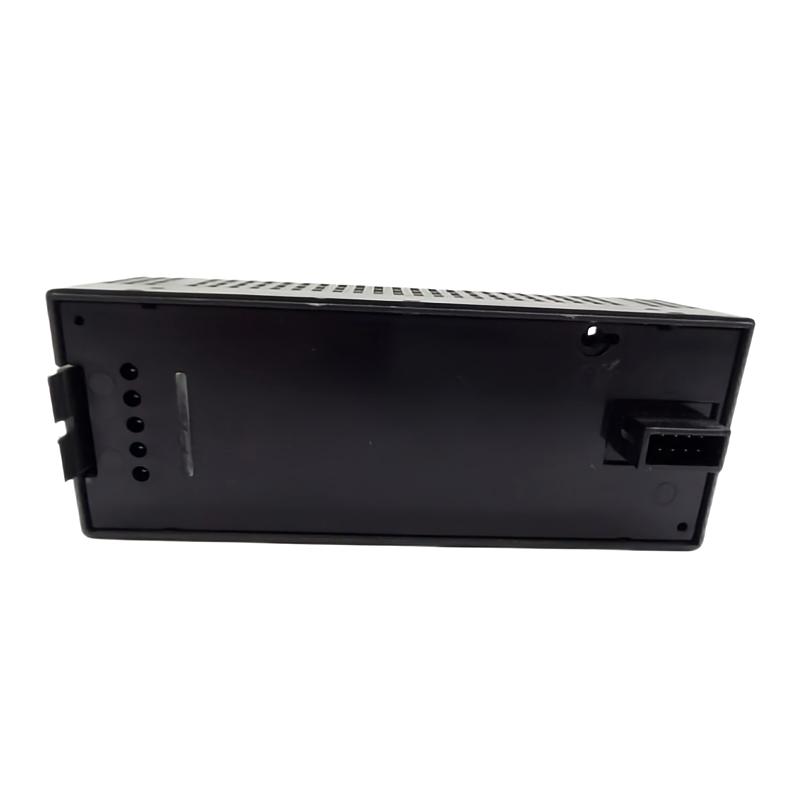

The GE IC200PWR102 is a widely deployed VersaMax expanded power supply module designed to deliver stable and scalable backplane power for PLC systems. Supporting both 120VAC and 240VAC inputs, it provides regulated 5VDC and 3.3VDC outputs to ensure reliable operation of CPUs, network interface units (NIUs), and I/O modules.
What sets this module apart is its dual-role capability—it can function as both a primary power source and a supplemental (booster) power supply in larger distributed architectures. This flexibility makes it a preferred choice for engineers building scalable and high-availability automation systems.
Technical Specifications
The IC200PWR102 is engineered for consistent power delivery, industrial durability, and flexible system integration.
| Parameter | Specification |
|---|---|
| Module Type | Expanded Power Supply Module |
| Series | GE VersaMax |
| Input Voltage | 85–132 VAC / 176–264 VAC |
| Nominal Voltage | 120 VAC / 240 VAC |
| Input Frequency | 47–63 Hz |
| Input Power | 27 VA |
| Output Voltages | 5 VDC & 3.3 VDC |
| Total Output Current | 1.5 A max |
| 5V Output Current | Up to 1.5 A |
| 3.3V Output Current | Up to 1.0 A |
| Hold-up Time | ~20 ms |
| Protection | Short circuit & overload protection |
| Configuration | Jumper selectable voltage |
The module supplies regulated DC power to all backplane-connected components including CPUs, NIUs, and I/O modules, and can also operate as a supplemental unit when installed on a booster carrier
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~133.4 × 49 × 39 mm |
| Weight | ~1.0–2.0 kg |
Recommended Related Models
To build a complete VersaMax control architecture, the following modules are commonly integrated:
- IC200CPU005 – VersaMax CPU module
- IC200PBI001 – Profibus communication module
- IC200MDL640 – 24VDC input module
- IC200MDL742 – 32-point output module
- IC200PWR012 – DC input power supply module
Commonly Used Industrial Alternatives
For similar power supply roles in PLC systems, engineers often evaluate:
- GE IC200PWR101 – standard VersaMax power supply
- GE IC200PWP102 – extended power distribution module
- Allen-Bradley 1756-PA75 – ControlLogix power supply
- Siemens SITOP PSU series
