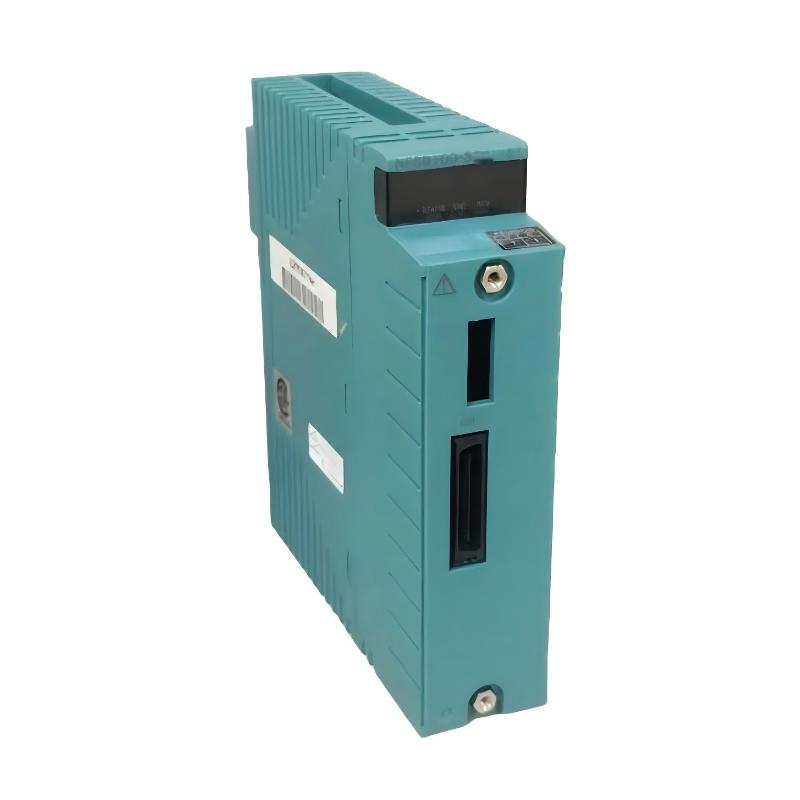

Yokogawa NFSB100-S10/SBT01 SB Bus Repeating Module
Yokogawa NFSB100-S10/SBT01 SB Bus Repeating Module
0.0
Points
Brand:Yokogawa Electric Item No.:NFSB100-S10/SBT01 Product Origin:Japan Product Dimensions:130 x 142.5 x 32.8 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Yokogawa NFSB100-S10/SBT01 SB Bus Repeating Module ensures reliable communication across distributed SB bus networks. Compact and lightweight, it strengthens signals for extended distances, enabling seamless system expansions without compromising data integrity. With LED diagnostics and rugged construction, this module is ideal for demanding industrial environments where robust and consistent communication is critical.
Technical Specifications
Parameter
Specification
Model
NFSB100-S10/SBT01
Type
SB Bus Repeating Module
Dimensions
130 × 142.5 × 32.8 mm
Weight
0.3 kg
Function
Extends and Repeats SB Bus Signals
Application
Distributed Industrial Automation
Communication
SB Bus Digital Network
Recommended Related Models
Model
Product Name
Yokogawa NFPW441-50
Power Module
Yokogawa AAB841-S03/M4A00
Input/Output Module
Yokogawa NFDA4S-00
Terminal Block Module
Yokogawa NFLF111-S00/F9S00
Input/Output Module
Popular Related Models
Model
Product Name
Yokogawa NFSB100-S10/SBT01
SB Bus Repeating Module (Alternate)
Yokogawa NFPW441-50
Power Module
Yokogawa AAB841-S50
Input/Output Module S2 Version
Yokogawa NFDA4S-00
Terminal Block Module
Applications
• Extends communication signals across Yokogawa SB bus networks.
• Industrial automation systems requiring reliable distributed I/O communication.
• Integration into manufacturing, chemical, and process control systems.
• Retrofits or expansions where signal strength or distance is limited.
• Applications needing consistent, low-latency communication between I/O modules.
Key Advantages
• Strengthens and repeats SB bus signals to maintain communication integrity.
• Compact design allows easy installation within distributed I/O systems.
• Ensures reliable data transfer over long cable distances.
• LED indicators provide real-time diagnostics and communication status.
• Simplifies system expansion without compromising signal quality.
• Rugged construction supports operation in harsh industrial environments.
Technical FAQs
1. What is the primary function of this module?
It repeats and strengthens SB bus signals in Yokogawa distributed I/O networks.
2. Which systems is it compatible with?
Compatible with Yokogawa SB bus networks and distributed I/O systems.
3. Can it operate in harsh industrial conditions?
Yes, it is designed to withstand vibration, electrical noise, and temperature extremes.
4. Does it provide diagnostics?
Yes, LEDs indicate bus status and module health.
5. Is the module hot-swappable?
Yes, it can be replaced or added while the system is powered.
6. What types of signals are supported?
Supports SB bus digital communication signals between I/O modules.
7. Can multiple modules be installed together?
Yes, multiple bus repeaters can extend signal range further.
8. Is programming required?
Minimal configuration is needed; primarily plug-and-play within SB bus networks.
9. What industries commonly use this module?
Used in chemical, manufacturing, power generation, and oil & gas industries.
10. Does it reduce communication errors over long distances?
Yes, it maintains signal integrity and reduces data loss on extended bus lines.
