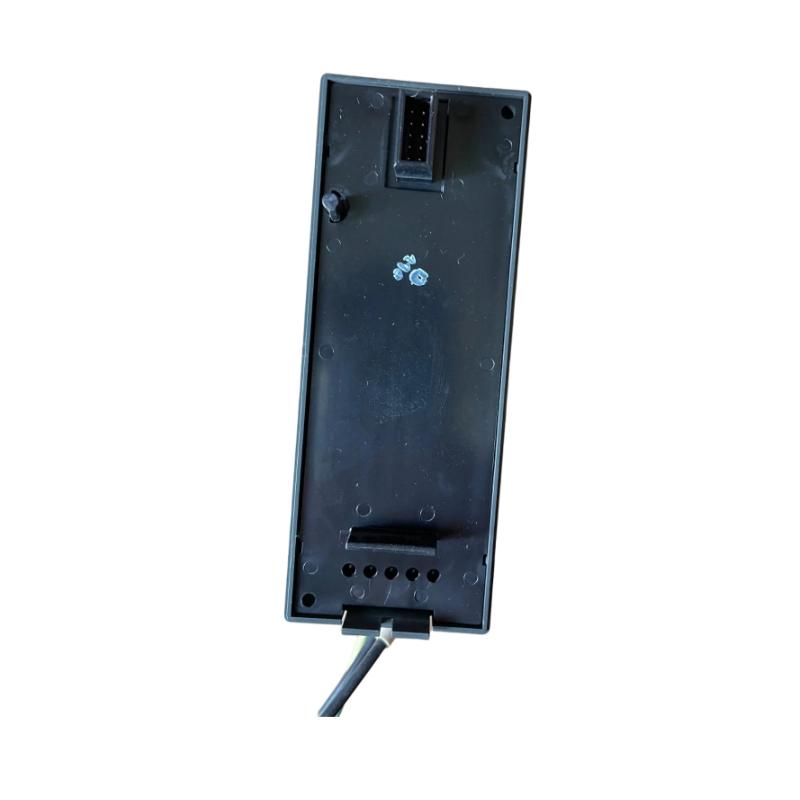

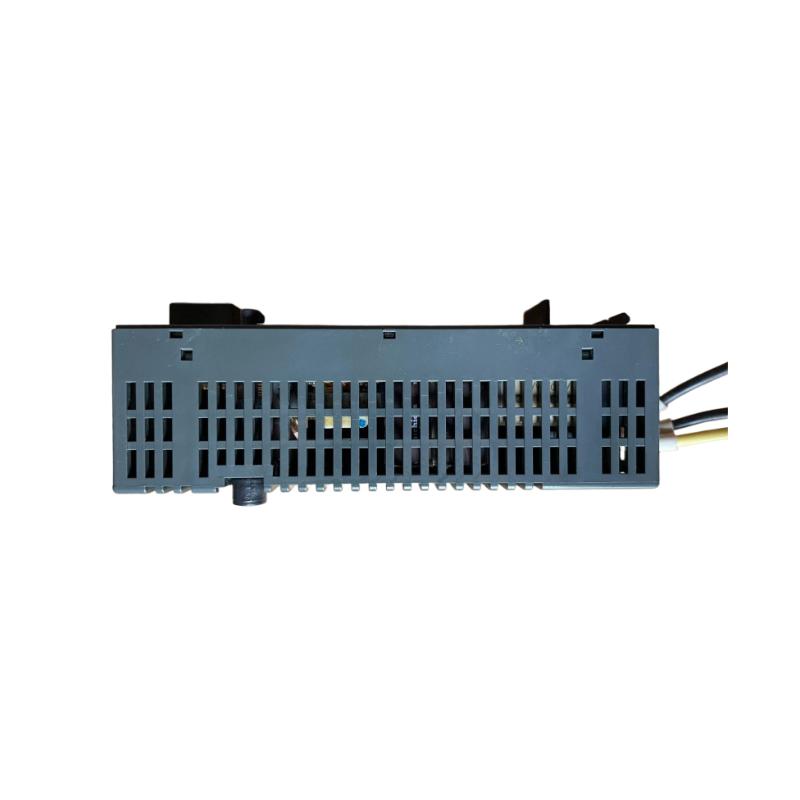

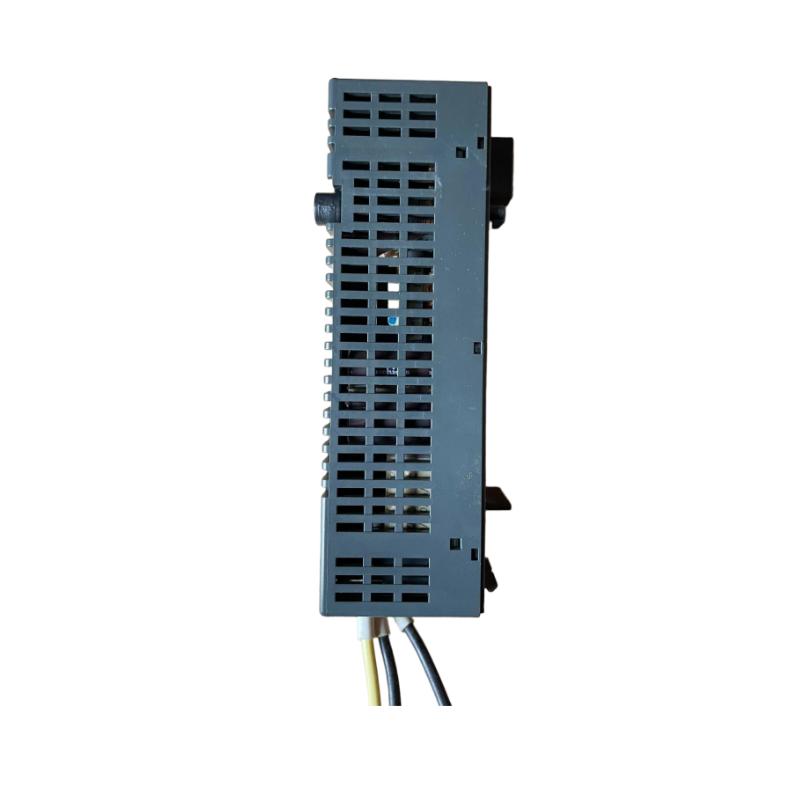

The GE IC200PWR321 is a high-efficiency VersaMax DC power supply module designed to provide stable and isolated backplane power for PLC systems. Built for modern industrial environments, it ensures consistent operation of CPUs, network interface units (NIUs), and I/O modules by delivering regulated low-voltage outputs from a DC input source.
This model is particularly suited for applications where DC-powered control panels are standard, offering improved energy efficiency, compact installation, and reliable performance under continuous operation.
Technical Specifications
The IC200PWR321 is engineered for dependable DC power conversion and long-term industrial use.
| Parameter | Specification |
|---|---|
| Module Type | DC Power Supply Module |
| Series | GE VersaMax |
| Input Voltage | 18–30 VDC |
| Nominal Input | 24 VDC |
| Input Power | ~11–15 W |
| Output Voltages | 5 VDC & 3.3 VDC |
| Total Output Current | 1.5 A max |
| 5V Output Current | Up to 1.5 A (shared load) |
| 3.3V Output Current | Up to 0.5–1.0 A |
| Hold-up Time | ~10 ms |
| Inrush Current | ~20 A @ 24 VDC |
| Isolation | 1500 VDC (input to output) |
| Protection | Short circuit, overload, reverse polarity |
Typical VersaMax DC power modules provide regulated backplane power for CPUs and I/O systems with up to 1.5A total output capacity
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~110 × 66.8 × 50 mm |
| Weight | ~0.2–0.35 kg |
Recommended Related Models
For a complete and scalable VersaMax system, the IC200PWR321 is often used with:
- IC200CPU005 – VersaMax CPU module
- IC200PBI001 – Profibus communication module
- IC200MDL640 – 24VDC input module
- IC200MDL742 – 32-point output module
- IC200PWR101 – AC power supply alternative
Popular VersaMax Power Supply Options
Engineers commonly compare this model with other VersaMax power solutions:
- IC200PWR001 – standard 24VDC power supply
- IC200PWR002 – expanded DC power supply (higher 3.3V capacity)
- IC200PWR102 – AC input expanded power supply
- IC200PWR012 – isolated DC compact power module
