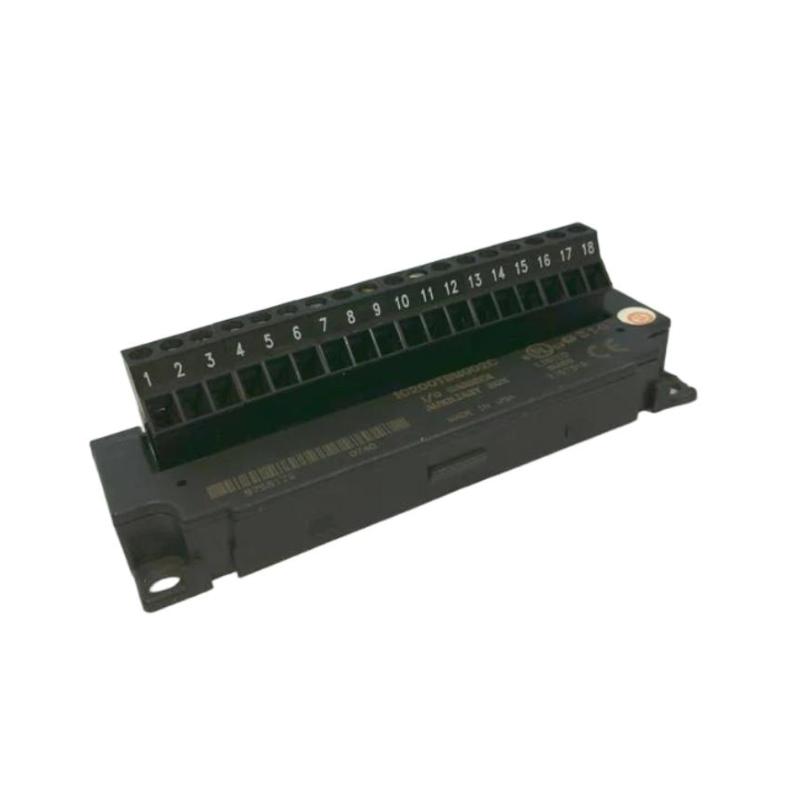

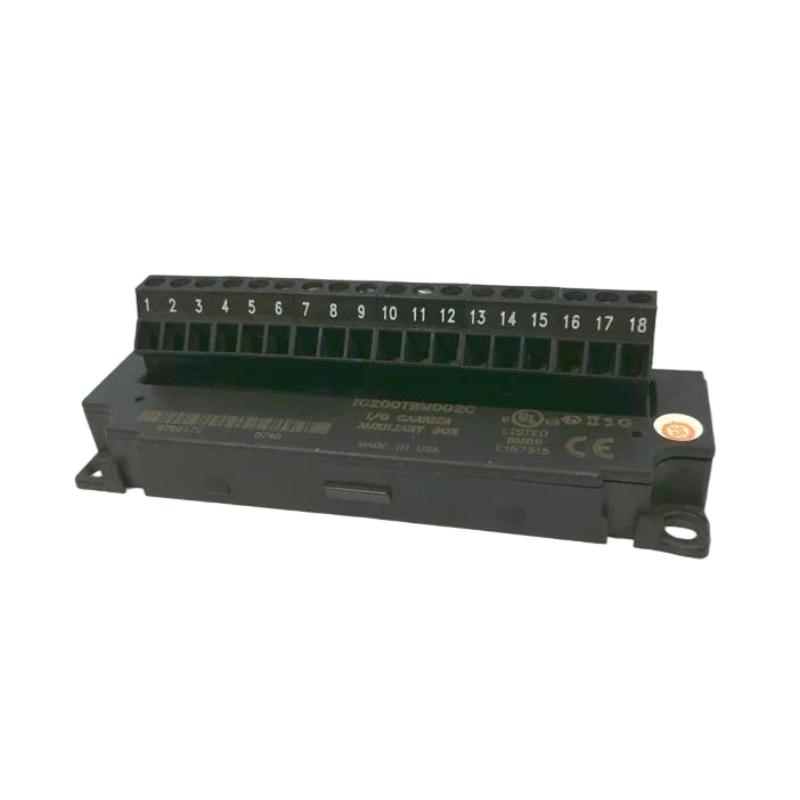

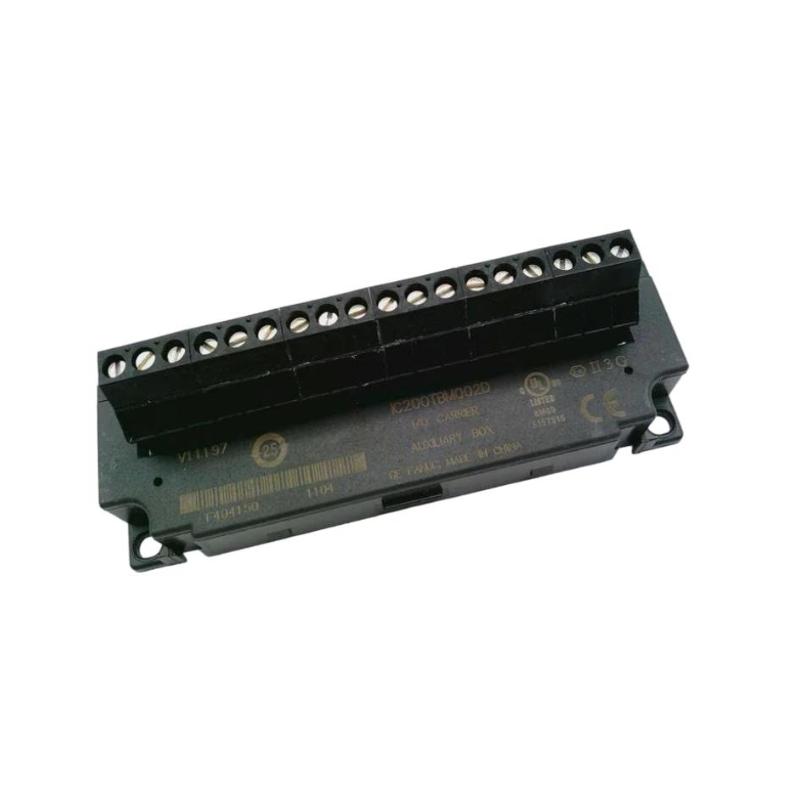

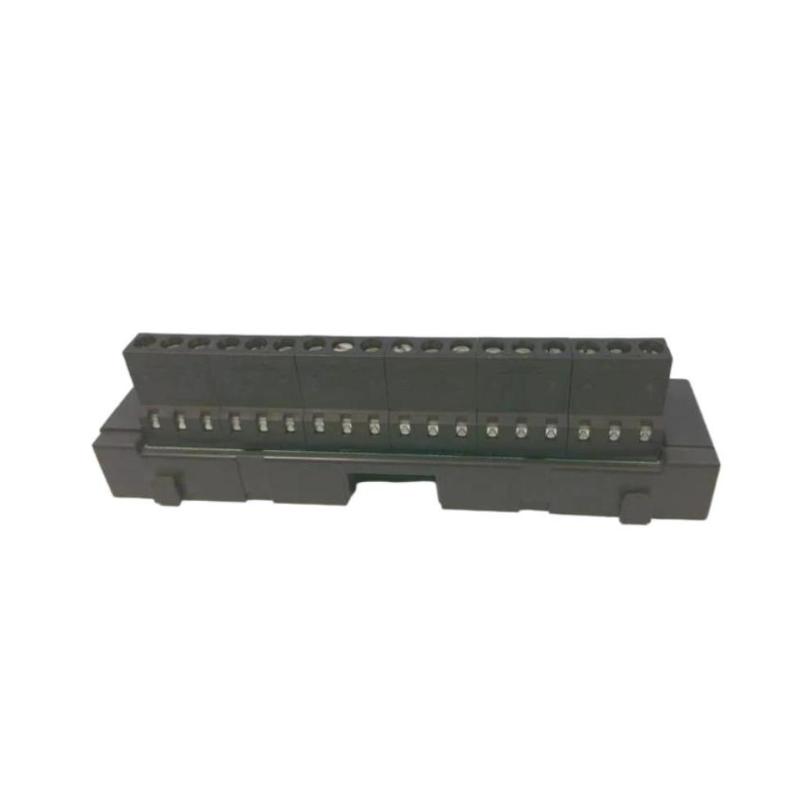

The GE IC200TBM002 is a VersaMax terminal base module designed to provide secure field wiring connections for VersaMax I/O modules. Acting as the physical interface between field devices and the PLC system, it ensures organized, reliable, and maintenance-friendly wiring in industrial control panels.
This module is essential in modular I/O architectures, allowing quick installation and replacement of electronics without disturbing field wiring—making it highly valuable in systems where uptime and serviceability are critical.
Technical Specifications
The IC200TBM002 is engineered for robust field connectivity and easy system integration.
| Parameter | Specification |
|---|---|
| Module Type | Terminal Base Module |
| Series | GE VersaMax |
| Function | Field wiring interface for I/O modules |
| Terminal Type | Screw-type terminals |
| Number of Terminals | 36 terminals (typical configuration) |
| Wiring Support | Discrete I/O and signal connections |
| Mounting | DIN rail |
| Compatibility | VersaMax I/O modules (MDL, analog, etc.) |
| Retention Mechanism | Locking latch for module stability |
| Environmental Rating | Industrial-grade |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~110 × 66.8 × 50 mm |
| Weight | ~0.15–0.2 kg |
(Typical VersaMax terminal base dimensions aligned with module footprint)
Recommended Related Models
For a complete VersaMax I/O setup, the IC200TBM002 is commonly used with:
- IC200MDL640 – 24VDC input module
- IC200MDL741 – DC output module
- IC200MDL742 – 32-point output module
- IC200CPU005 – VersaMax CPU
- IC200PWR101 – power supply module
Common Industrial Alternatives
In similar PLC systems, engineers may also consider:
- GE IC200TBM001 – terminal base variant
- GE IC200TBM005 – spring-clamp terminal base
- Siemens ET200 terminal modules
- Allen-Bradley 1734-TB terminal bases
